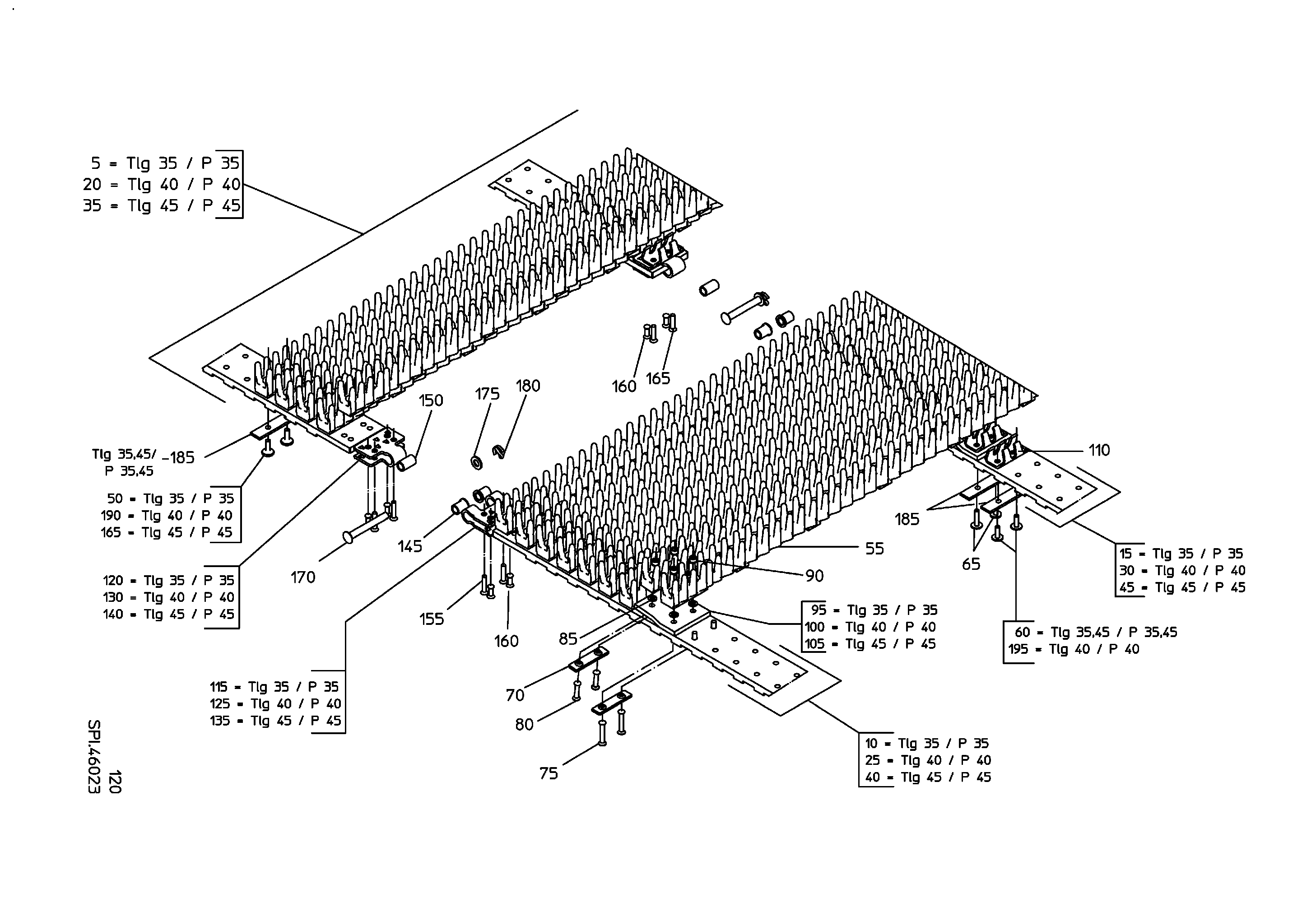

Parts by subassemblies

HELV-WEB H-PB 1631-94-35 w/oHF

Quantity in assembly group: 1 Piece / Pos. 5

OB 93SCA-FALT 60/35

Quantity in assembly group: 2 Piece / Pos. 10

CENTRE BELT 93SCA-FLAT 60/35

Quantity in assembly group: 2 Piece / Pos. 15

FHELV-WEB H-PB1631-82-40 w/oDF

Quantity in assembly group: 1 Piece / Pos. 20

OUTER BELT 81SCA-FLAT 60/40

Quantity in assembly group: 2 Piece / Pos. 25

CENTRE BELT 81SCA-FLAT 60/40

Quantity in assembly group: 2 Piece / Pos. 30

FHELV-WEB H-PB 1631-73-45

Quantity in assembly group: 1 Piece / Pos. 35

BT SCA-FLAT 60/45X72

Quantity in assembly group: 2 Piece / Pos. 40

BT SCA-FLAT 60/45X72

Quantity in assembly group: 2 Piece / Pos. 45

COUNTER-SUNK RIVET 5X20

Quantity in assembly group: 1 Piece / Pos. 50

H-PINTLE BAR 1621

Quantity in assembly group: 1 Piece / Pos. 55

COUNTER-SUNK HOLLOW RIVET 5X19

Quantity in assembly group: 1 Piece / Pos. 60

HALF HOLLOW RIVET 5X21

Quantity in assembly group: 1 Piece / Pos. 65

RIVET PLATE 32/5,3

Quantity in assembly group: 1 Piece / Pos. 70

SHEAR TE RIVET 5X13,5-16,5

Quantity in assembly group: 4 Piece / Pos. 75

SHEAR TENSION RIVET 5X19,5-22,

Quantity in assembly group: 4 Piece / Pos. 80

DISC 5,3 DIN125-GALV

Quantity in assembly group: 16 Piece / Pos. 85

RETAINING RING 5 mm

Quantity in assembly group: 8 Piece / Pos. 90

DROP PIECE P 36

Quantity in assembly group: 2 Piece / Pos. 95

DROP PIECE P 40

Quantity in assembly group: 2 Piece / Pos. 100

DROP PIECE P 45

Quantity in assembly group: 2 Piece / Pos. 105

CLAMP

Quantity in assembly group: 1 Piece / Pos. 110

BT-BIN TYPE2 P35 DBH32 OU

Quantity in assembly group: 3 Piece / Pos. 115

BT-BIN TYPE2 P35 DBH32 IN

Quantity in assembly group: 3 Piece / Pos. 120

BT-BIN TYPE2 P40 DBH32 OU

Quantity in assembly group: 3 Piece / Pos. 125

BT-BIN TYPE2 P40 DBH32 IN

Quantity in assembly group: 3 Piece / Pos. 130

THREADED BUSH 12X8,2X16,5

Quantity in assembly group: 6 Piece / Pos. 145

BUSHING 12X8,2X21

Quantity in assembly group: 3 Piece / Pos. 150

COUNTER-SUNK RIVET 5X24

Quantity in assembly group: 8 Piece / Pos. 155

COUNTER-SUNK RIVET 5X21

Quantity in assembly group: 8 Piece / Pos. 165

COLLAR STUD 7,8X66

Quantity in assembly group: 4 Piece / Pos. 170

FLAT WASHER B8,4 DIN125 -GAL

Quantity in assembly group: 4 Piece / Pos. 175

COTTER PIN 3,2X14 DIN94-GAL

Quantity in assembly group: 4 Piece / Pos. 180

RIVET PLATE 32/5

Quantity in assembly group: 1 Piece / Pos. 185

WIDE HEADED RIVET 5X16

Quantity in assembly group: 1 Piece / Pos. 190

HALF HOLLY RIVET 5X15

Quantity in assembly group: 1 Piece / Pos. 195
