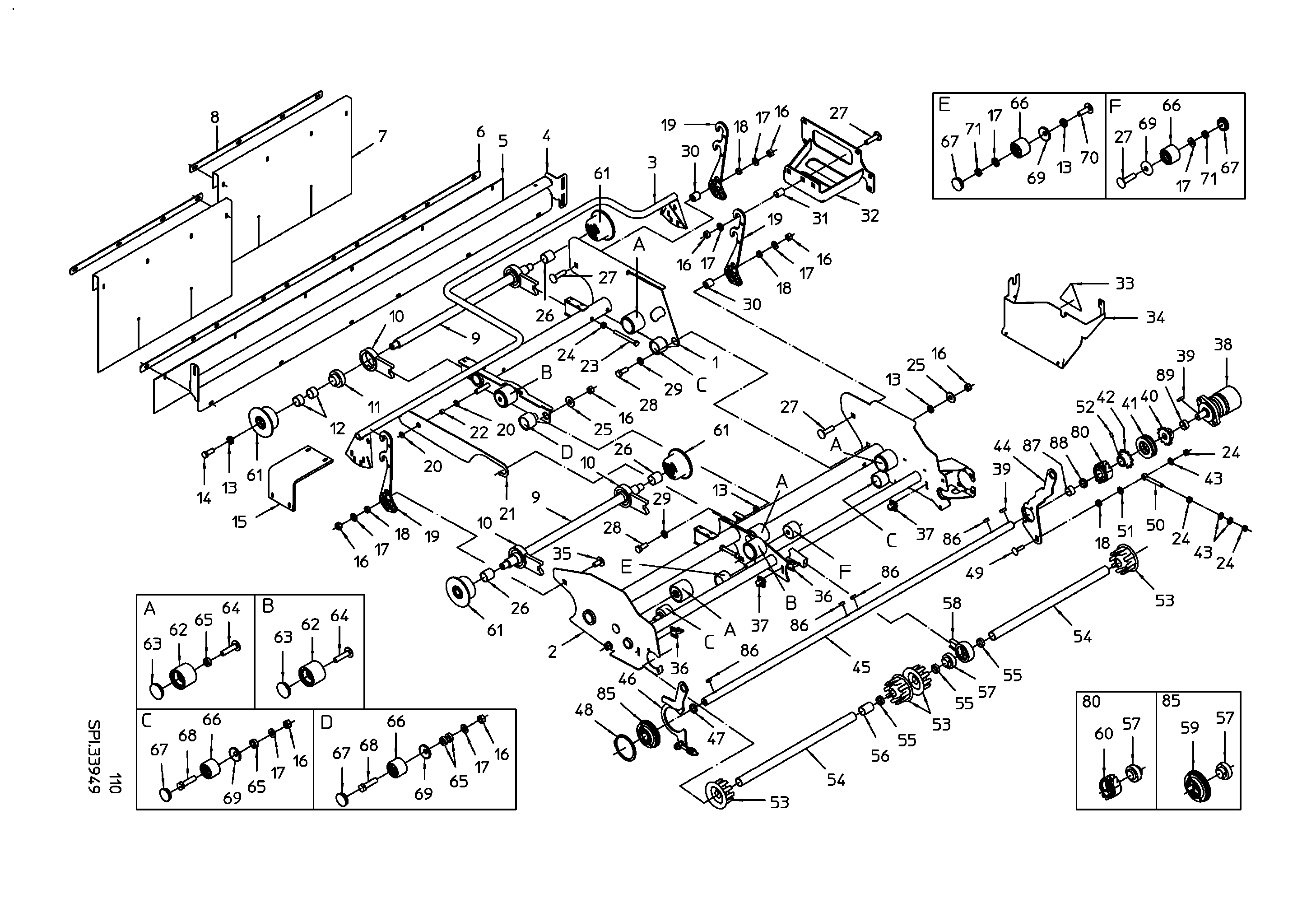

Parts by subassemblies

FRAME

Quantity in assembly group: 1 Piece / Pos. 1

FRAME

Quantity in assembly group: 1 Piece / Pos. 2

CROSS TUBE

Quantity in assembly group: 1 Piece / Pos. 3

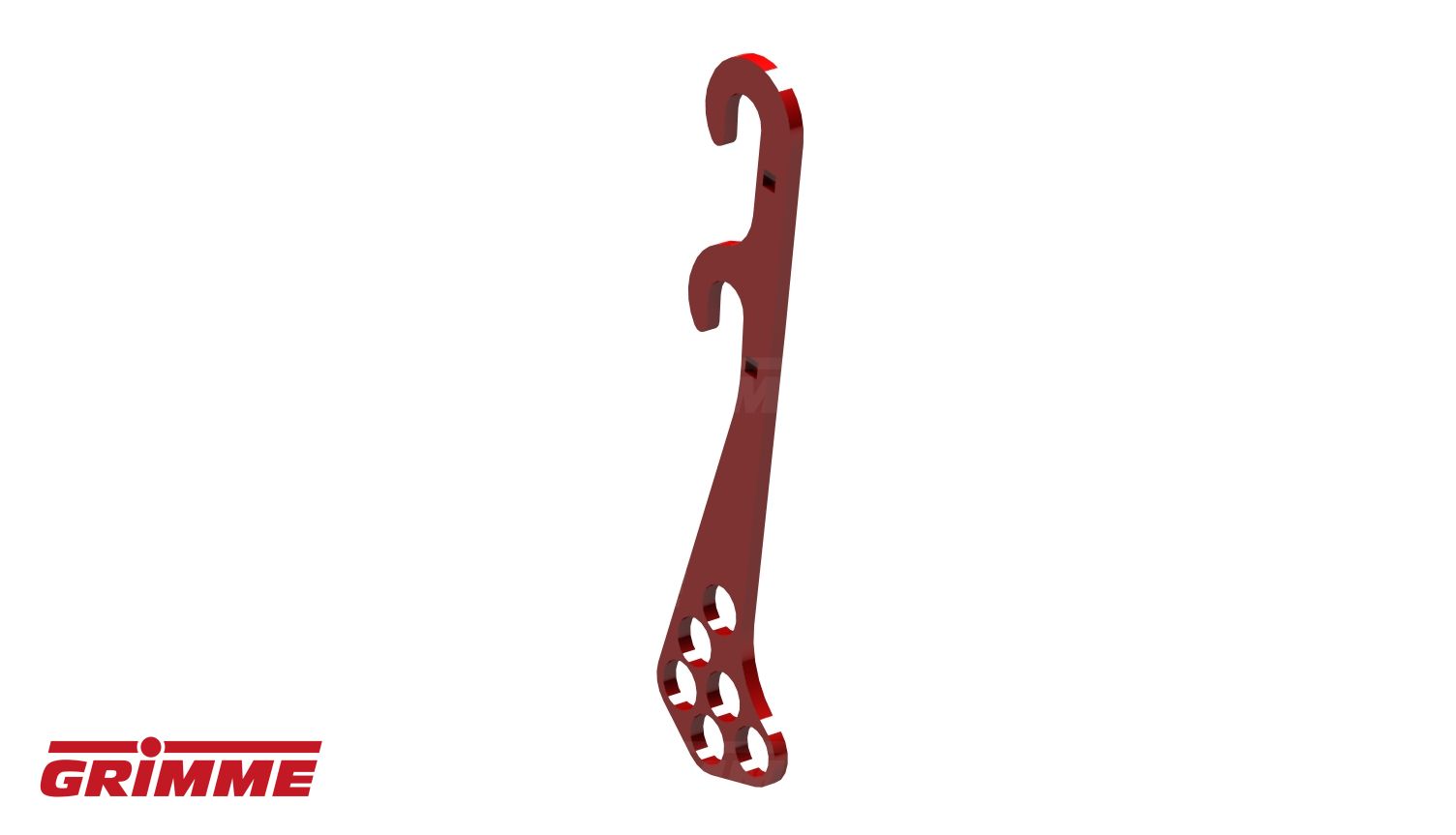

BRACKET

Quantity in assembly group: 1 Piece / Pos. 4

IMPACT RUBBER

Quantity in assembly group: 1 Piece / Pos. 5

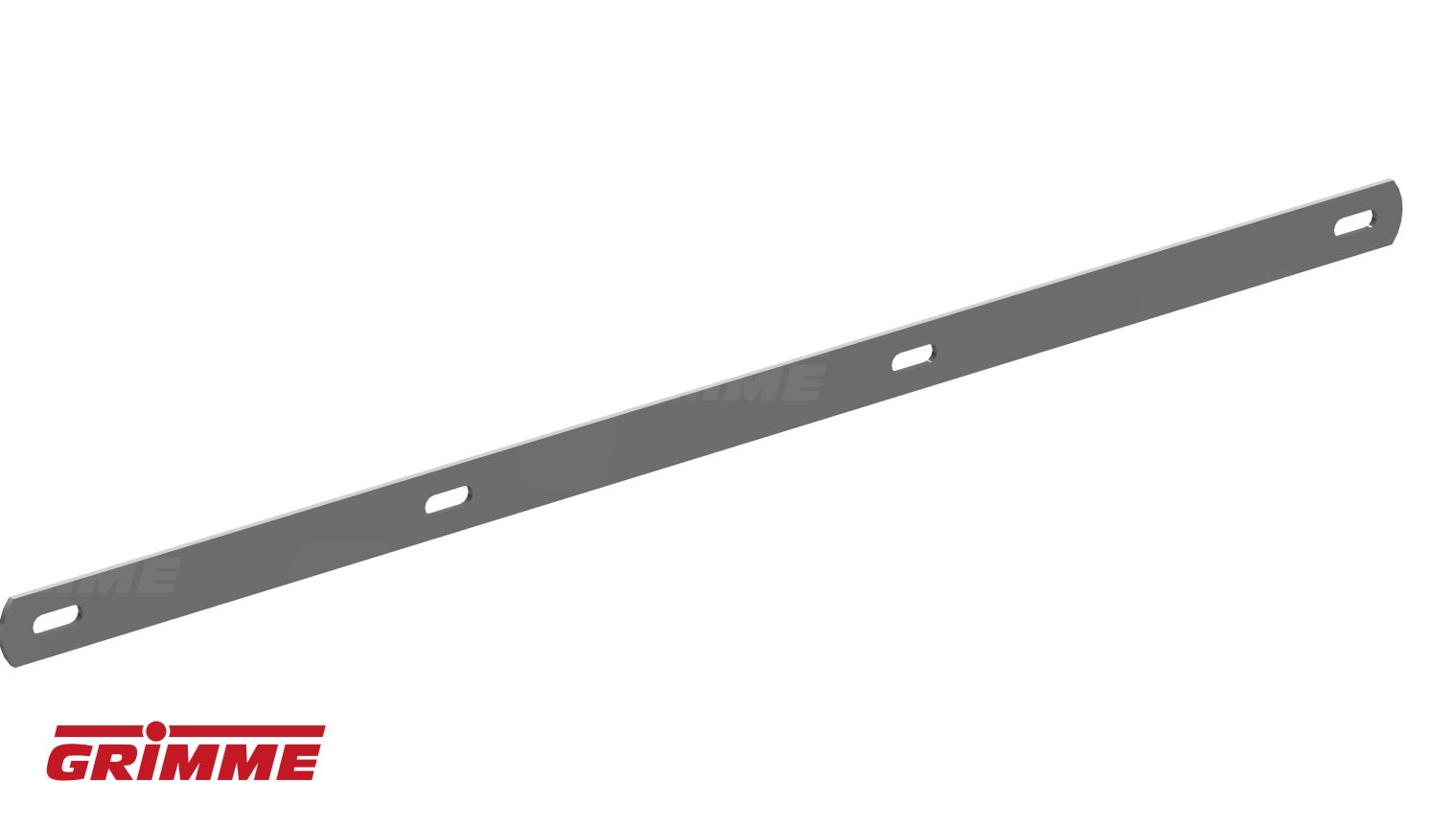

CLAMPING STRIP

Quantity in assembly group: 1 Piece / Pos. 6

RUBBER

Quantity in assembly group: 2 Piece / Pos. 7

CLAMPING LEDGE

Quantity in assembly group: 2 Piece / Pos. 8

TENSION SHAFT

Quantity in assembly group: 2 Piece / Pos. 9

BEARING HOUSING

Quantity in assembly group: 4 Piece / Pos. 10

BEARING YAR 207-2RF/UC207

Quantity in assembly group: 4 Piece / Pos. 11

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 12

SPACER 6MM

Quantity in assembly group: 7 Piece / Pos. 13

CS-SCREW M16X40 DIN7984

Quantity in assembly group: 4 Piece / Pos. 14

RUBBER SEALING PLATE

Quantity in assembly group: 1 Piece / Pos. 15

HEXAGON NUT M16 DIN934-8-GAL

Quantity in assembly group: 9 Piece / Pos. 16

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 8 Piece / Pos. 17

SPACER 24X3.5X9

Quantity in assembly group: 5 Piece / Pos. 18

STAY

Quantity in assembly group: 3 Piece / Pos. 19

DISC A 8,4 DIN9021-GAL

Quantity in assembly group: 2 Piece / Pos. 20

NOZZLE

Quantity in assembly group: 1 Piece / Pos. 21

SPACING PIECE

Quantity in assembly group: 1 Piece / Pos. 22

HHC-SCREW M12X120 DIN933-8.8-G

Quantity in assembly group: 4 Piece / Pos. 23

HEXAGON NUT M12 DIN934-8-GAL

Quantity in assembly group: 10 Piece / Pos. 24

PLAIN WASHER 17X44X3 GAL

Quantity in assembly group: 2 Piece / Pos. 25

SPACER TUBE

Quantity in assembly group: 3 Piece / Pos. 26

COACH BOLT/SS M16X65-603-8.8-G

Quantity in assembly group: 3 Piece / Pos. 27

SET SCREW M16X40-DIN933-8.8-G

Quantity in assembly group: 2 Piece / Pos. 28

DISC B17 DIN125-MS

Quantity in assembly group: 2 Piece / Pos. 29

SPACER 16,5X30X30

Quantity in assembly group: 2 Piece / Pos. 30

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 31

BRACKET L/H

Quantity in assembly group: 1 Piece / Pos. 32

WARNING SYMBOL

Quantity in assembly group: 1 Piece / Pos. 33

PROTECTION

Quantity in assembly group: 1 Piece / Pos. 34

MH-SCREW wSS M16X35 DIN603-8.8

Quantity in assembly group: 1 Piece / Pos. 35

SCRAPER L/H

Quantity in assembly group: 2 Piece / Pos. 36

SCRAPER R/H

Quantity in assembly group: 2 Piece / Pos. 37

HYDRAULIC MOTOR MF100 CYL-S

Quantity in assembly group: 1 Piece / Pos. 38

FEATHER KEY A 8X8X30 DIN6885

Quantity in assembly group: 2 Piece / Pos. 39

SPROCKET 3/4" -T12-B25

Quantity in assembly group: 1 Piece / Pos. 40

CHAIN 3/4"X1/2"-ASA60-12R

Quantity in assembly group: 1 Piece / Pos. 41

SPROCKET 3/4" -T12-B30

Quantity in assembly group: 1 Piece / Pos. 42

CONTACT DISC FORM M 12-GAL

Quantity in assembly group: 6 Piece / Pos. 43

BEARING PLATE L/H

Quantity in assembly group: 1 Piece / Pos. 44

DRIVE SHAFT

Quantity in assembly group: 1 Piece / Pos. 45

BEARING PLATE R/H

Quantity in assembly group: 1 Piece / Pos. 46

SPACER RING

Quantity in assembly group: 1 Piece / Pos. 47

RETAINING RING A 108X4 DIN471

Quantity in assembly group: 1 Piece / Pos. 48

MH-SCREW M12X45 DIN603-8.8GAL

Quantity in assembly group: 2 Piece / Pos. 49

EYE BOLT M12X100

Quantity in assembly group: 2 Piece / Pos. 50

PLAIN WASHER 13X28X3-GALV

Quantity in assembly group: 1 Piece / Pos. 51

ALLEN CONE SCREW M8X16-914flZn

Quantity in assembly group: 1 Piece / Pos. 52

FINGER ROLLER

Quantity in assembly group: 4 Piece / Pos. 53

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 54

SPACER RING

Quantity in assembly group: 3 Piece / Pos. 55

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 56

BEARING YAR 206-2RF/UC206

Quantity in assembly group: 3 Piece / Pos. 57

BEARING HOUSING

Quantity in assembly group: 1 Piece / Pos. 58

BEARING HOUSING S30

Quantity in assembly group: 1 Piece / Pos. 59

BEARING HOUSING

Quantity in assembly group: 1 Piece / Pos. 60

SUPPORT ROLLER 95 w FLANGE -VU

Quantity in assembly group: 4 Piece / Pos. 61

SUPPORT ROLLER D75

Quantity in assembly group: 6 Piece / Pos. 62

ROLLER CAP

Quantity in assembly group: 6 Piece / Pos. 63

COACH BOLT/SS M16X70-603-8.8-G

Quantity in assembly group: 5 Piece / Pos. 64

SPACER PIECE 16,5X30X10

Quantity in assembly group: 8 Piece / Pos. 65

SUPPORT ROLLER 60/42 WIDE

Quantity in assembly group: 6 Piece / Pos. 66

LOCKING DISK

Quantity in assembly group: 6 Piece / Pos. 67

HEX BOLT M16X65 DIN931-8.8-G

Quantity in assembly group: 4 Piece / Pos. 68

WINDING PROTECTION

Quantity in assembly group: 6 Piece / Pos. 69

COACH BOLT/SS M16X50-603-8.8-G

Quantity in assembly group: 1 Piece / Pos. 70

HALF NUT M16 DIN936-17H-GAL

Quantity in assembly group: 1 Piece / Pos. 71

FLANGE BEARING

Quantity in assembly group: 1 Piece / Pos. 80

HINGE BEARING

Quantity in assembly group: 1 Piece / Pos. 85

FEATHER KEY A 8X8X25 DIN6885

Quantity in assembly group: 4 Piece / Pos. 86

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 87

SPACER RING

Quantity in assembly group: 1 Piece / Pos. 88

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 89
