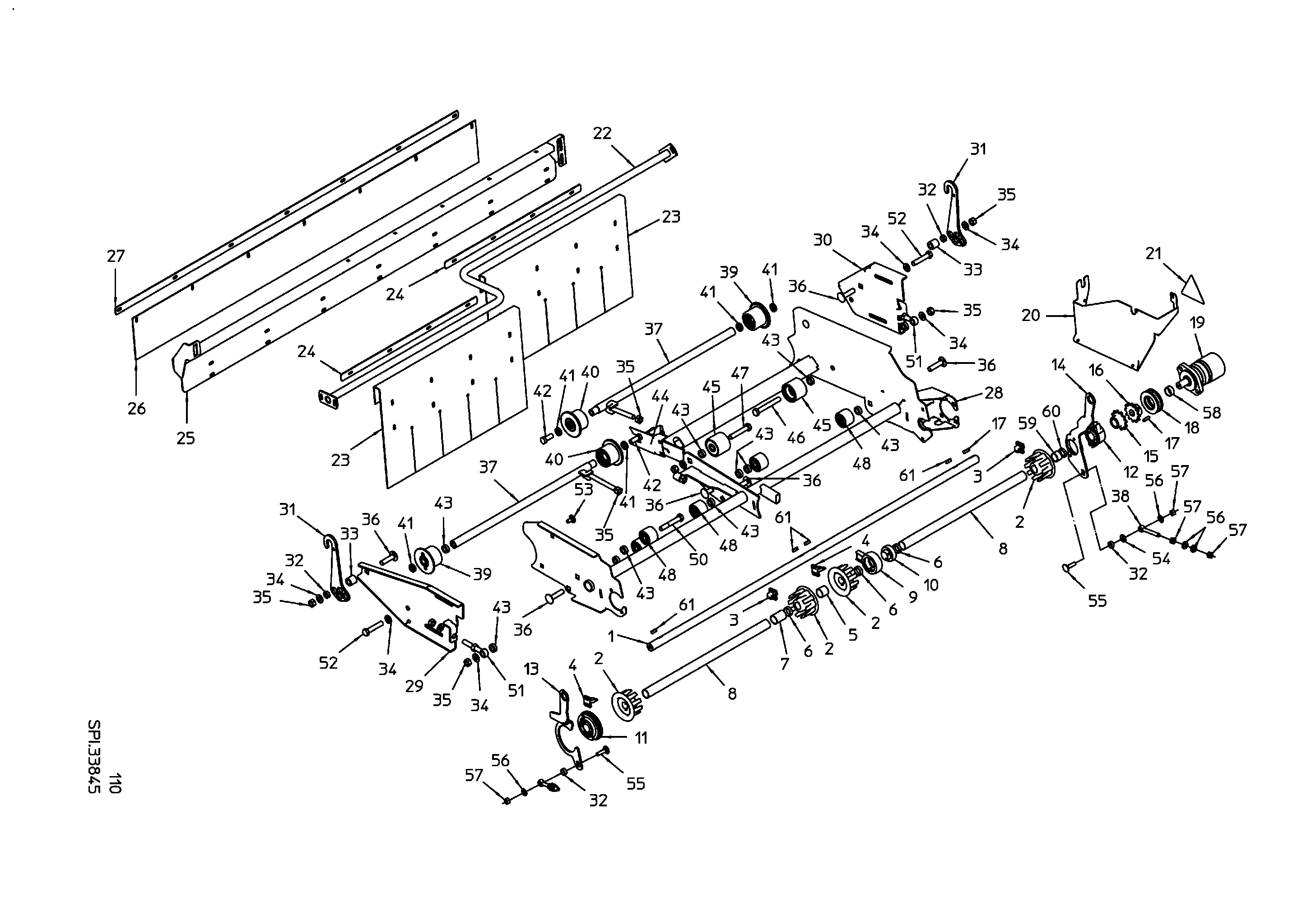

Parts by subassemblies

BEARING HOUSING S30

Quantity in assembly group: 1 Piece / Pos. 0

BEARING YAR 206-2RF/UC206

Quantity in assembly group: 1 Piece / Pos. 0

BEARING HOUSING

Quantity in assembly group: 1 Piece / Pos. 0

DRIVE SHAFT

Quantity in assembly group: 1 Piece / Pos. 1

FINGER ROLLER

Quantity in assembly group: 4 Piece / Pos. 2

SCRAPER R/H

Quantity in assembly group: 2 Piece / Pos. 3

SCRAPER L/H

Quantity in assembly group: 2 Piece / Pos. 4

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 5

SPACER RING

Quantity in assembly group: 3 Piece / Pos. 6

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 7

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 8

BEARING HOUSING

Quantity in assembly group: 1 Piece / Pos. 9

HINGE BEARING

Quantity in assembly group: 1 Piece / Pos. 11

FLANGE BEARING

Quantity in assembly group: 1 Piece / Pos. 12

BEARING PLATE R/H

Quantity in assembly group: 1 Piece / Pos. 13

BEARING PLATE L/H

Quantity in assembly group: 1 Piece / Pos. 14

SPROCKET 3/4" -T12-B30

Quantity in assembly group: 1 Piece / Pos. 15

SPROCKET 3/4" -T12-B25

Quantity in assembly group: 1 Piece / Pos. 16

FEATHER KEY A 8X8X30 DIN6885

Quantity in assembly group: 2 Piece / Pos. 17

CHAIN 3/4"X1/2"-ASA60-12R

Quantity in assembly group: 1 Piece / Pos. 18

HYDRAULIC MOTOR MF100 CYL-S

Quantity in assembly group: 1 Piece / Pos. 19

PROTECTION

Quantity in assembly group: 1 Piece / Pos. 20

WARNING SYMBOL

Quantity in assembly group: 1 Piece / Pos. 21

MOUNTING BAR

Quantity in assembly group: 1 Piece / Pos. 22

RUBBER

Quantity in assembly group: 2 Piece / Pos. 23

CLAMPING STRIP

Quantity in assembly group: 2 Piece / Pos. 24

BRACE FRAME

Quantity in assembly group: 1 Piece / Pos. 25

IMPACT RUBBER

Quantity in assembly group: 1 Piece / Pos. 26

CLAMP STRIP

Quantity in assembly group: 1 Piece / Pos. 27

FRAME

Quantity in assembly group: 1 Piece / Pos. 28

CLAMPING PLATE R/H

Quantity in assembly group: 1 Piece / Pos. 29

MOUNTING PLATE L/H

Quantity in assembly group: 1 Piece / Pos. 30

STAY

Quantity in assembly group: 2 Piece / Pos. 31

SPACER 24X3.5X9

Quantity in assembly group: 4 Piece / Pos. 32

SPACER 16,5X30X30

Quantity in assembly group: 2 Piece / Pos. 33

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 9 Piece / Pos. 34

HEXAGON NUT M16 DIN934-8-GAL

Quantity in assembly group: 13 Piece / Pos. 35

COACH BOLT/SS M16X65-603-8.8-G

Quantity in assembly group: 5 Piece / Pos. 36

TENSIONER SHAFT R/H

Quantity in assembly group: 1 Piece / Pos. 37

EYE BOLT M12X100

Quantity in assembly group: 2 Piece / Pos. 38

FLANGED SUPPORT ROLLER D75

Quantity in assembly group: 2 Piece / Pos. 39

SUPPORT ROLLER 75

Quantity in assembly group: 2 Piece / Pos. 40

SPACER 6MM

Quantity in assembly group: 5 Piece / Pos. 41

CS-SCREW M16X40 DIN7984

Quantity in assembly group: 2 Piece / Pos. 42

SPACER PIECE 16,5X30X10

Quantity in assembly group: 11 Piece / Pos. 43

GUARD

Quantity in assembly group: 1 Piece / Pos. 44

SUPPORT ROLLER D75

Quantity in assembly group: 2 Piece / Pos. 45

HEX BOLT M16X120-DIN931-8.8-G

Quantity in assembly group: 1 Piece / Pos. 46

HEX BOLT M16X90-DIN931-8.8-G

Quantity in assembly group: 1 Piece / Pos. 47

SUPPORT ROLLER 60/42 WIDE

Quantity in assembly group: 5 Piece / Pos. 48

HEX BOLT M16X100 DIN931-8.8-G

Quantity in assembly group: 1 Piece / Pos. 50

EYE BOLT M16X110

Quantity in assembly group: 2 Piece / Pos. 51

HHC-SCREW M16X80 931-10.9-flZn

Quantity in assembly group: 2 Piece / Pos. 52

COACH BOLT M12X25-DIN603-8.8-G

Quantity in assembly group: 4 Piece / Pos. 53

PLAIN WASHER 13X28X3-GALV

Quantity in assembly group: 1 Piece / Pos. 54

MH-SCREW M12X45 DIN603-8.8GAL

Quantity in assembly group: 2 Piece / Pos. 55

CONTACT DISC FORM M 12-GAL

Quantity in assembly group: 6 Piece / Pos. 56

HEXAGON NUT M12 DIN934-8-GAL

Quantity in assembly group: 6 Piece / Pos. 57

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 58

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 59

SPACER RING

Quantity in assembly group: 1 Piece / Pos. 60

FEATHER KEY A 8X8X25 DIN6885

Quantity in assembly group: 4 Piece / Pos. 61
