Your machine: POTATO HARVESTER GT 170 M+S GT170(S/N: 45002062) modify ▸

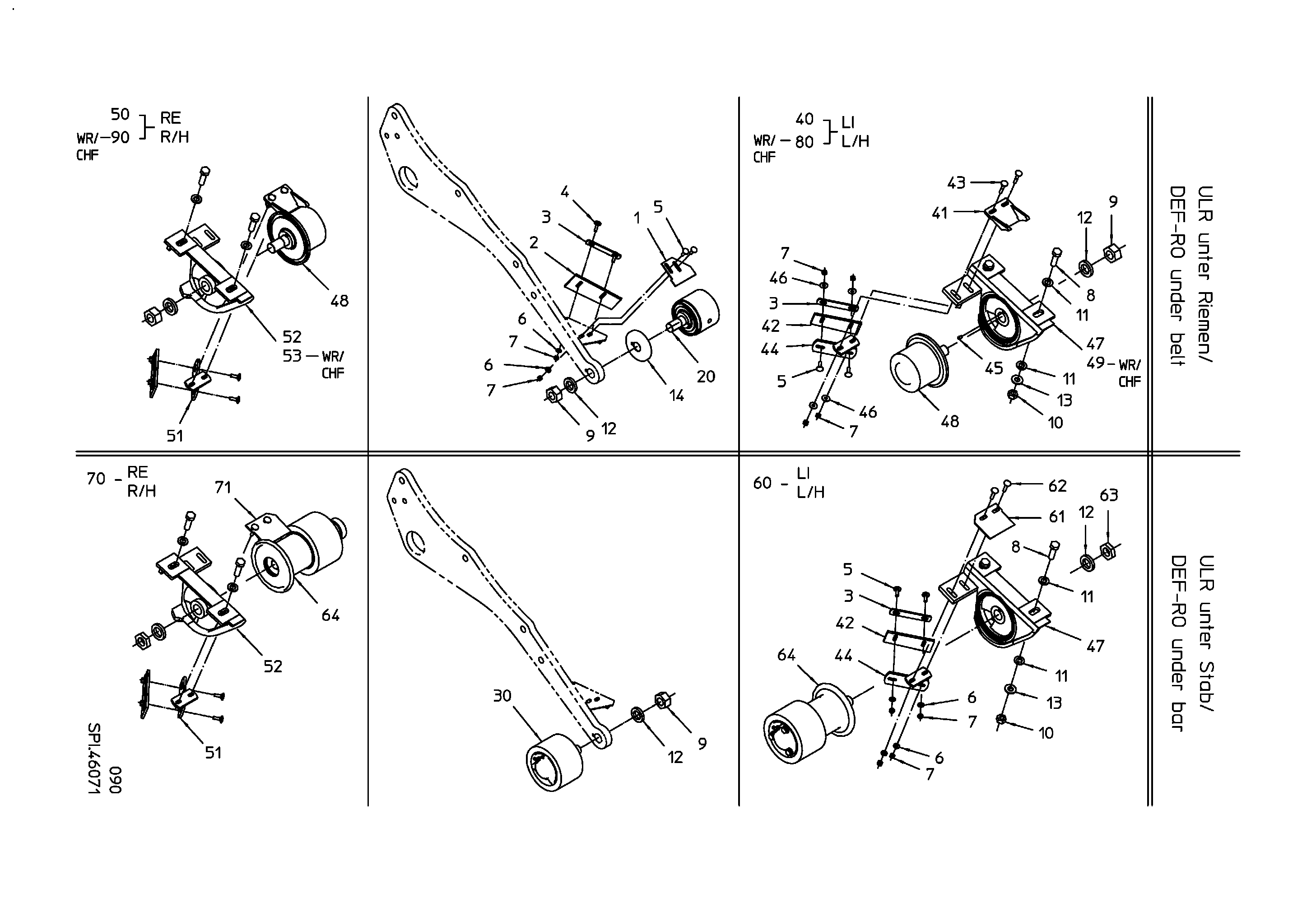

Subassembly drawing

▸ Selected assembly group:

Selected subassembly

▸
DEFLECTION ROLLER (39 Parts)
▸

Subassembly parts

All items Equipment ex work ()
SCRAPER
Quantity in assembly group: 1 Piece / Pos. 1
SCRAPER
Quantity in assembly group: 1 Piece / Pos. 2
CLAMPING STRIP
Quantity in assembly group: 5 Piece / Pos. 3
COACH BOLT M6X25-DIN603-8.8-G
Quantity in assembly group: 6 Piece / Pos. 4
COACH BOLT M6X20-DIN603-8.8-G
Quantity in assembly group: 6 Piece / Pos. 5
CONTACT WASHER FORM M 6-GAL
Quantity in assembly group: 12 Piece / Pos. 6
HEXAGON NUT M6 DIN934-8-GAL
Quantity in assembly group: 20 Piece / Pos. 7
HEX-SCREW M12X40 933-10.9 flZn
Quantity in assembly group: 8 Piece / Pos. 8
HEXAGON NUT M24 DIN934-8-GAL
Quantity in assembly group: 5 Piece / Pos. 9
HEXAGON NUT M12 DIN934-8-GAL
Quantity in assembly group: 8 Piece / Pos. 10
DISC A13 DIN125-GAL
Quantity in assembly group: 16 Piece / Pos. 11
SPRING WASHER B24 DIN127-GAL
Quantity in assembly group: 6 Piece / Pos. 12
CONTACT DISC FORM M 12-GAL
Quantity in assembly group: 8 Piece / Pos. 13
WINDING PROTECTION
Quantity in assembly group: 1 Piece / Pos. 14
IDLER ROLLER
Quantity in assembly group: 1 Piece / Pos. 20
IDLER ROLLER 128
Quantity in assembly group: 1 Piece / Pos. 30
IDLER ROLLER L/H
Quantity in assembly group: 1 Piece / Pos. 40
SCRAPER
Quantity in assembly group: 2 Piece / Pos. 41
SCRAPER
Quantity in assembly group: 4 Piece / Pos. 42
COACH BOLT M6X35-DIN603-8.8-G
Quantity in assembly group: 4 Piece / Pos. 43
BRACKET L/H
Quantity in assembly group: 2 Piece / Pos. 44
GROOVED PIN DIN1473-6X10-St
Quantity in assembly group: 2 Piece / Pos. 45
CONTACT WASHER FORM B 6-GAL
Quantity in assembly group: 8 Piece / Pos. 46
ROLLER BRACKET L/H
Quantity in assembly group: 2 Piece / Pos. 47
IDLER ROLLER
Quantity in assembly group: 2 Piece / Pos. 48
IDLER ROLLER BRACKET L/H
Quantity in assembly group: 1 Piece / Pos. 49
IDLER ROLLER R/H
Quantity in assembly group: 1 Piece / Pos. 50
BRACKET R/H
Quantity in assembly group: 2 Piece / Pos. 51
ROLLER BRACKET R/H
Quantity in assembly group: 2 Piece / Pos. 52
IDLER ROLLER BRACKET R/H
Quantity in assembly group: 1 Piece / Pos. 53
IDLER ROLLER L/H
Quantity in assembly group: 1 Piece / Pos. 60
SCRAPER L/H
Quantity in assembly group: 1 Piece / Pos. 61
COACH BOLT M6X30-DIN603-8.8-G
Quantity in assembly group: 4 Piece / Pos. 62
HALF NUT M24 DIN936-17H-GAL
Quantity in assembly group: 2 Piece / Pos. 63
IDLER ROLLER OUTER
Quantity in assembly group: 2 Piece / Pos. 64
IDLER ROLLER R/H
Quantity in assembly group: 1 Piece / Pos. 70
SCRAPER R/H
Quantity in assembly group: 1 Piece / Pos. 71
DEFLECTION ROLLER L/H
Quantity in assembly group: 1 Piece / Pos. 80
DEFLECTION ROLLER R/H
Quantity in assembly group: 1 Piece / Pos. 90
