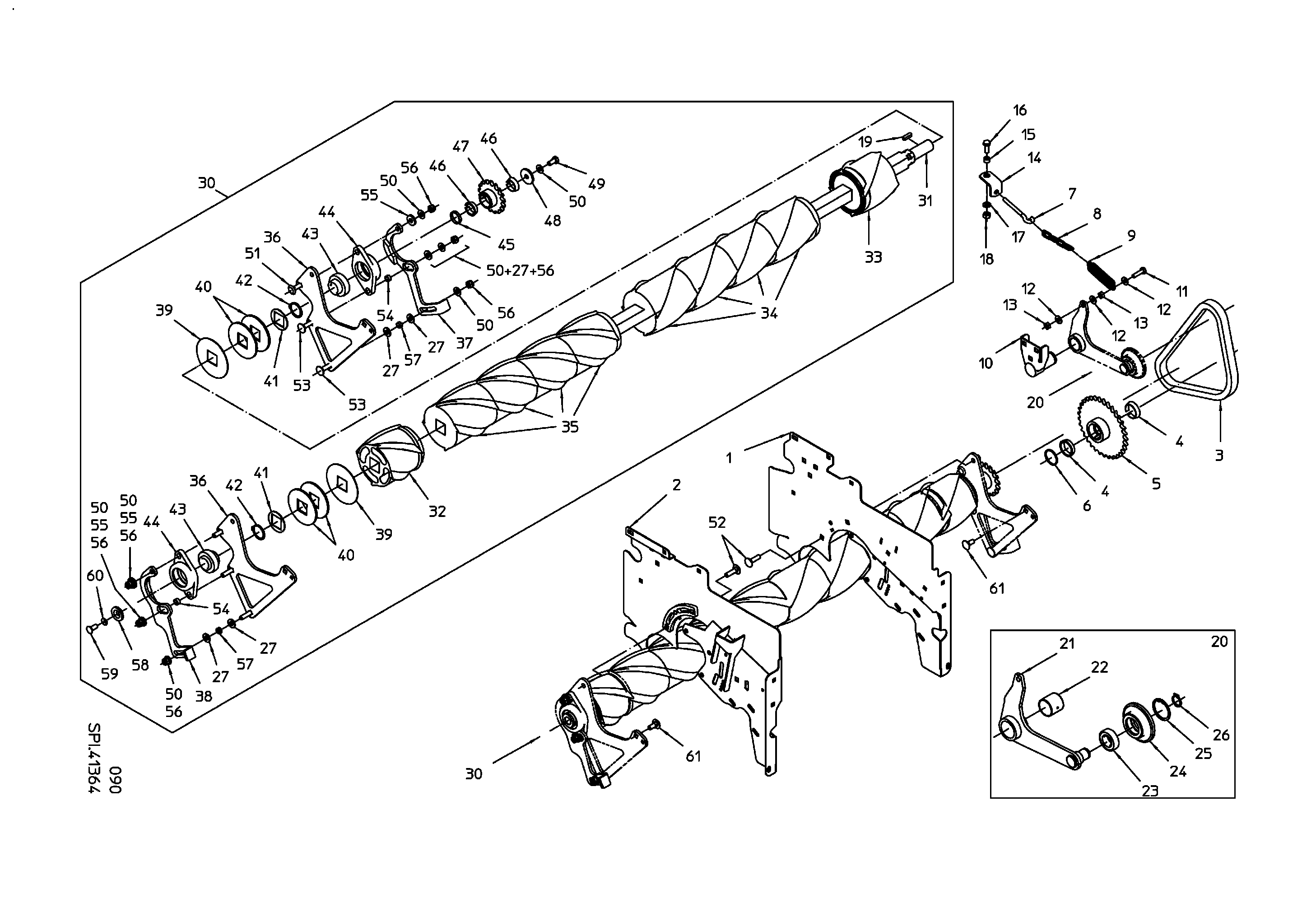

Parts by subassemblies

SIDE PART L/H

Quantity in assembly group: 1 Piece / Pos. 1

SIDE PART R/H

Quantity in assembly group: 1 Piece / Pos. 2

CHAIN 3/4"X1/2"-ASA60-57R

Quantity in assembly group: 1 Piece / Pos. 3

CLAMPING RING

Quantity in assembly group: 2 Piece / Pos. 4

CHAIN GEAR 3/4X1/2"-T33

Quantity in assembly group: 1 Piece / Pos. 5

SPACER

Quantity in assembly group: 1 Piece / Pos. 6

EYELET SCREW

Quantity in assembly group: 1 Piece / Pos. 7

LINK CHAIN-4 LINKS C5X36

Quantity in assembly group: 1 Piece / Pos. 8

TENSION SPRING

Quantity in assembly group: 1 Piece / Pos. 9

MOUNTING PIN

Quantity in assembly group: 1 Piece / Pos. 10

HEX BOLT M10X40-DIN931-8.8-G

Quantity in assembly group: 1 Piece / Pos. 11

PLAIN WASHER 11X25X2 GAL

Quantity in assembly group: 3 Piece / Pos. 12

HEXAGON NUT M10 DIN934-8-GAL

Quantity in assembly group: 2 Piece / Pos. 13

ANGLE

Quantity in assembly group: 1 Piece / Pos. 14

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 15

SET SCREW M12X30-DIN933-8.8-G

Quantity in assembly group: 1 Piece / Pos. 16

DISC A13 DIN125-GAL

Quantity in assembly group: 1 Piece / Pos. 17

HEXAGON NUT M12 DIN934-8-GAL

Quantity in assembly group: 1 Piece / Pos. 18

FEATHER KEY A 10X8X35 DIN6885

Quantity in assembly group: 1 Piece / Pos. 19

CHAIN TENSIONER ARM CPTE.

Quantity in assembly group: 1 Piece / Pos. 20

MOUNTING ARM

Quantity in assembly group: 1 Piece / Pos. 21

PLAIN BEARING BUSH 404440

Quantity in assembly group: 1 Piece / Pos. 22

BALL BEARING 6205-2RS

Quantity in assembly group: 1 Piece / Pos. 23

SPROCKET 3/4"-T15

Quantity in assembly group: 1 Piece / Pos. 24

RETAINING RING J 52X2 DIN472

Quantity in assembly group: 1 Piece / Pos. 25

RETAINING RING A 25X2 DIN471

Quantity in assembly group: 1 Piece / Pos. 26

PLAIN WASHER 13X28X3-GALV

Quantity in assembly group: 6 Piece / Pos. 27

SEGMENT ROLLER 1.EU DM162

Quantity in assembly group: 1 Piece / Pos. 30

SQUARE SHAFT - SPIRAL SEGMENT

Quantity in assembly group: 1 Piece / Pos. 31

END SEGMENT R/H ASCENDING

Quantity in assembly group: 1 Piece / Pos. 32

END SEGMENT L/H ASCENDING

Quantity in assembly group: 1 Piece / Pos. 33

SPIRAL SEGMENT L/H D162 B40 HD

Quantity in assembly group: 4 Piece / Pos. 34

SPIRAL SEGMENT R/H D162 B40 HD

Quantity in assembly group: 4 Piece / Pos. 35

MOUNTING PLATE

Quantity in assembly group: 2 Piece / Pos. 36

LEVER L/H

Quantity in assembly group: 1 Piece / Pos. 37

BUFFER ARM R/H

Quantity in assembly group: 1 Piece / Pos. 38

END DISC

Quantity in assembly group: 2 Piece / Pos. 39

END DISC

Quantity in assembly group: 4 Piece / Pos. 40

SPACER DISC

Quantity in assembly group: 2 Piece / Pos. 41

RETAINING RING AS 45X2,5 DIN47

Quantity in assembly group: 2 Piece / Pos. 42

BEARING YAR 207-2RF/UC207

Quantity in assembly group: 2 Piece / Pos. 43

BEARING HOUSING FL 207

Quantity in assembly group: 2 Piece / Pos. 44

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 45

CLAMPING RING

Quantity in assembly group: 2 Piece / Pos. 46

SPROCKET ASA60-1 Z17

Quantity in assembly group: 1 Piece / Pos. 47

RETAINING WASHER

Quantity in assembly group: 1 Piece / Pos. 48

SET SCREW M12X25-DIN933-8.8-G

Quantity in assembly group: 1 Piece / Pos. 49

CONTACT DISC FORM M 12-GAL

Quantity in assembly group: 8 Piece / Pos. 50

MH-SCREW M12X50

Quantity in assembly group: 2 Piece / Pos. 51

MH-SCREW M12X45 DIN603-8.8GAL

Quantity in assembly group: 2 Piece / Pos. 52

MH-SCREW M12X50 DIN603-8.8

Quantity in assembly group: 4 Piece / Pos. 53

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 54

DISC

Quantity in assembly group: 2 Piece / Pos. 55

NYLOC NUT DIN985-M12-8-GAL

Quantity in assembly group: 6 Piece / Pos. 56

BUSHING

Quantity in assembly group: 2 Piece / Pos. 57

CSK WASHER M12

Quantity in assembly group: 1 Piece / Pos. 58

CSK ALLEN SCREW M12X30-DIN7991

Quantity in assembly group: 1 Piece / Pos. 59

SERRATED LOCK WASHER DIN6798-G

Quantity in assembly group: 1 Piece / Pos. 60

COACH BOLT M12X30-DIN603-8.8-G

Quantity in assembly group: 2 Piece / Pos. 61
