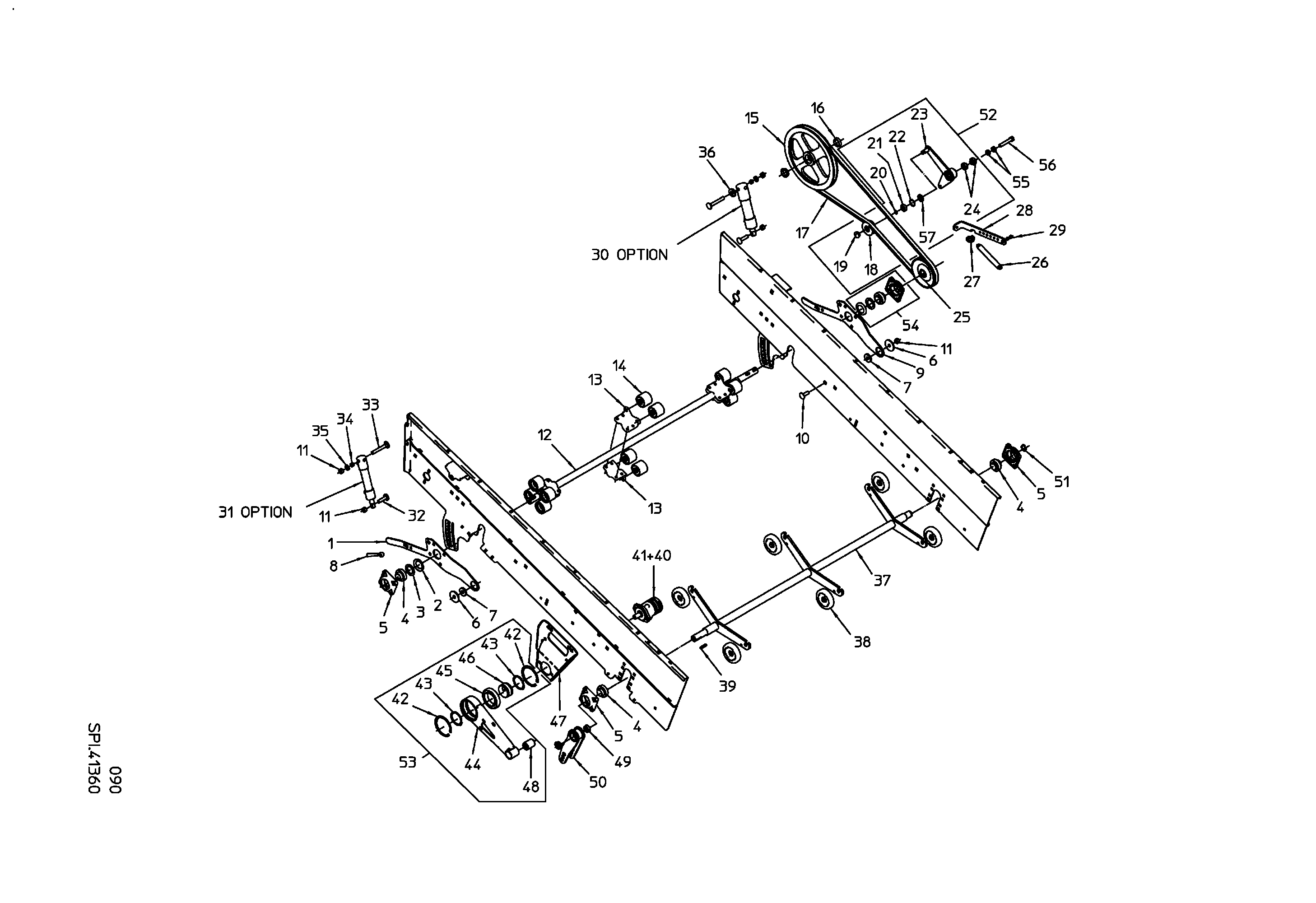

Parts by subassemblies

CYL-SEAL SET

Quantity in assembly group: 1 Piece / Pos. 0

CYL-SEAL SET

Quantity in assembly group: 1 Piece / Pos. 0

CONTROL LEVER R/H

Quantity in assembly group: 1 Piece / Pos. 1

SEALING CAP

Quantity in assembly group: 4 Piece / Pos. 2

SEALING RING

Quantity in assembly group: 4 Piece / Pos. 3

BEARING YAR 207-2RF/UC207

Quantity in assembly group: 4 Piece / Pos. 4

BEARING HOUSING

Quantity in assembly group: 4 Piece / Pos. 5

WASHER 17X70X5

Quantity in assembly group: 2 Piece / Pos. 6

RETAINING WASHER

Quantity in assembly group: 2 Piece / Pos. 7

TAPERED HANDLE N100 DIN99

Quantity in assembly group: 2 Piece / Pos. 8

CONTROL LEVER L/H

Quantity in assembly group: 1 Piece / Pos. 9

COACH BOLT/SS M16X50-603-8.8-G

Quantity in assembly group: 2 Piece / Pos. 10

HEXAGON NUT M16 DIN934-8-GAL

Quantity in assembly group: 5 Piece / Pos. 11

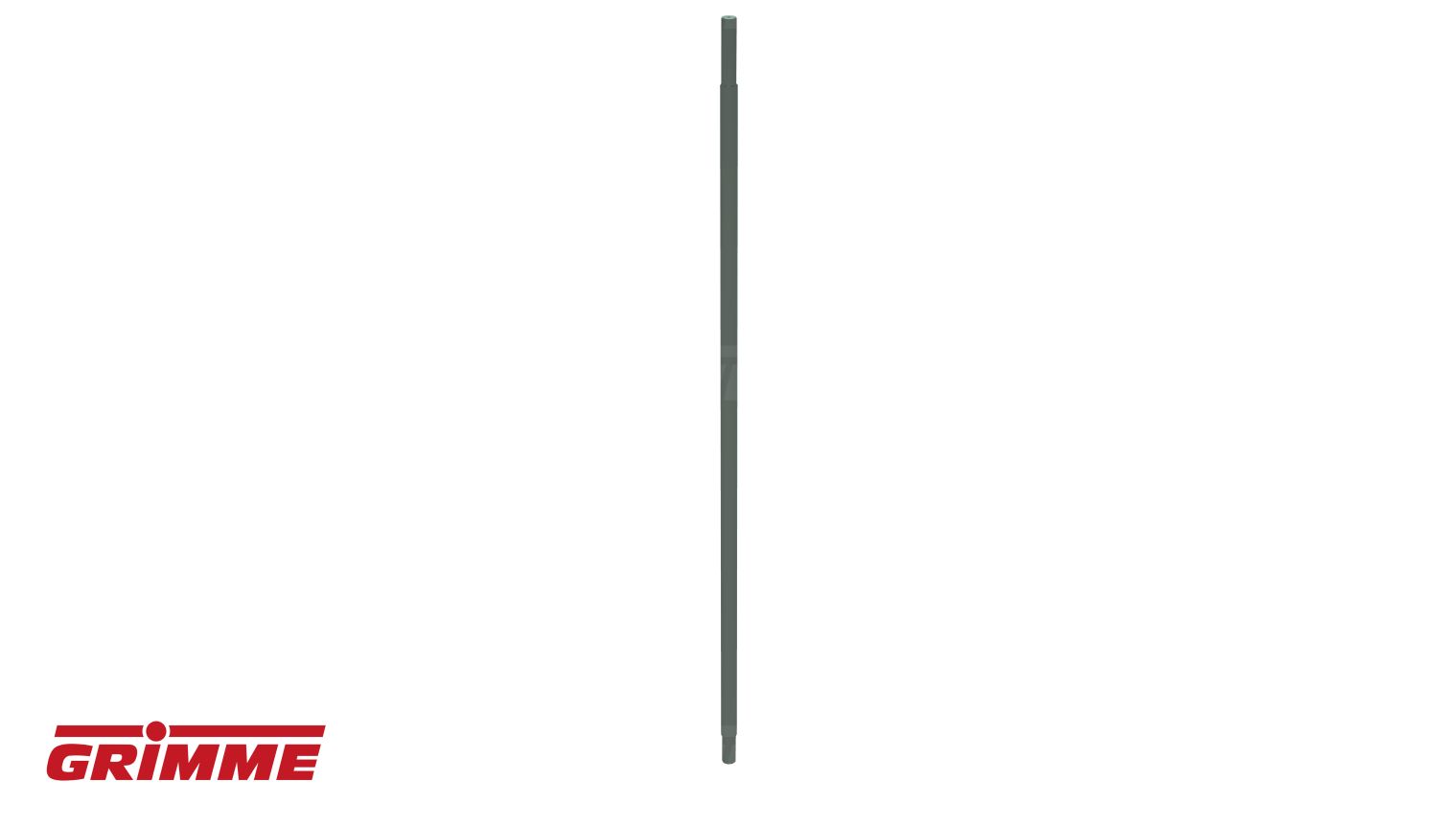

AGITATOR SHAFT

Quantity in assembly group: 1 Piece / Pos. 12

CASTING HUB DM35-40

Quantity in assembly group: 6 Piece / Pos. 13

SUPPORT ROLLER D75

Quantity in assembly group: 12 Piece / Pos. 14

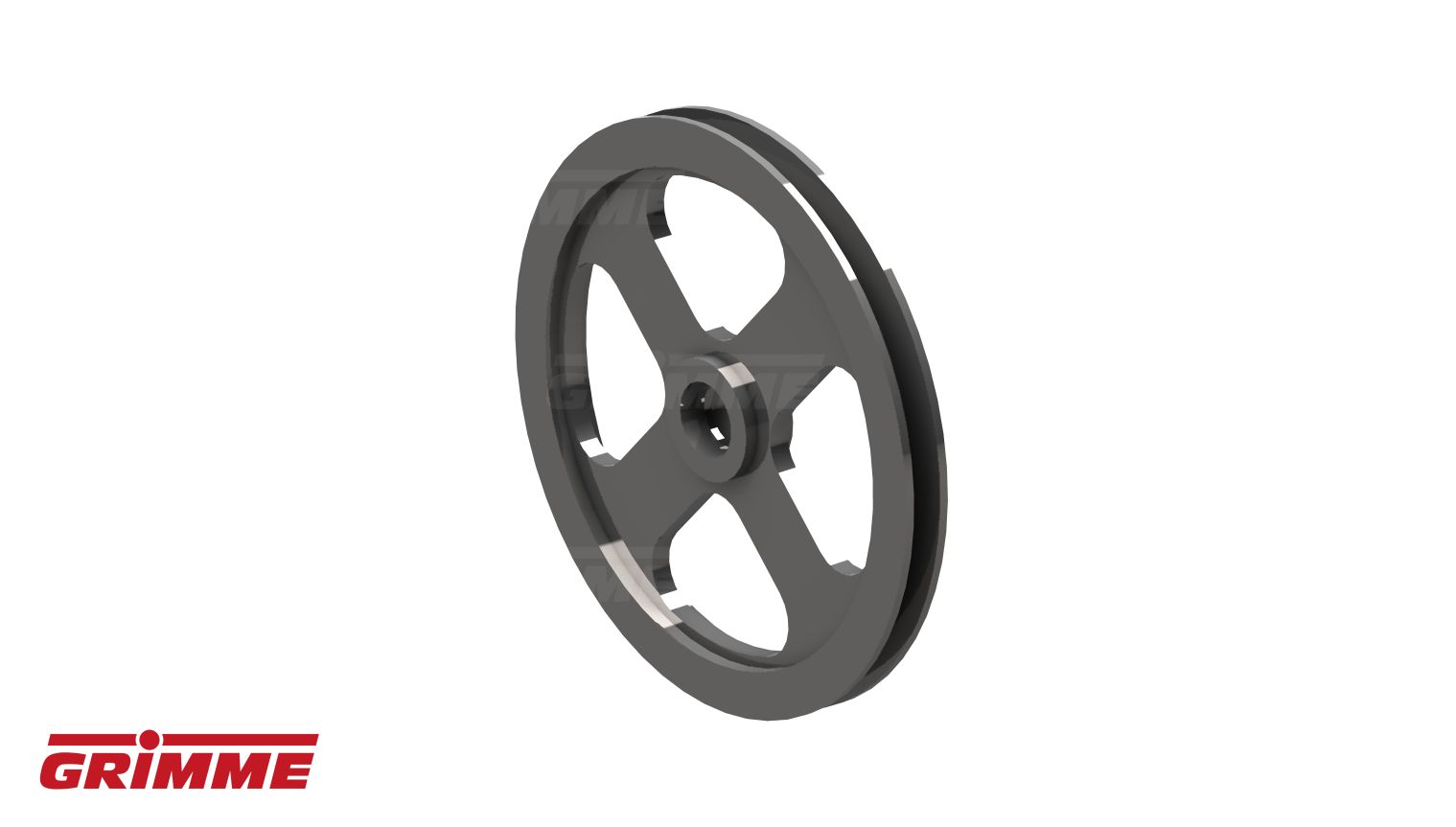

PULLEY D400

Quantity in assembly group: 1 Piece / Pos. 15

CLAMPING RING

Quantity in assembly group: 2 Piece / Pos. 16

V-BELT 22X2965

Quantity in assembly group: 1 Piece / Pos. 17

TENSION ROLLER F V-BELT

Quantity in assembly group: 1 Piece / Pos. 18

DUST CAP F25

Quantity in assembly group: 1 Piece / Pos. 19

RETAINING RING A 17X1 DIN471

Quantity in assembly group: 1 Piece / Pos. 20

BALL BEARING 6203-2RS

Quantity in assembly group: 1 Piece / Pos. 21

RETAINING RING J 40X1,75 DIN47

Quantity in assembly group: 1 Piece / Pos. 22

TENSION ARM

Quantity in assembly group: 1 Piece / Pos. 23

BEARING 203KRR DM=16.3

Quantity in assembly group: 1 Piece / Pos. 24

PULLEY C180

Quantity in assembly group: 1 Piece / Pos. 25

TENSION SPRING

Quantity in assembly group: 1 Piece / Pos. 26

RING NUT M10

Quantity in assembly group: 1 Piece / Pos. 27

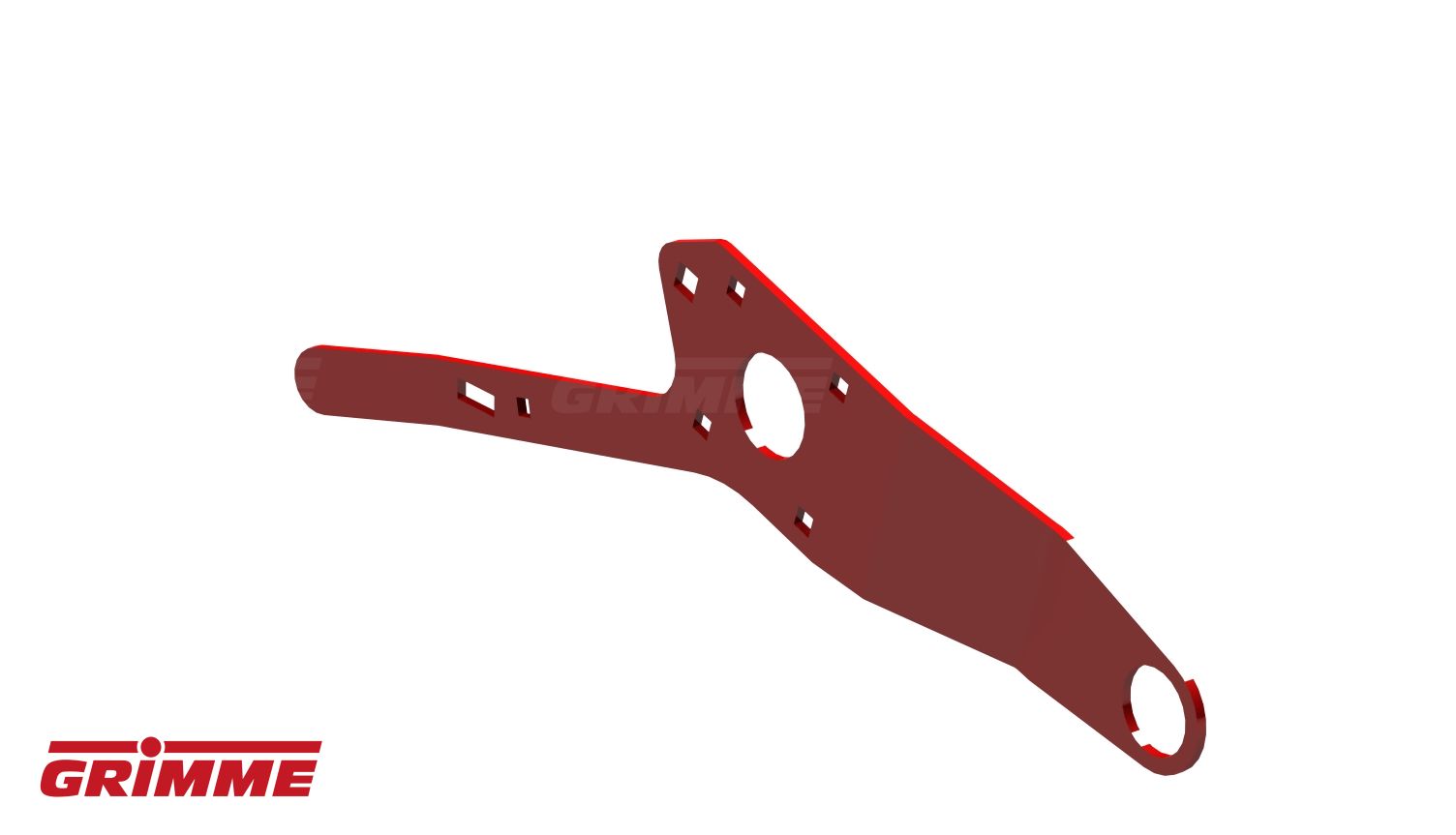

LEVER L/H

Quantity in assembly group: 1 Piece / Pos. 28

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 29

DOUBLE ACTING RAM

Quantity in assembly group: 1 Piece / Pos. 30

DOUBLE ACTING RAM

Quantity in assembly group: 1 Piece / Pos. 31

COACH BOLT/SS M16X65-603-8.8-G

Quantity in assembly group: 2 Piece / Pos. 32

COACH BOLT M16X120-DIN603-8.8G

Quantity in assembly group: 2 Piece / Pos. 33

BUSH

Quantity in assembly group: 2 Piece / Pos. 34

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 2 Piece / Pos. 35

PLAIN WASHER

Quantity in assembly group: 2 Piece / Pos. 36

AGITATOR SHAFT

Quantity in assembly group: 1 Piece / Pos. 37

ROLLER D125

Quantity in assembly group: 6 Piece / Pos. 38

FEATHER KEY A 10X8X50 DIN6885

Quantity in assembly group: 1 Piece / Pos. 39

SEAL SET STAND F MF HYD-MOTOR

Quantity in assembly group: 1 Piece / Pos. 40

HYD MOTOR MF50 CYL-SHAFT

Quantity in assembly group: 1 Piece / Pos. 41

RETAINING RING J 125X4 DIN472

Quantity in assembly group: 2 Piece / Pos. 42

RETAINING RING A 80X2,5 DIN471

Quantity in assembly group: 2 Piece / Pos. 43

CONNECTING ROD

Quantity in assembly group: 1 Piece / Pos. 44

BALL BEARING 6016-2RS

Quantity in assembly group: 1 Piece / Pos. 45

ECCENTRIC

Quantity in assembly group: 1 Piece / Pos. 46

BRACKET

Quantity in assembly group: 1 Piece / Pos. 47

MEGI-BUSH 45X20X62,5

Quantity in assembly group: 1 Piece / Pos. 48

CLAMPING RING

Quantity in assembly group: 2 Piece / Pos. 49

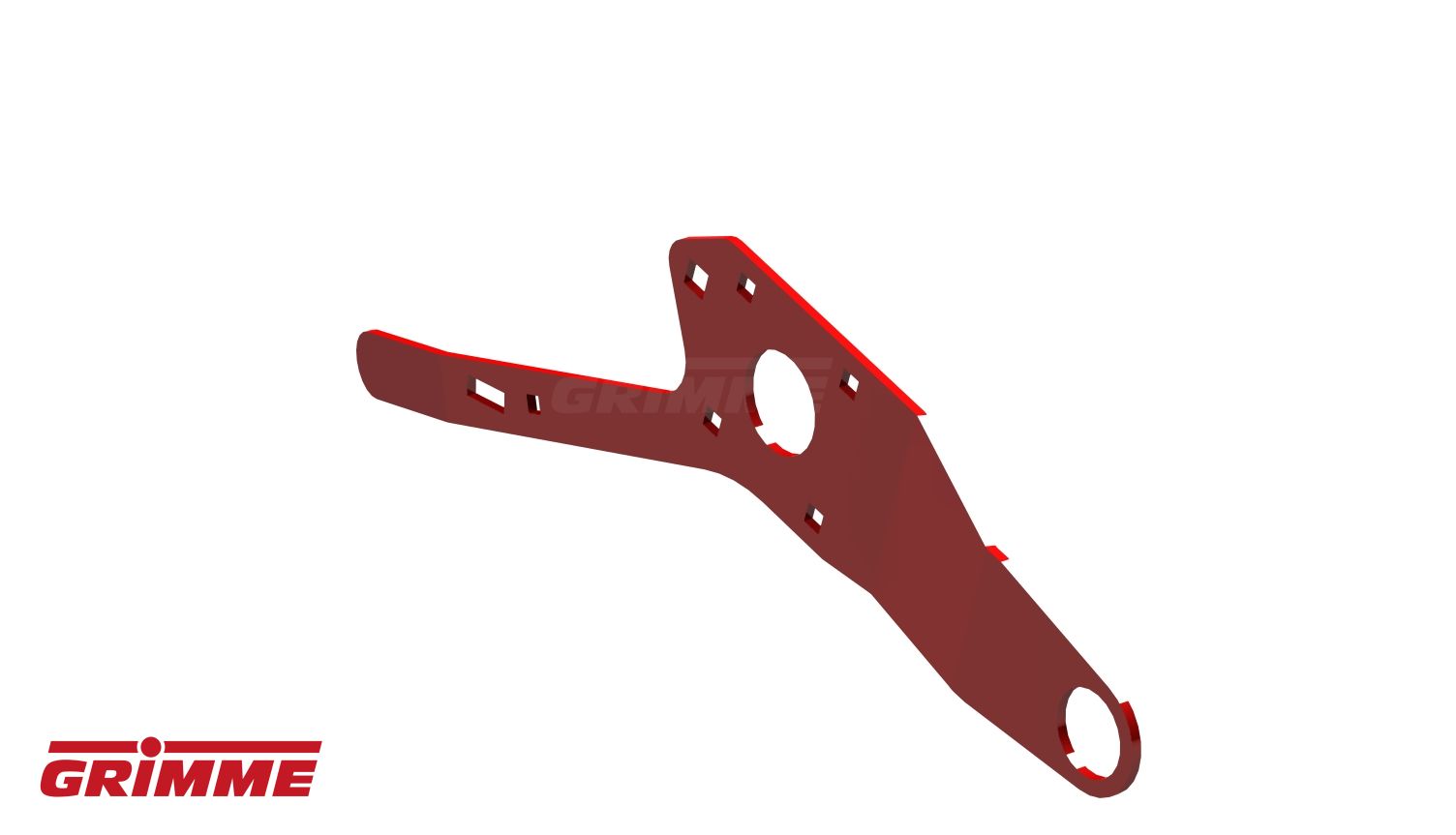

LEVER

Quantity in assembly group: 1 Piece / Pos. 50

RETAINING RING AS 35X2,5 DIN47

Quantity in assembly group: 1 Piece / Pos. 51

BELT TENSIONER

Quantity in assembly group: 1 Piece / Pos. 52

CONNECTING ROD

Quantity in assembly group: 1 Piece / Pos. 53

FLANGE BEARING

Quantity in assembly group: 2 Piece / Pos. 54

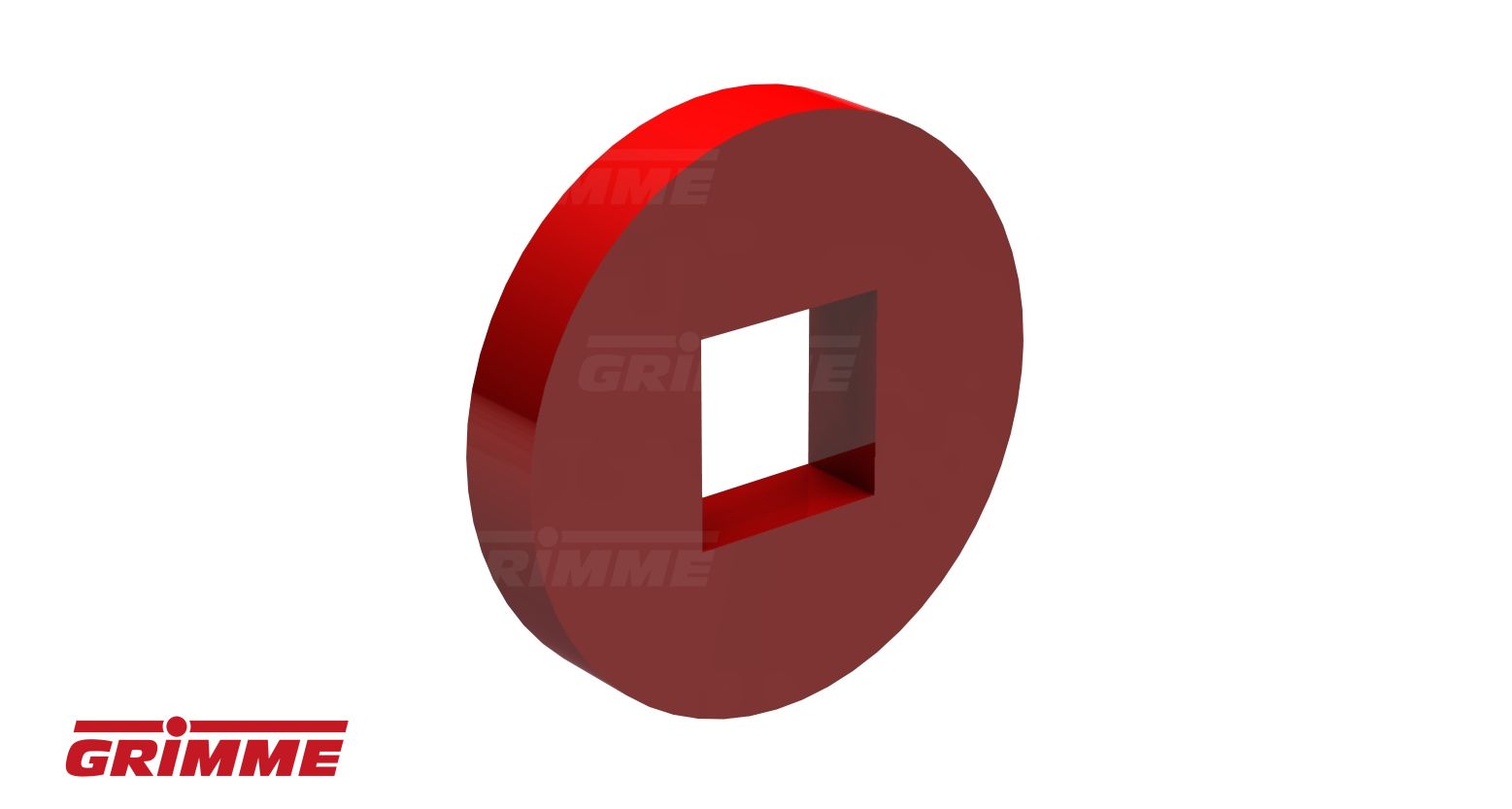

DISC

Quantity in assembly group: 2 Piece / Pos. 55

HHC-SCREW M16X95 931-8.8-GAL

Quantity in assembly group: 1 Piece / Pos. 56

SEALING RING 43-19,5-3

Quantity in assembly group: 1 Piece / Pos. 57
