Parts by subassemblies

HEX BOLT M16X90-DIN931-8.8-G

Quantity in assembly group: 3 Piece / Pos. 0

FLAT WASHER M16

Quantity in assembly group: 3 Piece / Pos. 0

TENSION ARM

Quantity in assembly group: 1 Piece / Pos. 0

SPACER PIECE 16,5X30X10

Quantity in assembly group: 3 Piece / Pos. 0

WINDING PROTECTION

Quantity in assembly group: 3 Piece / Pos. 0

LOCKING DISK

Quantity in assembly group: 3 Piece / Pos. 0

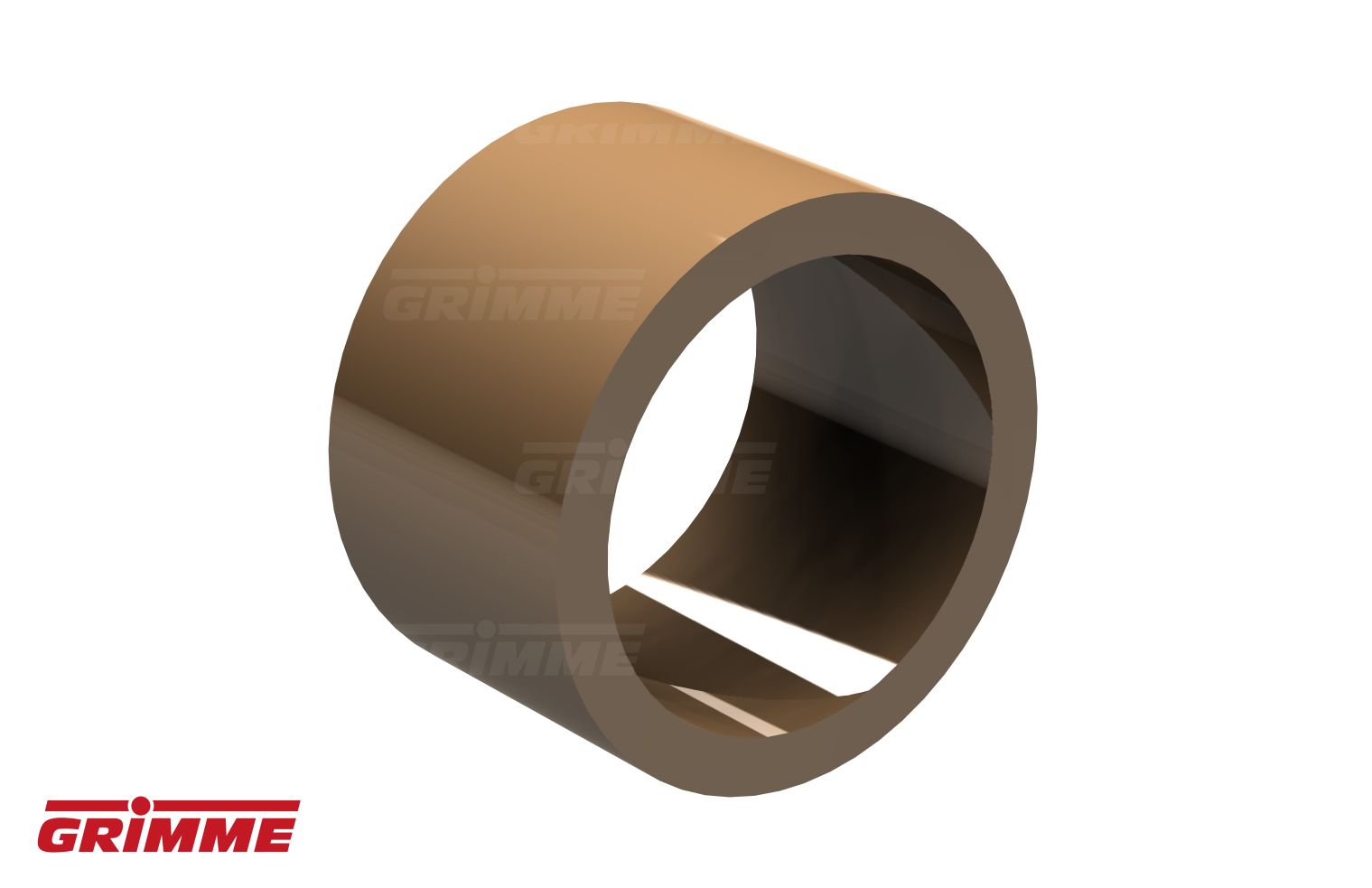

BUSH

Quantity in assembly group: 2 Piece / Pos. 0

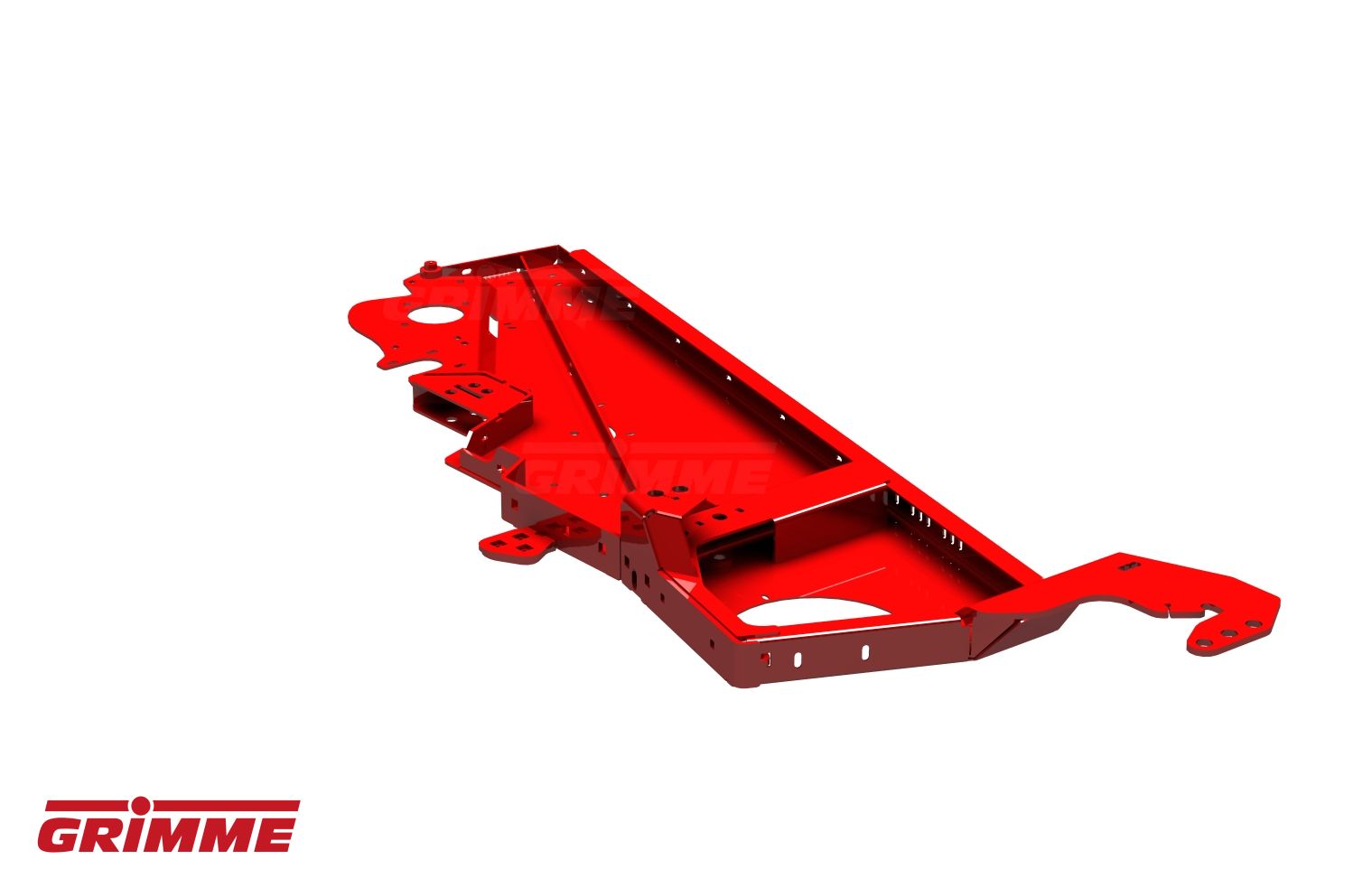

SWING FRAME R/H

Quantity in assembly group: 1 Piece / Pos. 1

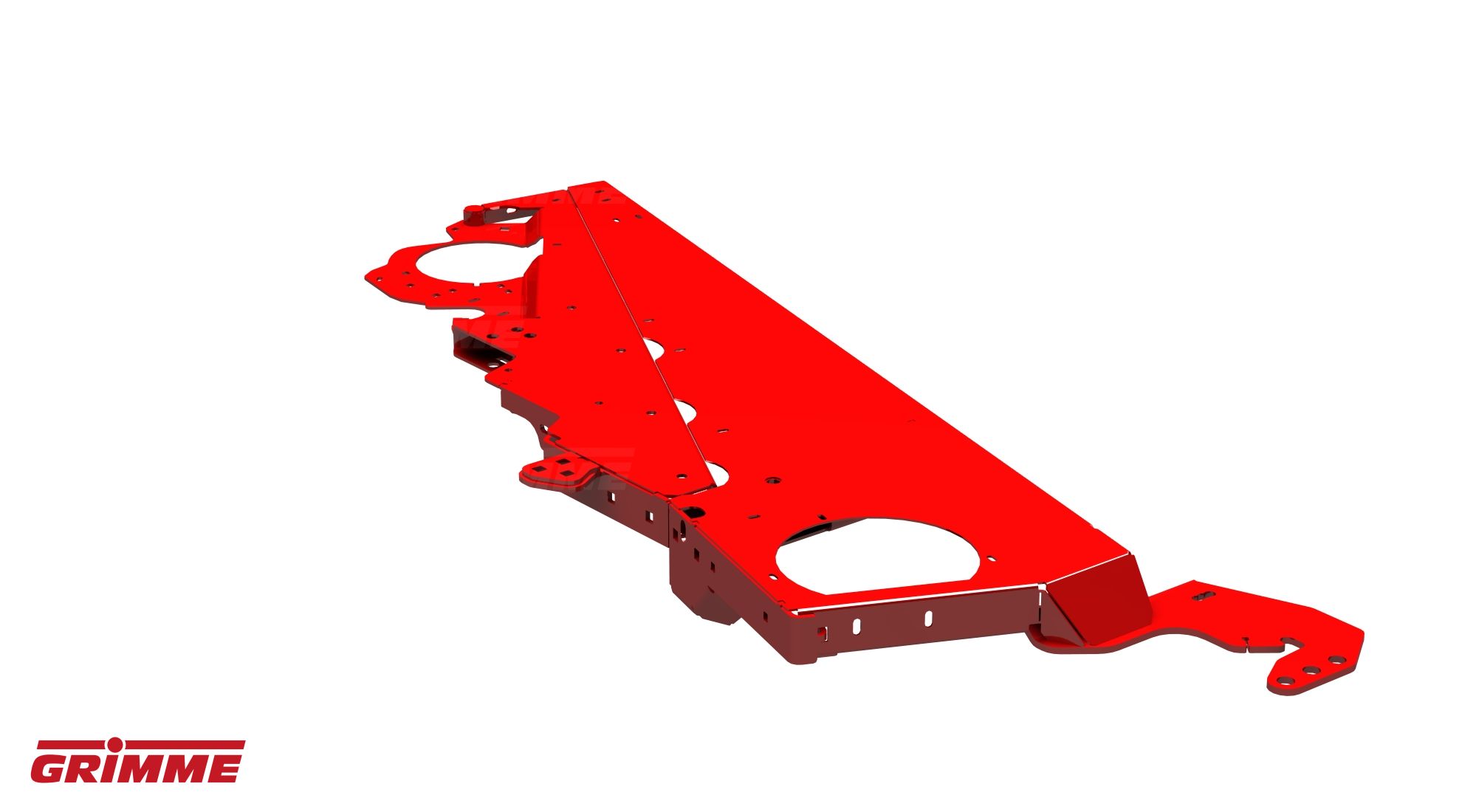

SWING FRAME L/H

Quantity in assembly group: 1 Piece / Pos. 2

WEAR STRIP

Quantity in assembly group: 2 Piece / Pos. 3

WEAR STRIP

Quantity in assembly group: 2 Piece / Pos. 4

SCRAPER L/H

Quantity in assembly group: 1 Piece / Pos. 5

SCRAPER R/H

Quantity in assembly group: 1 Piece / Pos. 6

SIDE PLATE

Quantity in assembly group: 2 Piece / Pos. 7

BRACKET R/H

Quantity in assembly group: 1 Piece / Pos. 8

BRACKET L/H

Quantity in assembly group: 1 Piece / Pos. 9

SPACER RING

Quantity in assembly group: 2 Piece / Pos. 10

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 11

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 12

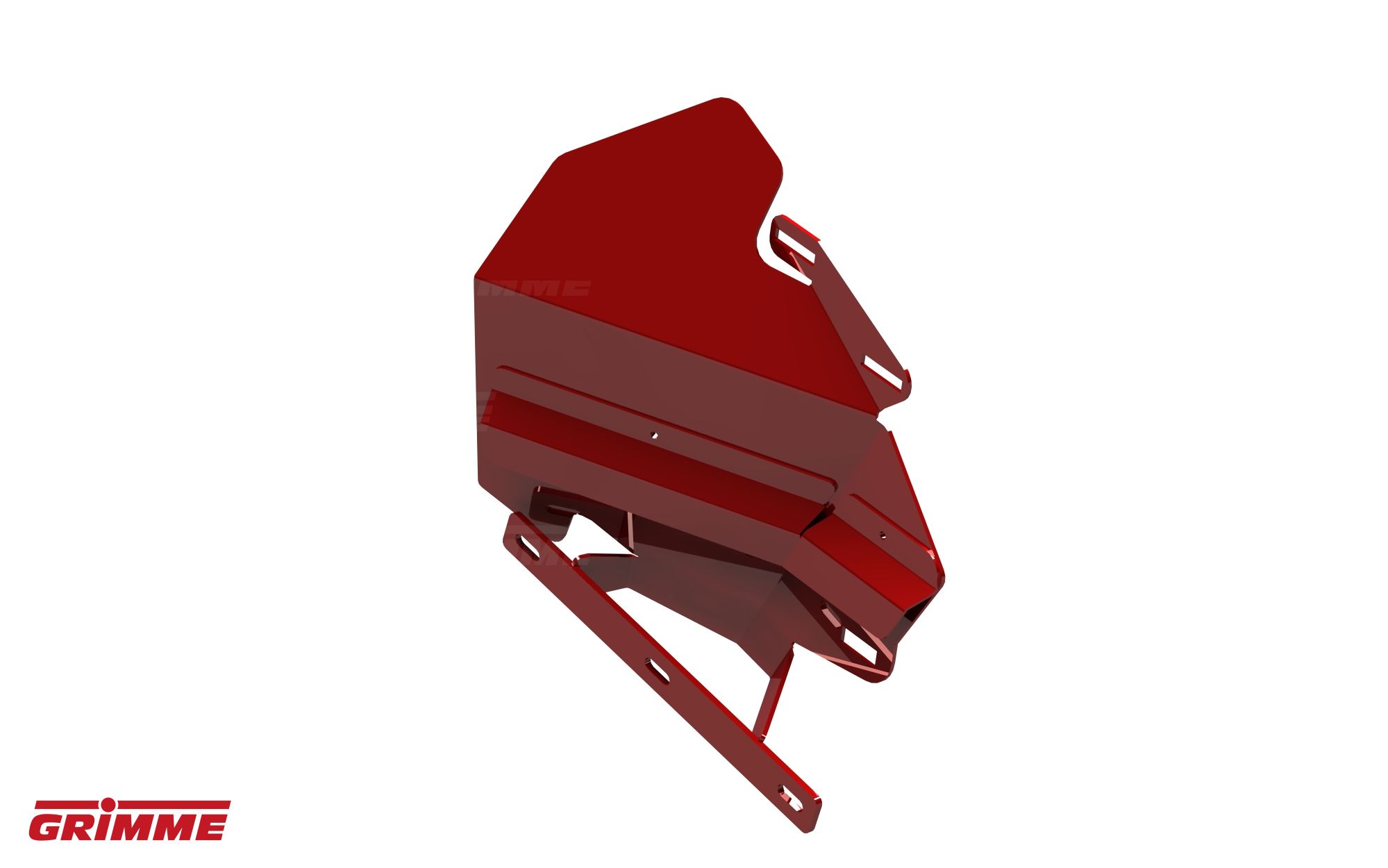

GUARD

Quantity in assembly group: 1 Piece / Pos. 13

DISC

Quantity in assembly group: 2 Piece / Pos. 14

GUIDE ROLLER

Quantity in assembly group: 2 Piece / Pos. 15

EYELET SCREW

Quantity in assembly group: 2 Piece / Pos. 16

TENSION SPRING

Quantity in assembly group: 2 Piece / Pos. 17

BOLT

Quantity in assembly group: 2 Piece / Pos. 18

SPLIT WASHER 9X40X4

Quantity in assembly group: 2 Piece / Pos. 19

TENSION ARM

Quantity in assembly group: 2 Piece / Pos. 20

FLANGE PLATE (PR) PF62/PF206

Quantity in assembly group: 2 Piece / Pos. 21

BEARING YAR 206-2RF/UC206

Quantity in assembly group: 2 Piece / Pos. 22

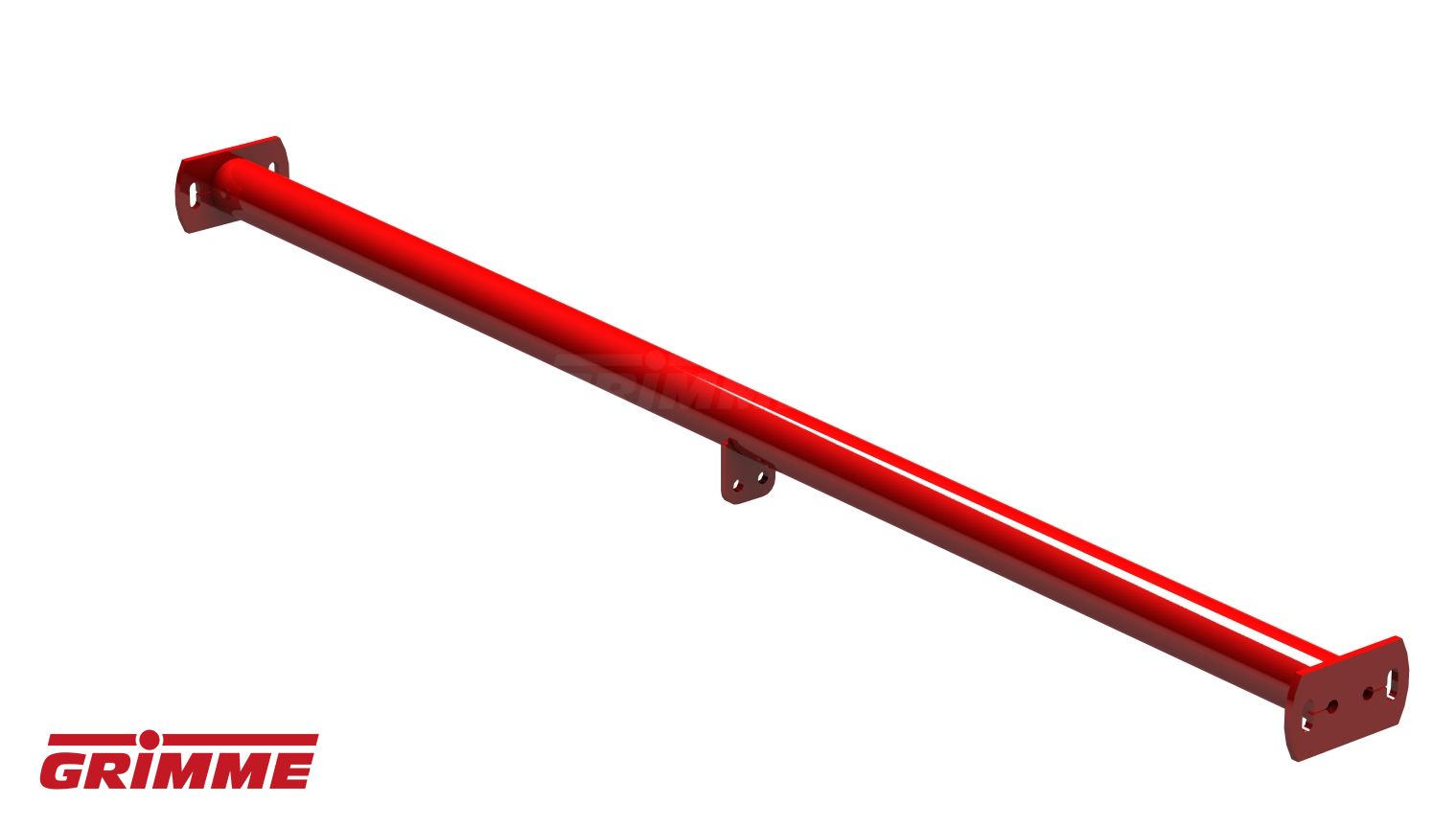

CROSS TUBE

Quantity in assembly group: 1 Piece / Pos. 23

HEX BOLT M16X80-DIN931-8.8-G

Quantity in assembly group: 2 Piece / Pos. 24

SUPPORT ROLLER D95

Quantity in assembly group: 5 Piece / Pos. 25

BRACKET

Quantity in assembly group: 1 Piece / Pos. 26

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 6 Piece / Pos. 27

HEXAGON NUT M16 DIN934-8-GAL

Quantity in assembly group: 6 Piece / Pos. 28

SCRAPER

Quantity in assembly group: 2 Piece / Pos. 29

ANGLE BRACKET

Quantity in assembly group: 2 Piece / Pos. 30

COACH BOLT/SS M16X70-603-8.8-G

Quantity in assembly group: 1 Piece / Pos. 31

COACH BOLT M16X110-DIN603-8.8G

Quantity in assembly group: 1 Piece / Pos. 32

LC 2LINK C5X36 DIN 763-GAL

Quantity in assembly group: 2 Piece / Pos. 33

BRACKET

Quantity in assembly group: 1 Piece / Pos. 34

ROLLER D100

Quantity in assembly group: 2 Piece / Pos. 35

SPACER 16,5X30X30

Quantity in assembly group: 2 Piece / Pos. 36

IDLER ROLLER BRACKET CENTRE

Quantity in assembly group: 1 Piece / Pos. 37

RETAINING RING AS 20X1,75 DIN4

Quantity in assembly group: 1 Piece / Pos. 38

WINDING PROTECTION

Quantity in assembly group: 8 Piece / Pos. 39

BOLT

Quantity in assembly group: 1 Piece / Pos. 40

RETAINING RING J 47X1,75 DIN47

Quantity in assembly group: 1 Piece / Pos. 41

SHAFT SEAL C 25X47X10 DIN3760

Quantity in assembly group: 1 Piece / Pos. 42

CROSS TUBE FRONT

Quantity in assembly group: 1 Piece / Pos. 43

GUIDE ROLLER

Quantity in assembly group: 1 Piece / Pos. 44

BOLT

Quantity in assembly group: 1 Piece / Pos. 45

BALL BEARING 6204-2RS

Quantity in assembly group: 2 Piece / Pos. 46

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 47

GEARBOX GTR-41H-3,182:1 DM40

Quantity in assembly group: 1 Piece / Pos. 48

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 49

SHAFT SEAL 65X100X10

Quantity in assembly group: 1 Piece / Pos. 50

WDR 35X72X10 BA SL

Quantity in assembly group: 1 Piece / Pos. 51

GEB OIL HYP SAE 85 W90 API GL5

Quantity in assembly group: 1 Piece / Pos. 52

FLANGE ROLLER D95

Quantity in assembly group: 8 Piece / Pos. 53

AGITATOR ROLLER -TRIANGULAR-

Quantity in assembly group: 3 Piece / Pos. 54

END COLLAR 10,5X32X5

Quantity in assembly group: 2 Piece / Pos. 55

ROLLER CAP

Quantity in assembly group: 13 Piece / Pos. 56

PU-DEFLECTOR R/H

Quantity in assembly group: 1 Piece / Pos. 58

PU-DEFLECTOR L/H

Quantity in assembly group: 1 Piece / Pos. 59

STEEL ROLLER CPTE. D=95

Quantity in assembly group: 2 Piece / Pos. 60

CHANNEL PLATE R/H

Quantity in assembly group: 1 Piece / Pos. 61

CHANNEL PLATE L/H

Quantity in assembly group: 1 Piece / Pos. 62
