Your machine: POTATO HARVESTER GT 170 M+S GT170(S/N: 45002062) modify ▸

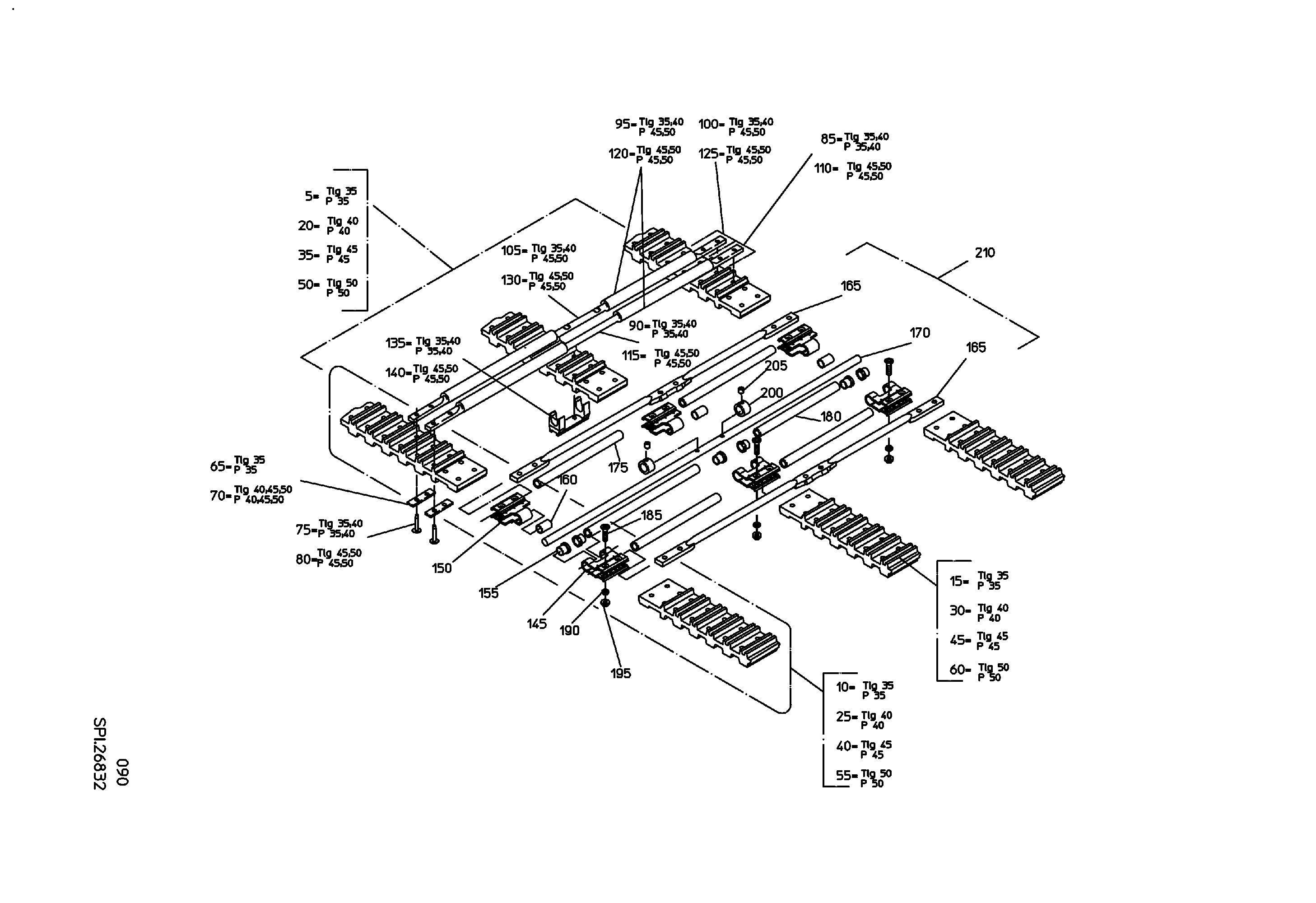

Subassembly drawing

▸ Selected assembly group:

Selected subassembly

▸
1.MAIN WEB COVERED S (40 Parts)
▸

Subassembly parts

All items Equipment ex work ()
1.MAIN WEB COV 1631-216-35
Quantity in assembly group: 1 Piece / Pos. 5
OUTER BELT 215DCA-ONO 60/35
Quantity in assembly group: 2 Piece / Pos. 10
CENTRE BELT 215DCA-ONO 60/35
Quantity in assembly group: 1 Piece / Pos. 15
1.MAIN WEB COV 1631-189-40
Quantity in assembly group: 1 Piece / Pos. 20
OUTER BELT 188DCA-ONO 60/40
Quantity in assembly group: 2 Piece / Pos. 25
CENTRE BELT 187DCA-ONO 60/40
Quantity in assembly group: 1 Piece / Pos. 30
1.MAIN WEB COV 1631-168-45
Quantity in assembly group: 1 Piece / Pos. 35
OUTER BELT 167DCA-ONO 60/45
Quantity in assembly group: 2 Piece / Pos. 40
CENTRE BELT 167DCA-ONO-60/45
Quantity in assembly group: 1 Piece / Pos. 45
1.MAIN WEB COV 1631-152-50
Quantity in assembly group: 1 Piece / Pos. 50
OUTER BELT 151DCA-ONO 60/50
Quantity in assembly group: 2 Piece / Pos. 55
CENTRE BELT 151DCA-ONO 60/50
Quantity in assembly group: 1 Piece / Pos. 60
RIVET PLATE 32/5,3
Quantity in assembly group: 1 Piece / Pos. 65
RIVET PLATE 32/5,3
Quantity in assembly group: 1 Piece / Pos. 70
RIVET DIN661-5,3X19,5-ST
Quantity in assembly group: 1 Piece / Pos. 75
RIVET DIN661-5.3X21.5-St
Quantity in assembly group: 1 Piece / Pos. 80
BAR COVERED 1618LONG
Quantity in assembly group: 1 Piece / Pos. 85
BAR 10X1624
Quantity in assembly group: 1 Piece / Pos. 90

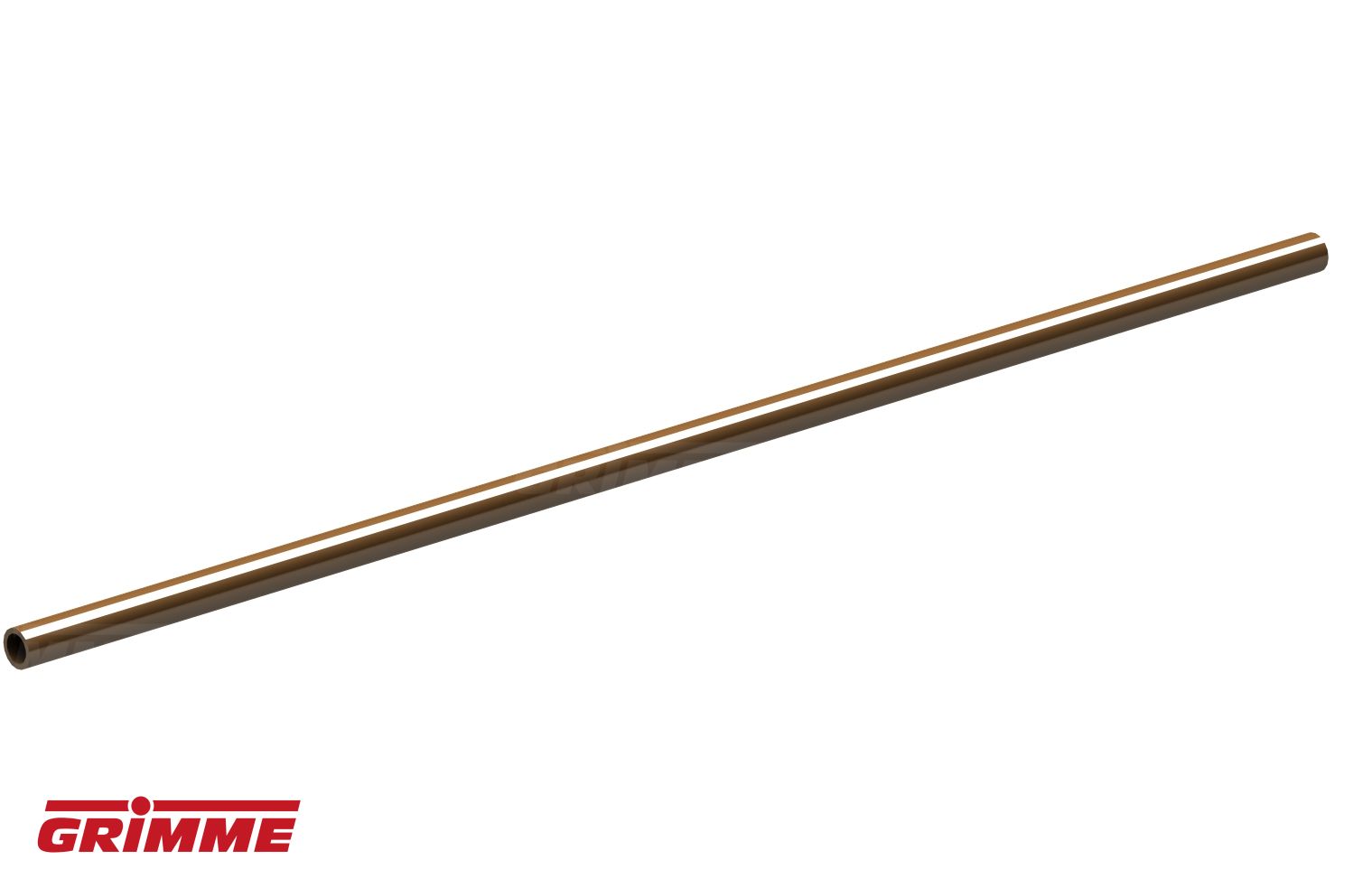

COVER TUBE 17X12X706
Quantity in assembly group: 2 Piece / Pos. 95
CENTERED BAR COVERED 1620LG
Quantity in assembly group: 1 Piece / Pos. 100
BAR 10X1624
Quantity in assembly group: 1 Piece / Pos. 105
BAR 11X1624 W FTU
Quantity in assembly group: 1 Piece / Pos. 110
BAR 11X1624
Quantity in assembly group: 1 Piece / Pos. 115
COVER TUBE 18X13X713
Quantity in assembly group: 2 Piece / Pos. 120
BAR 11X1624 W FTU
Quantity in assembly group: 1 Piece / Pos. 125
BAR 11X1624
Quantity in assembly group: 1 Piece / Pos. 130
CLAMP DM10 BT60
Quantity in assembly group: 1 Piece / Pos. 135
CLAMP DM11 BT60
Quantity in assembly group: 1 Piece / Pos. 140
BT-BIN TYPE1 P35 DBH32 OU
Quantity in assembly group: 3 Piece / Pos. 145
BT-BIN TYPE1 P35 DBH32 IN
Quantity in assembly group: 3 Piece / Pos. 150
THREADED BUSH 15X10,2X17
Quantity in assembly group: 6 Piece / Pos. 155
BUSHING 15X10,2X25,5
Quantity in assembly group: 3 Piece / Pos. 160
BAR 11X1624 CEFL
Quantity in assembly group: 2 Piece / Pos. 165
JOINING BAR 9,9X1628
Quantity in assembly group: 1 Piece / Pos. 170
CS SCREW DIN604 M6X28-10.9
Quantity in assembly group: 12 Piece / Pos. 185
SPHERICAL WASHER M6 DIN6319
Quantity in assembly group: 12 Piece / Pos. 190
HEX NUT M6 DIN934/10
Quantity in assembly group: 12 Piece / Pos. 195
COLLAR DM10.2
Quantity in assembly group: 2 Piece / Pos. 200
GRUB BOLT M6X8-DIN914 flZn
Quantity in assembly group: 2 Piece / Pos. 205
JOINING KIT GZ-60MM SIDE BELTS
Quantity in assembly group: 1 Piece / Pos. 210
