Your machine: POTATO HARVESTER GT 170 M+S GT170(S/N: 45002062) modify ▸

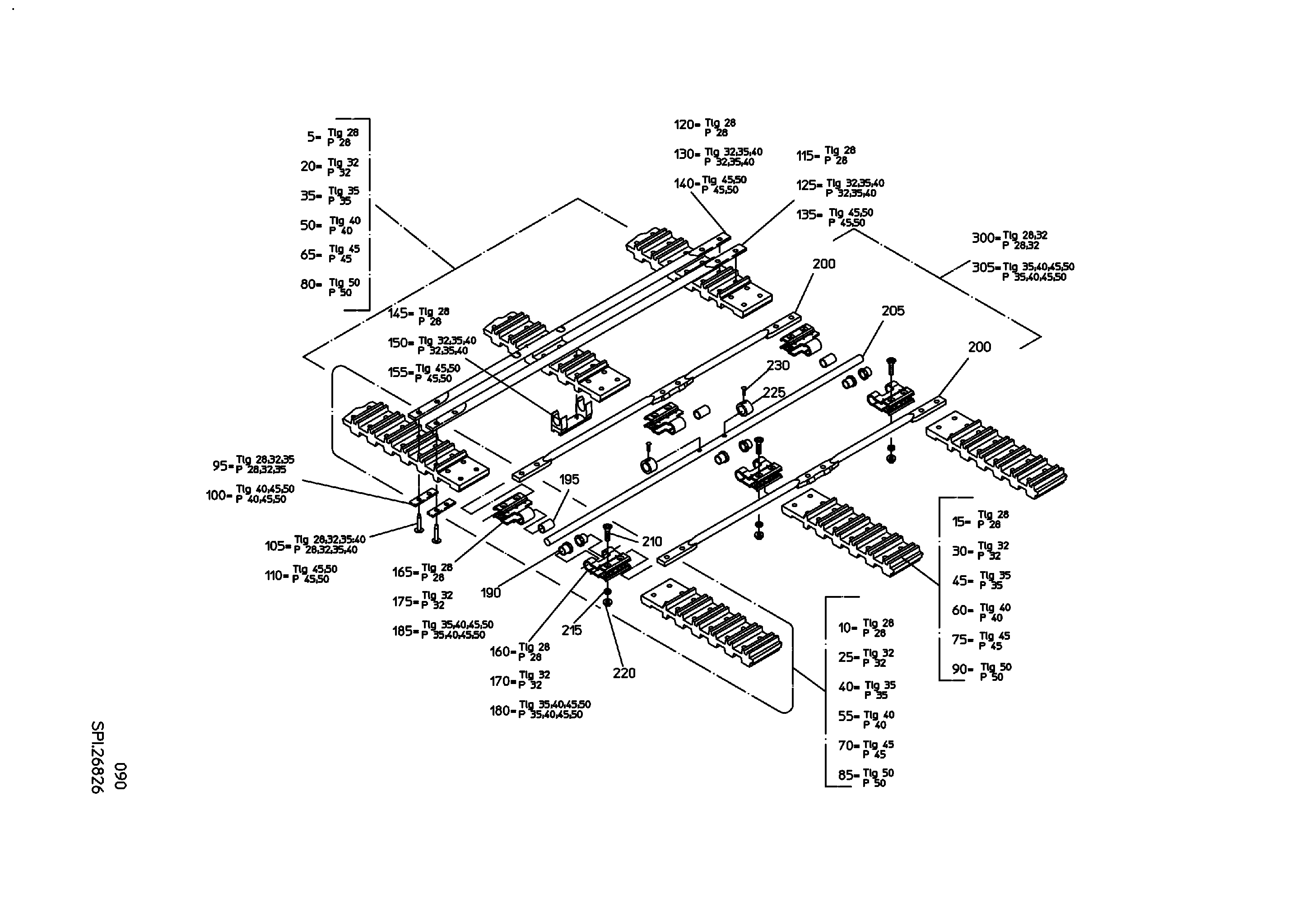

Subassembly drawing

▸ Selected assembly group:

Selected subassembly

▸
1.MAIN WEB M (48 Parts)
▸

Subassembly parts

All items Equipment ex work ()

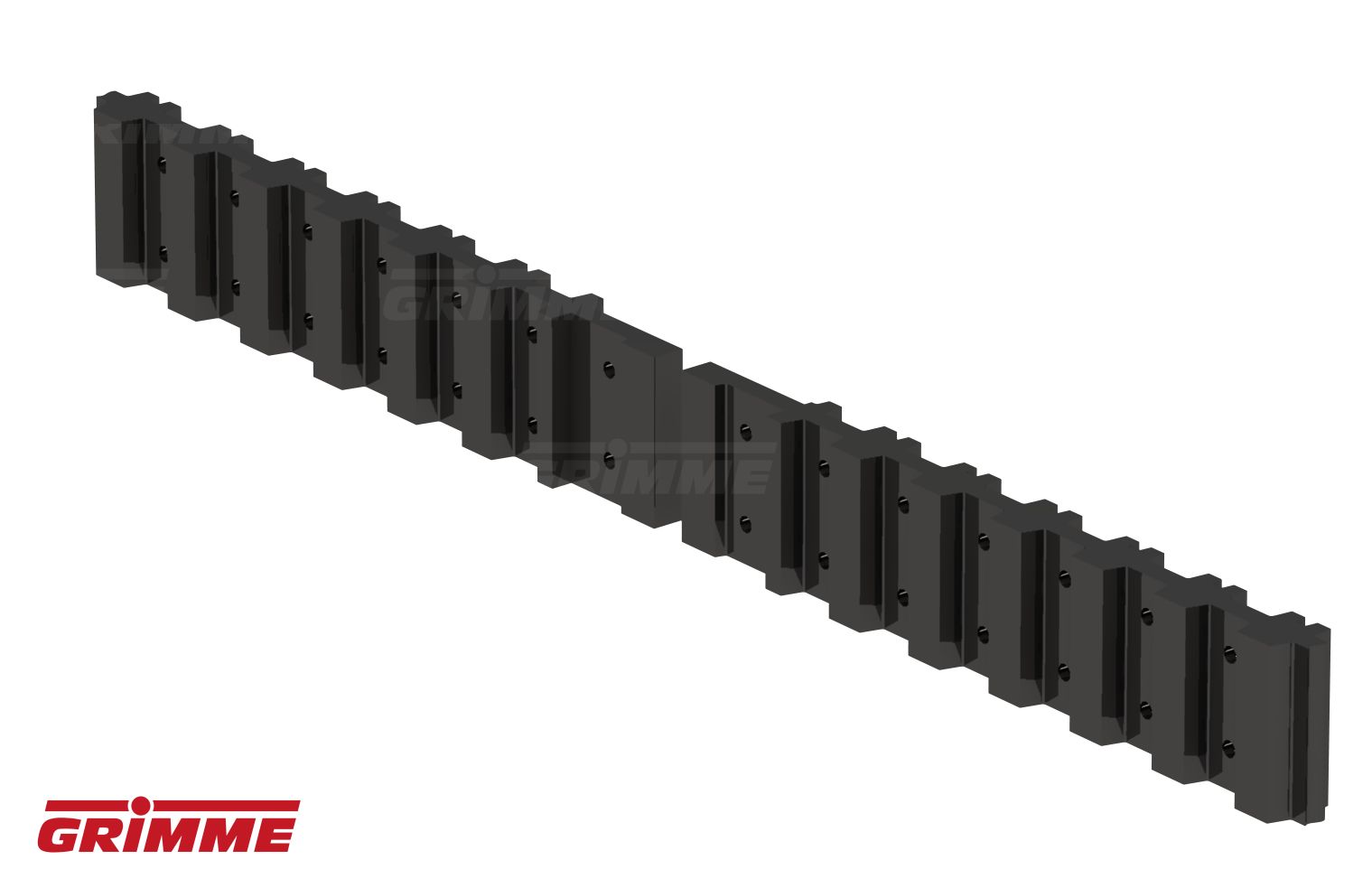

1ST MAIN WEB 28MM
Quantity in assembly group: 1 Piece / Pos. 5
OUTER BELT 304DCA-60/28
Quantity in assembly group: 2 Piece / Pos. 10
CENTRE BELT SCA-FLAT-60/28
Quantity in assembly group: 1 Piece / Pos. 15

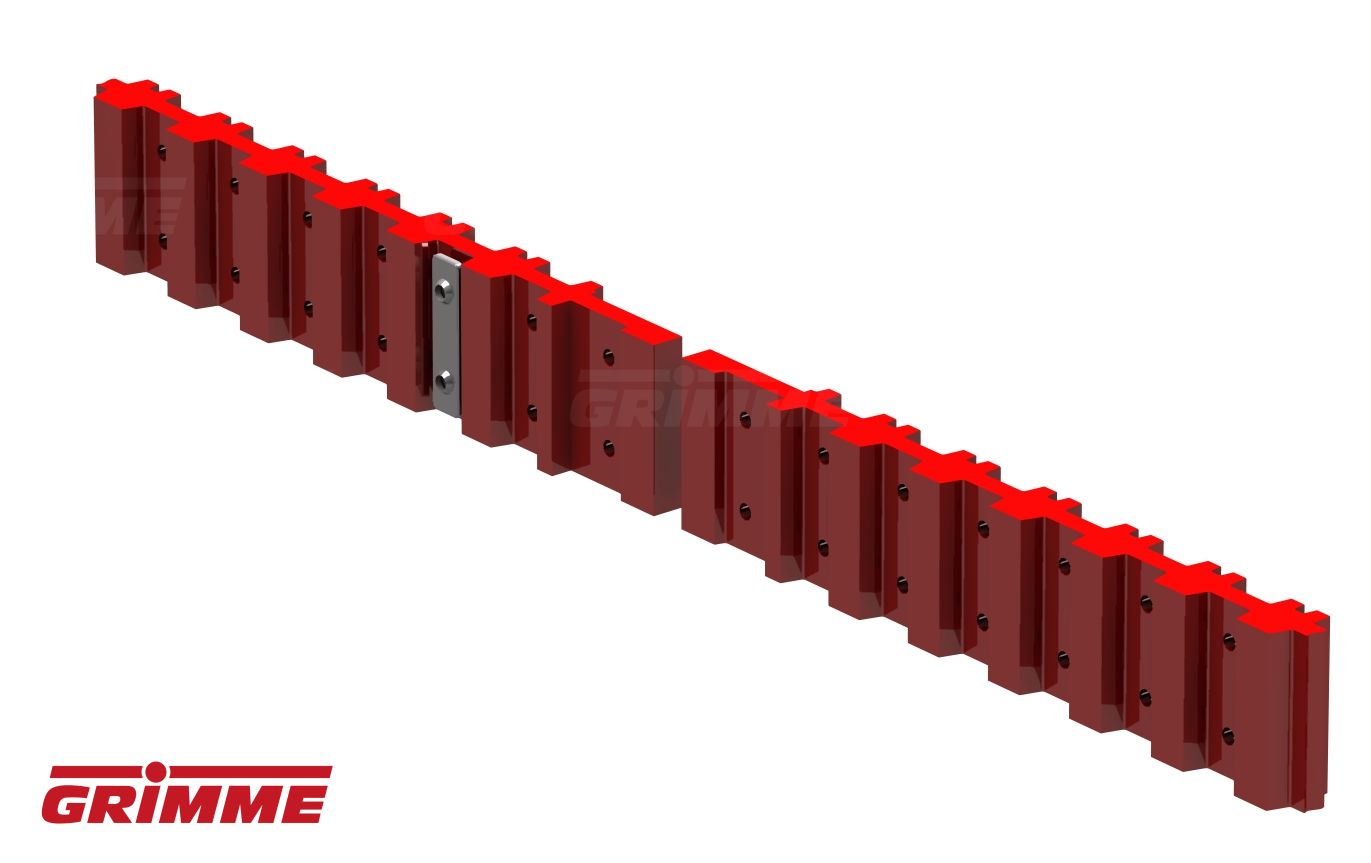

1ST MAIN WEB 32MM
Quantity in assembly group: 1 Piece / Pos. 20
OUTER BELT 237DCA-60/32
Quantity in assembly group: 2 Piece / Pos. 25
CENTRE BELT 267DCA 60/32
Quantity in assembly group: 1 Piece / Pos. 30
1ST MAIN WEB 35MM
Quantity in assembly group: 1 Piece / Pos. 35
OUTER BELT 244DCA-ONO-60/35
Quantity in assembly group: 2 Piece / Pos. 40
CENTRE BELT 244DCA-ONO 60/35
Quantity in assembly group: 1 Piece / Pos. 45
1ST MAIN WEB 40MM
Quantity in assembly group: 1 Piece / Pos. 50
OUTER BELT 214DCA-ONO-60/40
Quantity in assembly group: 2 Piece / Pos. 55
CENTRE BELT 214DCA-ONO 60/40
Quantity in assembly group: 1 Piece / Pos. 60
MAIN WEB 45/1627/8608
Quantity in assembly group: 1 Piece / Pos. 65
BELT DCA-ONO 60/45X190
Quantity in assembly group: 2 Piece / Pos. 70
CENTRE BELT 190DCA 60/45
Quantity in assembly group: 1 Piece / Pos. 75
MAIN WEB 50/1627/8613
Quantity in assembly group: 1 Piece / Pos. 80
BELT DCA-ONO 60/50X171
Quantity in assembly group: 2 Piece / Pos. 85
CENTRE BELT 171DCA 60/50
Quantity in assembly group: 1 Piece / Pos. 90
RIVET PLATE 32/5,3
Quantity in assembly group: 1 Piece / Pos. 95
RIVET PLATE 32/5,3
Quantity in assembly group: 1 Piece / Pos. 100
RIVET DIN661-5,3X19,5-ST
Quantity in assembly group: 1 Piece / Pos. 105
RIVET DIN661-5.3X21.5-St
Quantity in assembly group: 1 Piece / Pos. 110
BAR 9X1624
Quantity in assembly group: 1 Piece / Pos. 115
BAR 9X1624
Quantity in assembly group: 1 Piece / Pos. 120
BAR 10X1624
Quantity in assembly group: 1 Piece / Pos. 125
BAR 10X1624
Quantity in assembly group: 1 Piece / Pos. 130
BAR 11X1624
Quantity in assembly group: 1 Piece / Pos. 135
BAR 11X1624
Quantity in assembly group: 1 Piece / Pos. 140
CLAMP DM9 BT60
Quantity in assembly group: 1 Piece / Pos. 145
CLAMP DM10 BT60
Quantity in assembly group: 1 Piece / Pos. 150
CLAMP DM11 BT60
Quantity in assembly group: 1 Piece / Pos. 155
BT-BIN TYPE1 P28 DBH32 OU
Quantity in assembly group: 3 Piece / Pos. 160
BT-BIN TYPE1 P28 DBH32 IN
Quantity in assembly group: 3 Piece / Pos. 165
BT-BIN TYPE1 P32 DBH32 OU
Quantity in assembly group: 3 Piece / Pos. 170
BT-BIN TYPE1 P32 DBH32 IN
Quantity in assembly group: 3 Piece / Pos. 175
BT-BIN TYPE1 P35 DBH32 OU
Quantity in assembly group: 3 Piece / Pos. 180
BT-BIN TYPE1 P35 DBH32 IN
Quantity in assembly group: 3 Piece / Pos. 185
THREADED BUSH 15X10,2X17
Quantity in assembly group: 6 Piece / Pos. 190
BUSHING 15X10,2X25,5
Quantity in assembly group: 3 Piece / Pos. 195
BAR 11X1624 CEFL
Quantity in assembly group: 2 Piece / Pos. 200
JOINING BAR 9,9X1628
Quantity in assembly group: 1 Piece / Pos. 205
CS SCREW DIN604 M6X28-10.9
Quantity in assembly group: 12 Piece / Pos. 210
SPHERICAL WASHER M6 DIN6319
Quantity in assembly group: 12 Piece / Pos. 215
HEX NUT M6 DIN934/10
Quantity in assembly group: 12 Piece / Pos. 220
COLLAR DM10.2
Quantity in assembly group: 2 Piece / Pos. 225
GRUB BOLT M6X8-DIN914 flZn
Quantity in assembly group: 2 Piece / Pos. 230
JOINING KIT
Quantity in assembly group: 1 Piece / Pos. 300
JOINING KIT GZ-60MM SIDE BELTS
Quantity in assembly group: 1 Piece / Pos. 305
