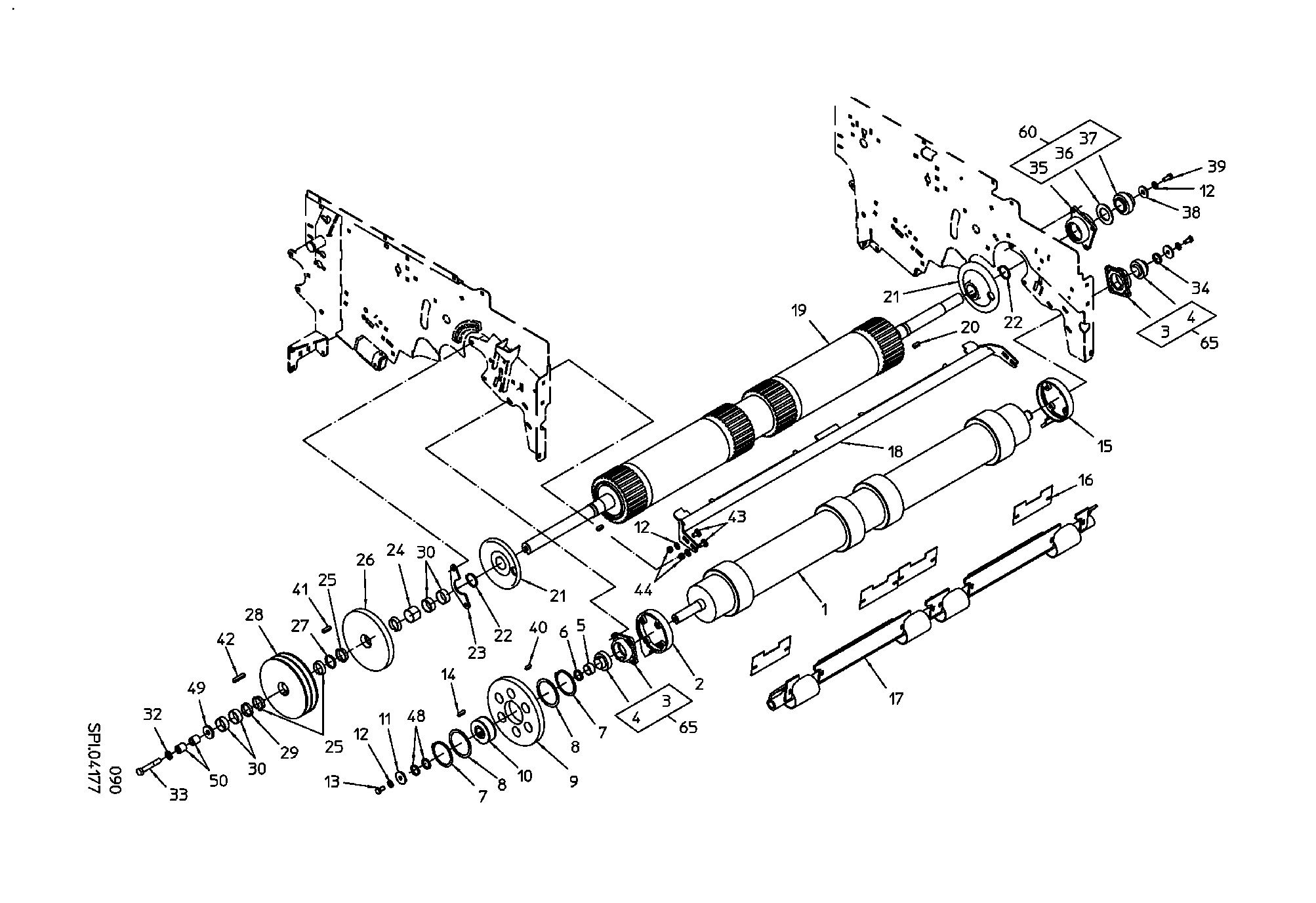

Parts by subassemblies

SEALING RING 70-47-7

Quantity in assembly group: 1 Piece / Pos. 0

DRIVE DRUM

Quantity in assembly group: 1 Piece / Pos. 1

WINDING PROTECTION R/H

Quantity in assembly group: 1 Piece / Pos. 2

FLANGE BEARING HOUSING

Quantity in assembly group: 2 Piece / Pos. 3

BEARING YAR 207-2RF/UC207

Quantity in assembly group: 2 Piece / Pos. 4

SPACER RING

Quantity in assembly group: 1 Piece / Pos. 5

CIRCLIP A 95X3 DIN471

Quantity in assembly group: 2 Piece / Pos. 7

DISC

Quantity in assembly group: 2 Piece / Pos. 8

GEAR 53T M5

Quantity in assembly group: 1 Piece / Pos. 9

CAM CLUTCH

Quantity in assembly group: 1 Piece / Pos. 10

CONTACT DISC FORM M 12-GAL

Quantity in assembly group: 6 Piece / Pos. 12

SET SCREW M12X25-DIN933-8.8-G

Quantity in assembly group: 1 Piece / Pos. 13

FEATHER KEY

Quantity in assembly group: 1 Piece / Pos. 14

WINDING PROTECTION L/H

Quantity in assembly group: 1 Piece / Pos. 15

SCRAPER

Quantity in assembly group: 4 Piece / Pos. 16

SCRAPER

Quantity in assembly group: 1 Piece / Pos. 17

SCRAPER

Quantity in assembly group: 1 Piece / Pos. 18

DRIVE DRUM D194

Quantity in assembly group: 1 Piece / Pos. 19

FEATHER KEY A 12X8X30 DIN6885

Quantity in assembly group: 2 Piece / Pos. 20

GUIDE FLANGE

Quantity in assembly group: 2 Piece / Pos. 21

RETAINING RING AS 50X3 DIN471

Quantity in assembly group: 2 Piece / Pos. 22

PANEL

Quantity in assembly group: 1 Piece / Pos. 23

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 24

CLAMPING RING

Quantity in assembly group: 4 Piece / Pos. 25

GEAR 47T M5

Quantity in assembly group: 1 Piece / Pos. 26

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 27

PULLEY D236

Quantity in assembly group: 1 Piece / Pos. 28

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 29

SPACER TUBE

Quantity in assembly group: 4 Piece / Pos. 30

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 1 Piece / Pos. 32

HEX BOLT M16X100 DIN931-8.8-G

Quantity in assembly group: 1 Piece / Pos. 33

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 34

FLANGED BEARING

Quantity in assembly group: 1 Piece / Pos. 35

SEALING RING 84-50-4

Quantity in assembly group: 1 Piece / Pos. 36

BEARING YAR 209-2RF/UC209

Quantity in assembly group: 1 Piece / Pos. 37

REINFORCING DISC

Quantity in assembly group: 1 Piece / Pos. 38

SET SCREW M12X30-DIN933-8.8-G

Quantity in assembly group: 1 Piece / Pos. 39

FEATHER KEY A 10X8X25 DIN6885

Quantity in assembly group: 1 Piece / Pos. 40

FEATHER KEY A 12X8X40 DIN6885

Quantity in assembly group: 1 Piece / Pos. 41

FEATHER KEY A 12X8X60 DIN6885

Quantity in assembly group: 1 Piece / Pos. 42

COACH BOLT M12X25-DIN603-8.8-G

Quantity in assembly group: 4 Piece / Pos. 43

HEXAGON NUT M12 934-10.9-flZn

Quantity in assembly group: 4 Piece / Pos. 44

RETAINING WASHER

Quantity in assembly group: 1 Piece / Pos. 45

SPACER RING

Quantity in assembly group: 2 Piece / Pos. 48

RETAINING WASHER

Quantity in assembly group: 1 Piece / Pos. 49

BUSH

Quantity in assembly group: 2 Piece / Pos. 50

FLANGE BEARING

Quantity in assembly group: 1 Piece / Pos. 60

FLANGE BEARING W35

Quantity in assembly group: 2 Piece / Pos. 65
