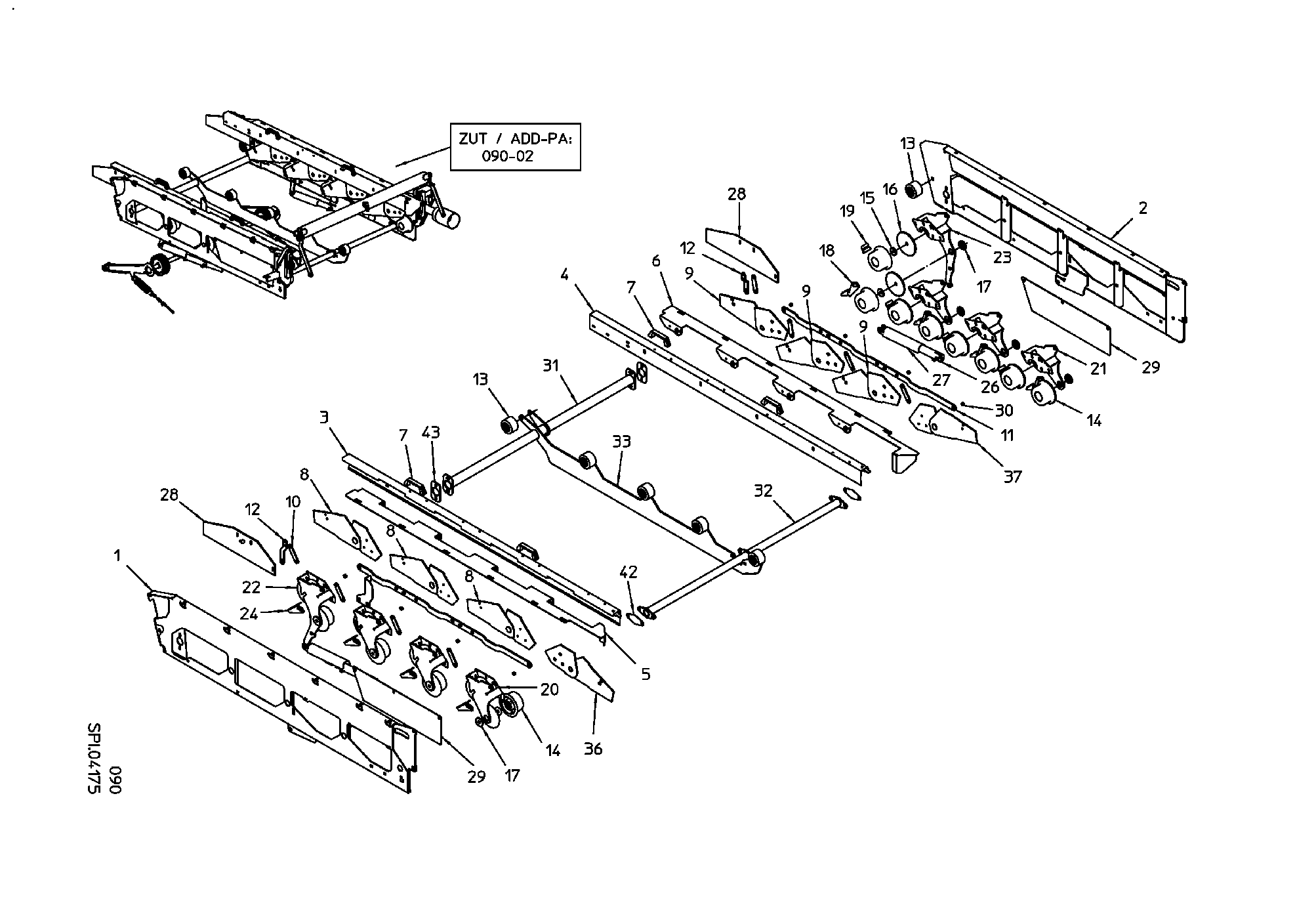

Subassembly drawing

▸ Selected assembly group:

Selected subassembly

SWING FRAME CASCADE S REAR (38 Parts)
▸

Subassembly parts

All items Equipment ex work ()
CYL-SEAL SET
Quantity in assembly group: 1 Piece / Pos. 0

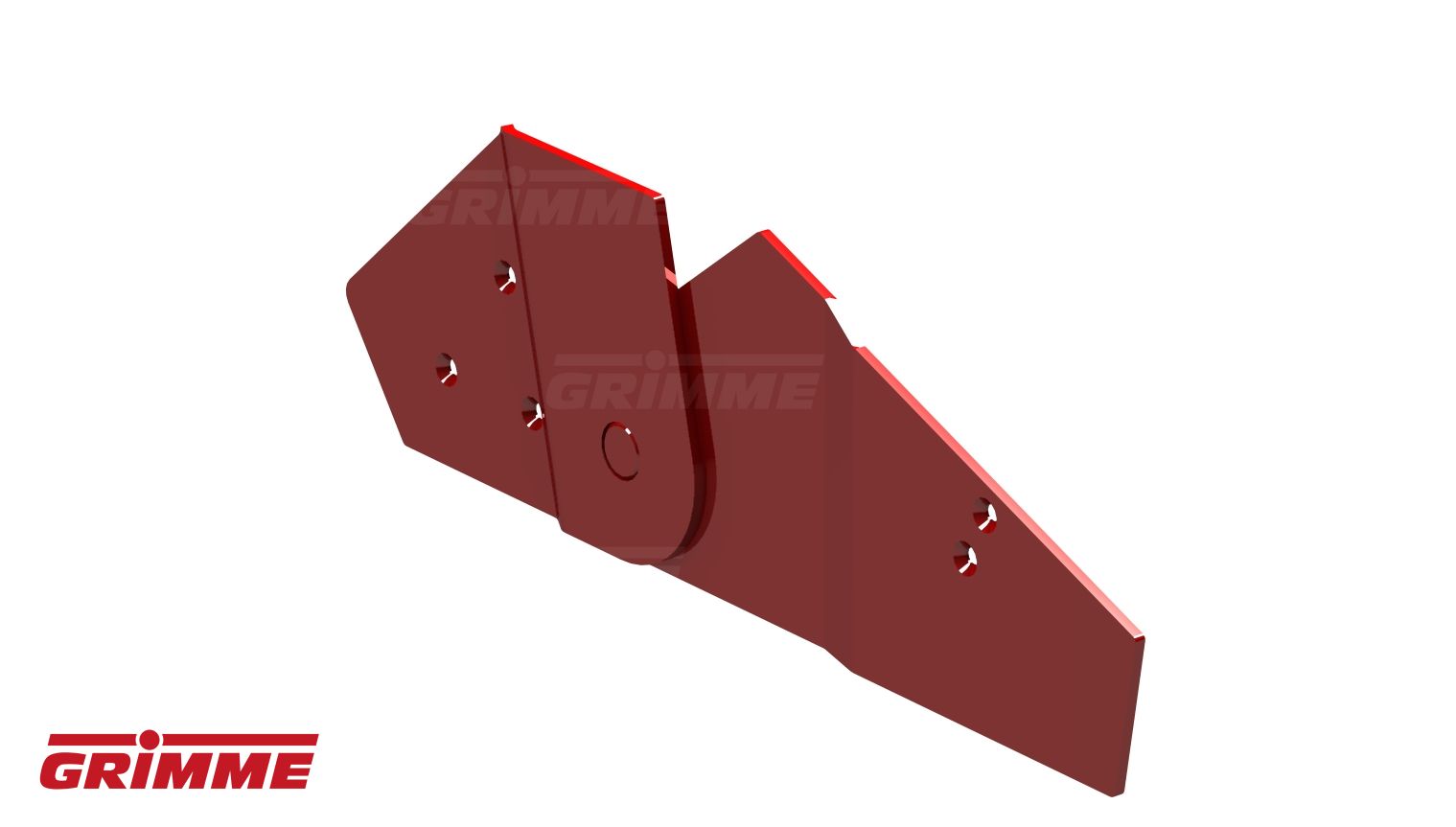

SIDE PART R/H
Quantity in assembly group: 1 Piece / Pos. 1

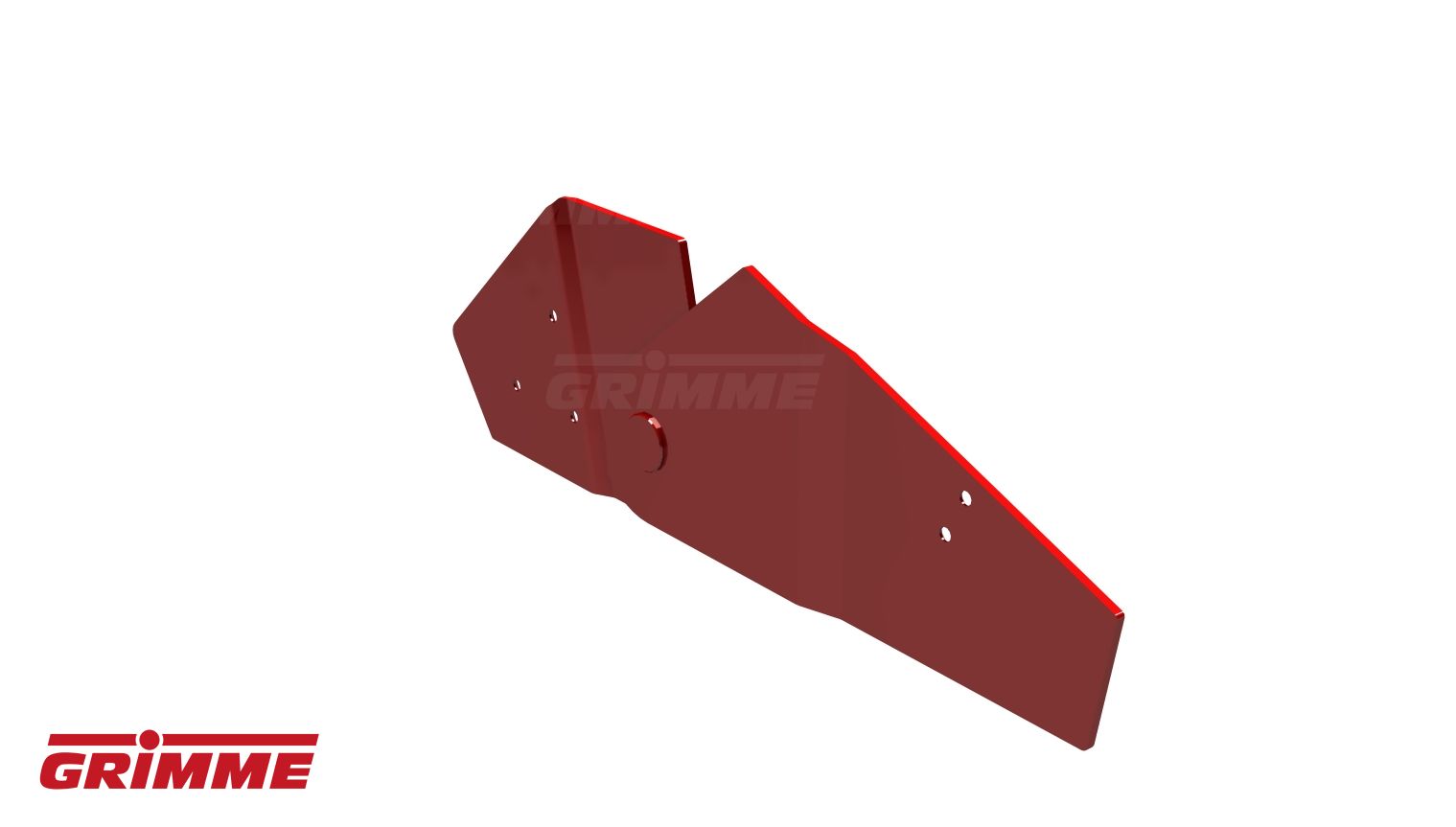

SIDE PART L/H
Quantity in assembly group: 1 Piece / Pos. 2
HOOD R/H
Quantity in assembly group: 1 Piece / Pos. 3
HOOD L/H
Quantity in assembly group: 1 Piece / Pos. 4
COVER R/H
Quantity in assembly group: 1 Piece / Pos. 5
COVER L/H
Quantity in assembly group: 1 Piece / Pos. 6
HANDLE
Quantity in assembly group: 4 Piece / Pos. 7
SIDE COVER PLATE R/H
Quantity in assembly group: 3 Piece / Pos. 8
SIDE COVER PLATE L/H
Quantity in assembly group: 3 Piece / Pos. 9
STRAP
Quantity in assembly group: 8 Piece / Pos. 10
STAY
Quantity in assembly group: 2 Piece / Pos. 11
BRACKET
Quantity in assembly group: 2 Piece / Pos. 12
SUPPORT ROLLER D95
Quantity in assembly group: 7 Piece / Pos. 13
STEEL ROLLER CPTE. D=128
Quantity in assembly group: 16 Piece / Pos. 14
WINDING PROTECTION
Quantity in assembly group: 16 Piece / Pos. 15
ROLLER SHIELD
Quantity in assembly group: 16 Piece / Pos. 16
BEARING BUSH
Quantity in assembly group: 8 Piece / Pos. 17
SCRAPER L/H
Quantity in assembly group: 4 Piece / Pos. 18
ROLLER SCRAPER
Quantity in assembly group: 8 Piece / Pos. 19
LEVER R/H
Quantity in assembly group: 3 Piece / Pos. 20
LEVER L/H
Quantity in assembly group: 3 Piece / Pos. 21
LEVER R/H
Quantity in assembly group: 1 Piece / Pos. 22
LEVER L/H
Quantity in assembly group: 1 Piece / Pos. 23
SCRAPER R/H
Quantity in assembly group: 4 Piece / Pos. 24
BRACKET
Quantity in assembly group: 1 Piece / Pos. 25
DOUBLE ACTING RAM
Quantity in assembly group: 2 Piece / Pos. 26
COVER
Quantity in assembly group: 2 Piece / Pos. 27
RUBBER SHEET
Quantity in assembly group: 2 Piece / Pos. 28
GUARD
Quantity in assembly group: 2 Piece / Pos. 29
SPACER TUBE
Quantity in assembly group: 8 Piece / Pos. 30
ROLLER HOLDER
Quantity in assembly group: 1 Piece / Pos. 31
CROSS TUBE
Quantity in assembly group: 1 Piece / Pos. 32
ROLLER HOLDER
Quantity in assembly group: 1 Piece / Pos. 33
SIDE PANEL FRONT R/H
Quantity in assembly group: 1 Piece / Pos. 36
SIDE PANEL FRONT L/H
Quantity in assembly group: 1 Piece / Pos. 37
SPACER PLATE
Quantity in assembly group: 2 Piece / Pos. 42
SPACER PLATE
Quantity in assembly group: 2 Piece / Pos. 43
