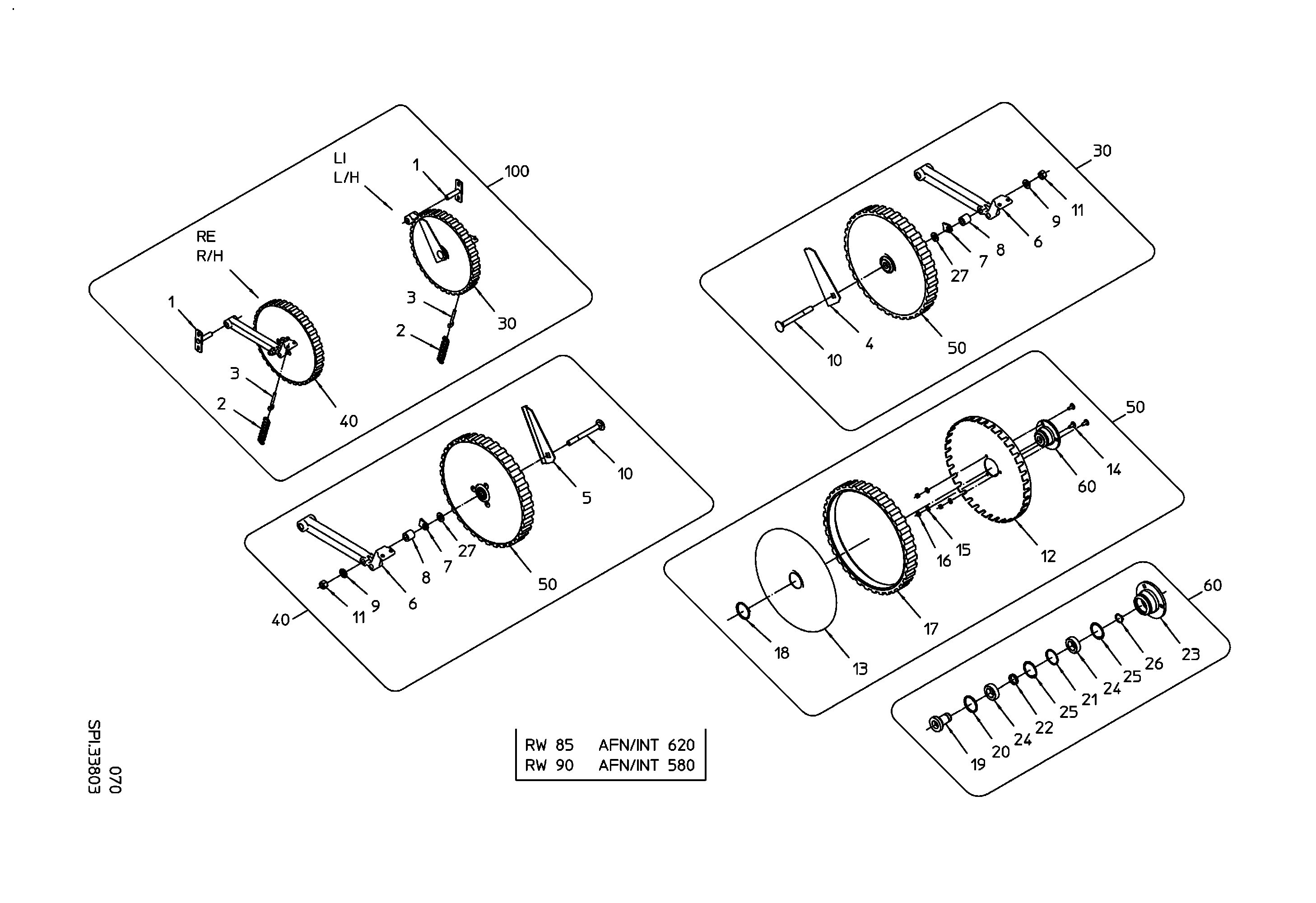

Parts by subassemblies

PLAIN BEARING BUSH 202320

Quantity in assembly group: 2 Piece / Pos. 0

MOUNTING ARM

Quantity in assembly group: 1 Piece / Pos. 0

BOLT

Quantity in assembly group: 2 Piece / Pos. 1

TENSION SPRING

Quantity in assembly group: 2 Piece / Pos. 2

EYELET SCREW

Quantity in assembly group: 2 Piece / Pos. 3

SCRAPER L/H

Quantity in assembly group: 1 Piece / Pos. 4

SCRAPER R/H

Quantity in assembly group: 1 Piece / Pos. 5

MOUNTING ARM

Quantity in assembly group: 2 Piece / Pos. 6

ADJUSTING DISC

Quantity in assembly group: 2 Piece / Pos. 7

SPACER 16,5X30X30

Quantity in assembly group: 2 Piece / Pos. 8

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 2 Piece / Pos. 9

COACH BOLT M16X160-DIN603-8.8G

Quantity in assembly group: 2 Piece / Pos. 10

HEXAGON NUT M16 DIN934-8-GAL

Quantity in assembly group: 2 Piece / Pos. 11

FEED IN ROLLER DISC

Quantity in assembly group: 2 Piece / Pos. 12

DRUM FOR FEED IN ROLLER

Quantity in assembly group: 2 Piece / Pos. 13

SLOTTED C/BOLT M8X20-603-8.8-G

Quantity in assembly group: 6 Piece / Pos. 14

CONTACT WASHER FORM M 8-GAL

Quantity in assembly group: 6 Piece / Pos. 15

HEXAGON NUT M8 DIN934-8-GAL

Quantity in assembly group: 6 Piece / Pos. 16

PUR RING 45WIDE 35T

Quantity in assembly group: 2 Piece / Pos. 17

RETAINING RING A 60X2 DIN471

Quantity in assembly group: 2 Piece / Pos. 18

BUSH

Quantity in assembly group: 2 Piece / Pos. 19

SEALING RING 50-44-3

Quantity in assembly group: 2 Piece / Pos. 20

SPACER RING

Quantity in assembly group: 2 Piece / Pos. 21

SPACER RING

Quantity in assembly group: 2 Piece / Pos. 22

BEARING HOUSING

Quantity in assembly group: 2 Piece / Pos. 23

BALL BEARING 6005-ZZRST

Quantity in assembly group: 4 Piece / Pos. 24

RETAINING RING J 47X1,75 DIN47

Quantity in assembly group: 4 Piece / Pos. 25

RETAINING RING A 25X1,2 DIN471

Quantity in assembly group: 2 Piece / Pos. 26

FLAT WASHER M16

Quantity in assembly group: 2 Piece / Pos. 27

HFR L/H 45 WIDE

Quantity in assembly group: 1 Piece / Pos. 30

HFR R/H 45 WIDE

Quantity in assembly group: 1 Piece / Pos. 40

HAULM FEED ROLLER 45MM-HD

Quantity in assembly group: 2 Piece / Pos. 50

BEARING HOUSING

Quantity in assembly group: 2 Piece / Pos. 60

HFR OUTSIDE 45 WIDE

Quantity in assembly group: 1 Piece / Pos. 100
