Parts by subassemblies
Your machine: POTATO HARVESTER GT 170 M+S GT170(S/N: 45002062) modify ▸

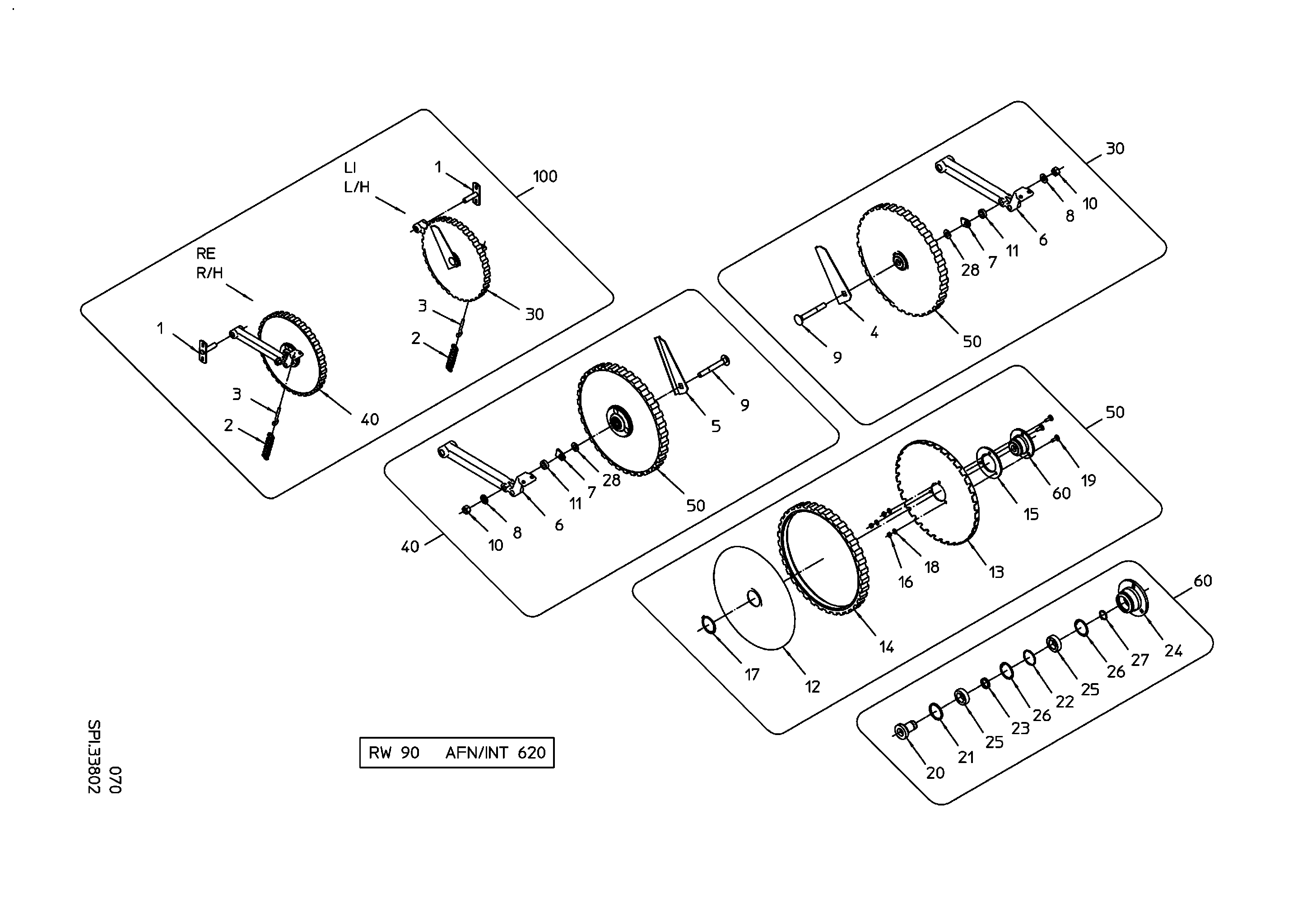

Subassembly drawing
▸ Selected assembly group:
MOUNTING ARM
PLAIN BEARING BUSH 202320
BOLT
TENSION SPRING
EYELET SCREW
SCRAPER L/H
SCRAPER R/H
MOUNTING ARM
ADJUSTING DISC
SPACER PIECE 16,5X30X10
DRUM FOR FEED IN ROLLER
FEED IN ROLLER DISC
RUBBER RING 33WIDE 35T
ROUND
RETAINING RING A 60X2 DIN471
COACH BOLT M8X25-603-8.8-GAL
BUSH
SEALING RING 50-44-3
SPACER RING
SPACER RING
BEARING HOUSING
BALL BEARING 6005-ZZRST
HFR L/H 35 WIDE
HFR R/H 35 WIDE
HAULM FEED ROLLER 35MM-HD
BEARING HOUSING
HFR OUTSIDE 35 WIDE
Selected subassembly
Subassembly parts

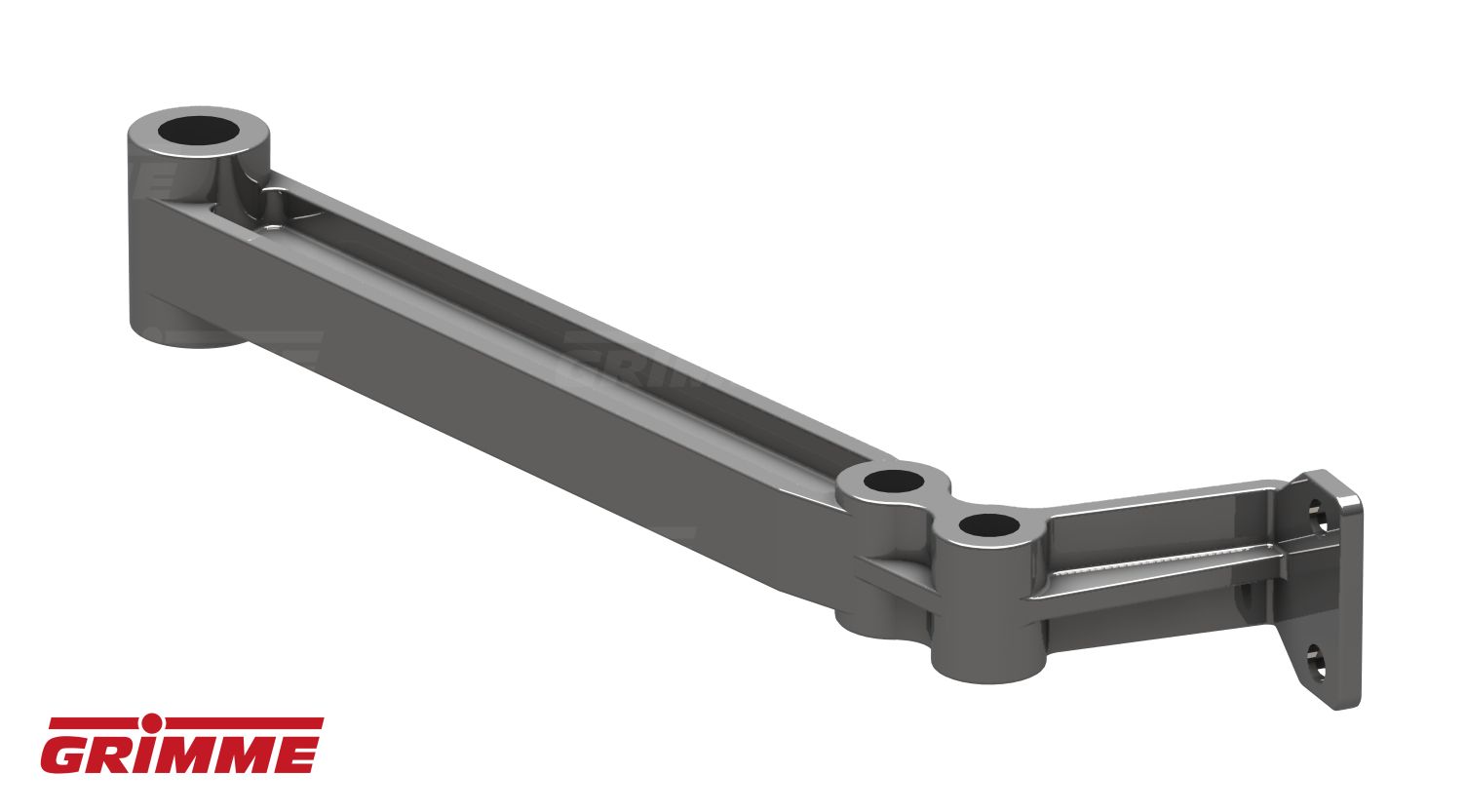

MOUNTING ARM
Quantity in assembly group:
1 Piece / Pos. 0
PLAIN BEARING BUSH 202320
Quantity in assembly group:
2 Piece / Pos. 0

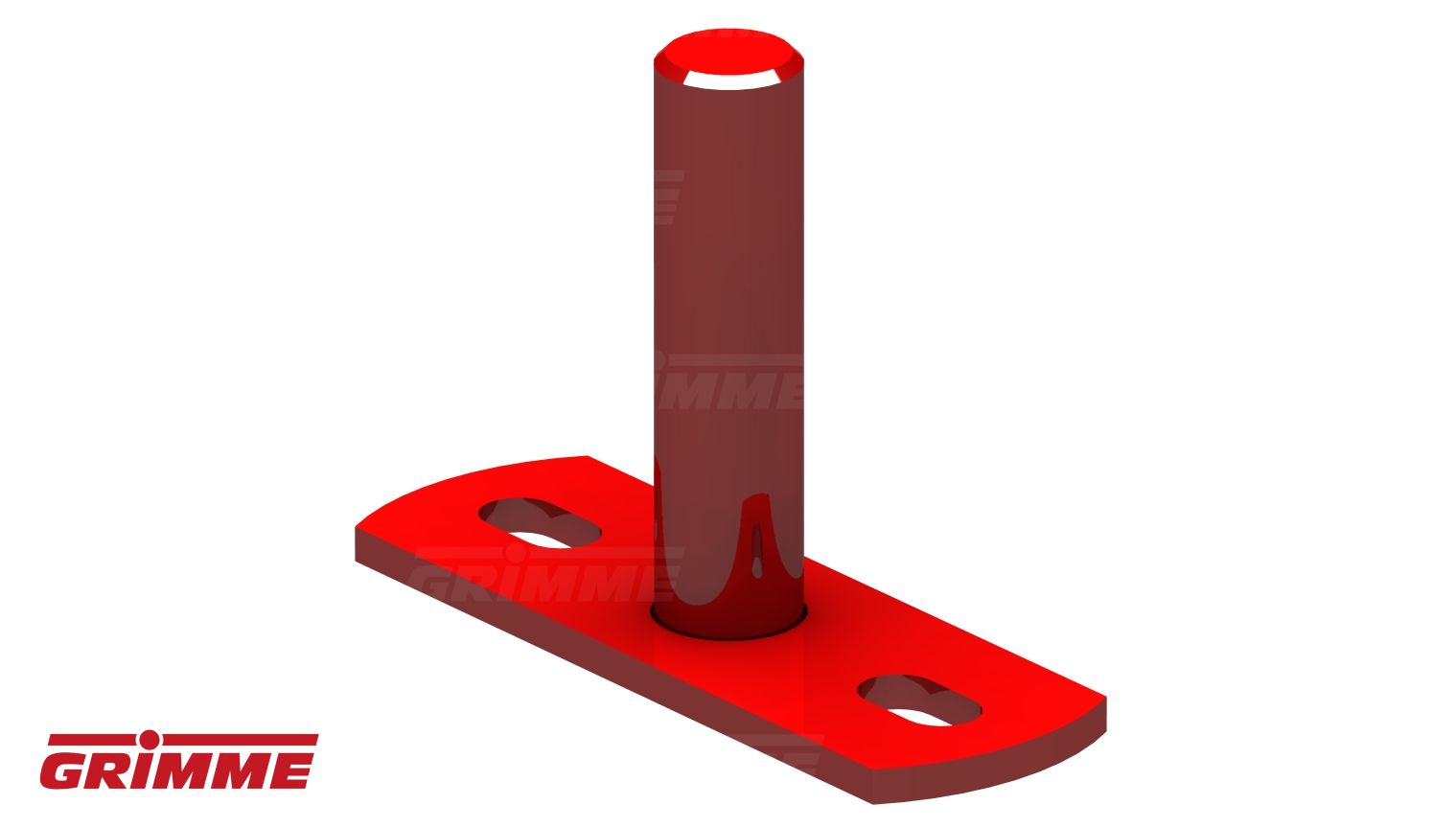

BOLT
Quantity in assembly group:
2 Piece / Pos. 1
TENSION SPRING
Quantity in assembly group:
2 Piece / Pos. 2
EYELET SCREW
Quantity in assembly group:
2 Piece / Pos. 3
SCRAPER L/H
Quantity in assembly group:
1 Piece / Pos. 4
SCRAPER R/H
Quantity in assembly group:
1 Piece / Pos. 5
MOUNTING ARM
Quantity in assembly group:
2 Piece / Pos. 6
ADJUSTING DISC
Quantity in assembly group:
2 Piece / Pos. 7
CONTACT WASHER FORM M 16-GAL
Quantity in assembly group:
2 Piece / Pos. 8
COACH BOLT M16X130-DIN603-8.8G
Quantity in assembly group:
2 Piece / Pos. 9
HEXAGON NUT M16 DIN934-8-GAL
Quantity in assembly group:
2 Piece / Pos. 10
SPACER PIECE 16,5X30X10
Quantity in assembly group:
2 Piece / Pos. 11
DRUM FOR FEED IN ROLLER
Quantity in assembly group:
2 Piece / Pos. 12
FEED IN ROLLER DISC
Quantity in assembly group:
2 Piece / Pos. 13
RUBBER RING 33WIDE 35T
Quantity in assembly group:
2 Piece / Pos. 14
ROUND
Quantity in assembly group:
2 Piece / Pos. 15
HEXAGON NUT M8 DIN934-8-GAL
Quantity in assembly group:
6 Piece / Pos. 16
RETAINING RING A 60X2 DIN471
Quantity in assembly group:
2 Piece / Pos. 17
CONTACT WASHER FORM M 8-GAL
Quantity in assembly group:
6 Piece / Pos. 18
COACH BOLT M8X25-603-8.8-GAL
Quantity in assembly group:
6 Piece / Pos. 19
BUSH
Quantity in assembly group:
2 Piece / Pos. 20
SEALING RING 50-44-3
Quantity in assembly group:
2 Piece / Pos. 21
SPACER RING
Quantity in assembly group:
2 Piece / Pos. 22
SPACER RING
Quantity in assembly group:
2 Piece / Pos. 23
BEARING HOUSING
Quantity in assembly group:
2 Piece / Pos. 24
BALL BEARING 6005-ZZRST
Quantity in assembly group:
4 Piece / Pos. 25
RETAINING RING J 47X1,75 DIN47
Quantity in assembly group:
4 Piece / Pos. 26
RETAINING RING A 25X1,2 DIN471
Quantity in assembly group:
2 Piece / Pos. 27
FLAT WASHER M16
Quantity in assembly group:
2 Piece / Pos. 28
HFR L/H 35 WIDE
Quantity in assembly group:
1 Piece / Pos. 30
HFR R/H 35 WIDE
Quantity in assembly group:
1 Piece / Pos. 40
HAULM FEED ROLLER 35MM-HD
Quantity in assembly group:
2 Piece / Pos. 50
BEARING HOUSING
Quantity in assembly group:
2 Piece / Pos. 60
HFR OUTSIDE 35 WIDE
Quantity in assembly group:
1 Piece / Pos. 100
All shown prices are GRIMME prices. The prices from your GRIMME Premium Partner my vary.
