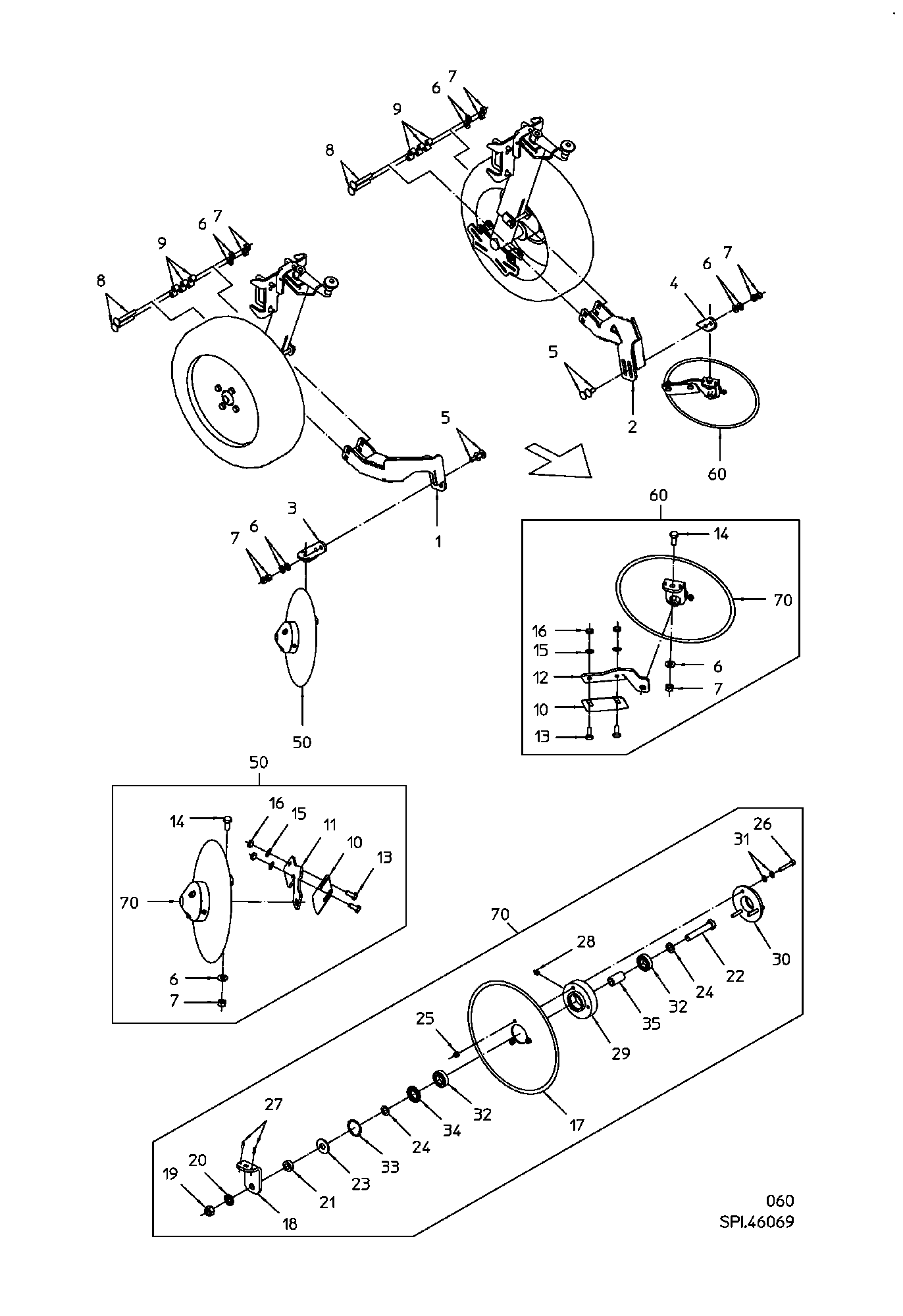

Parts by subassemblies

BRACKET R/H

Quantity in assembly group: 1 Piece / Pos. 1

BRACKET L/H

Quantity in assembly group: 1 Piece / Pos. 2

PLATE R/H

Quantity in assembly group: 1 Piece / Pos. 3

PLATE L/H

Quantity in assembly group: 1 Piece / Pos. 4

COACH BOLT M12X30-DIN603-8.8-G

Quantity in assembly group: 4 Piece / Pos. 5

CONTACT DISC FORM M 12-GAL

Quantity in assembly group: 10 Piece / Pos. 6

HEXAGON NUT M12 934-10.9-flZn

Quantity in assembly group: 12 Piece / Pos. 7

COACH BOLT M12X90-DIN603-8.8-G

Quantity in assembly group: 4 Piece / Pos. 8

SPACER TUBE

Quantity in assembly group: 12 Piece / Pos. 9

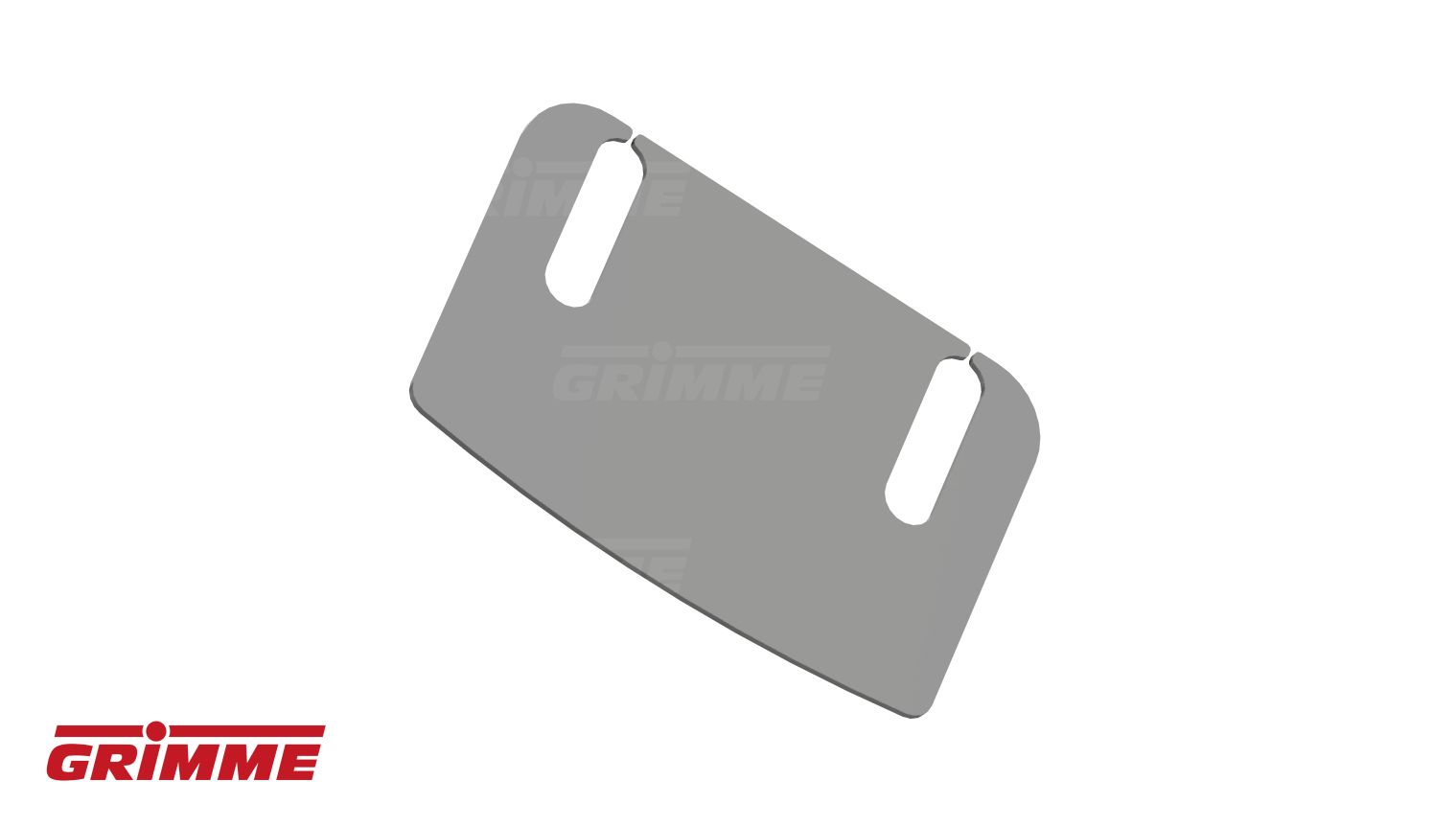

SCRAPER

Quantity in assembly group: 2 Piece / Pos. 10

SCRAPER HOLDER L/H

Quantity in assembly group: 1 Piece / Pos. 11

SCRAPER HOLDER R/H

Quantity in assembly group: 1 Piece / Pos. 12

HHC-SCREW M10X25 933-8.8-GAL

Quantity in assembly group: 4 Piece / Pos. 13

SET SCREW M12X30-DIN933-8.8-G

Quantity in assembly group: 2 Piece / Pos. 14

CONTACT WASHER FORM M 10-GAL

Quantity in assembly group: 4 Piece / Pos. 15

HEXAGON NUT M10 DIN934-8-GAL

Quantity in assembly group: 4 Piece / Pos. 16

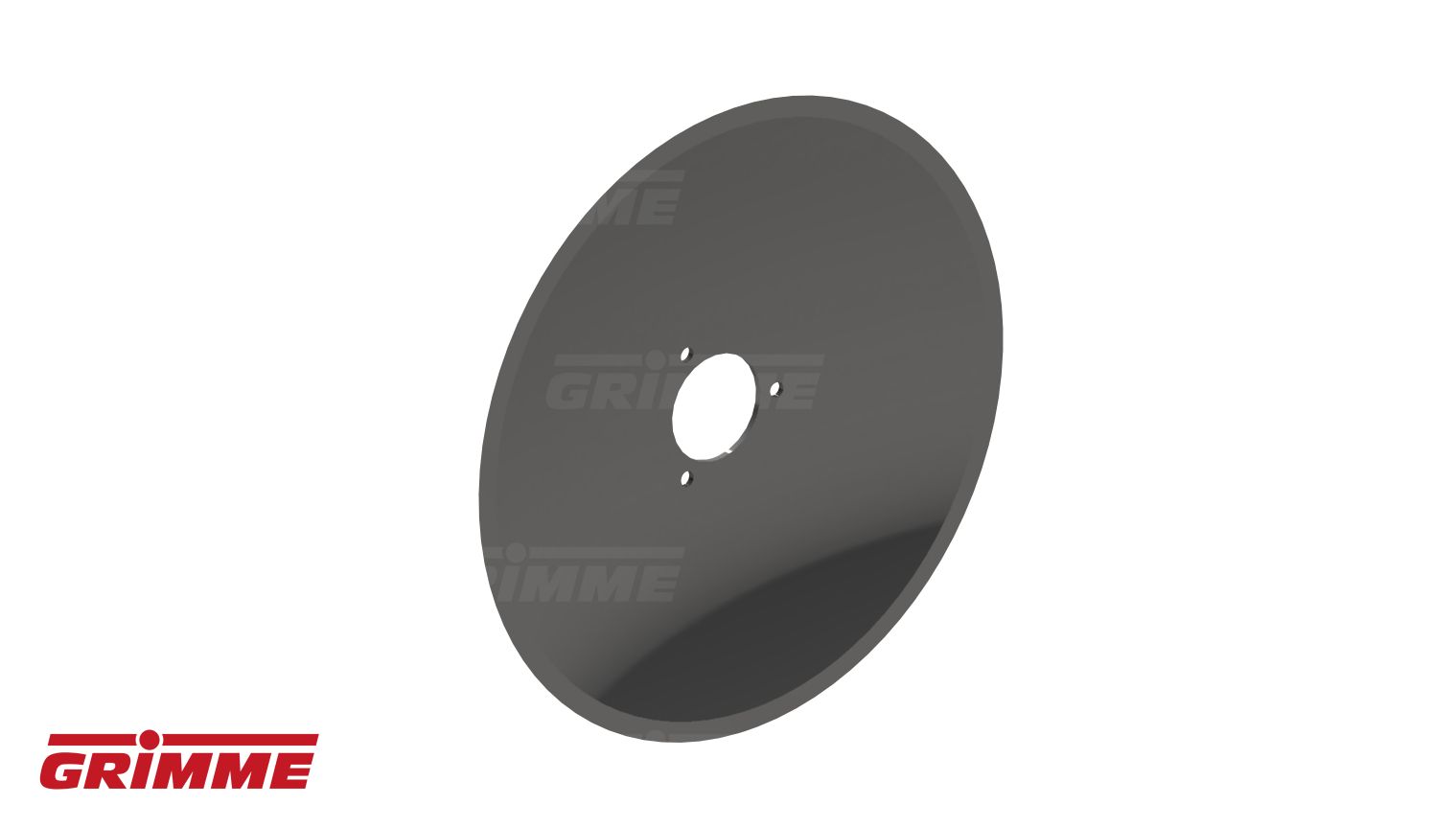

HOLLOW DISC 3/350

Quantity in assembly group: 2 Piece / Pos. 17

PLATE

Quantity in assembly group: 2 Piece / Pos. 18

HEXAGON NUT M16 DIN934-8-GAL

Quantity in assembly group: 2 Piece / Pos. 19

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 2 Piece / Pos. 20

SPACER PIECE 16,5X30X10

Quantity in assembly group: 2 Piece / Pos. 21

HHC-SCREW M16X95 931-8.8-GAL

Quantity in assembly group: 2 Piece / Pos. 22

PLAIN WASHER 17X44X3 GAL

Quantity in assembly group: 2 Piece / Pos. 23

DISC 17 DIN433-GAL

Quantity in assembly group: 4 Piece / Pos. 24

NYLOC NUT DIN985-M8-8-GAL

Quantity in assembly group: 6 Piece / Pos. 25

SHC-SCREW DIN912 M8X50-8.8-GAL

Quantity in assembly group: 6 Piece / Pos. 26

GROOVED PIN DIN1473-5X16-St

Quantity in assembly group: 4 Piece / Pos. 27

GREASE NIPPLE H1-M10X1,5 71412

Quantity in assembly group: 2 Piece / Pos. 28

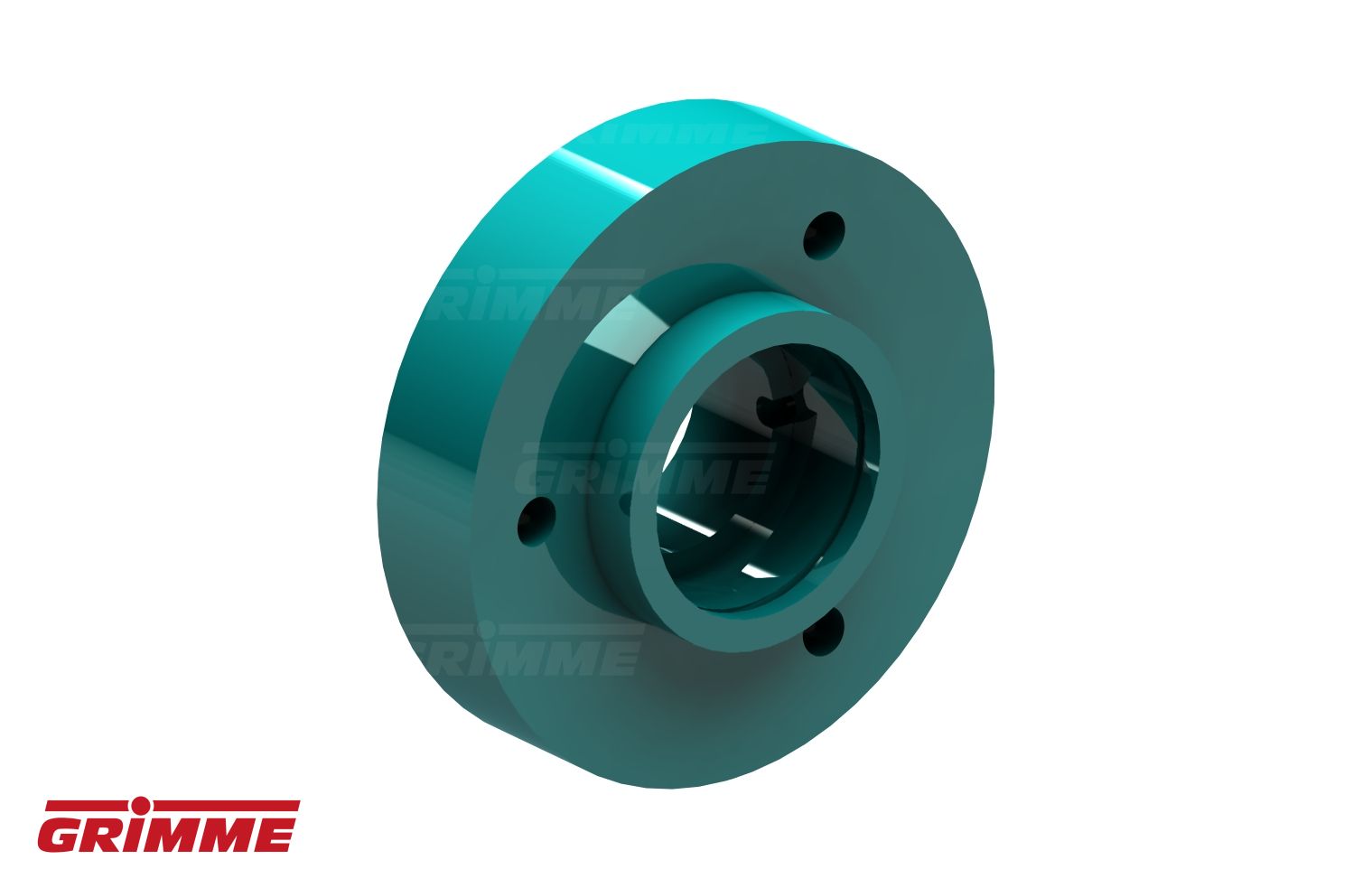

DISC HUB

Quantity in assembly group: 2 Piece / Pos. 29

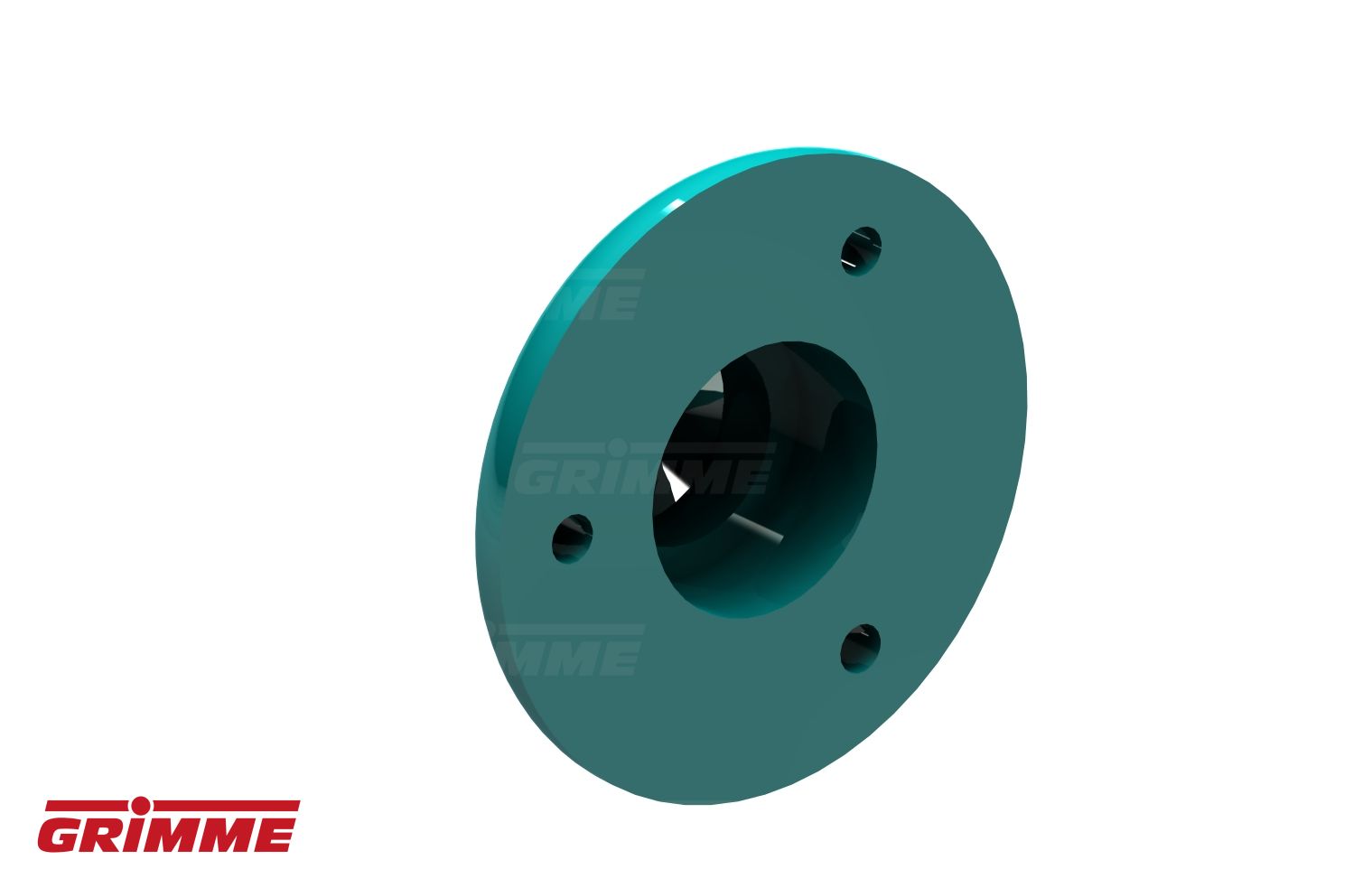

HUB COVER

Quantity in assembly group: 2 Piece / Pos. 30

FLAT WASHER B8,4 DIN125 -GAL

Quantity in assembly group: 12 Piece / Pos. 31

BALL BEARING 6005-RS

Quantity in assembly group: 4 Piece / Pos. 32

RETAINING RING J 47X1,75 DIN47

Quantity in assembly group: 2 Piece / Pos. 33

NILOS RING 25X47 LSTO

Quantity in assembly group: 2 Piece / Pos. 34

BUSH

Quantity in assembly group: 2 Piece / Pos. 35

TRACK INDICATOR DISC R/H

Quantity in assembly group: 1 Piece / Pos. 50

TRACK INDICATOR DISC L/H

Quantity in assembly group: 1 Piece / Pos. 60

TRACK INDICATOR DISC

Quantity in assembly group: 2 Piece / Pos. 70
