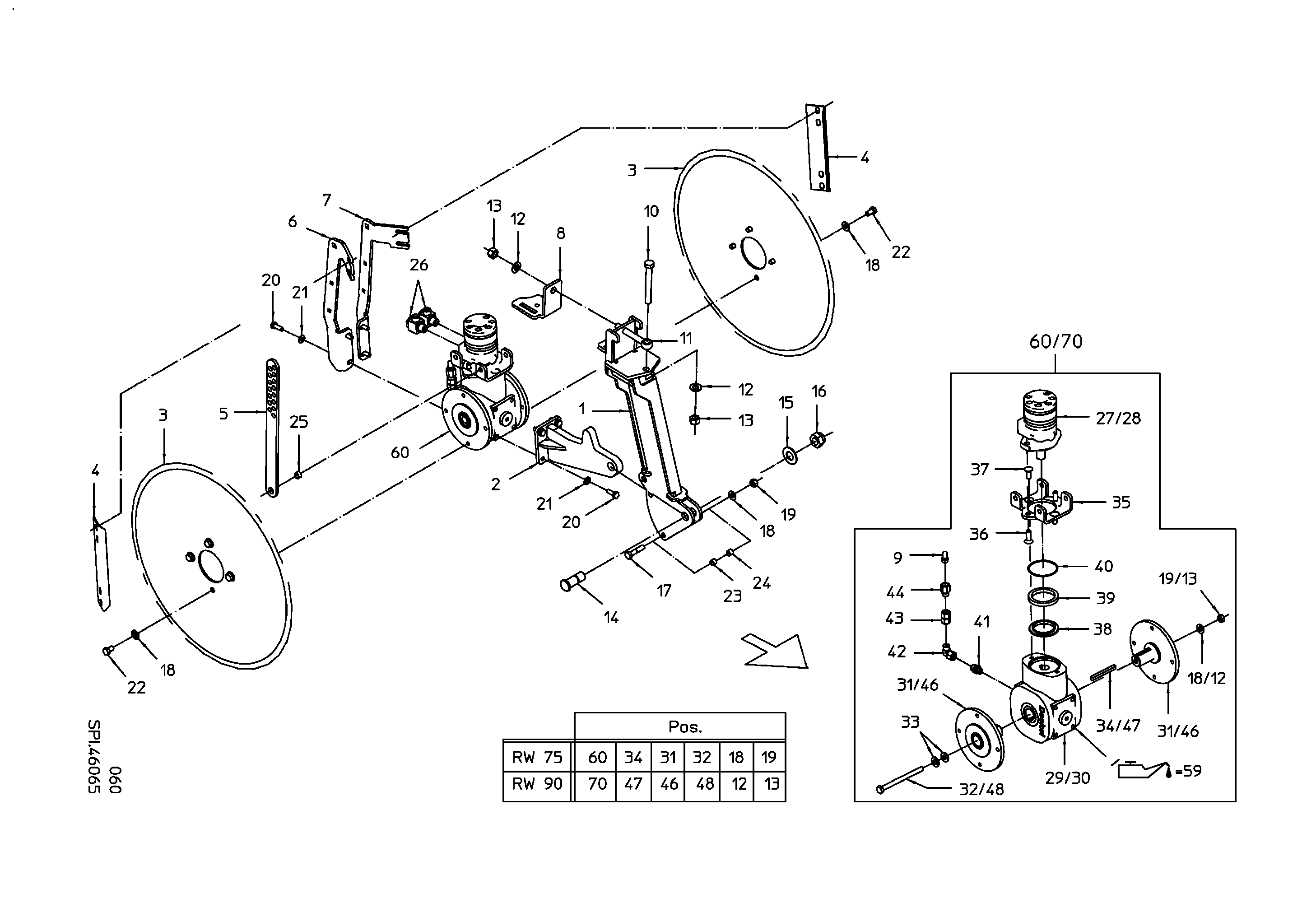

Parts by subassemblies

MOUNTING ARM L/H

Quantity in assembly group: 1 Piece / Pos. 1

ARM

Quantity in assembly group: 1 Piece / Pos. 2

DISC COULTER 645

Quantity in assembly group: 2 Piece / Pos. 3

SCRAPER F DIC

Quantity in assembly group: 2 Piece / Pos. 4

BRACKET

Quantity in assembly group: 1 Piece / Pos. 5

BRACKET ABOVE

Quantity in assembly group: 1 Piece / Pos. 6

BRACKET LOWER

Quantity in assembly group: 1 Piece / Pos. 7

ANGULAR PLATE

Quantity in assembly group: 1 Piece / Pos. 8

EXTRACTION VALVE M16X1,5

Quantity in assembly group: 1 Piece / Pos. 9

HEX BOLT M16X130-DIN931-8.8-G

Quantity in assembly group: 1 Piece / Pos. 10

EYE BOLT B M16X120 DIN444-8.8-

Quantity in assembly group: 1 Piece / Pos. 11

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 2 Piece / Pos. 12

HEXAGON NUT M16 DIN934-8-GAL

Quantity in assembly group: 2 Piece / Pos. 13

BOLT

Quantity in assembly group: 1 Piece / Pos. 14

PLAIN WASHER 26X52X3 GAL (ART

Quantity in assembly group: 1 Piece / Pos. 15

NYLOC NUT DIN985-M24-8-GAL

Quantity in assembly group: 1 Piece / Pos. 16

HEX BOLT M12X55-DIN931-8.8-G

Quantity in assembly group: 1 Piece / Pos. 17

CONTACT DISC FORM M 12-GAL

Quantity in assembly group: 10 Piece / Pos. 18

HEXAGON NUT M12 934-10.9-flZn

Quantity in assembly group: 2 Piece / Pos. 19

SET SCREW M10X30-DIN933-8.8-G

Quantity in assembly group: 8 Piece / Pos. 20

CONTACT WASHER FORM M 10-GAL

Quantity in assembly group: 8 Piece / Pos. 21

SET SCREW M12X20-DIN933-8.8-G

Quantity in assembly group: 8 Piece / Pos. 22

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 23

SPACING PIECE

Quantity in assembly group: 1 Piece / Pos. 24

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 25

WHK15LRCSOMDCF

Quantity in assembly group: 2 Piece / Pos. 26

HYDRAULIC MOTOR MF100 CYL-S

Quantity in assembly group: 1 Piece / Pos. 27

SEAL SET STAND F MF HYD-MOTOR

Quantity in assembly group: 1 Piece / Pos. 28

GEARBOX GT-KR-3 1:1

Quantity in assembly group: 1 Piece / Pos. 29

SHAFT SEAL BA 50X72X8

Quantity in assembly group: 1 Piece / Pos. 30

HUB

Quantity in assembly group: 2 Piece / Pos. 31

HEX BOLT M12X160-DIN931-8.8-G

Quantity in assembly group: 1 Piece / Pos. 32

PLAIN WASHER 13X28X3-GALV

Quantity in assembly group: 2 Piece / Pos. 33

FEATHER KEY A 10X8X95 DIN6885

Quantity in assembly group: 1 Piece / Pos. 34

BRACKET

Quantity in assembly group: 1 Piece / Pos. 35

CSK ALLEN SCREW M12X35-DIN7991

Quantity in assembly group: 2 Piece / Pos. 36

CSK ALLEN SCREW M12X30-DIN7991

Quantity in assembly group: 2 Piece / Pos. 37

RING

Quantity in assembly group: 1 Piece / Pos. 38

SEALING RING RG35

Quantity in assembly group: 1 Piece / Pos. 39

RSR 80X3 DIN3770-NB70

Quantity in assembly group: 1 Piece / Pos. 40

GE12LMEDOMDCF

Quantity in assembly group: 1 Piece / Pos. 41

P-EWS 12L-SV

Quantity in assembly group: 1 Piece / Pos. 42

STRAIGHT CONNECTION SNV 12L

Quantity in assembly group: 1 Piece / Pos. 43

HYD COUPLING

Quantity in assembly group: 1 Piece / Pos. 44

PLATE

Quantity in assembly group: 1 Piece / Pos. 45

HUB

Quantity in assembly group: 1 Piece / Pos. 46

FEATHER KEY A 10X8X105 DIN6885

Quantity in assembly group: 1 Piece / Pos. 47

HHC-SCREW M16X300 931 8.8-GAL

Quantity in assembly group: 1 Piece / Pos. 48

GEB OIL HYP SAE 85 W90 API GL5

Quantity in assembly group: 0 Piece / Pos. 59

PRA DIC-STORE-INNER RW75

Quantity in assembly group: 1 Piece / Pos. 60

DIC-STORE-INNER-PRE-ASSEMBLED

Quantity in assembly group: 1 Piece / Pos. 70
