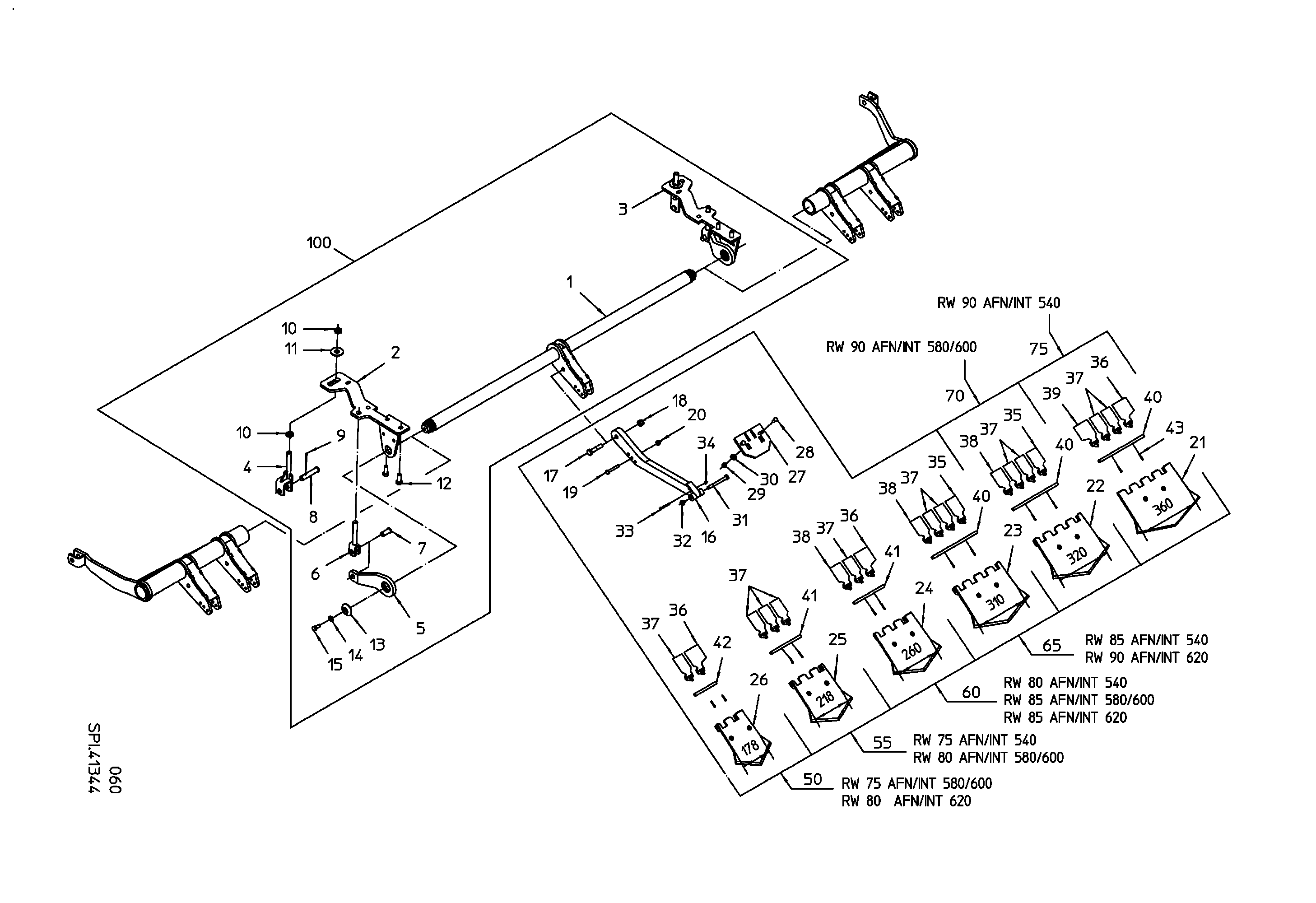

Parts by subassemblies

SHARE FRAME CES STP CHAW1700

Quantity in assembly group: 1 Piece / Pos. 1

SHARE MOUNTING R/H

Quantity in assembly group: 1 Piece / Pos. 2

SHARE MOUNTING L/H

Quantity in assembly group: 1 Piece / Pos. 3

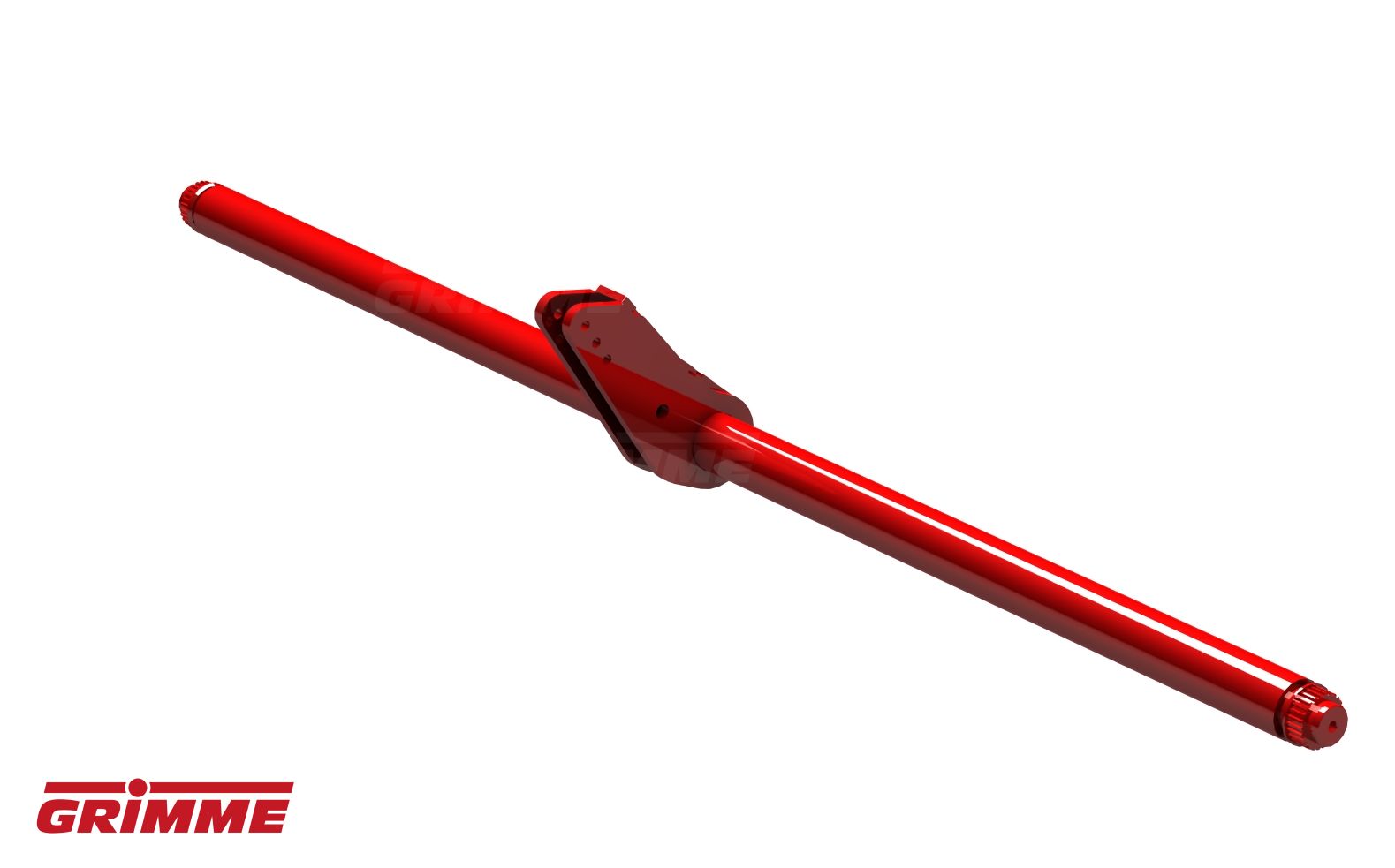

ADJUSTING ROD

Quantity in assembly group: 2 Piece / Pos. 4

ADJUSTING LEVER

Quantity in assembly group: 2 Piece / Pos. 5

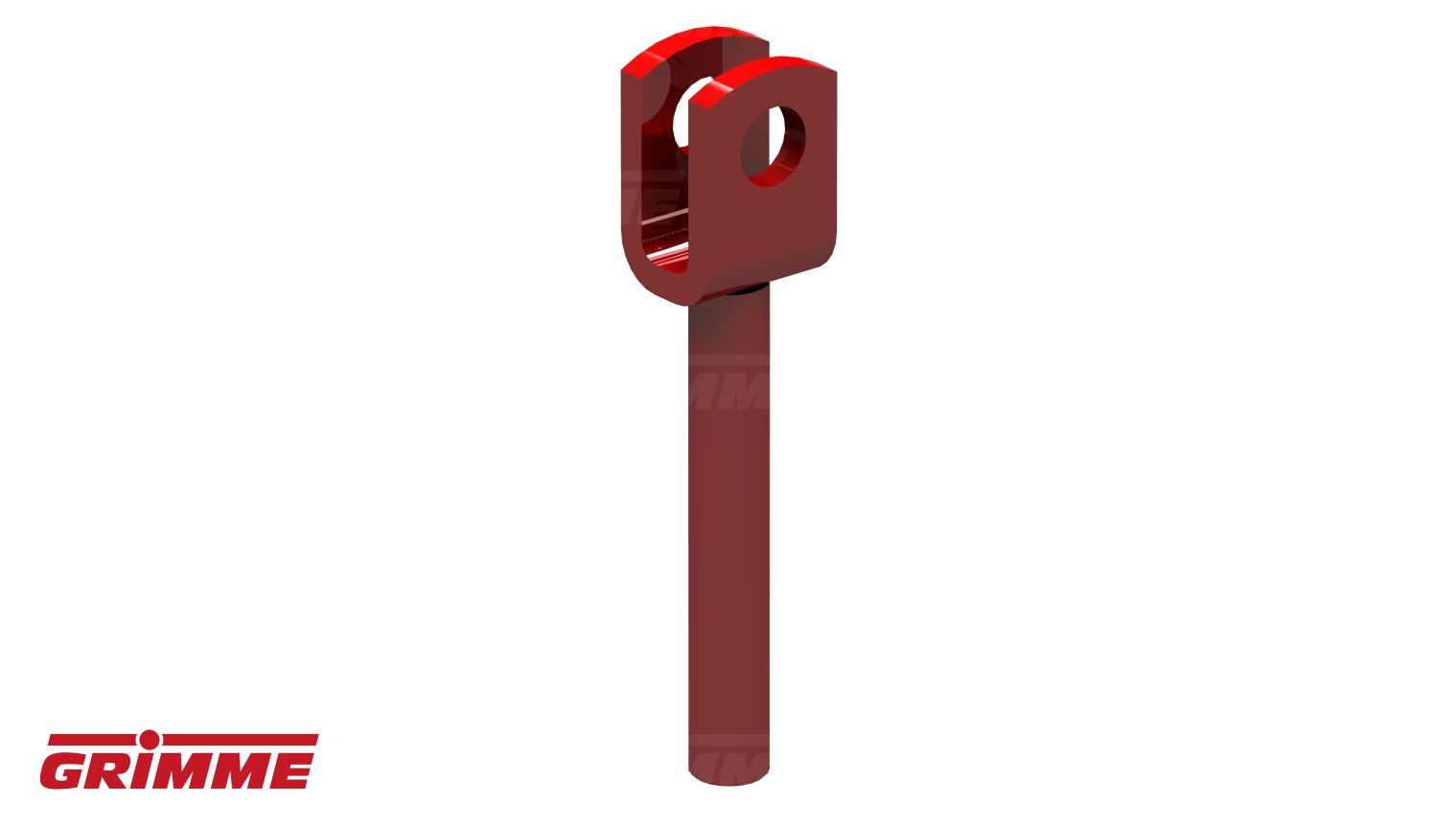

ADJUSTER CLEVIS

Quantity in assembly group: 2 Piece / Pos. 6

BOLT

Quantity in assembly group: 2 Piece / Pos. 7

PIN

Quantity in assembly group: 2 Piece / Pos. 8

COTTER PIN 4X45 DIN94-GAL

Quantity in assembly group: 2 Piece / Pos. 9

HALF NUT M20 DIN936-17H-GAL

Quantity in assembly group: 4 Piece / Pos. 10

WASHER 22X60X4 GAL

Quantity in assembly group: 2 Piece / Pos. 11

SET SCREW M16X40-DIN933-8.8-G

Quantity in assembly group: 4 Piece / Pos. 12

SEALING DISC

Quantity in assembly group: 2 Piece / Pos. 13

CONTACT DISC FORM M 12-GAL

Quantity in assembly group: 2 Piece / Pos. 14

SET SCREW M12X30-DIN933-8.8-G

Quantity in assembly group: 2 Piece / Pos. 15

SHARE ARM 3AR STP

Quantity in assembly group: 6 Piece / Pos. 16

HEX BOLT M16X75-DIN931-8.8-G

Quantity in assembly group: 6 Piece / Pos. 17

NYLOC NUT DIN985-M16-8-GAL

Quantity in assembly group: 6 Piece / Pos. 18

HEX BOLT M10X70-DIN931-8.8-G

Quantity in assembly group: 6 Piece / Pos. 19

NYLOC NUT DIN985-M10-8-GAL

Quantity in assembly group: 6 Piece / Pos. 20

SHARE PLATE CES 275 L 360 WIDE

Quantity in assembly group: 1 Piece / Pos. 21

SHARE PLATE 275 L 320 WIDE

Quantity in assembly group: 1 Piece / Pos. 22

SHARE BLADE CES 275 L 310 WIDE

Quantity in assembly group: 1 Piece / Pos. 23

SHARE BLADE CES 275 L 260 WIDE

Quantity in assembly group: 1 Piece / Pos. 24

SHARE BLADE CES 275 L 218 WIDE

Quantity in assembly group: 1 Piece / Pos. 25

SHARE PLATE CES 275 L 178 WIDE

Quantity in assembly group: 1 Piece / Pos. 26

BOTTOM PLATE

Quantity in assembly group: 6 Piece / Pos. 27

LIPPED SHARE BOLT M10X25-604

Quantity in assembly group: 12 Piece / Pos. 28

HEXAGON NUT M10 DIN934-8-GAL

Quantity in assembly group: 12 Piece / Pos. 29

CONTACT WASHER FORM B 10-GAL

Quantity in assembly group: 12 Piece / Pos. 30

HEX BOLT M12X120-DIN931-8.8-G

Quantity in assembly group: 6 Piece / Pos. 31

NYLOC NUT DIN985-M12-8-GAL

Quantity in assembly group: 6 Piece / Pos. 32

HEX BOLT M6X55-DIN931-838-G

Quantity in assembly group: 6 Piece / Pos. 33

NYLOC NUT DIN985-M6-8-GAL

Quantity in assembly group: 6 Piece / Pos. 34

SHARE FLAP L/H

Quantity in assembly group: 2 Piece / Pos. 35

SHARE FLAP L/H

Quantity in assembly group: 2 Piece / Pos. 35

SHARE FLAP L/H

Quantity in assembly group: 3 Piece / Pos. 36

SHARE FLAP

Quantity in assembly group: 11 Piece / Pos. 37

SHARE FLAP R/H

Quantity in assembly group: 3 Piece / Pos. 38

SHARE FLAP R/H

Quantity in assembly group: 3 Piece / Pos. 38

SHARE FLAP R/H

Quantity in assembly group: 1 Piece / Pos. 39

COTTER BOLT

Quantity in assembly group: 3 Piece / Pos. 40

STONE FLAP PIN

Quantity in assembly group: 2 Piece / Pos. 41

COTTER BOLT

Quantity in assembly group: 1 Piece / Pos. 42

COTTER PIN 4X20 DIN94-GAL

Quantity in assembly group: 14 Piece / Pos. 43

CES 178WD 2BLA STP

Quantity in assembly group: 1 Piece / Pos. 50

CES 218WD 2BLA STP

Quantity in assembly group: 1 Piece / Pos. 55

CES 260WD 2BLA STP

Quantity in assembly group: 1 Piece / Pos. 60

CES 310WD 2BLA STP

Quantity in assembly group: 1 Piece / Pos. 65

CES 320WD 2BLA 264L STP

Quantity in assembly group: 1 Piece / Pos. 70

CES 360WD 2BLA STP

Quantity in assembly group: 1 Piece / Pos. 75

CENTRE SHARE CHAW 170 STP

Quantity in assembly group: 1 Piece / Pos. 100
