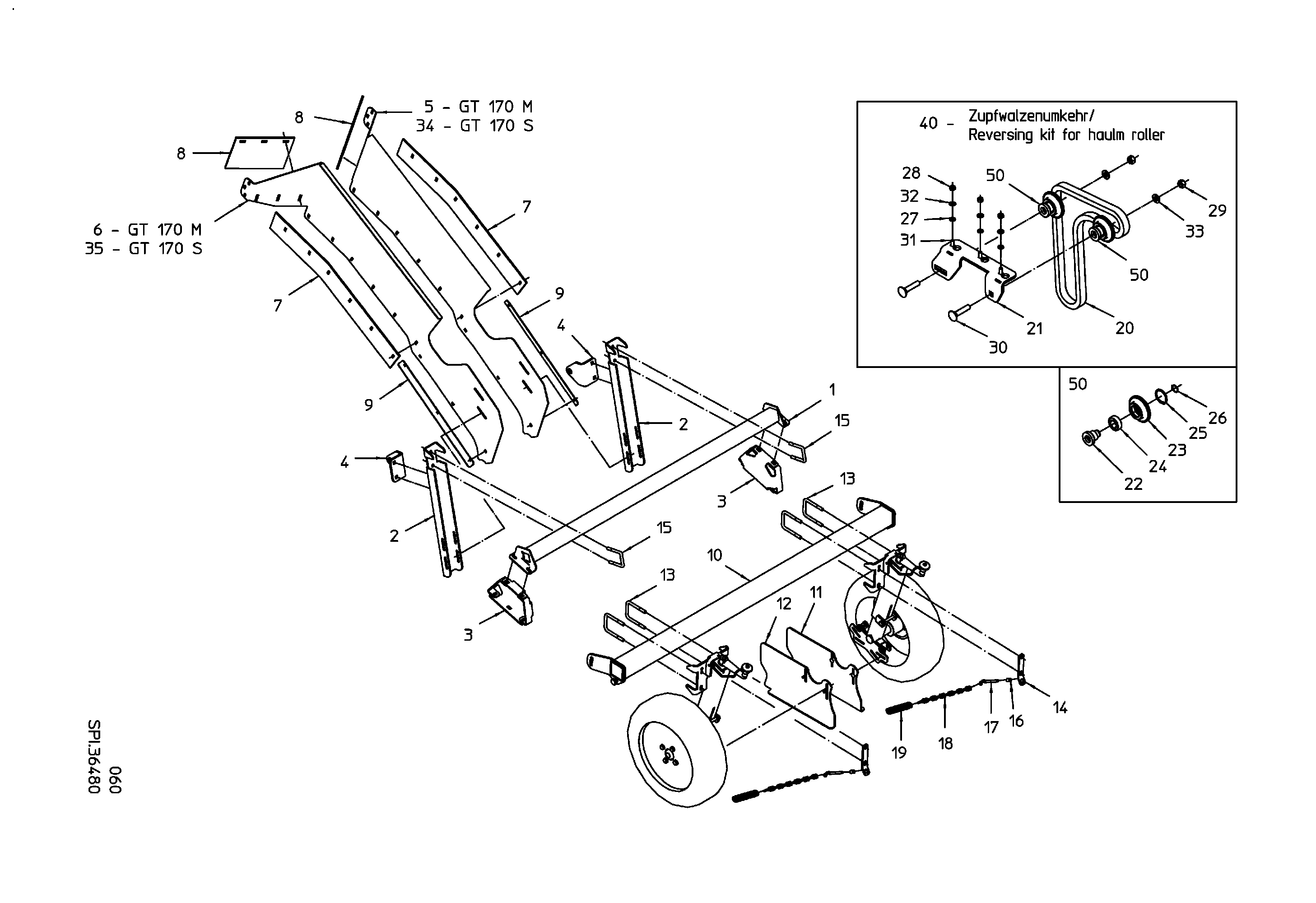

Parts by subassemblies

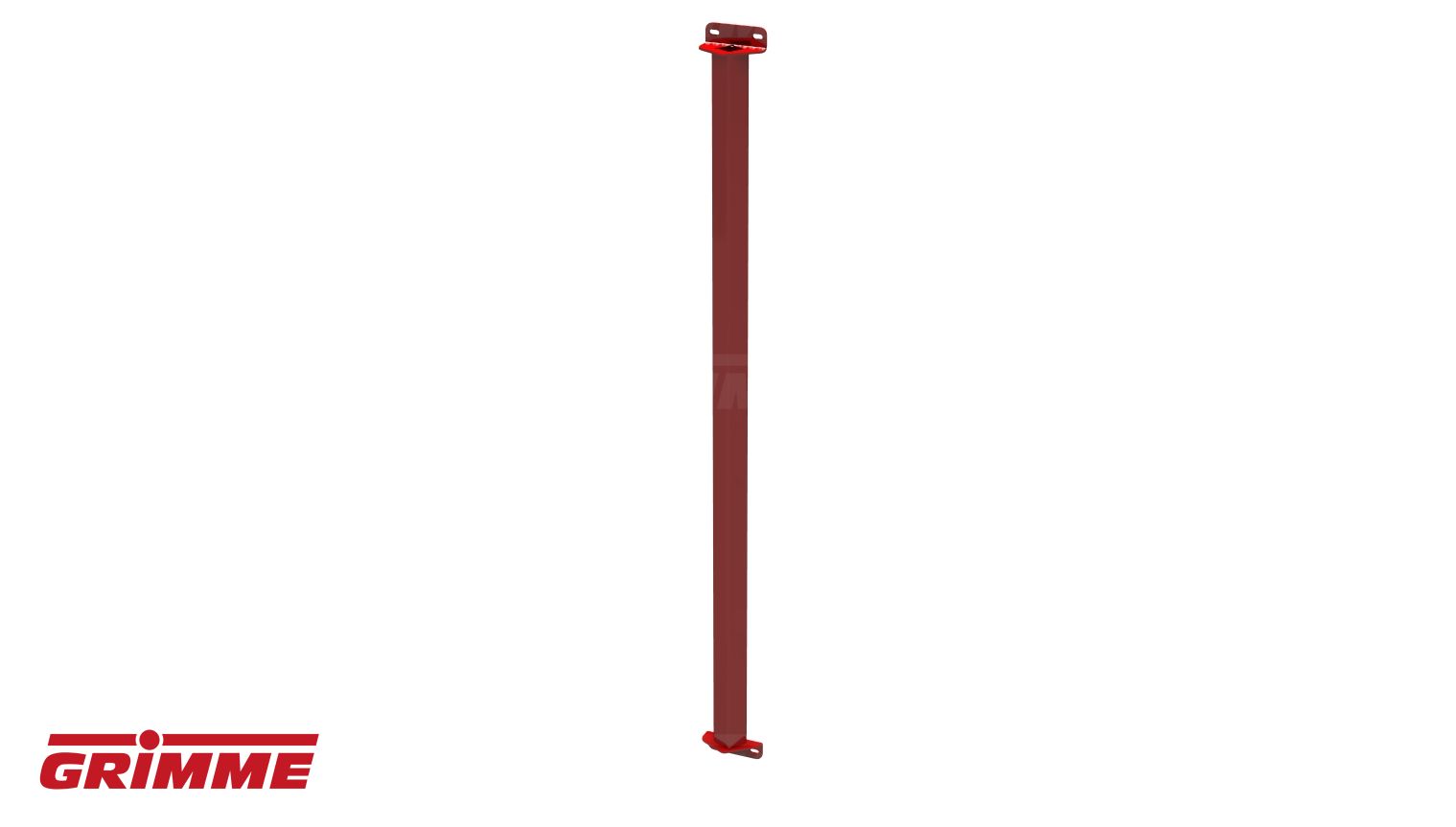

CROSS CONNECTION

Quantity in assembly group: 1 Piece / Pos. 1

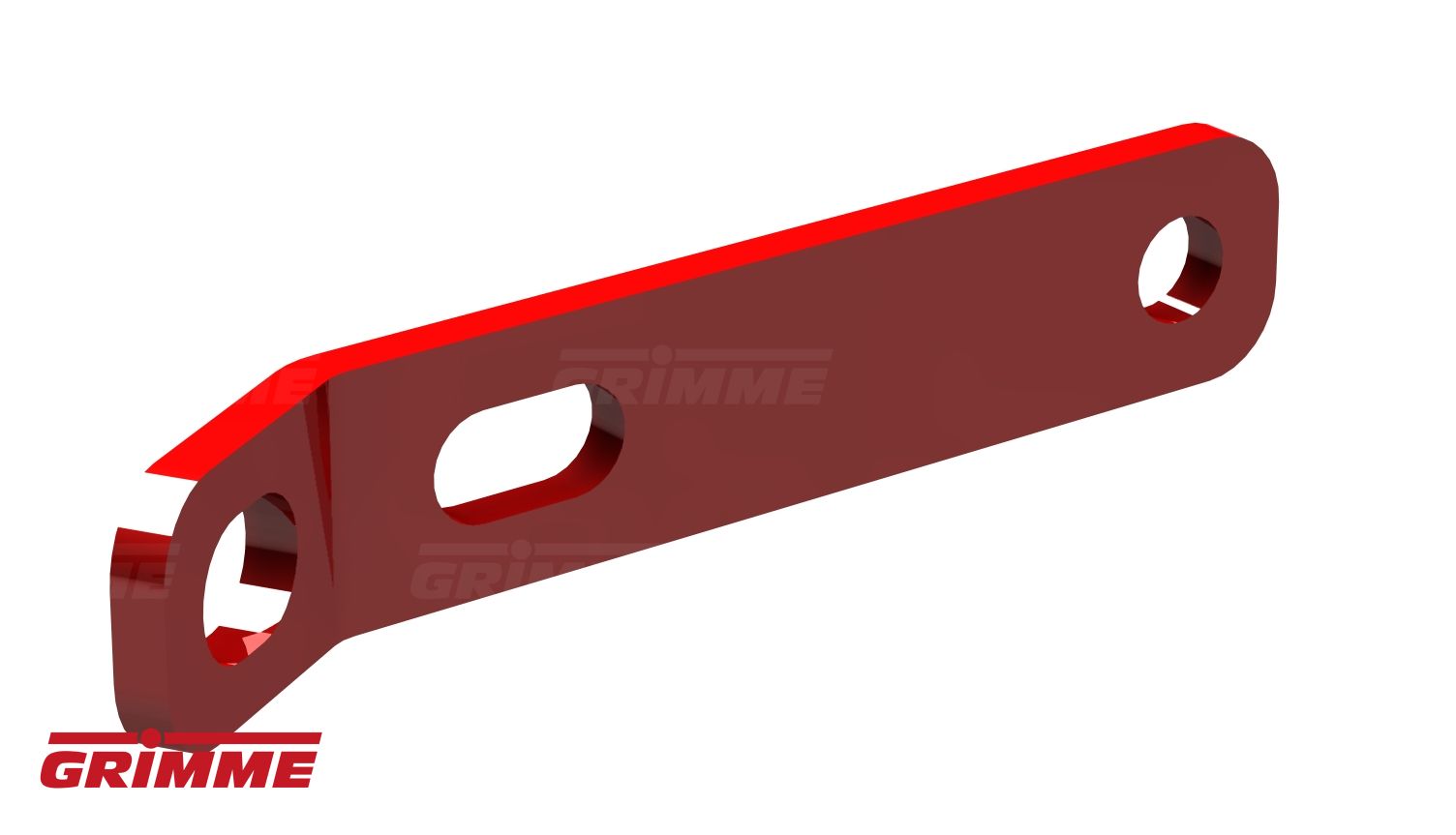

BRACKET

Quantity in assembly group: 2 Piece / Pos. 2

BRACKET

Quantity in assembly group: 2 Piece / Pos. 3

BRACKET L/H

Quantity in assembly group: 2 Piece / Pos. 4

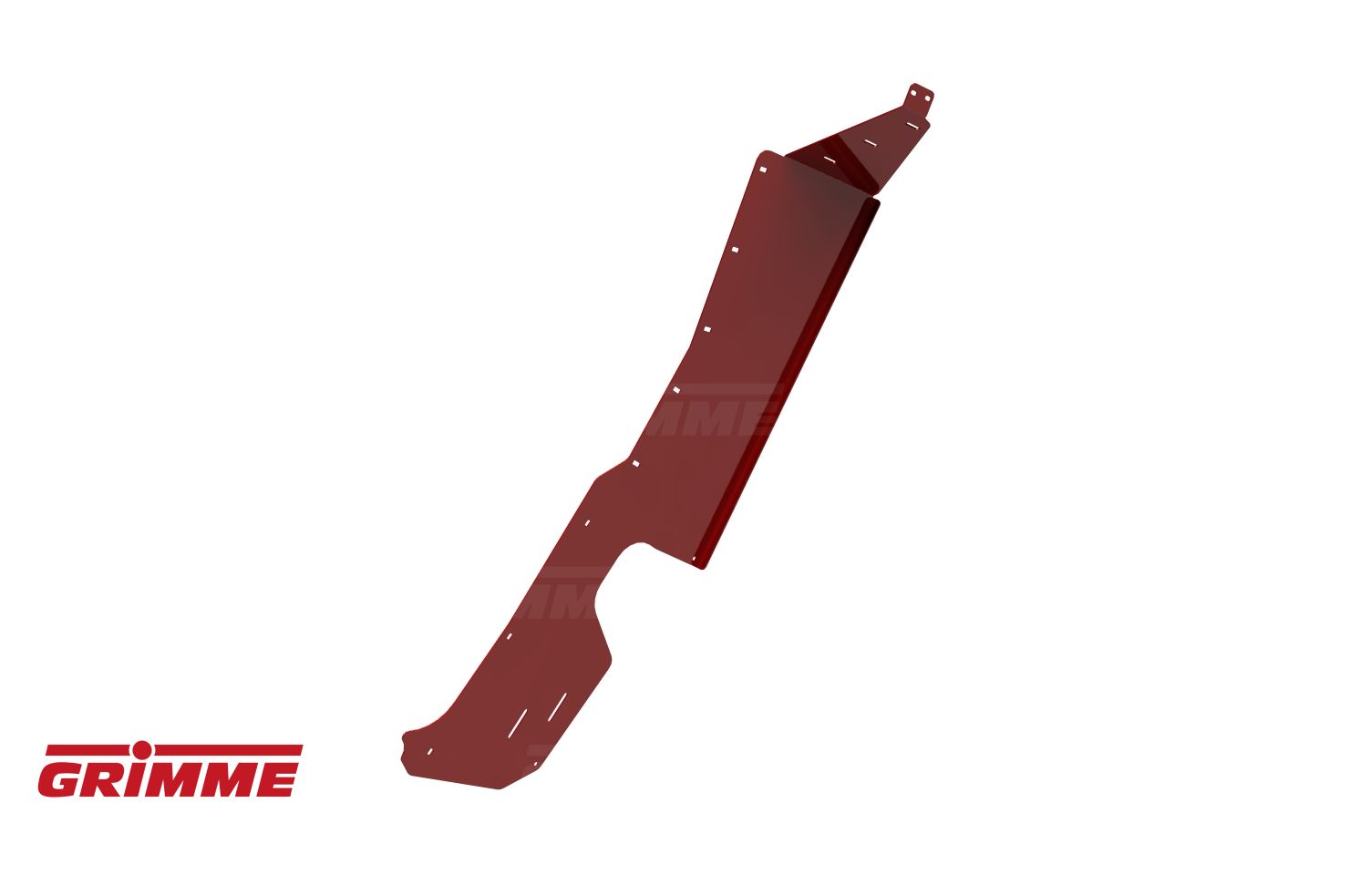

DEFLECTOR PLATE L/H

Quantity in assembly group: 1 Piece / Pos. 5

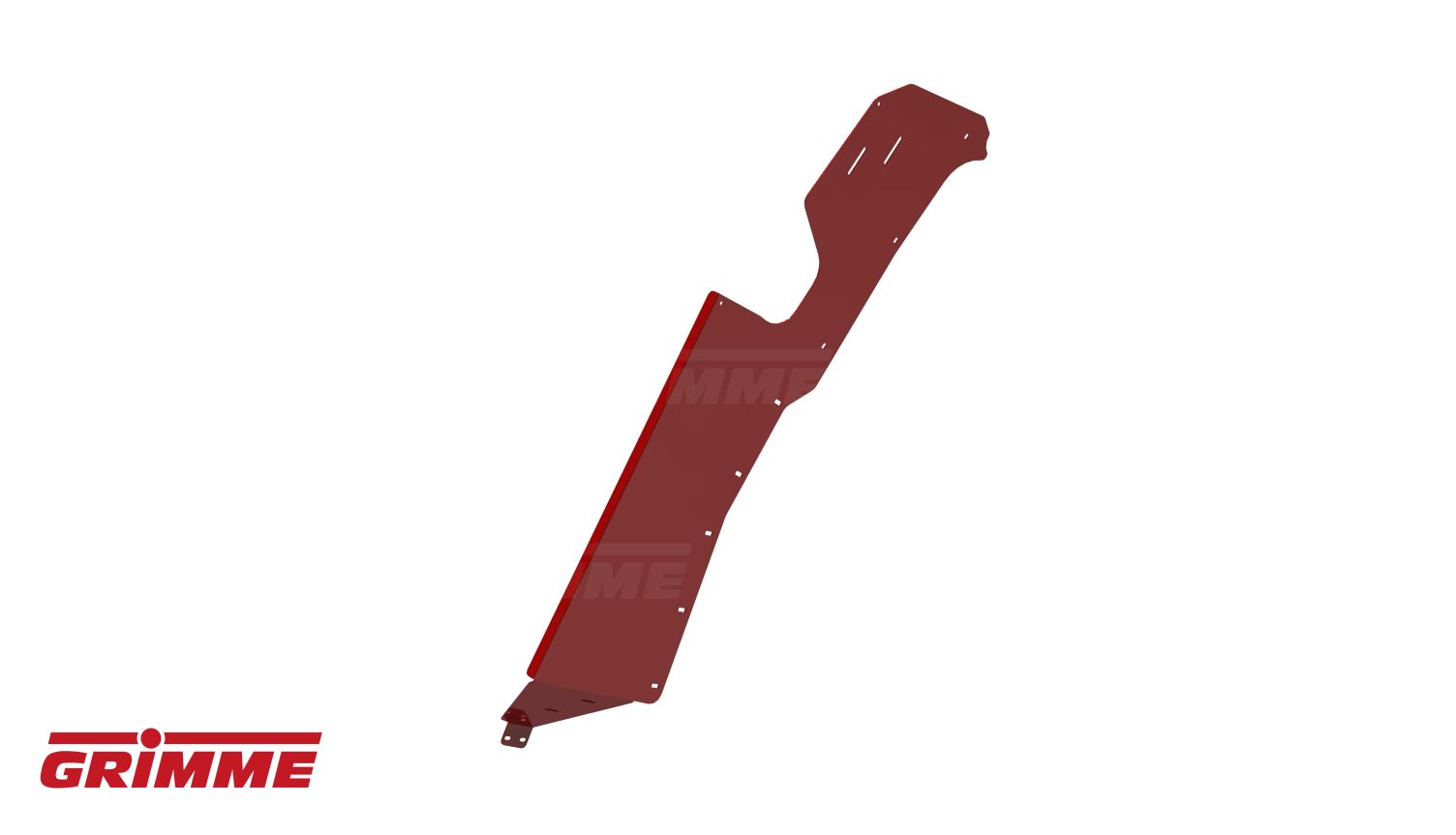

DEFLECTOR PLATE R/H

Quantity in assembly group: 1 Piece / Pos. 6

RUBBER PLATE

Quantity in assembly group: 2 Piece / Pos. 7

RUBBER PLATE

Quantity in assembly group: 2 Piece / Pos. 8

ANGULAR PLATE

Quantity in assembly group: 2 Piece / Pos. 9

CROSS TUBE FRONT

Quantity in assembly group: 1 Piece / Pos. 10

GUIDE PLATE L/H

Quantity in assembly group: 1 Piece / Pos. 11

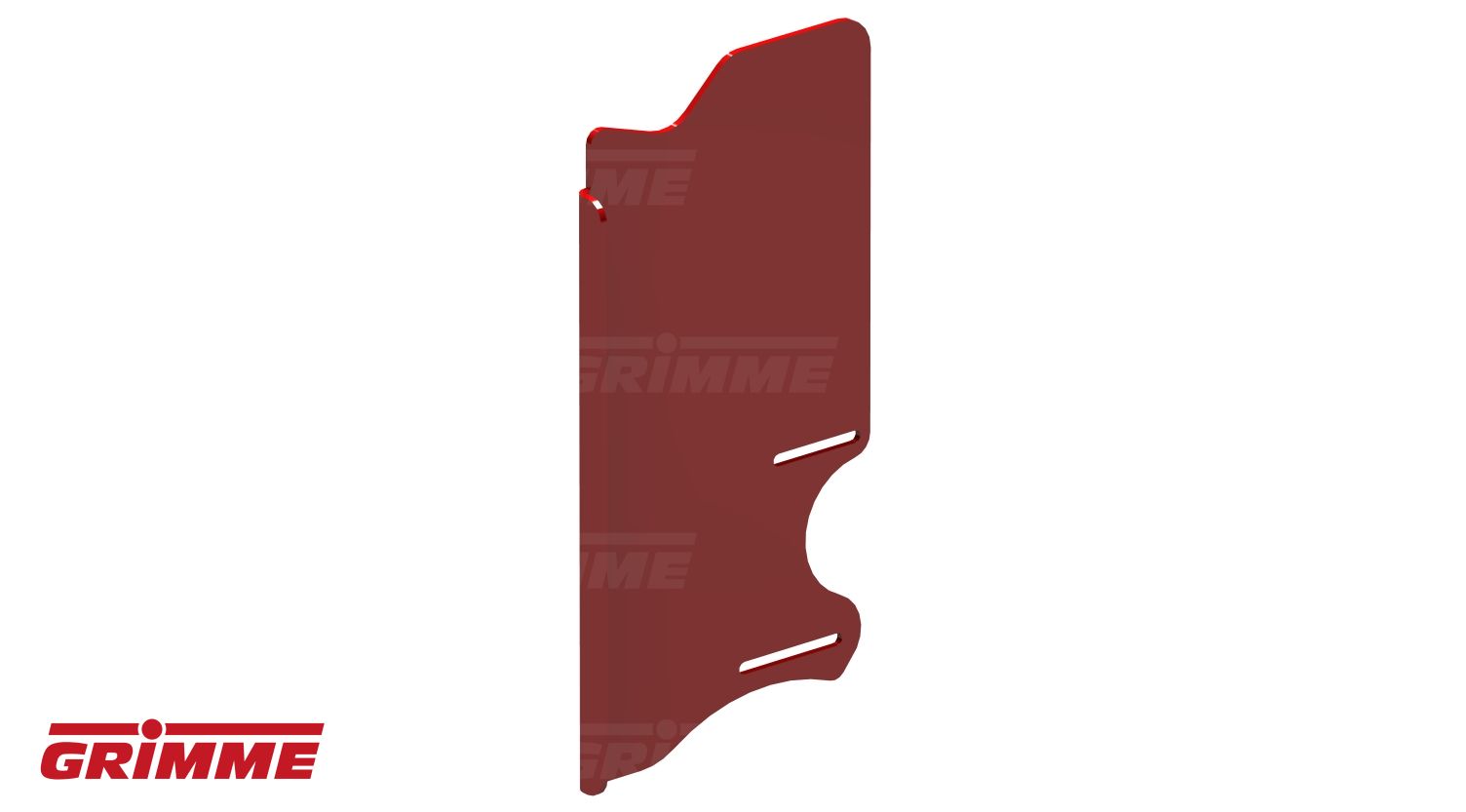

GUIDE PLATE R/H

Quantity in assembly group: 1 Piece / Pos. 12

U-BOLT M12X81X115-8.8

Quantity in assembly group: 4 Piece / Pos. 13

BRACKET

Quantity in assembly group: 2 Piece / Pos. 14

U-BOLT M12X61X85-8.8

Quantity in assembly group: 2 Piece / Pos. 15

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 16

EYELET SCREW

Quantity in assembly group: 2 Piece / Pos. 17

LC 12LINKS C5X36 DIN763-BRIGHT

Quantity in assembly group: 2 Piece / Pos. 18

TENSION SPRING

Quantity in assembly group: 2 Piece / Pos. 19

CHAIN 3/4"X1/2"-ASA60-85R

Quantity in assembly group: 2 Piece / Pos. 20

BRACKET

Quantity in assembly group: 1 Piece / Pos. 21

HOLLOW BOLT

Quantity in assembly group: 2 Piece / Pos. 22

SPROCKET 3/4"-T15

Quantity in assembly group: 2 Piece / Pos. 23

BALL BEARING 6205-2RS

Quantity in assembly group: 6 Piece / Pos. 24

RETAINING RING J 52X2 DIN472

Quantity in assembly group: 4 Piece / Pos. 25

RETAINING RING A 25X1,2 DIN471

Quantity in assembly group: 2 Piece / Pos. 26

WASHER A10,5 DIN125-VERZ

Quantity in assembly group: 3 Piece / Pos. 27

HEXAGON NUT M10 DIN934-8-GAL

Quantity in assembly group: 12 Piece / Pos. 28

HEXAGON NUT M16 DIN934-8-GAL

Quantity in assembly group: 6 Piece / Pos. 29

COACH BOLT M16X80-DIN603-8.8-G

Quantity in assembly group: 2 Piece / Pos. 30

MH-SCREW M10X30-603-8.8-GAL

Quantity in assembly group: 3 Piece / Pos. 31

CONTACT WASHER FORM M 10-GAL

Quantity in assembly group: 21 Piece / Pos. 32

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 6 Piece / Pos. 33

DEFLECTOR PLATE L/H

Quantity in assembly group: 1 Piece / Pos. 34

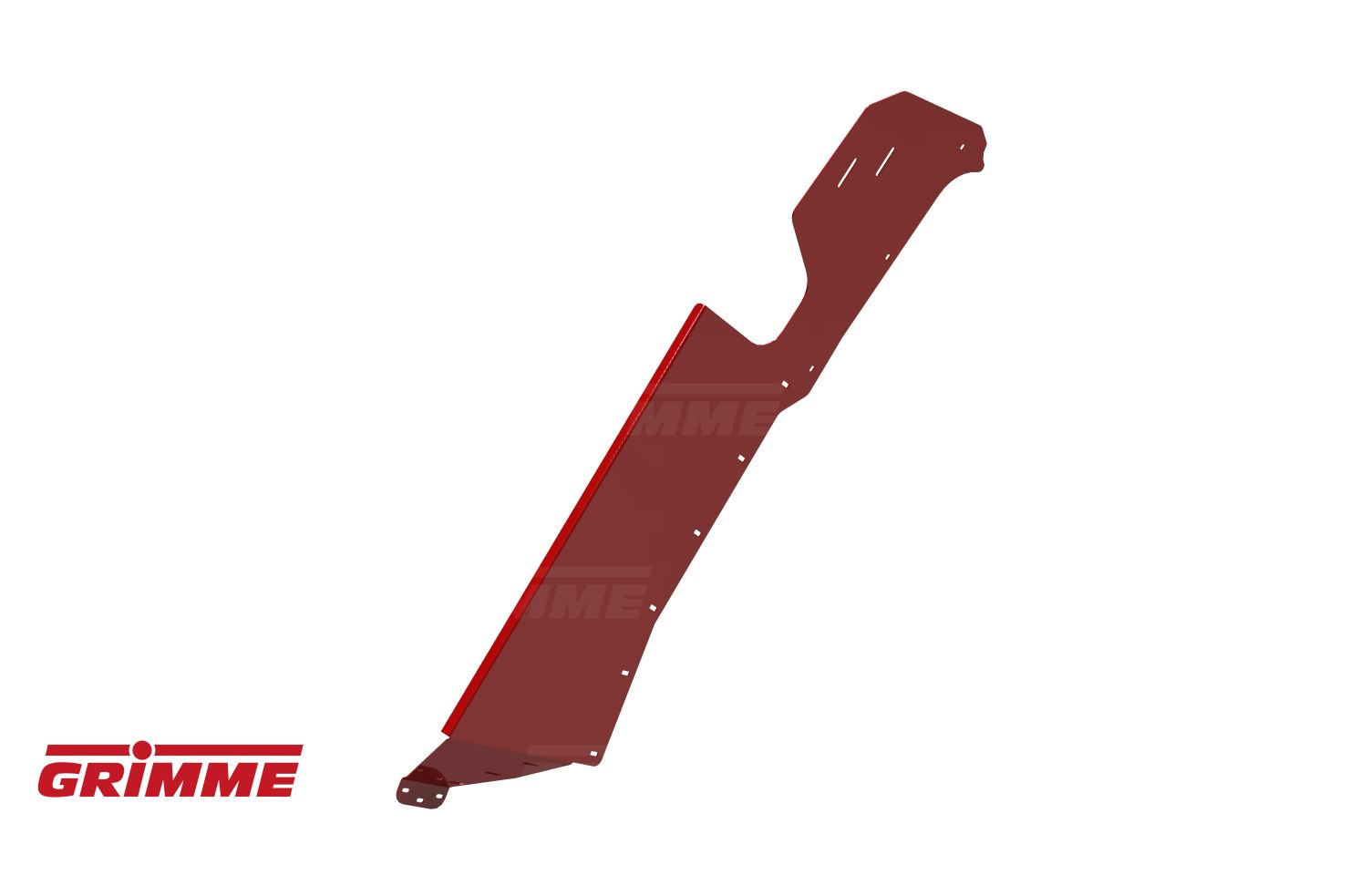

DEFLECTOR PLATE R/H

Quantity in assembly group: 1 Piece / Pos. 35

HAULM ROLLER REVERSING KIT

Quantity in assembly group: 1 Piece / Pos. 40

TENSION SPROCKET 3/4"-T15 LONG

Quantity in assembly group: 2 Piece / Pos. 50
