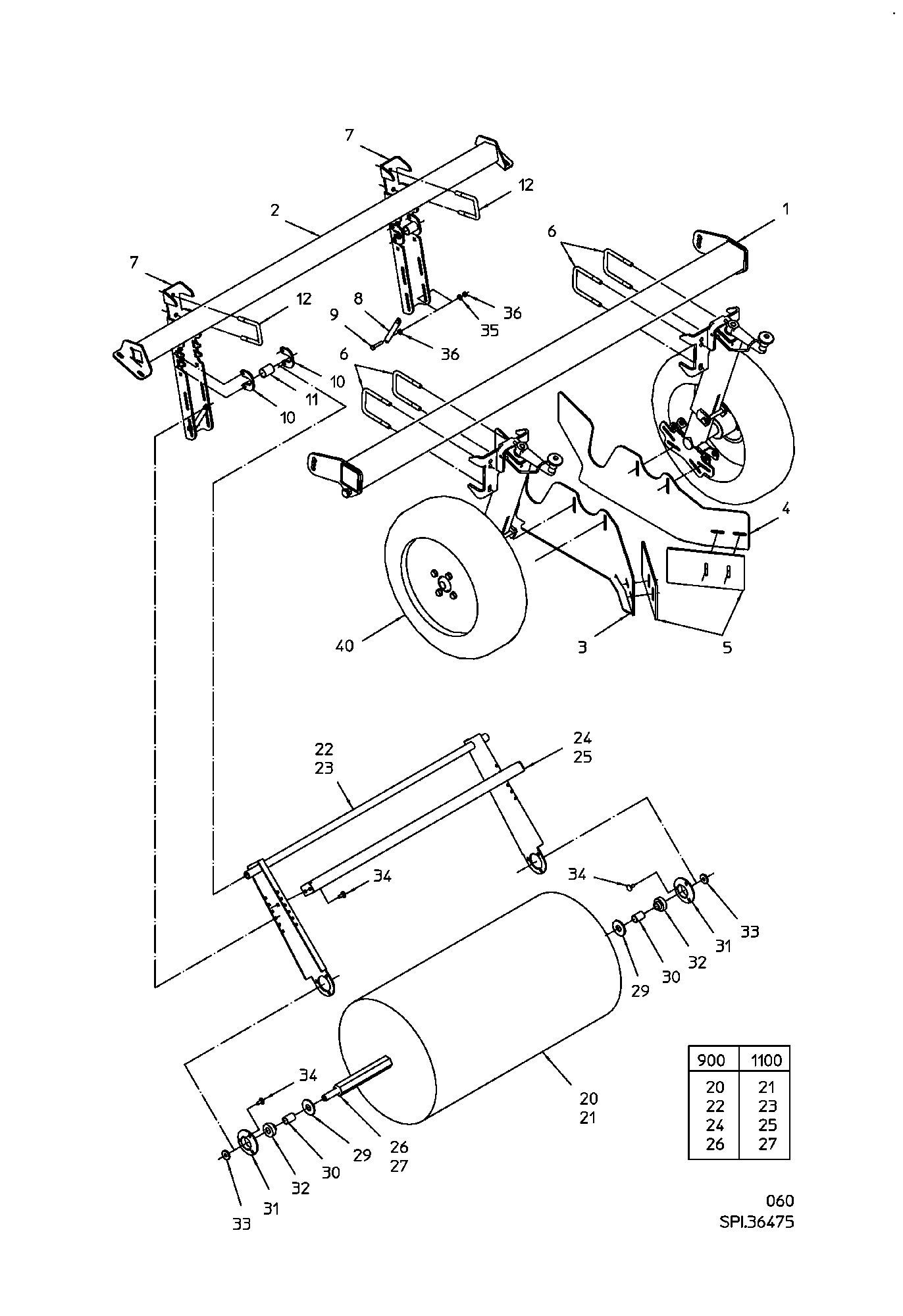

Parts by subassemblies

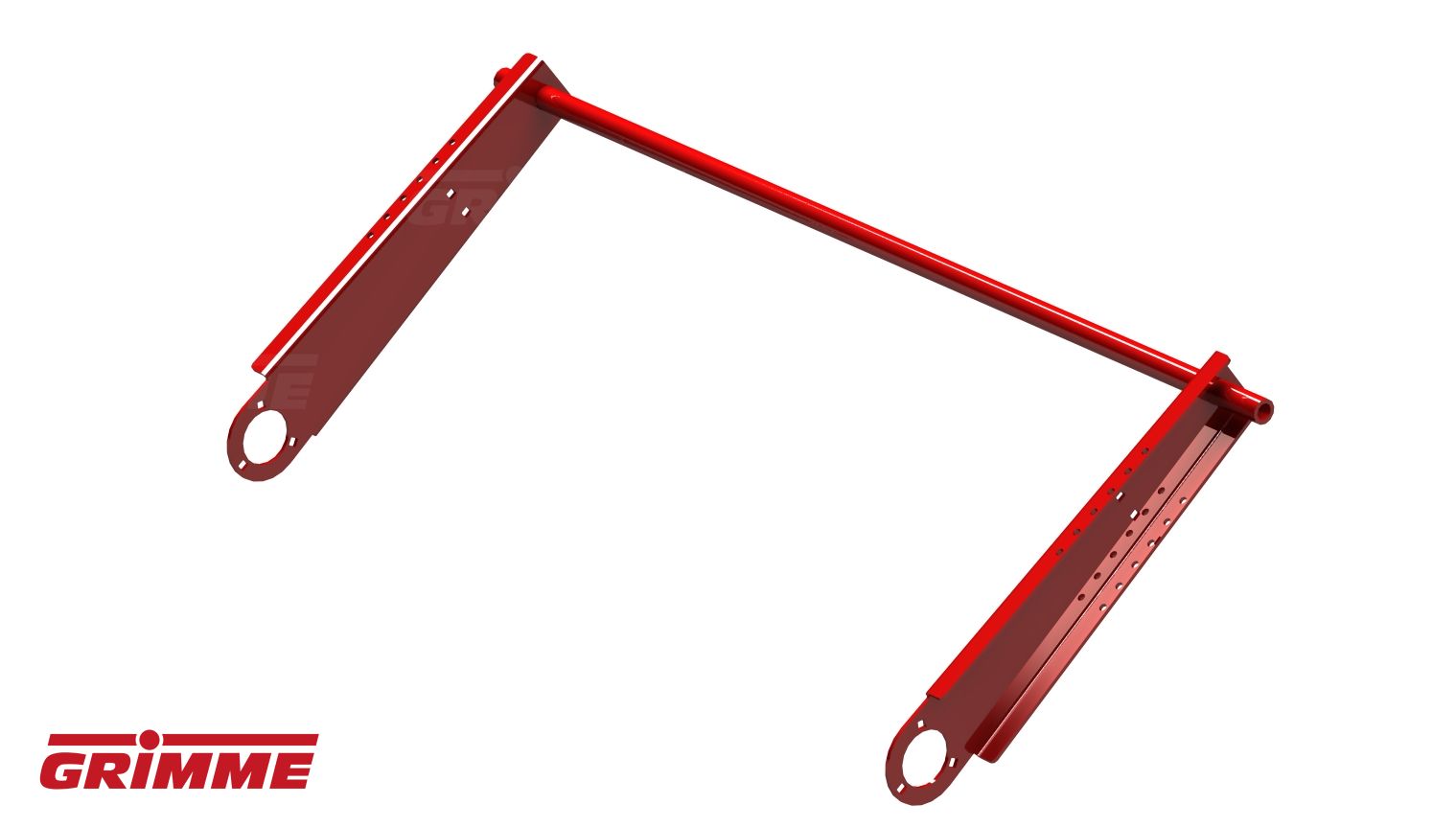

CROSS TUBE FRONT

Quantity in assembly group: 1 Piece / Pos. 1

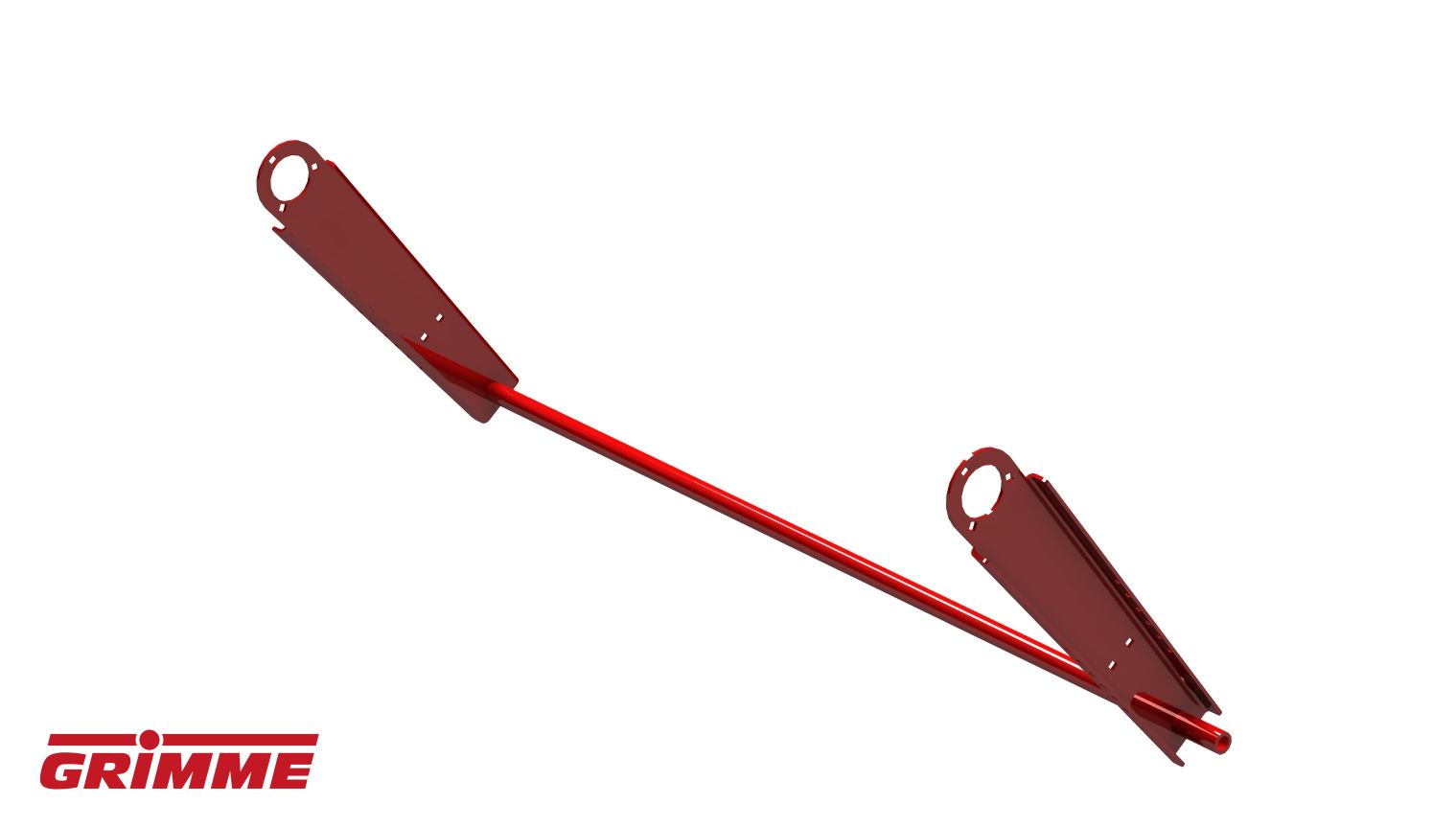

CROSS CONNECTION

Quantity in assembly group: 1 Piece / Pos. 2

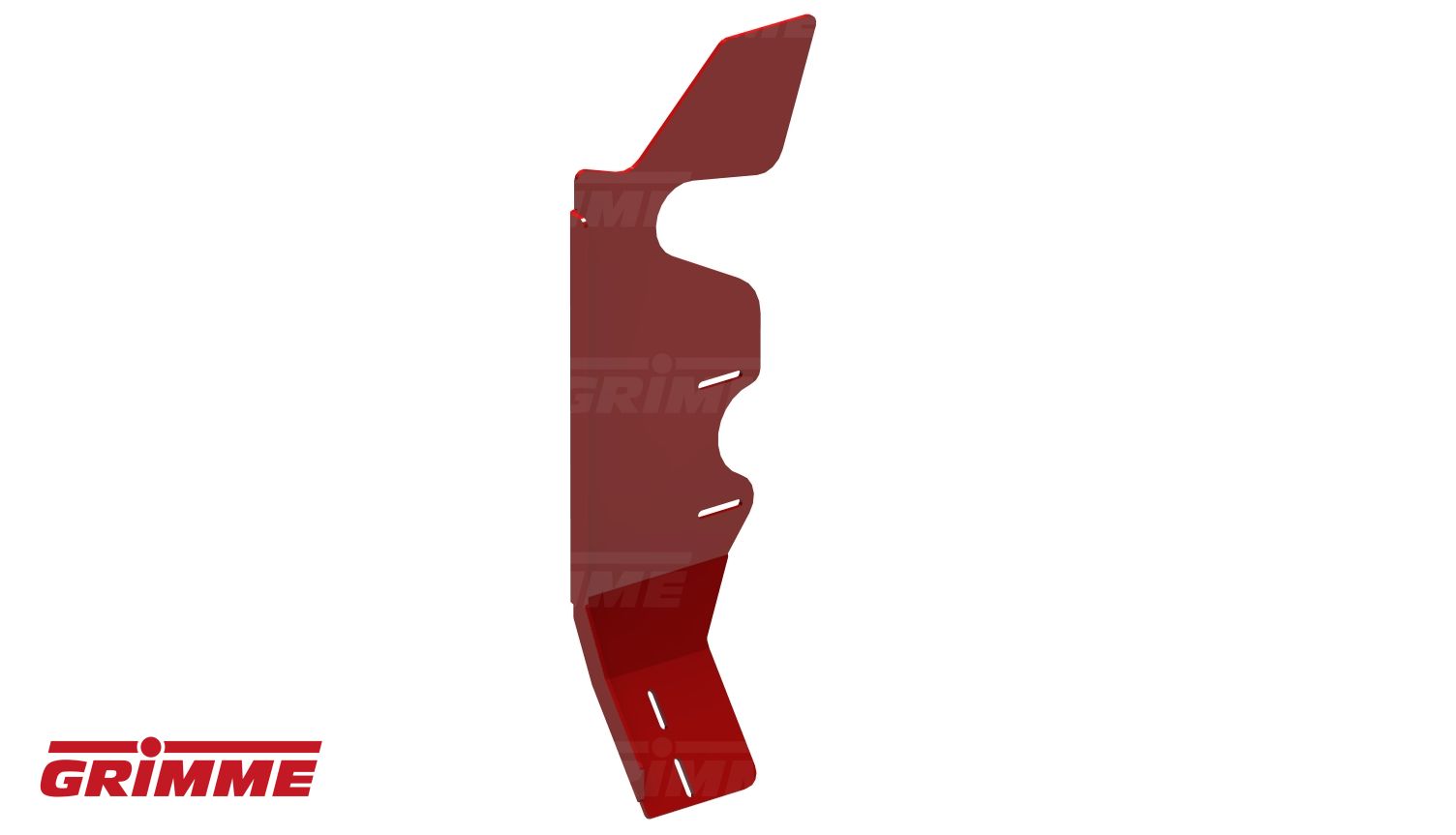

GUIDE PLATE R/H

Quantity in assembly group: 1 Piece / Pos. 3

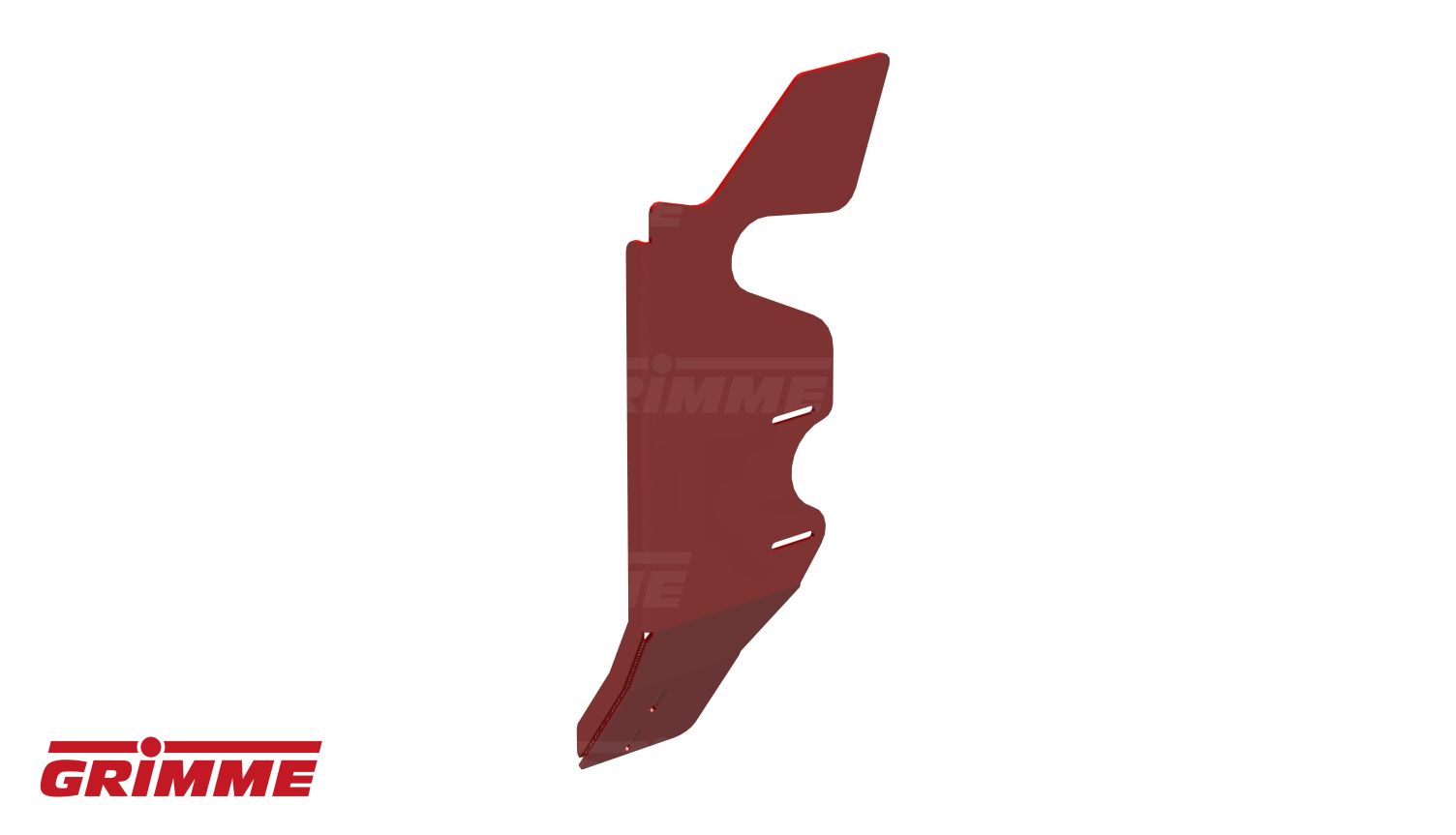

GUIDE PLATE L/H

Quantity in assembly group: 1 Piece / Pos. 4

PLATE

Quantity in assembly group: 2 Piece / Pos. 5

U-BOLT M12X81X115-8.8

Quantity in assembly group: 4 Piece / Pos. 6

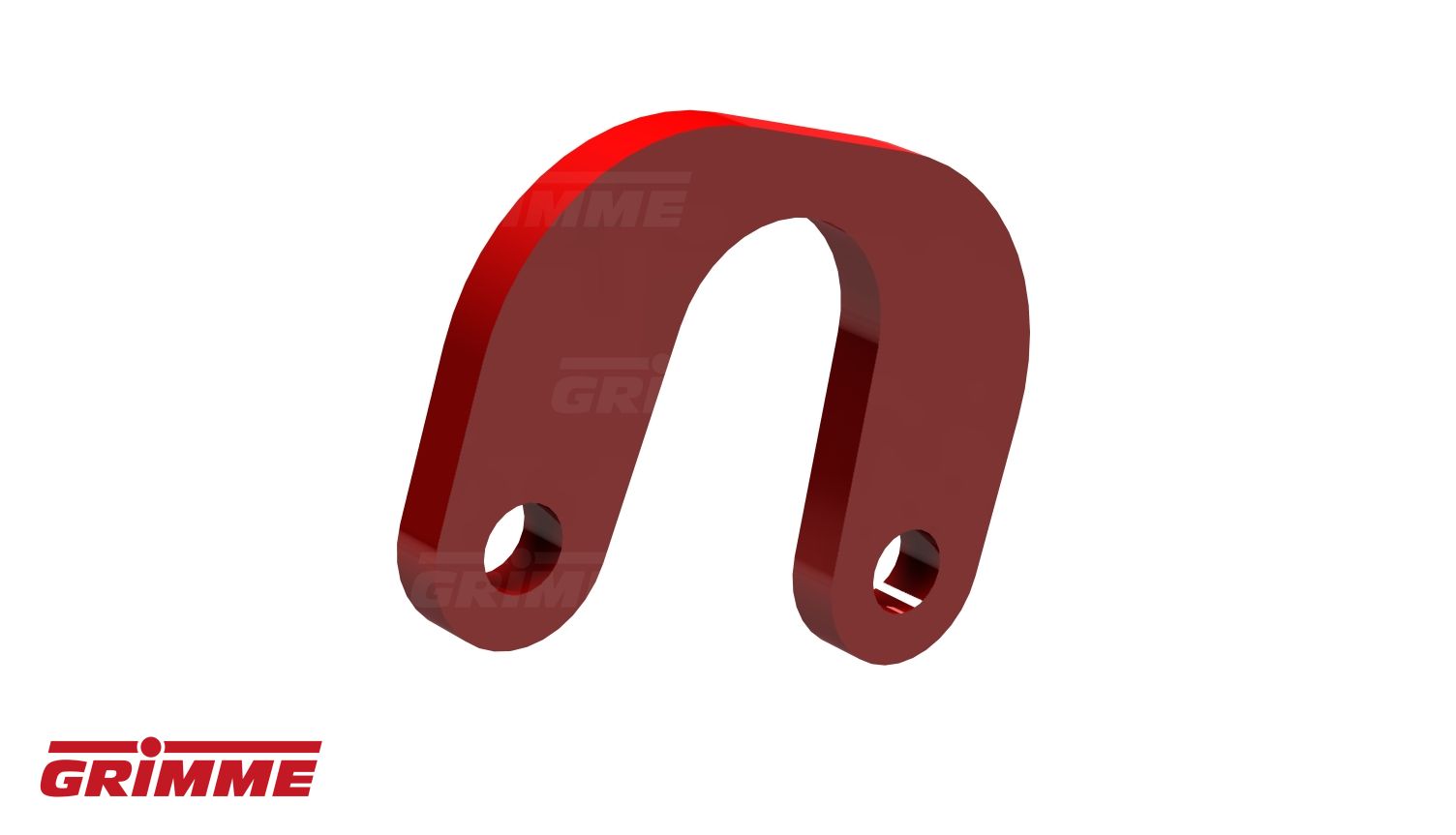

BRACKET

Quantity in assembly group: 2 Piece / Pos. 7

TENSION SPRING

Quantity in assembly group: 2 Piece / Pos. 8

HHC-SCREW M8X40 DIN933-8.8-GAL

Quantity in assembly group: 2 Piece / Pos. 9

PLATE

Quantity in assembly group: 4 Piece / Pos. 10

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 11

U-BOLT M12X61X85-8.8

Quantity in assembly group: 2 Piece / Pos. 12

ROLLER

Quantity in assembly group: 1 Piece / Pos. 20

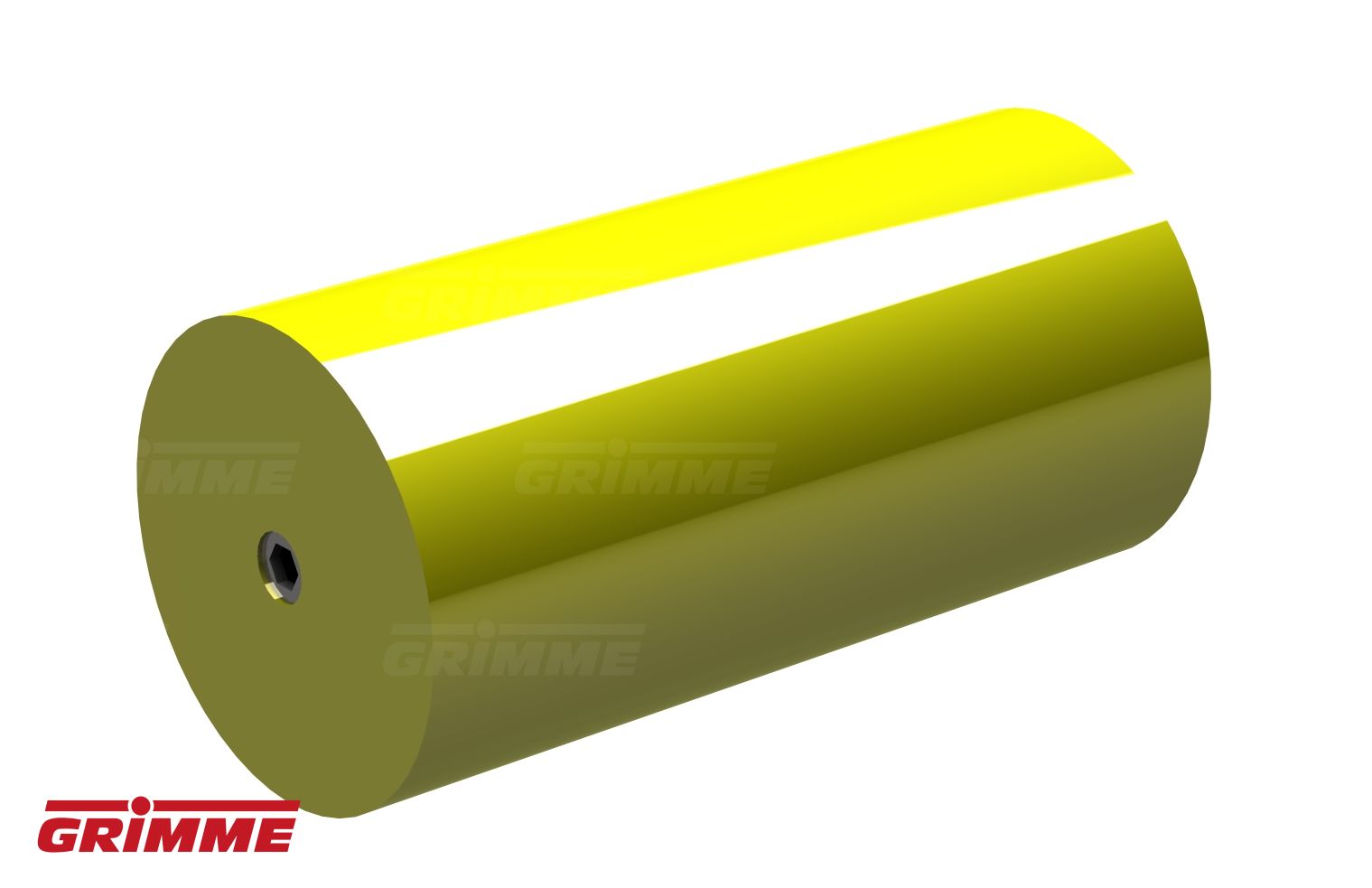

DRUM

Quantity in assembly group: 1 Piece / Pos. 21

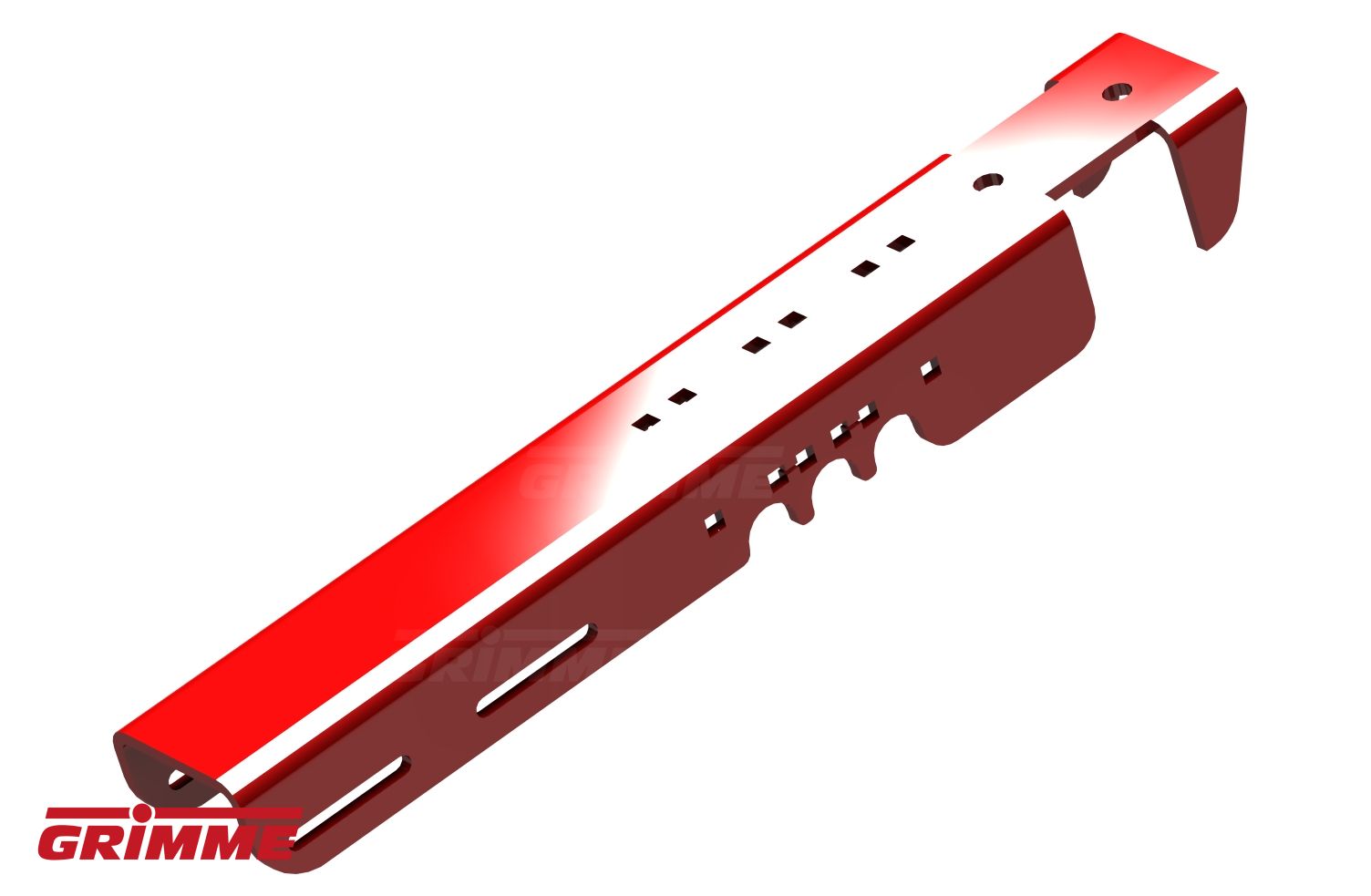

FRAME

Quantity in assembly group: 1 Piece / Pos. 22

FRAME

Quantity in assembly group: 1 Piece / Pos. 23

CHANNEL PLATE

Quantity in assembly group: 1 Piece / Pos. 24

STAY

Quantity in assembly group: 1 Piece / Pos. 25

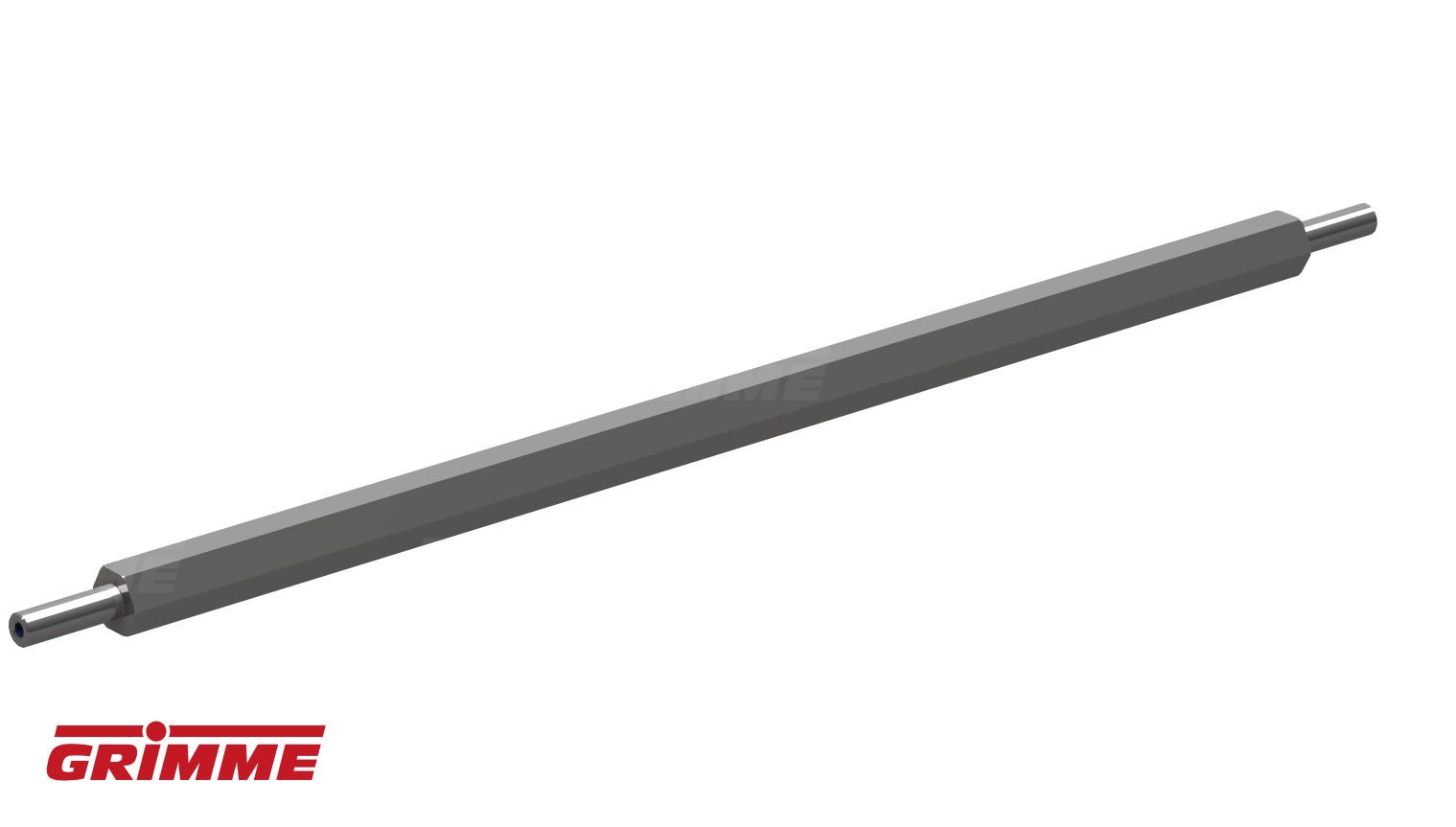

SHAFT

Quantity in assembly group: 1 Piece / Pos. 26

SHAFT

Quantity in assembly group: 1 Piece / Pos. 27

WASHER 21X55X4

Quantity in assembly group: 2 Piece / Pos. 29

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 30

FLANGE PLATE (PR) PF47/PF204

Quantity in assembly group: 2 Piece / Pos. 31

BALL BEARING AS 204

Quantity in assembly group: 2 Piece / Pos. 32

END COLLAR 10,5X32X5

Quantity in assembly group: 2 Piece / Pos. 33

COACH BOLT/SS M8X20-603-8.8-G

Quantity in assembly group: 10 Piece / Pos. 34

CONTACT WASHER FORM M 8-GAL

Quantity in assembly group: 28 Piece / Pos. 35

HEXAGON NUT M8 DIN934-8-GAL

Quantity in assembly group: 30 Piece / Pos. 36

SUPPORT WHEEL

Quantity in assembly group: 2 Piece / Pos. 40
