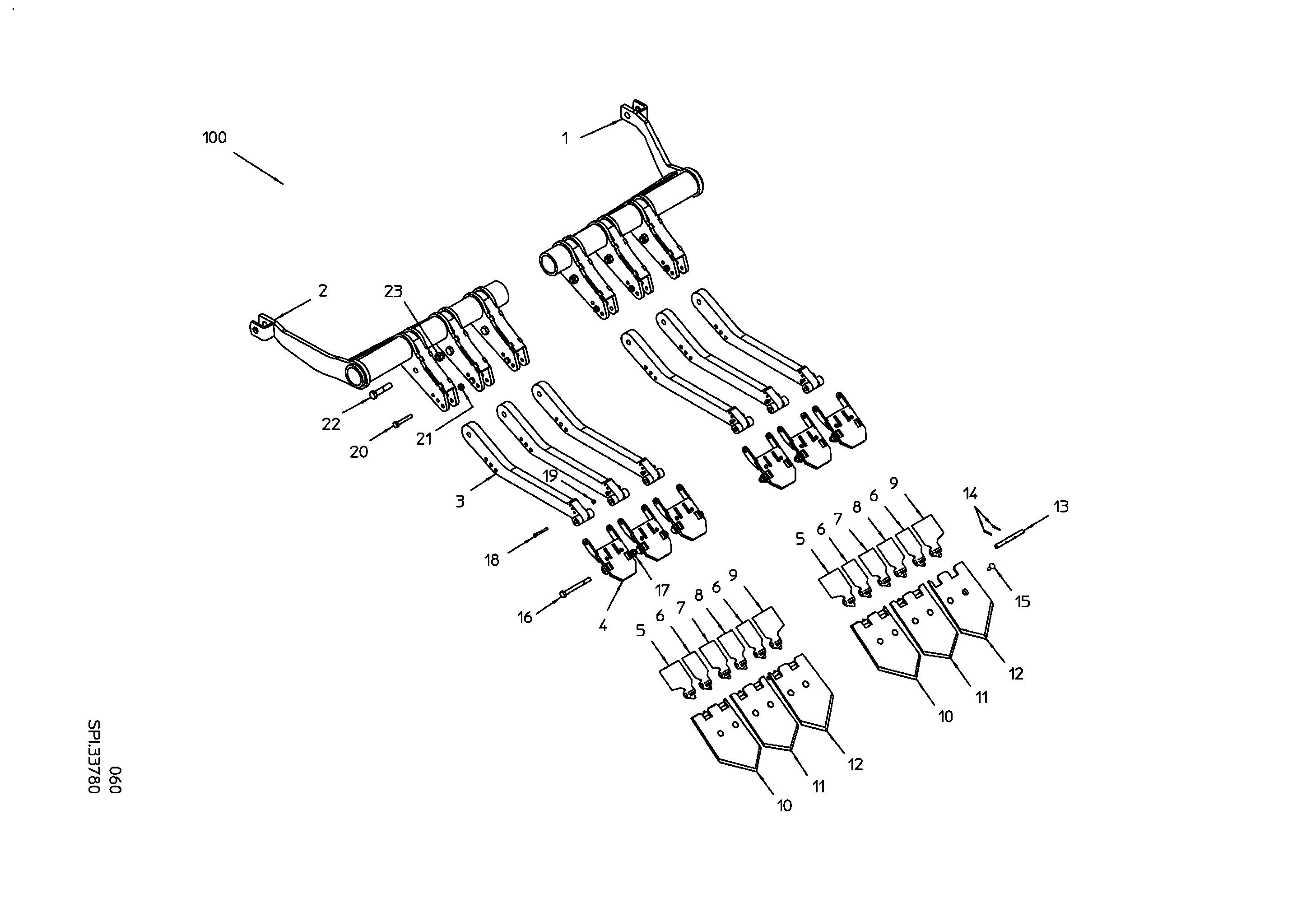

Parts by subassemblies

SHARE BLADE L/H CHAW 1700

Quantity in assembly group: 1 Piece / Pos. 1

SHARE BLADE R/H CHAW 1700

Quantity in assembly group: 1 Piece / Pos. 2

SHARE ARM 3AR STP

Quantity in assembly group: 6 Piece / Pos. 3

BOTTOM PLATE 3-ARMS

Quantity in assembly group: 6 Piece / Pos. 4

SHARE FLAP R/H

Quantity in assembly group: 2 Piece / Pos. 5

SHARE FLAP

Quantity in assembly group: 4 Piece / Pos. 6

SHARE FLAP R/H

Quantity in assembly group: 2 Piece / Pos. 7

SHARE FLAP R/H

Quantity in assembly group: 2 Piece / Pos. 7

SHARE FLAP L/H

Quantity in assembly group: 2 Piece / Pos. 8

SHARE FLAP L/H

Quantity in assembly group: 2 Piece / Pos. 8

SHARE FLAP L/H

Quantity in assembly group: 2 Piece / Pos. 9

SHARE PLATE R/H 265 LONG

Quantity in assembly group: 2 Piece / Pos. 10

SHARE PLATE CEN 261 LG

Quantity in assembly group: 2 Piece / Pos. 11

SHARE PLATE L/H 265 LG

Quantity in assembly group: 2 Piece / Pos. 12

COTTER BOLT

Quantity in assembly group: 6 Piece / Pos. 13

COTTER BOLT

Quantity in assembly group: 6 Piece / Pos. 13

COTTER PIN 4X20 DIN94-GAL

Quantity in assembly group: 12 Piece / Pos. 14

LIPPED SHARE BOLT M10X25-604

Quantity in assembly group: 12 Piece / Pos. 15

HEX BOLT M12X120-DIN931-8.8-G

Quantity in assembly group: 6 Piece / Pos. 16

NYLOC NUT DIN985-M12-8-GAL

Quantity in assembly group: 6 Piece / Pos. 17

HEX BOLT M6X55-DIN931-838-G

Quantity in assembly group: 6 Piece / Pos. 18

NYLOC NUT DIN985-M6-8-GAL

Quantity in assembly group: 6 Piece / Pos. 19

HEX BOLT M10X70-DIN931-8.8-G

Quantity in assembly group: 6 Piece / Pos. 20

NYLOC NUT DIN985-M10-8-GAL

Quantity in assembly group: 6 Piece / Pos. 21

HEX BOLT M16X75-DIN931-8.8-G

Quantity in assembly group: 6 Piece / Pos. 22

NYLOC NUT DIN985-M16-8-GAL

Quantity in assembly group: 6 Piece / Pos. 23

BLA 3ARMED 580INT CHAW 170 STP

Quantity in assembly group: 1 Piece / Pos. 100
