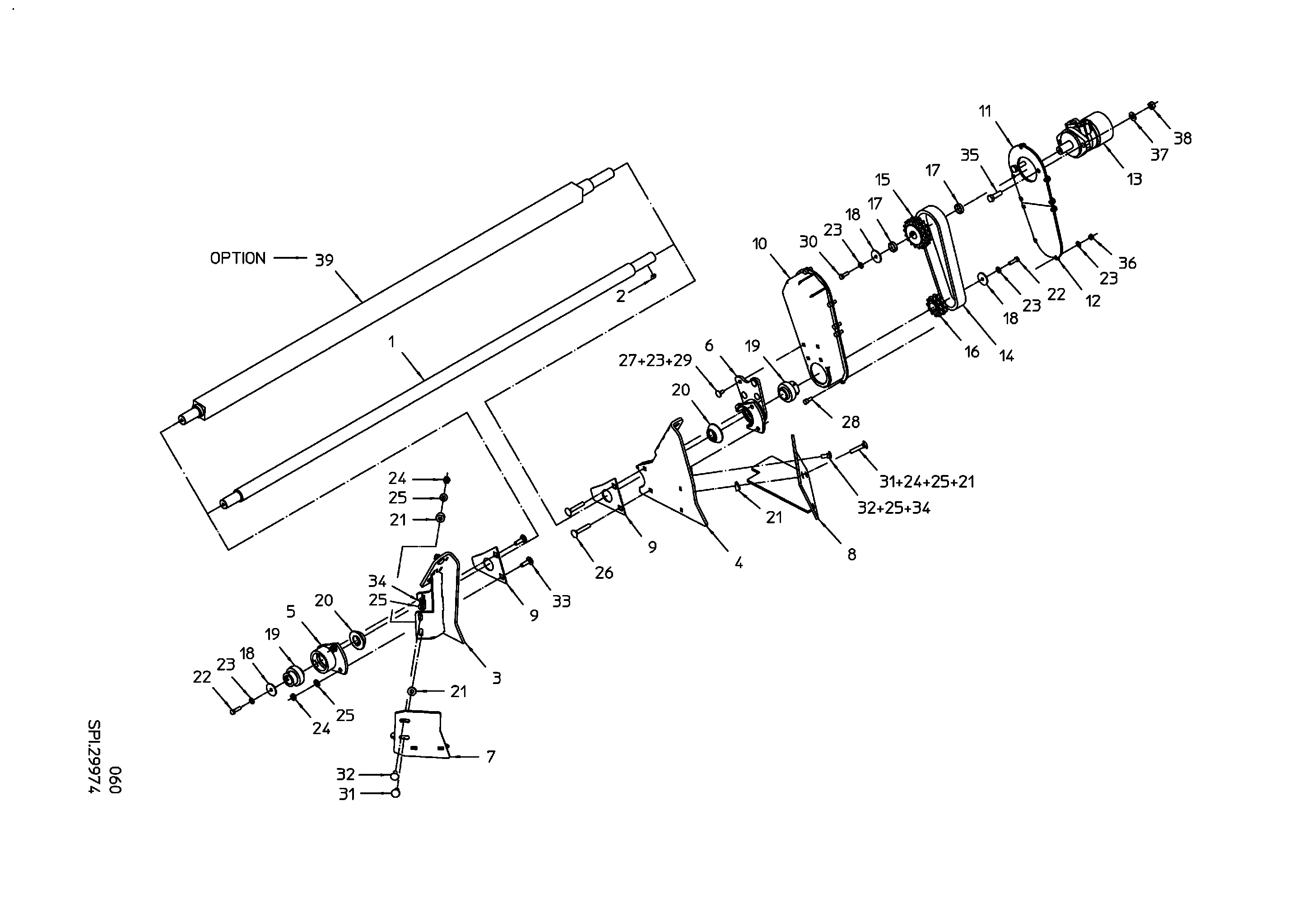

Parts by subassemblies

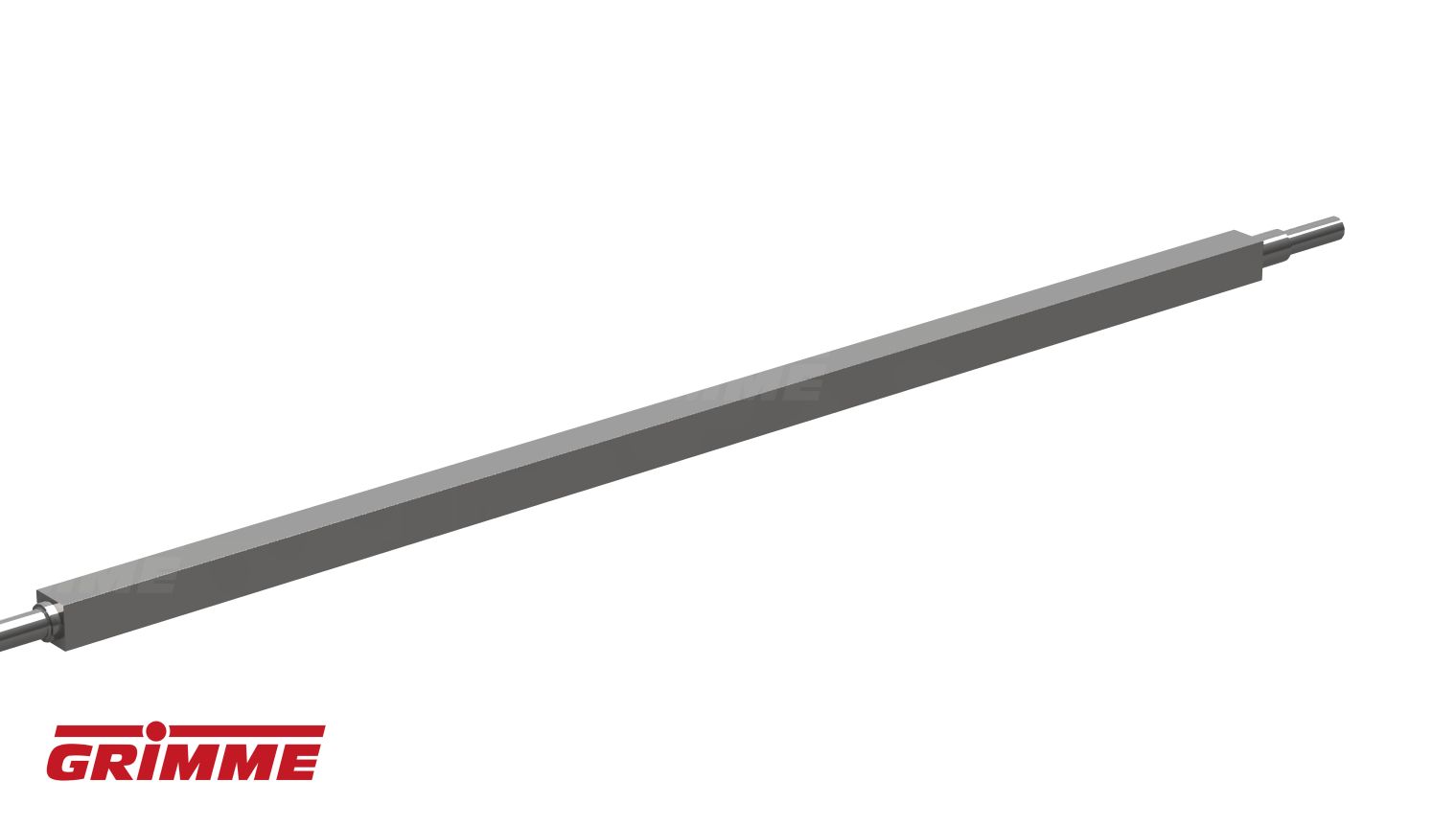

ROTOR SHAFT

Quantity in assembly group: 1 Piece / Pos. 1

FEATHER KEY A 8X8X15 DIN6885

Quantity in assembly group: 1 Piece / Pos. 2

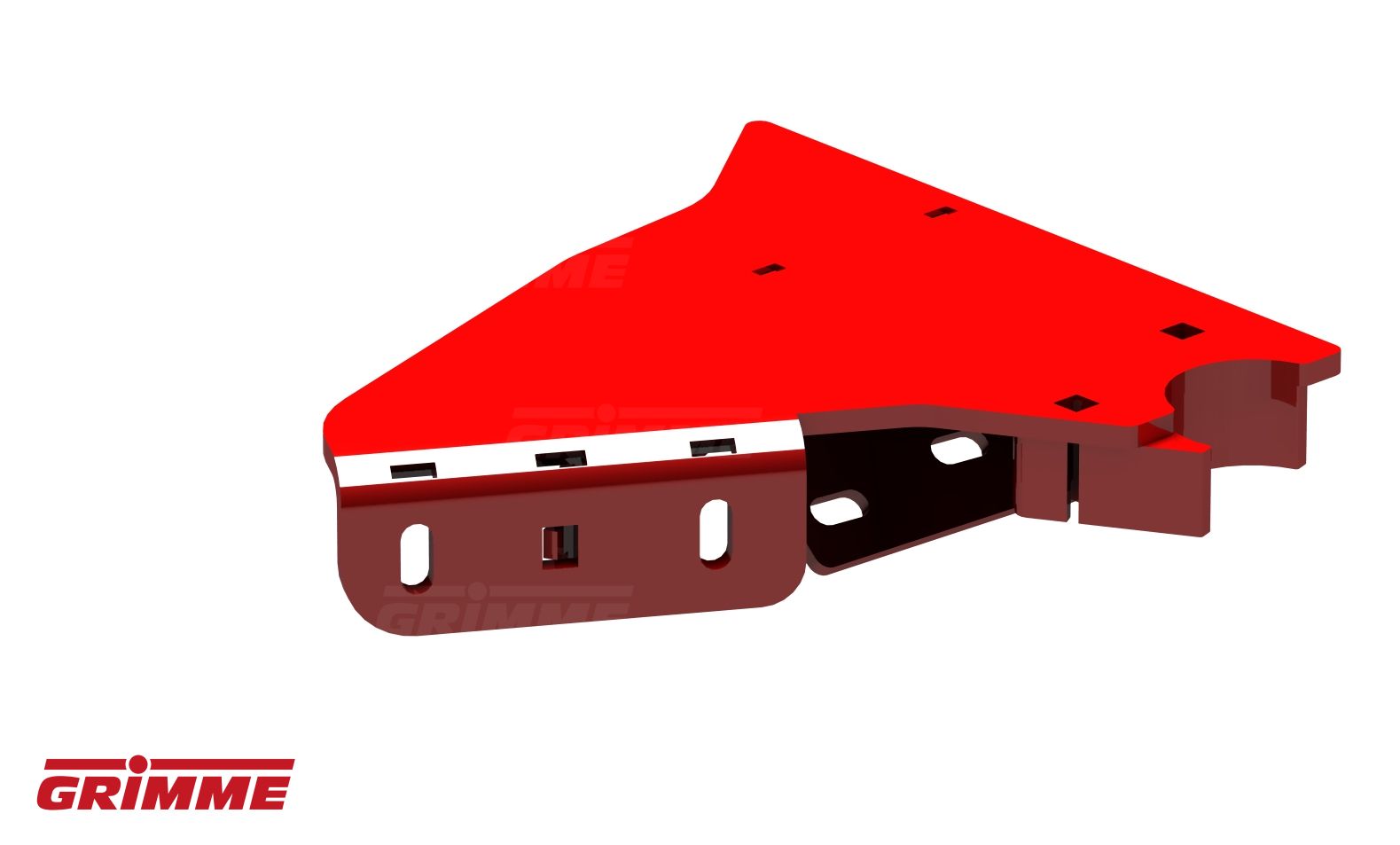

BRACKET R/H ROS

Quantity in assembly group: 1 Piece / Pos. 3

BRACKET L/H ROS

Quantity in assembly group: 1 Piece / Pos. 4

BEARING R/H

Quantity in assembly group: 1 Piece / Pos. 5

STORE L/H

Quantity in assembly group: 1 Piece / Pos. 6

DEFLECTOR PLATE R/H

Quantity in assembly group: 1 Piece / Pos. 7

DEFLECTOR PLATE L/H

Quantity in assembly group: 1 Piece / Pos. 8

COVER

Quantity in assembly group: 2 Piece / Pos. 9

BEARING BOX L/H

Quantity in assembly group: 1 Piece / Pos. 10

CAP

Quantity in assembly group: 1 Piece / Pos. 11

CAP

Quantity in assembly group: 1 Piece / Pos. 12

HYD MOTOR MF50 CYL-SHAFT

Quantity in assembly group: 1 Piece / Pos. 13

DUP.CHAIN 5/8"X3/8"-10B-2-46R

Quantity in assembly group: 1 Piece / Pos. 14

SPROCKET 5/8"-T18/18

Quantity in assembly group: 1 Piece / Pos. 15

SPROCKET 5/8"-T12/12

Quantity in assembly group: 1 Piece / Pos. 16

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 17

PLAIN WASHER 9X40X2,5

Quantity in assembly group: 3 Piece / Pos. 18

BEARING YEL 206-2RF/VL065

Quantity in assembly group: 2 Piece / Pos. 19

DISC

Quantity in assembly group: 2 Piece / Pos. 20

COMPENSATING PIECE

Quantity in assembly group: 4 Piece / Pos. 21

SET SCREW M8X30-DIN933-8.8-G

Quantity in assembly group: 2 Piece / Pos. 22

CONTACT WASHER FORM M 8-GAL

Quantity in assembly group: 16 Piece / Pos. 23

HALF NUT M10 DIN936-17H-GAL

Quantity in assembly group: 10 Piece / Pos. 24

CONTACT WASHER FORM M 10-GAL

Quantity in assembly group: 12 Piece / Pos. 25

COACH BOLT M10X65-DIN603-8.8

Quantity in assembly group: 2 Piece / Pos. 26

COACH BOLT M8X20-603-8.8-GAL

Quantity in assembly group: 4 Piece / Pos. 27

SHC-SCREW DIN912 M8X20 8.8 GAL

Quantity in assembly group: 9 Piece / Pos. 28

HEXAGON NUT M8 DIN934-6-GAL-DE

Quantity in assembly group: 4 Piece / Pos. 29

SET SCREW M8X25-DIN933-8.8-G

Quantity in assembly group: 1 Piece / Pos. 30

COACH BOLT M10X50-DIN603-8.8-G

Quantity in assembly group: 2 Piece / Pos. 31

MH-SCREW M10X25-603-8.8-GAL

Quantity in assembly group: 6 Piece / Pos. 32

MH-SCREW M10X35-603-8.8-GAL

Quantity in assembly group: 2 Piece / Pos. 33

HEXAGON NUT M10 DIN934-8-GAL

Quantity in assembly group: 2 Piece / Pos. 34

SET SCREW M12X40-DIN933-8.8-G

Quantity in assembly group: 2 Piece / Pos. 35

HEXAGON NUT M8 DIN934-8-GAL

Quantity in assembly group: 9 Piece / Pos. 36

CONTACT DISC FORM M 12-GAL

Quantity in assembly group: 2 Piece / Pos. 37

HEXAGON NUT M12 934-10.9-flZn

Quantity in assembly group: 2 Piece / Pos. 38

ROTOR SHAFT

Quantity in assembly group: 1 Piece / Pos. 39
