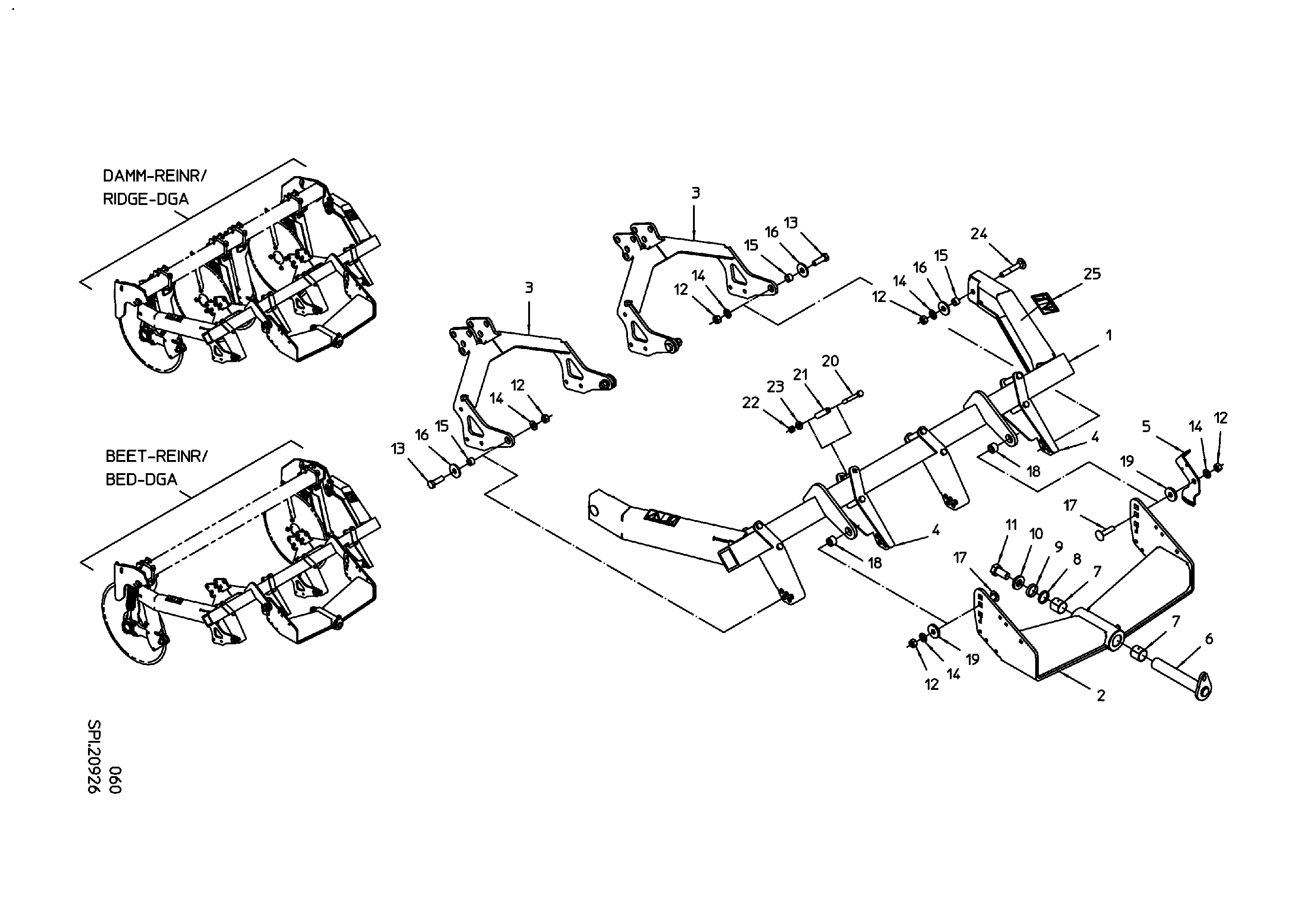

Parts by subassemblies

CROSS FRAME FRONT

Quantity in assembly group: 1 Piece / Pos. 1

CROSS PENDULUM

Quantity in assembly group: 1 Piece / Pos. 2

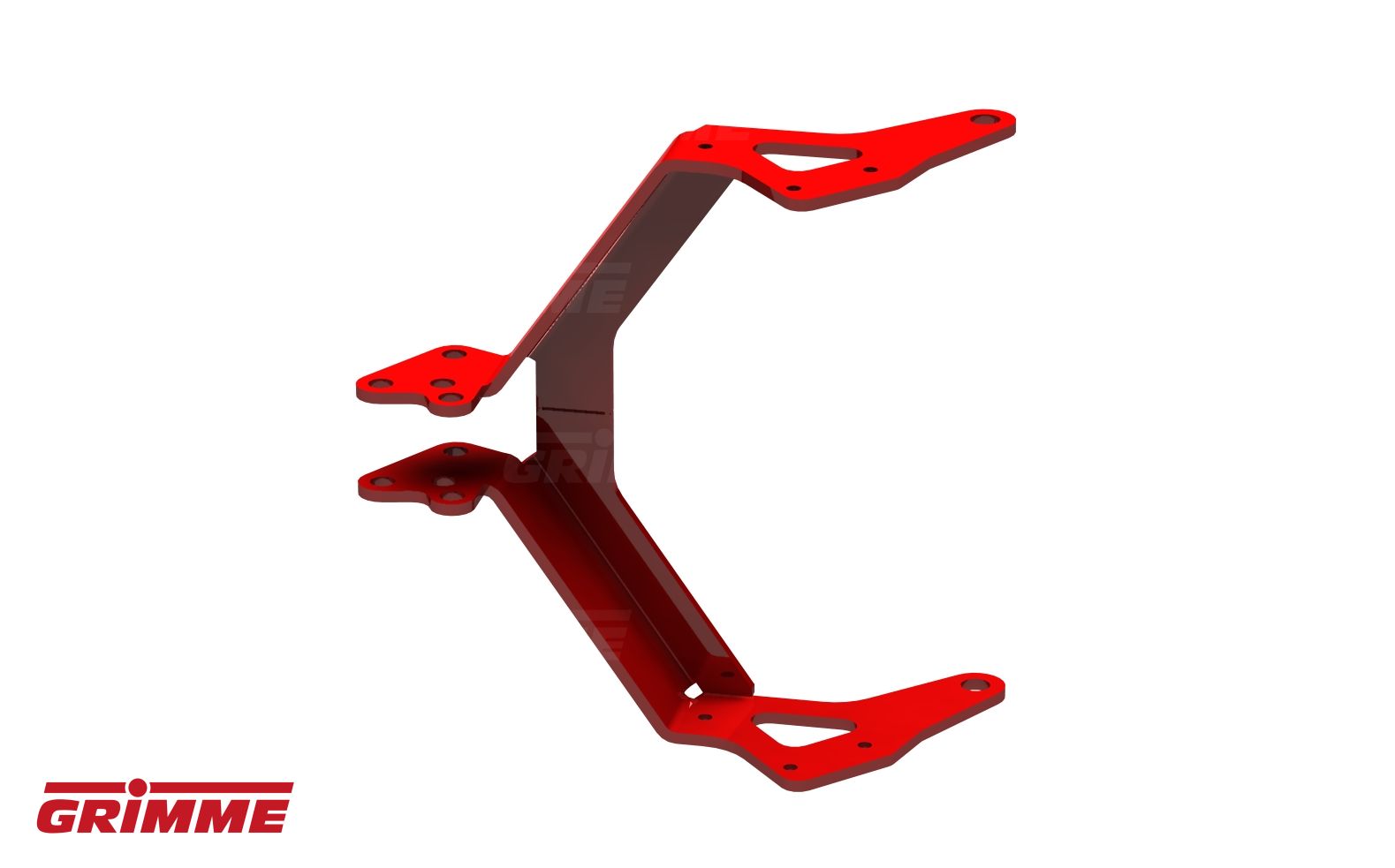

DIABLO FRAME

Quantity in assembly group: 2 Piece / Pos. 3

BRACKET

Quantity in assembly group: 2 Piece / Pos. 4

BRACKET

Quantity in assembly group: 1 Piece / Pos. 5

BOLT

Quantity in assembly group: 1 Piece / Pos. 6

PLAIN BEARING BUSH 404440

Quantity in assembly group: 2 Piece / Pos. 7

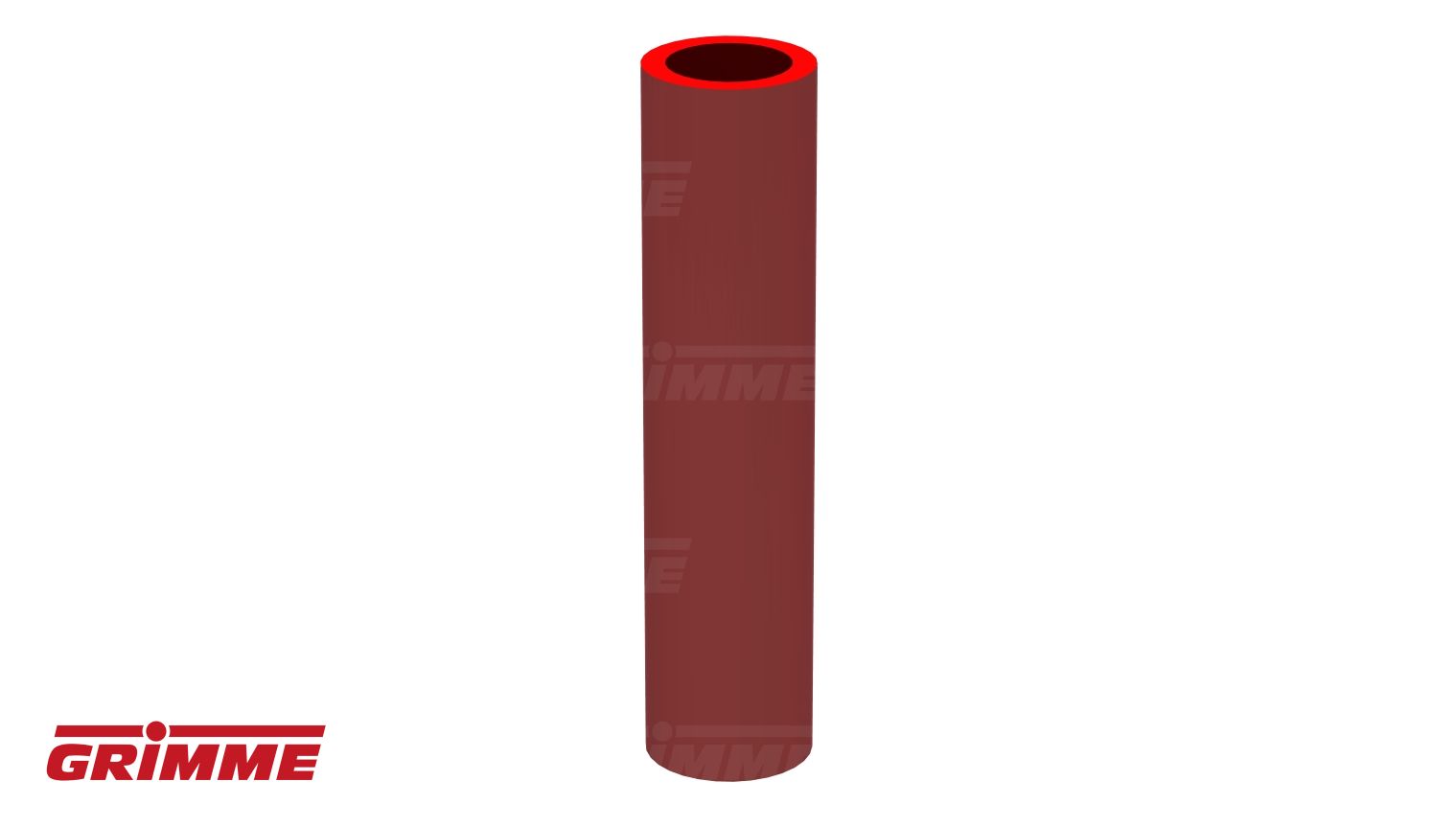

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 8

SPACER RING

Quantity in assembly group: 1 Piece / Pos. 9

PLAIN WASHER 25X50X8

Quantity in assembly group: 1 Piece / Pos. 10

HEX-SCREW M24X50 DIN933-8.8-GA

Quantity in assembly group: 1 Piece / Pos. 11

HEXAGON NUT M16 DIN934-8-GAL

Quantity in assembly group: 14 Piece / Pos. 12

SET SCREW M16X50-DIN933-8.8-G

Quantity in assembly group: 4 Piece / Pos. 13

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 15 Piece / Pos. 14

BUSH

Quantity in assembly group: 6 Piece / Pos. 15

WASHER

Quantity in assembly group: 7 Piece / Pos. 16

COACH BOLT/SS M16X65-603-8.8-G

Quantity in assembly group: 2 Piece / Pos. 17

SPACER 20MM

Quantity in assembly group: 2 Piece / Pos. 18

RETAINING WASHER

Quantity in assembly group: 2 Piece / Pos. 19

HEX BOLT M12X110-DIN931-8.8-G

Quantity in assembly group: 8 Piece / Pos. 20

SPACER TUBE

Quantity in assembly group: 8 Piece / Pos. 21

HEXAGON NUT M12 934-10.9-flZn

Quantity in assembly group: 17 Piece / Pos. 22

CONTACT DISC FORM M 12-GAL

Quantity in assembly group: 30 Piece / Pos. 23

COACH BOLT M16X100-DIN603-8.8G

Quantity in assembly group: 3 Piece / Pos. 24

089.00805 WARNING SYM

Quantity in assembly group: 2 Piece / Pos. 25
