Your machine: POTATO HARVESTER GT 170 M+S GT170(S/N: 45002062) modify ▸

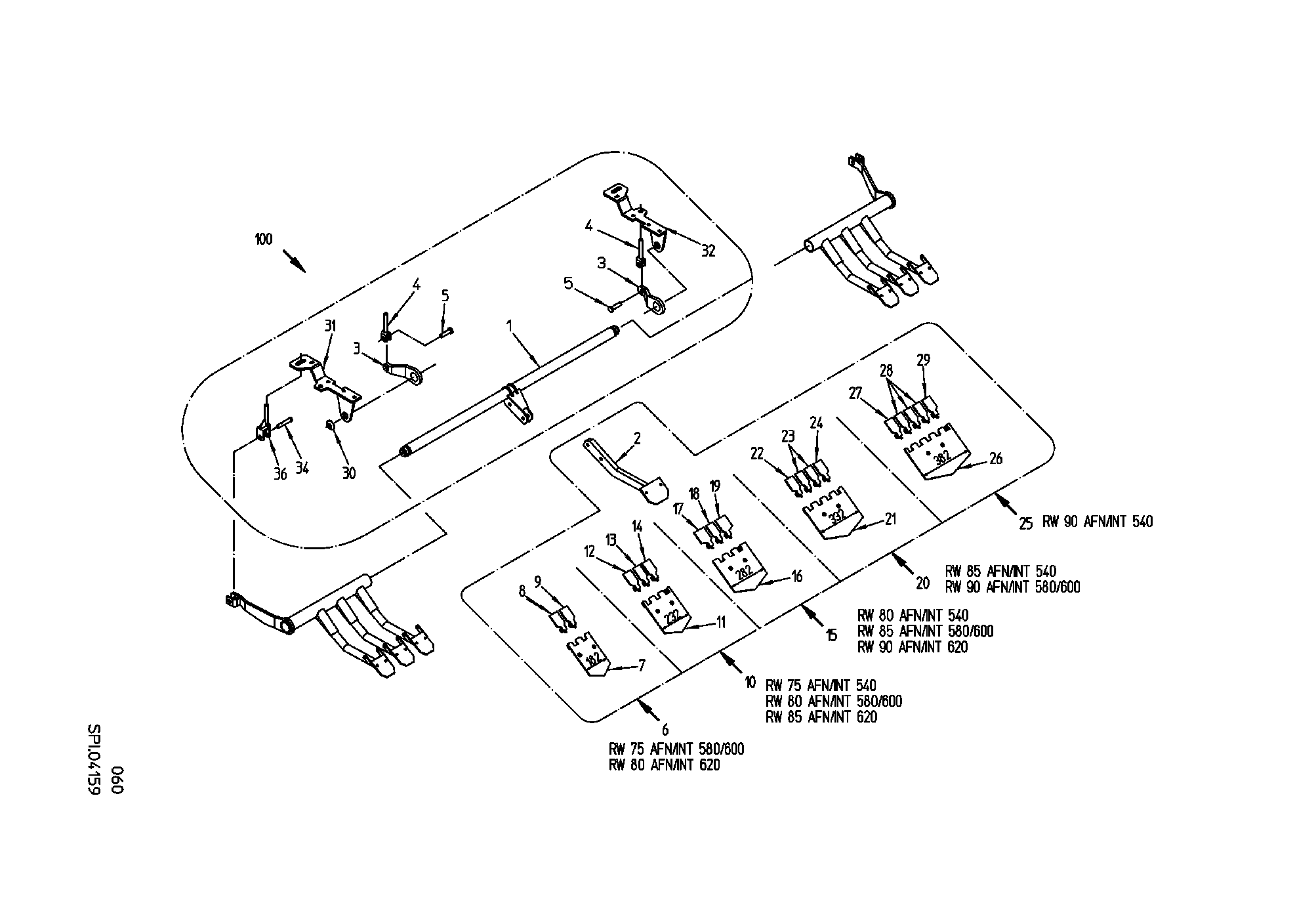

Subassembly drawing

▸ Selected assembly group:

Selected subassembly

▸
CENTRE SHARE 3-ARMED (37 Parts)
▸

Subassembly parts

All items Equipment ex work ()
SPACER TUBE
Quantity in assembly group: 2 Piece / Pos. 0
COTTER PIN 4X20 DIN94-GAL
Quantity in assembly group: 2 Piece / Pos. 0
COTTER BOLT
Quantity in assembly group: 1 Piece / Pos. 0
STONE FLAP PIN
Quantity in assembly group: 1 Piece / Pos. 0
COTTER BOLT
Quantity in assembly group: 1 Piece / Pos. 0
COTTER BOLT
Quantity in assembly group: 1 Piece / Pos. 0
HALF NUT M20 DIN936-17H-GAL
Quantity in assembly group: 4 Piece / Pos. 0
WASHER 22X60X4 GAL
Quantity in assembly group: 4 Piece / Pos. 0
COTTER PIN 4X45 DIN94-GAL
Quantity in assembly group: 2 Piece / Pos. 0
SHARE FRAME TUBE
Quantity in assembly group: 1 Piece / Pos. 1
CENTRE SHARE ARM
Quantity in assembly group: 1 Piece / Pos. 2
ADJUSTING LEVER
Quantity in assembly group: 2 Piece / Pos. 3
ADJUSTER CLEVIS
Quantity in assembly group: 2 Piece / Pos. 4
BOLT
Quantity in assembly group: 2 Piece / Pos. 5

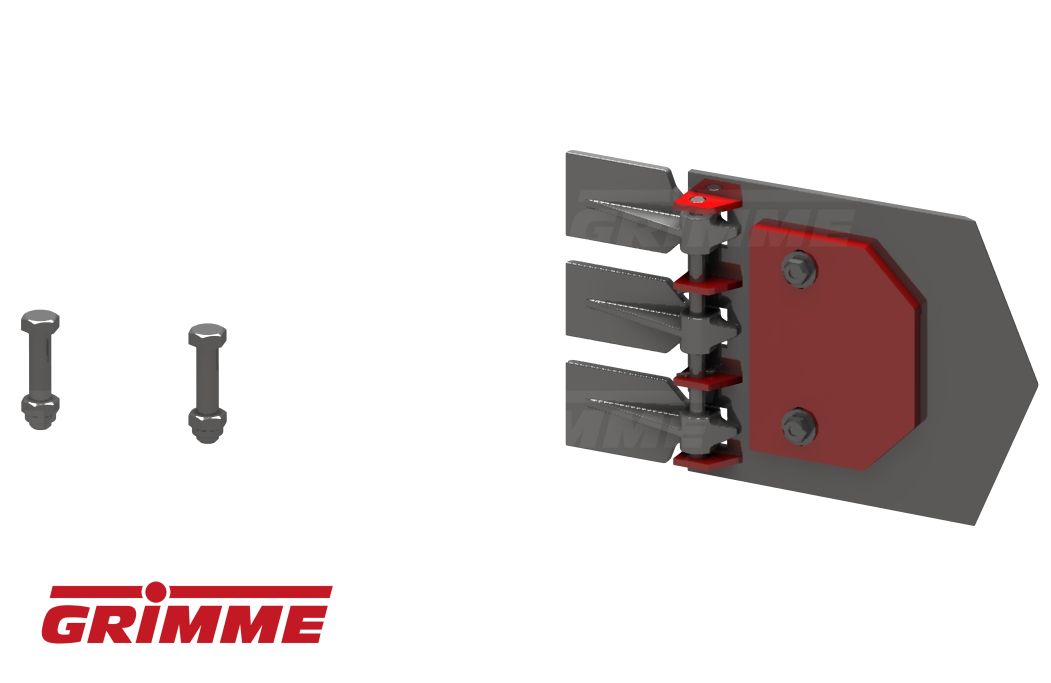

CES 182WD 3BLA 264L
Quantity in assembly group: 1 Piece / Pos. 6
SHARE PLATE CES 275 L 182 WIDE
Quantity in assembly group: 1 Piece / Pos. 7

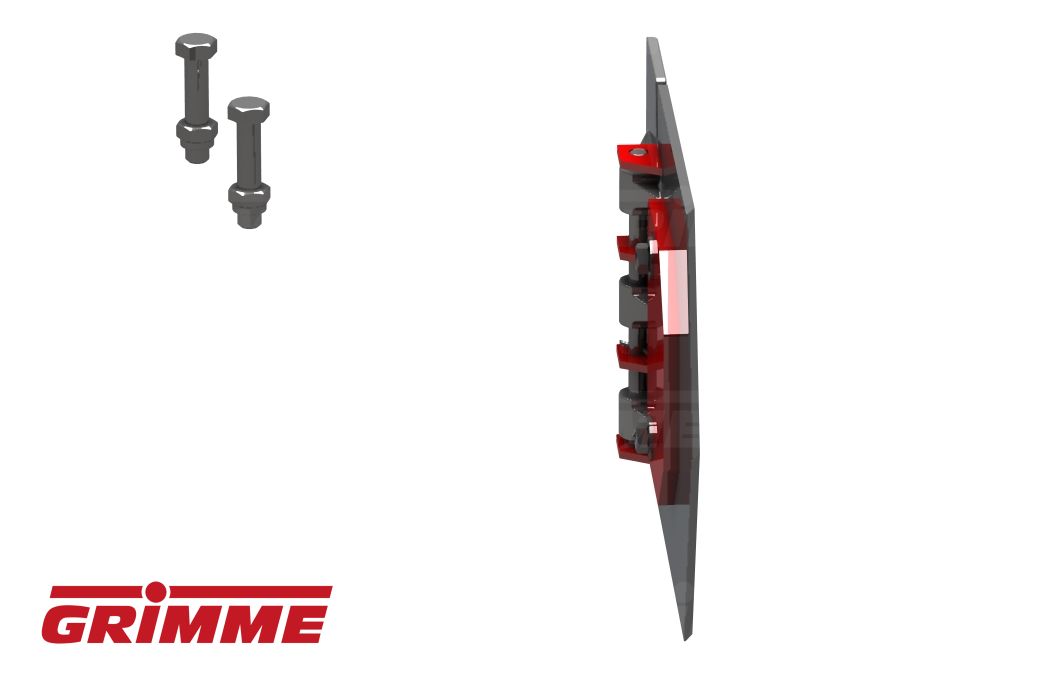

CES 232WD 3BLA 264LG
Quantity in assembly group: 1 Piece / Pos. 10
SHARE PLATE CES 275 L 232 WIDE
Quantity in assembly group: 1 Piece / Pos. 11
SHARE FLAP R/H
Quantity in assembly group: 1 Piece / Pos. 12
SHARE FLAP L/H
Quantity in assembly group: 1 Piece / Pos. 14
CES 282WD 3BLA 264LG
Quantity in assembly group: 1 Piece / Pos. 15
SHARE PLATE CES 275 L 282 WIDE
Quantity in assembly group: 1 Piece / Pos. 16
SHARE FLAP R/H
Quantity in assembly group: 1 Piece / Pos. 17
SHARE FLAP
Quantity in assembly group: 1 Piece / Pos. 18
SHARE FLAP L/H
Quantity in assembly group: 1 Piece / Pos. 19
CES 332WD 3BLA 264L
Quantity in assembly group: 1 Piece / Pos. 20
SHARE PLATE CES 275 L 332 WIDE
Quantity in assembly group: 1 Piece / Pos. 21
CES 382WD 2BLA
Quantity in assembly group: 1 Piece / Pos. 25
SHARE PLATE
Quantity in assembly group: 1 Piece / Pos. 26
SHARE FLAP R/H
Quantity in assembly group: 1 Piece / Pos. 27
SHARE FLAP L/H
Quantity in assembly group: 1 Piece / Pos. 29
SEALING DISC
Quantity in assembly group: 2 Piece / Pos. 30
SHARE MOUNTING R/H
Quantity in assembly group: 1 Piece / Pos. 31
SHARE MOUNTING L/H
Quantity in assembly group: 1 Piece / Pos. 32
ADJUSTING ROD
Quantity in assembly group: 2 Piece / Pos. 33
PIN
Quantity in assembly group: 2 Piece / Pos. 34
CENTRE SHARE INS CHAW 170
Quantity in assembly group: 1 Piece / Pos. 100
