Your machine: POTATO HARVESTER GT 170 M+S GT170(S/N: 45002062) modify ▸

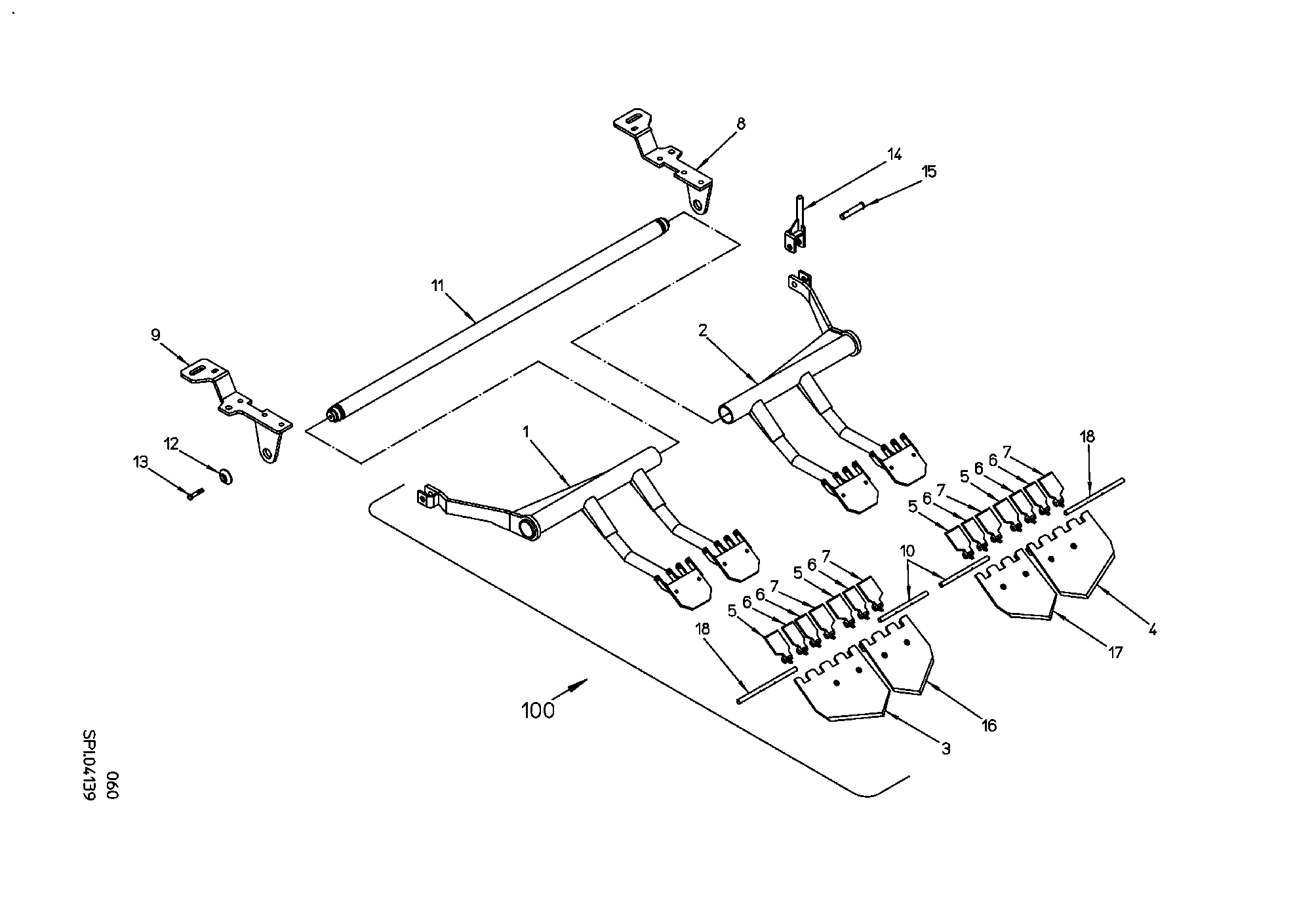

Subassembly drawing

▸ Selected assembly group:

Selected subassembly

▸
SHA 2-ARMED 540INT OU WD BLA (24 Parts)
▸

Subassembly parts

All items Equipment ex work ()
CONTACT DISC FORM M 12-GAL
Quantity in assembly group: 2 Piece / Pos. 0
LIPPED SHARE BOLT M10X25-604
Quantity in assembly group: 8 Piece / Pos. 0
COTTER PIN 4X20 DIN94-GAL
Quantity in assembly group: 8 Piece / Pos. 0
SHARE FRAME 2 PCE. R/H
Quantity in assembly group: 1 Piece / Pos. 1
SHARE FRAME 2 PCE. L/H
Quantity in assembly group: 1 Piece / Pos. 2
SHARE BLADE 264 L INT 540
Quantity in assembly group: 1 Piece / Pos. 3
SHARE PLATE 264 L INT 540
Quantity in assembly group: 1 Piece / Pos. 4
SHARE FLAP R/H
Quantity in assembly group: 4 Piece / Pos. 5
SHARE FLAP R/H
Quantity in assembly group: 4 Piece / Pos. 5
SHARE FLAP
Quantity in assembly group: 6 Piece / Pos. 6
SHARE FLAP L/H
Quantity in assembly group: 4 Piece / Pos. 7
SHARE FLAP L/H
Quantity in assembly group: 4 Piece / Pos. 7
SHARE MOUNTING L/H
Quantity in assembly group: 1 Piece / Pos. 8
SHARE MOUNTING R/H
Quantity in assembly group: 1 Piece / Pos. 9
STONE FLAP PIN
Quantity in assembly group: 2 Piece / Pos. 10
SHARE FRAME TUBE
Quantity in assembly group: 1 Piece / Pos. 11
SEALING DISC
Quantity in assembly group: 2 Piece / Pos. 12
SET SCREW M12X30-DIN933-8.8-G
Quantity in assembly group: 2 Piece / Pos. 13
ADJUSTING ROD
Quantity in assembly group: 2 Piece / Pos. 14
PIN
Quantity in assembly group: 2 Piece / Pos. 15
SHARE BLADE 264 L INT 540
Quantity in assembly group: 1 Piece / Pos. 16
SHARE BLADE 264 L INT 540
Quantity in assembly group: 1 Piece / Pos. 17
STONE FLAP PIN
Quantity in assembly group: 2 Piece / Pos. 18
SHARE BLA 2AR 540INT OU
Quantity in assembly group: 1 Piece / Pos. 100
