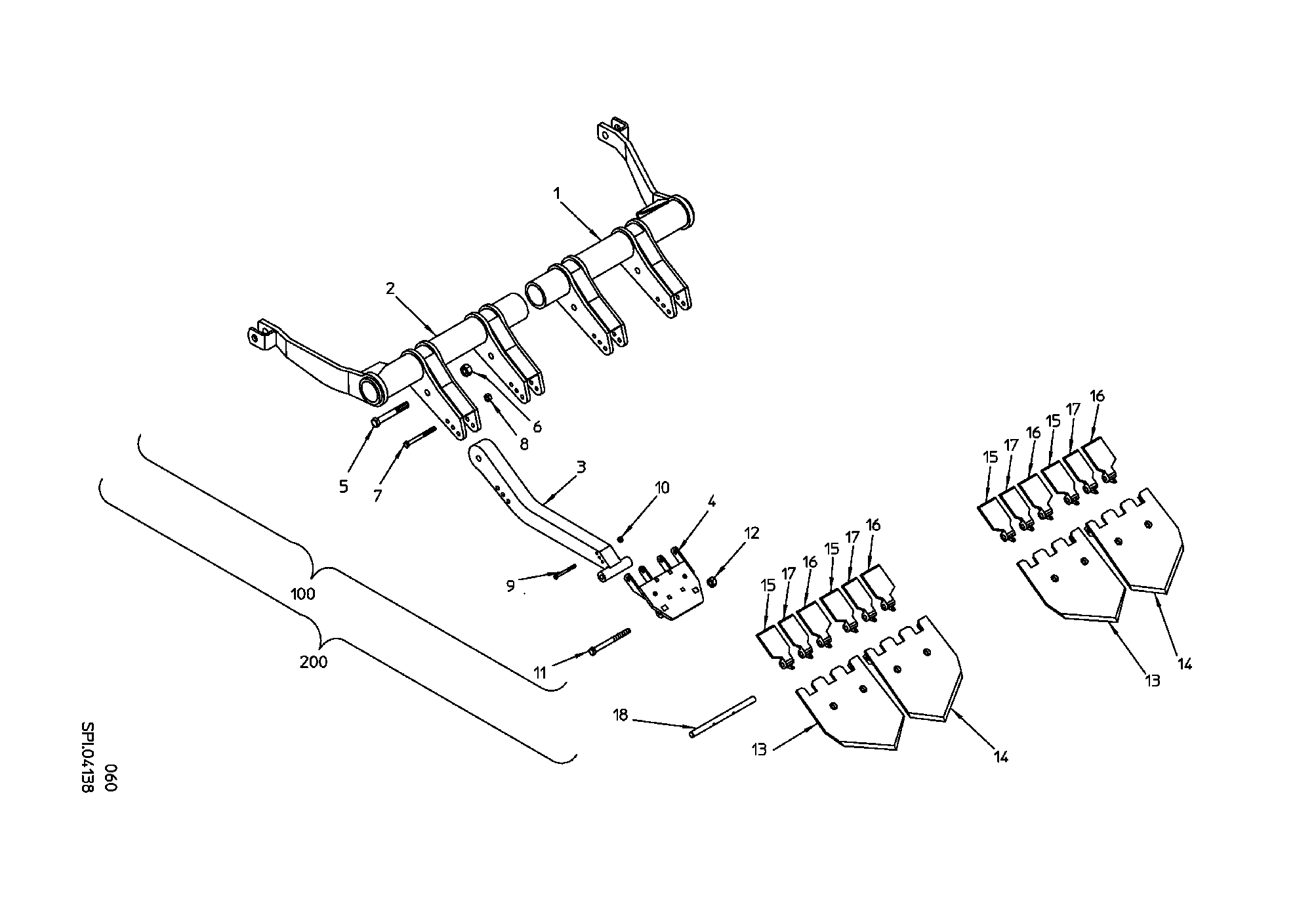

Parts by subassemblies

COTTER PIN 4X20 DIN94-GAL

Quantity in assembly group: 8 Piece / Pos. 0

LIPPED SHARE BOLT M10X25-604

Quantity in assembly group: 8 Piece / Pos. 0

SHARE FRAME L/H CHAW 1700

Quantity in assembly group: 1 Piece / Pos. 1

SHARE FRAME R/H CHAW 1700

Quantity in assembly group: 1 Piece / Pos. 2

SHARE ARM 2-AR STP

Quantity in assembly group: 4 Piece / Pos. 3

BOTTOM PLATE 2-ARMS

Quantity in assembly group: 4 Piece / Pos. 4

HEX BOLT M16X90-DIN931-8.8-G

Quantity in assembly group: 4 Piece / Pos. 5

NYLOC NUT DIN985-M16-8-GAL

Quantity in assembly group: 4 Piece / Pos. 6

HEX BOLT M10X85-DIN931-8.8-G

Quantity in assembly group: 4 Piece / Pos. 7

NYLOC NUT DIN985-M10-8-GAL

Quantity in assembly group: 4 Piece / Pos. 8

HEX BOLT M6X70-DIN931-8.8-G

Quantity in assembly group: 4 Piece / Pos. 9

NYLOC NUT DIN985-M6-8-GAL

Quantity in assembly group: 4 Piece / Pos. 10

HEX BOLT M12X160-DIN931-8.8-G

Quantity in assembly group: 4 Piece / Pos. 11

NYLOC NUT DIN985-M12-8-GAL

Quantity in assembly group: 4 Piece / Pos. 12

SHARE BLADE 264 L INT 540

Quantity in assembly group: 2 Piece / Pos. 13

SHARE BLADE 264 L INT 540

Quantity in assembly group: 2 Piece / Pos. 14

SHARE FLAP R/H

Quantity in assembly group: 4 Piece / Pos. 15

SHARE FLAP R/H

Quantity in assembly group: 4 Piece / Pos. 15

SHARE FLAP L/H

Quantity in assembly group: 4 Piece / Pos. 16

SHARE FLAP L/H

Quantity in assembly group: 4 Piece / Pos. 16

SHARE FLAP

Quantity in assembly group: 4 Piece / Pos. 17

STONE FLAP PIN

Quantity in assembly group: 4 Piece / Pos. 18

SIDE PLA 2ARMED w STONE PROT17

Quantity in assembly group: 1 Piece / Pos. 100

SHARE BLA 2-ARMED 540INT STP

Quantity in assembly group: 1 Piece / Pos. 200
