Your machine: POTATO HARVESTER GT 170 M+S GT170(S/N: 45002062) modify ▸

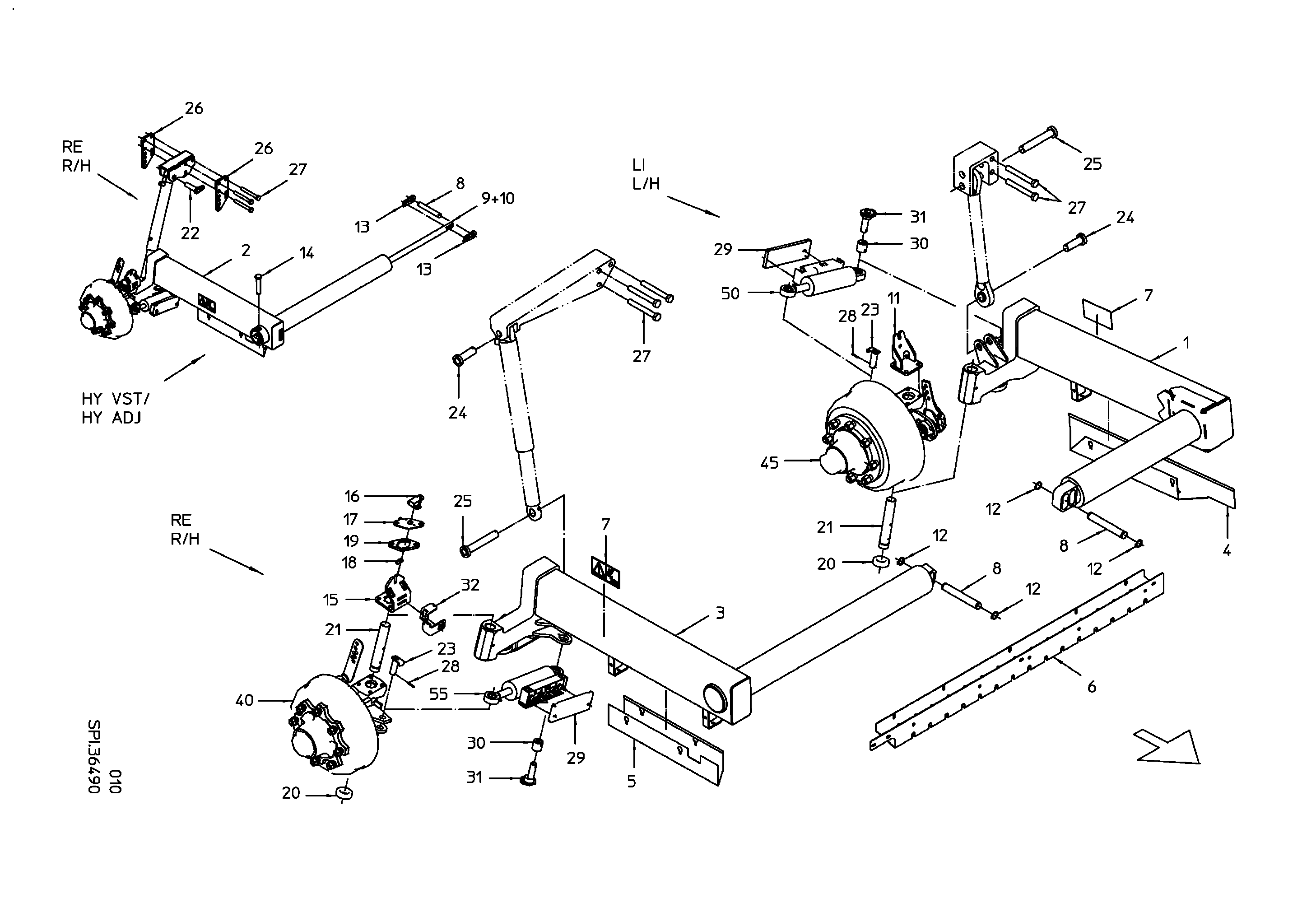

Subassembly drawing
▸ Selected assembly group:
COVER L/H
GUARD R/H
RAIL
089.00807-WARNING SYMBOL
SHAFT
FLIGHT PLATE
AXIAL CYLINDER BEARING 81208
BOLT
BOLT
BOLT
PLATE
ECCENTRIC BUSH
ECCENTRIC BOLT
STEERING CYLINDER L/H
STEERING LAMP R/H
Selected subassembly
Subassembly parts

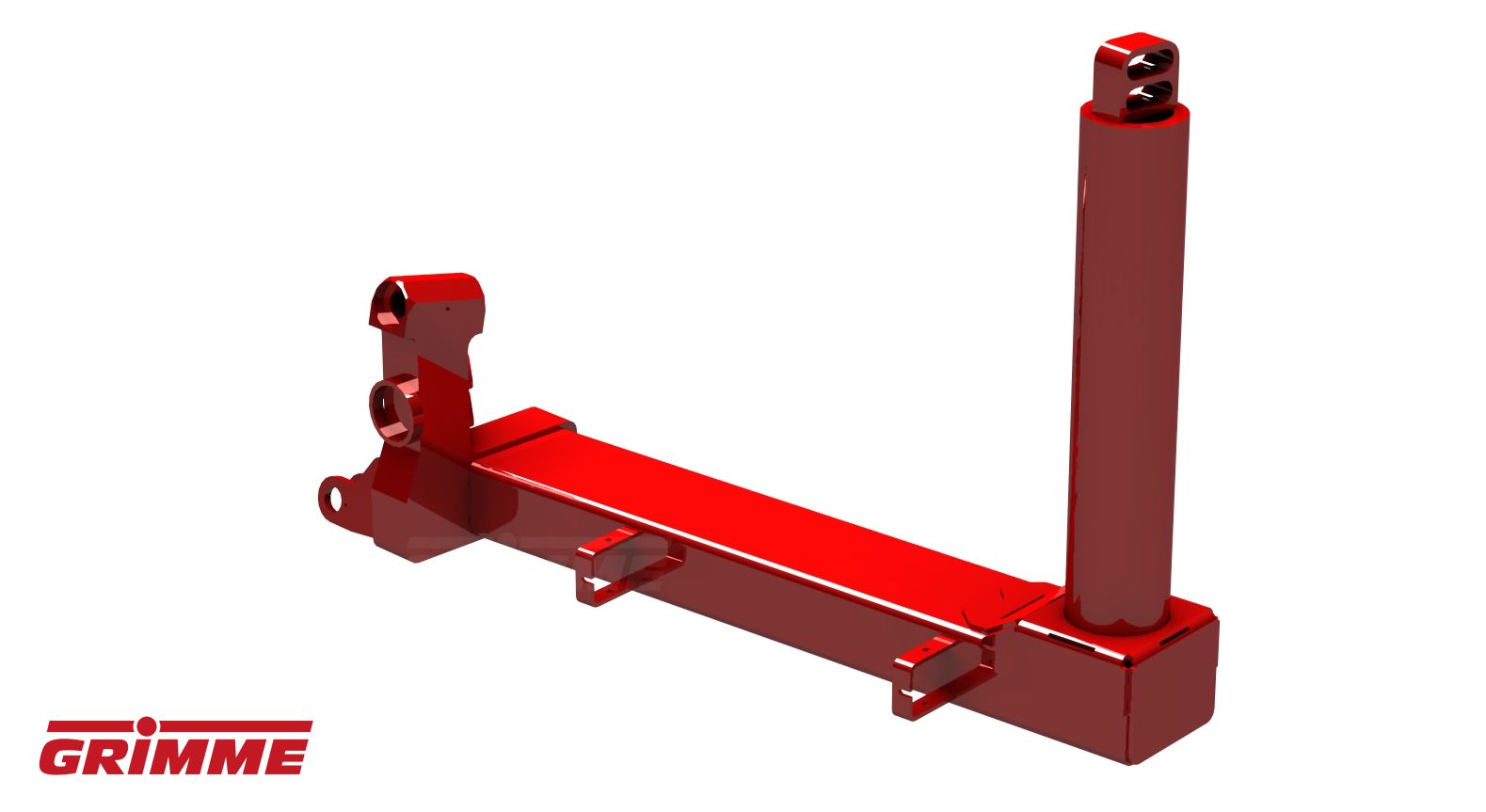

AXLE PENDULAR L/H
Quantity in assembly group:
1 Piece / Pos. 1
AXLE PENDULAR
Quantity in assembly group:
1 Piece / Pos. 2

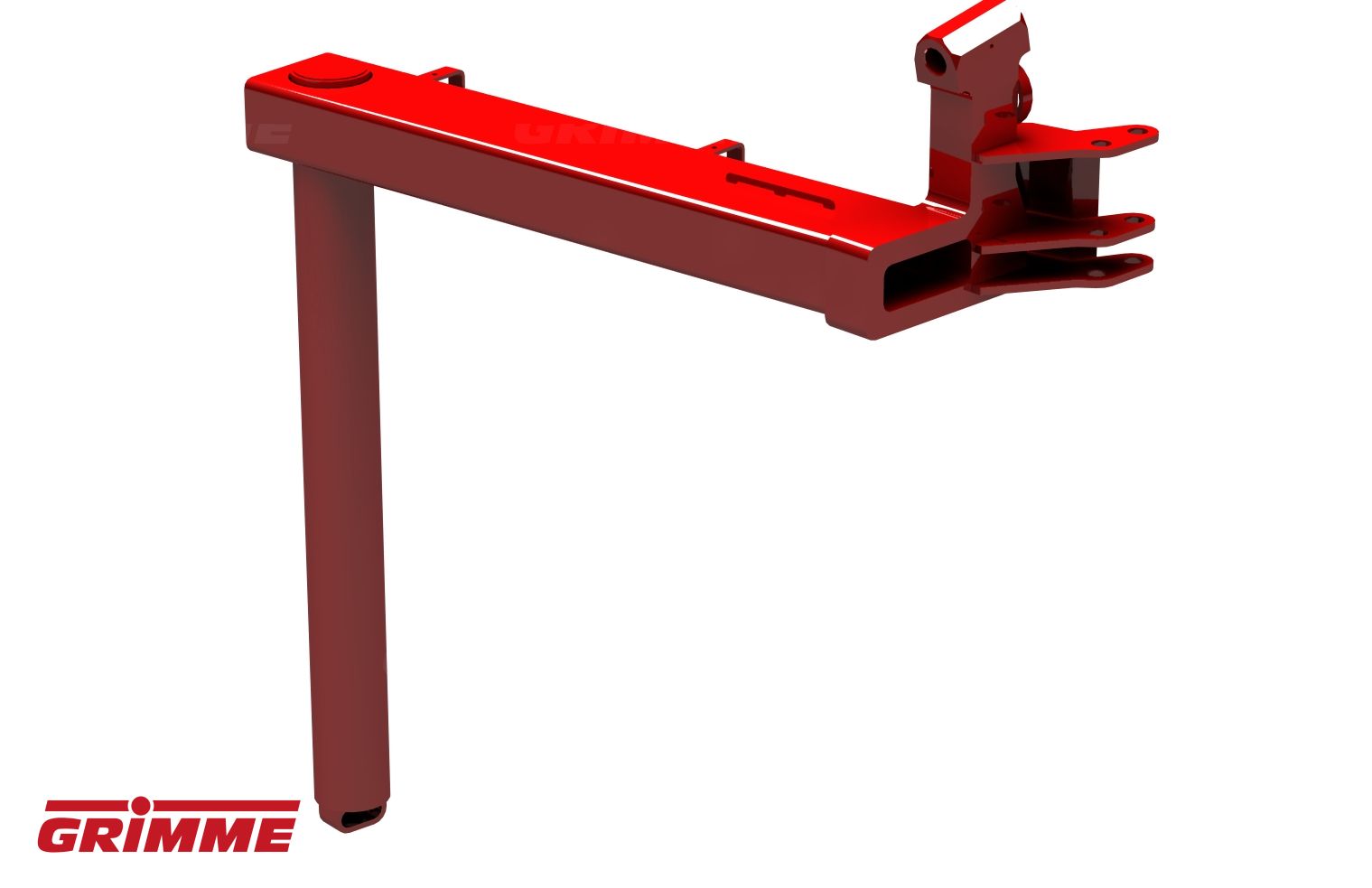

SWING AXLE R/H
Quantity in assembly group:
1 Piece / Pos. 3
COVER L/H
Quantity in assembly group:
1 Piece / Pos. 4
GUARD R/H
Quantity in assembly group:
1 Piece / Pos. 5
RAIL
Quantity in assembly group:
1 Piece / Pos. 6
089.00807-WARNING SYMBOL
Quantity in assembly group:
2 Piece / Pos. 7
SHAFT
Quantity in assembly group:
1 Piece / Pos. 8
DOUBLE ACTING CYLINDER
Quantity in assembly group:
1 Piece / Pos. 9
CYL SEAL SET
Quantity in assembly group:
1 Piece / Pos. 10
ABUTMENT L/H
Quantity in assembly group:
1 Piece / Pos. 11
RETAINING RING AS 30X2 DIN471
Quantity in assembly group:
4 Piece / Pos. 12
LINK
Quantity in assembly group:
2 Piece / Pos. 13

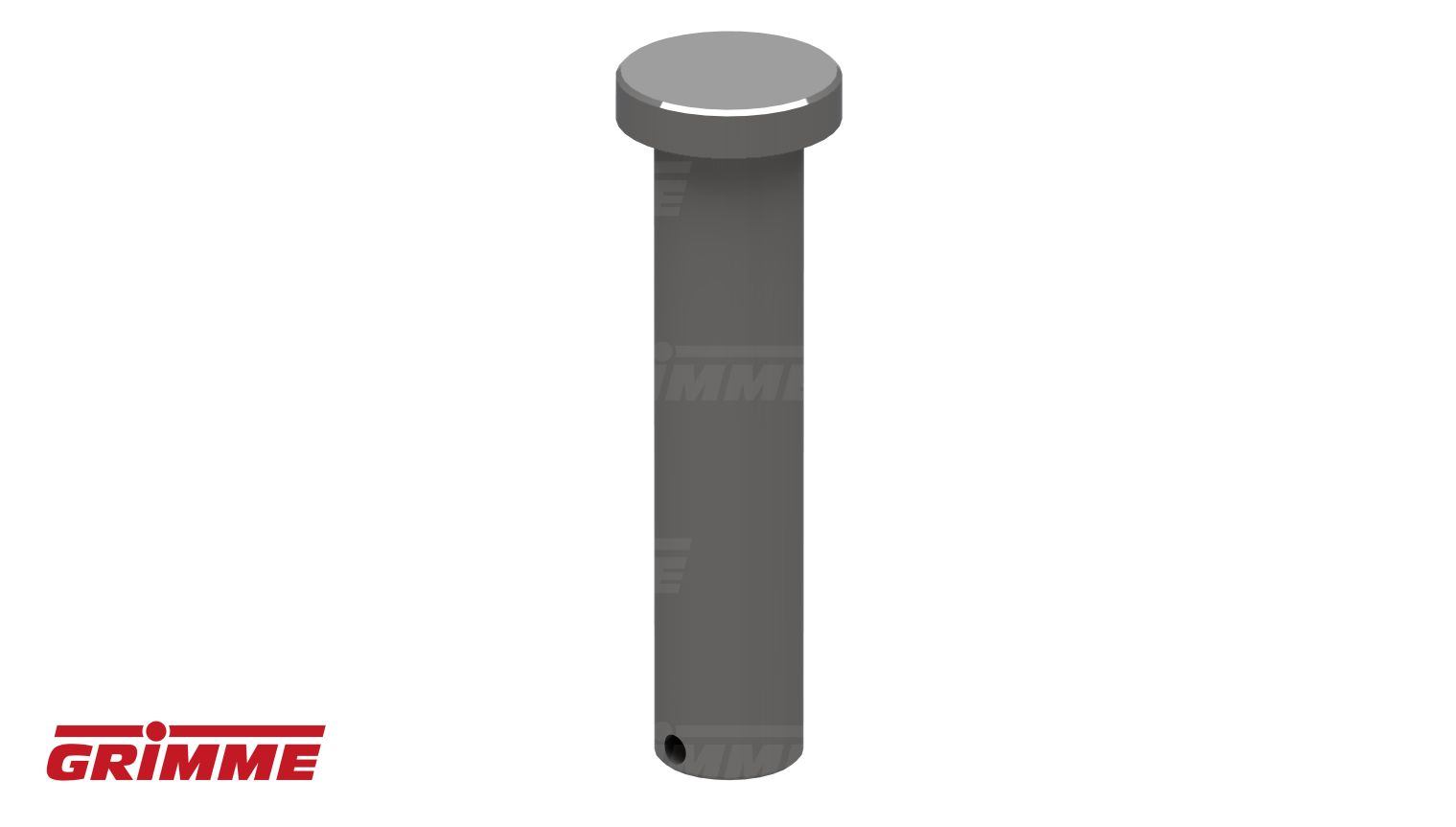

PIN
Quantity in assembly group:
1 Piece / Pos. 14
ABUTMENT R/H
Quantity in assembly group:
1 Piece / Pos. 15
A-SENSOR,040° 10-30V AUSG1-5V
Quantity in assembly group:
1 Piece / Pos. 16
BRACKET
Quantity in assembly group:
1 Piece / Pos. 17
FLIGHT PLATE
Quantity in assembly group:
1 Piece / Pos. 18
BRACKET
Quantity in assembly group:
1 Piece / Pos. 19
AXIAL CYLINDER BEARING 81208
Quantity in assembly group:
2 Piece / Pos. 20
AXLE BOLT
Quantity in assembly group:
2 Piece / Pos. 21
BOLT
Quantity in assembly group:
1 Piece / Pos. 22
BOLT
Quantity in assembly group:
2 Piece / Pos. 23
BOLT
Quantity in assembly group:
2 Piece / Pos. 24
BOLT
Quantity in assembly group:
2 Piece / Pos. 25
BRACKET
Quantity in assembly group:
2 Piece / Pos. 26
HHC-SCREW M20X160 DIN933-8.8-G
Quantity in assembly group:
5 Piece / Pos. 27
ROLL PIN 5X36-DIN1481
Quantity in assembly group:
2 Piece / Pos. 28
PLATE
Quantity in assembly group:
2 Piece / Pos. 29
ECCENTRIC BUSH
Quantity in assembly group:
2 Piece / Pos. 30
ECCENTRIC BOLT
Quantity in assembly group:
2 Piece / Pos. 31
SENSOR HOLDER
Quantity in assembly group:
1 Piece / Pos. 32
STEERING STUB w BRAKE N4008-4
Quantity in assembly group:
1 Piece / Pos. 40
STEERING STUB w BRA FL4112 R/H
Quantity in assembly group:
1 Piece / Pos. 45
STEERING CYLINDER L/H
Quantity in assembly group:
1 Piece / Pos. 50
STEERING LAMP R/H
Quantity in assembly group:
1 Piece / Pos. 55
