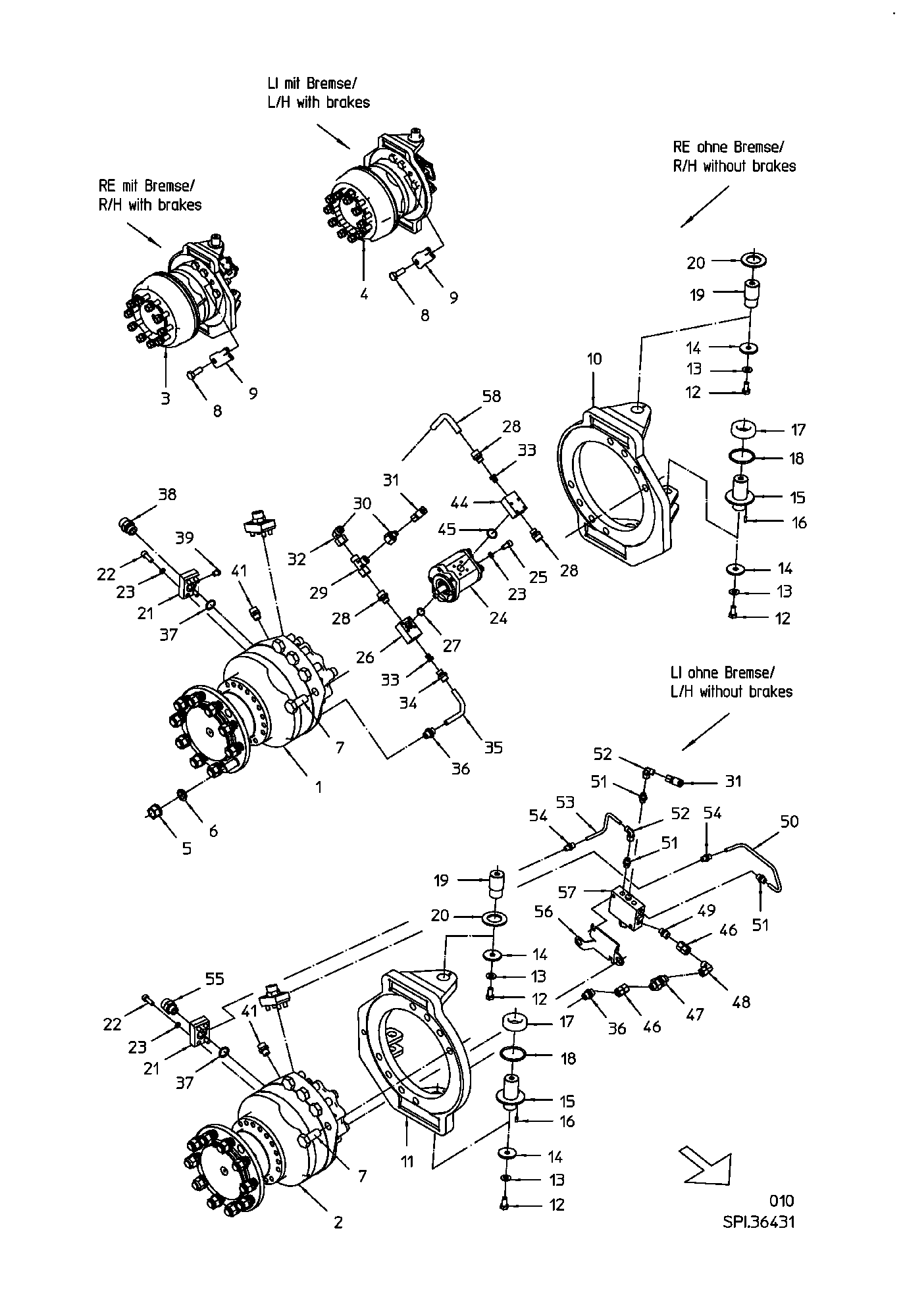

Parts by subassemblies

WHEEL MOTOR MS11 943 w TD

Quantity in assembly group: 1 Piece / Pos. 1

WHEEL MOTOR MSE11 1536

Quantity in assembly group: 1 Piece / Pos. 2

WHEEL MOTOR MSE11 943 wBRA+TD

Quantity in assembly group: 1 Piece / Pos. 3

WHEEL MOTOR MSE11 1536 w BRA

Quantity in assembly group: 1 Piece / Pos. 4

FLB DIN74361 B-M22X1,5-10 flZn

Quantity in assembly group: 20 Piece / Pos. 5

BEVELLED WHEEL WASHER C22

Quantity in assembly group: 20 Piece / Pos. 6

HHC-SCREW M22X1,5X50 961-8.8

Quantity in assembly group: 16 Piece / Pos. 7

HHC-SCREW M22X1,5X60 DIN961

Quantity in assembly group: 2 Piece / Pos. 8

ANGULAR PLATE

Quantity in assembly group: 2 Piece / Pos. 9

MOTOR FLANGE R/H

Quantity in assembly group: 1 Piece / Pos. 10

MOTOR FLANGE L/H

Quantity in assembly group: 1 Piece / Pos. 11

SET SCREW M12X25-DIN933-8.8-G

Quantity in assembly group: 4 Piece / Pos. 12

CONTACT DISC FORM M 12-GAL

Quantity in assembly group: 4 Piece / Pos. 13

RETAINING WASHER

Quantity in assembly group: 4 Piece / Pos. 14

LOWER AXLE PIN

Quantity in assembly group: 2 Piece / Pos. 15

GROOVED PIN DIN1473-6X16-St

Quantity in assembly group: 2 Piece / Pos. 16

AXIAL CYLINDER BEARING 81208

Quantity in assembly group: 2 Piece / Pos. 17

O-RING SEAL 68X5 DIN3770-NB70

Quantity in assembly group: 2 Piece / Pos. 18

AXLE BOLT

Quantity in assembly group: 2 Piece / Pos. 19

SEALING RING 70-40-4

Quantity in assembly group: 2 Piece / Pos. 20

PUMP FLANGE

Quantity in assembly group: 4 Piece / Pos. 21

SHC-SCREW DIN912 M10X30-8.8-GA

Quantity in assembly group: 16 Piece / Pos. 22

BLOCKING DISC SKZ 10-GAL

Quantity in assembly group: 18 Piece / Pos. 23

GEAR PUMP 22,5ccm SAE-A R/H

Quantity in assembly group: 1 Piece / Pos. 24

SHC-SCREW 912 M10X20-8.8-GAL

Quantity in assembly group: 2 Piece / Pos. 25

VALVE BRACKET

Quantity in assembly group: 1 Piece / Pos. 26

'O'-RING SEAL 18X2,5 DIN3770-N

Quantity in assembly group: 1 Piece / Pos. 27

P-GES 15L/R3/8

Quantity in assembly group: 3 Piece / Pos. 28

P-ELS 15L-SV

Quantity in assembly group: 1 Piece / Pos. 29

P-REDS 15/8L-SV

Quantity in assembly group: 1 Piece / Pos. 30

COUPLING SMK 20-8L-PK

Quantity in assembly group: 2 Piece / Pos. 31

P-EWS 15L-SV

Quantity in assembly group: 1 Piece / Pos. 32

CHECK VALVE RVE-R3/8 0,5 BAR

Quantity in assembly group: 2 Piece / Pos. 33

GE12LREDOMDCF

Quantity in assembly group: 1 Piece / Pos. 34

HYD PIPE

Quantity in assembly group: 1 Piece / Pos. 35

GE12LM18X1.5EDOMDCF

Quantity in assembly group: 2 Piece / Pos. 36

O-RING FOR SAE-FLANGE 3/4"

Quantity in assembly group: 2 Piece / Pos. 37

GE20SREDOMDCF

Quantity in assembly group: 2 Piece / Pos. 38

LOCKING SCREW VS-M12X1,5 WD

Quantity in assembly group: 2 Piece / Pos. 39

GE15LMEDOMDCF

Quantity in assembly group: 2 Piece / Pos. 41

VALVE BRACKET

Quantity in assembly group: 1 Piece / Pos. 44

'O'-RING SEAL 24X2,5 DIN3770-N

Quantity in assembly group: 1 Piece / Pos. 45

STRAIGHT CONNECTION SNV 12L

Quantity in assembly group: 1 Piece / Pos. 46

RHD12LOMDCF

Quantity in assembly group: 1 Piece / Pos. 47

P-EWS 12L-SV

Quantity in assembly group: 1 Piece / Pos. 48

GE12L9/16UNFOMDCF

Quantity in assembly group: 1 Piece / Pos. 49

HYD PIPE

Quantity in assembly group: 1 Piece / Pos. 50

P-GES 8L 9/16-18UNF

Quantity in assembly group: 3 Piece / Pos. 51

P-EWS 8L-SV

Quantity in assembly group: 2 Piece / Pos. 52

HYD PIPE

Quantity in assembly group: 1 Piece / Pos. 53

GE08LMEDOMDCF

Quantity in assembly group: 2 Piece / Pos. 54

P-GES 20S/M22X1,5

Quantity in assembly group: 1 Piece / Pos. 55

BRACKET

Quantity in assembly group: 1 Piece / Pos. 56

FLUSH BLOCK F ADJUSTABLE PUMP

Quantity in assembly group: 1 Piece / Pos. 57

HYD PIPE

Quantity in assembly group: 1 Piece / Pos. 58
