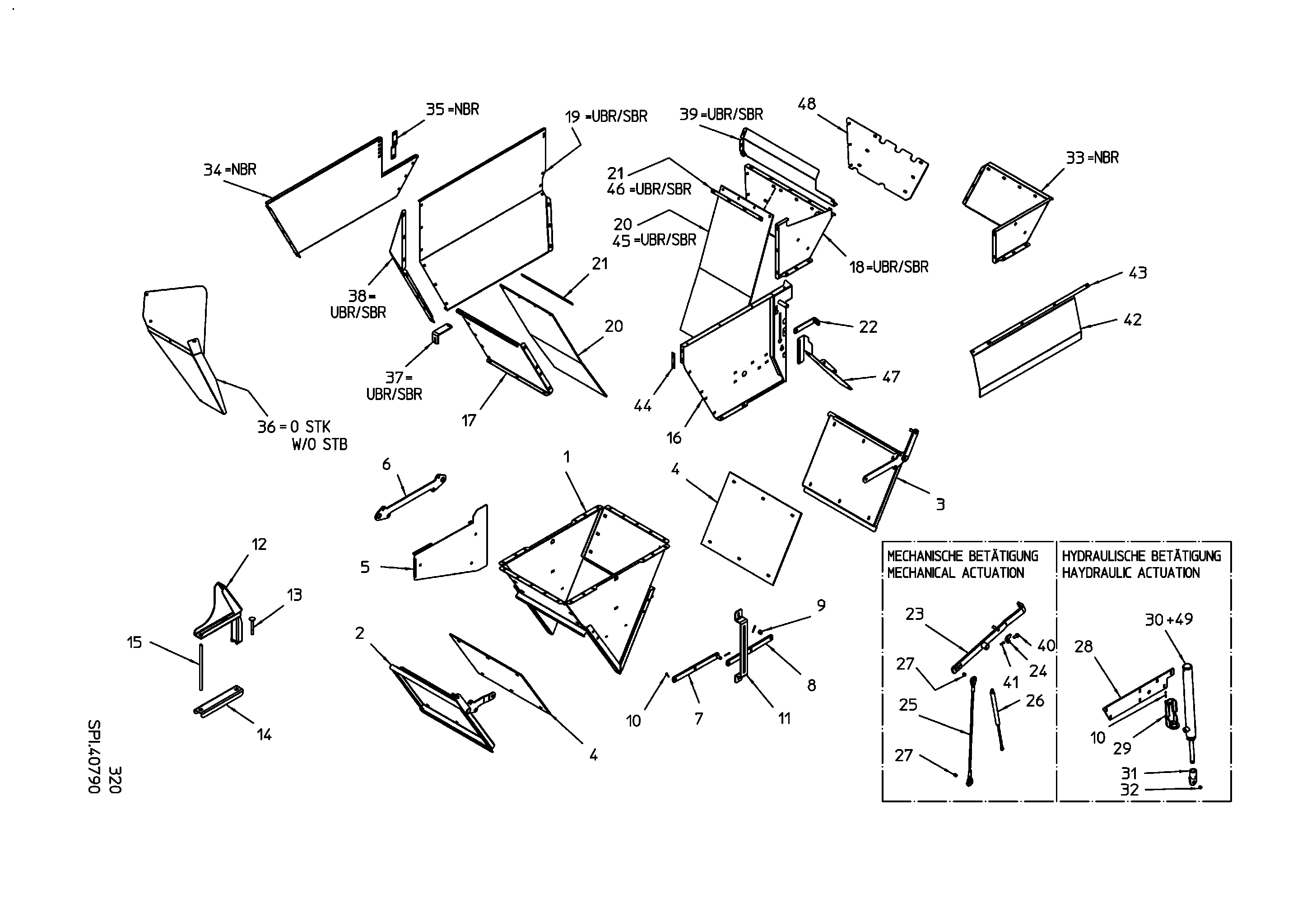

Parts by subassemblies

CONTAINER SMALL

Quantity in assembly group: 1 Piece / Pos. 1

SHUTTER R/H SMALL

Quantity in assembly group: 1 Piece / Pos. 2

SHUTTER L/H SMALL

Quantity in assembly group: 1 Piece / Pos. 3

IMPACT RUBBER SMALL

Quantity in assembly group: 2 Piece / Pos. 4

COVER PLATE

Quantity in assembly group: 1 Piece / Pos. 5

FLANGE

Quantity in assembly group: 1 Piece / Pos. 6

LEVER

Quantity in assembly group: 1 Piece / Pos. 7

LEVER

Quantity in assembly group: 1 Piece / Pos. 8

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 9

COTTER PIN 4X25 DIN94-GAL

Quantity in assembly group: 4 Piece / Pos. 10

GUIDE

Quantity in assembly group: 1 Piece / Pos. 11

BRACKET

Quantity in assembly group: 1 Piece / Pos. 12

MH-SCREW M12X100 603-8.8-GAL

Quantity in assembly group: 1 Piece / Pos. 13

U-CAPPING PIECE

Quantity in assembly group: 1 Piece / Pos. 14

THREADED ROD

Quantity in assembly group: 1 Piece / Pos. 15

CAP FRONT

Quantity in assembly group: 1 Piece / Pos. 16

UPPER PLATE R/H

Quantity in assembly group: 1 Piece / Pos. 17

UPPER PLATE L/H

Quantity in assembly group: 1 Piece / Pos. 18

UPPER PLATE REAR

Quantity in assembly group: 1 Piece / Pos. 19

IMPACT RUBBER

Quantity in assembly group: 2 Piece / Pos. 20

CLAMPING STRIP

Quantity in assembly group: 2 Piece / Pos. 21

ANGULAR PLATE

Quantity in assembly group: 1 Piece / Pos. 22

LEVER

Quantity in assembly group: 1 Piece / Pos. 23

ANGULAR PLATE

Quantity in assembly group: 1 Piece / Pos. 24

STEEL CABLE

Quantity in assembly group: 1 Piece / Pos. 25

GAS SPRING 200-300N-588537

Quantity in assembly group: 1 Piece / Pos. 26

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 27

PLATE

Quantity in assembly group: 1 Piece / Pos. 28

CYLINDER BRACKET

Quantity in assembly group: 1 Piece / Pos. 29

DRAW-IN CYLINDER w GAS SPRING

Quantity in assembly group: 1 Piece / Pos. 30

BRACKET

Quantity in assembly group: 1 Piece / Pos. 31

SPACER

Quantity in assembly group: 1 Piece / Pos. 32

UPPER PLATE L/H

Quantity in assembly group: 1 Piece / Pos. 33

UPPER PLATE REAR

Quantity in assembly group: 1 Piece / Pos. 34

BRACKET

Quantity in assembly group: 1 Piece / Pos. 35

CHUTE

Quantity in assembly group: 1 Piece / Pos. 36

ANGULAR PLATE

Quantity in assembly group: 1 Piece / Pos. 37

CORNER PLATE

Quantity in assembly group: 1 Piece / Pos. 38

UPPER PLATE L/H UPPER

Quantity in assembly group: 1 Piece / Pos. 39

HHC-SCREW M10X25 933-8.8-GAL

Quantity in assembly group: 1 Piece / Pos. 40

SHC-SCREW M6X20 DIN7984-G

Quantity in assembly group: 1 Piece / Pos. 41

PROTECTIVE COVER

Quantity in assembly group: 1 Piece / Pos. 42

CLAMPING STRIP

Quantity in assembly group: 1 Piece / Pos. 43

CONNECTING STRAP

Quantity in assembly group: 1 Piece / Pos. 44

IMPACT RUBBER

Quantity in assembly group: 1 Piece / Pos. 45

CLAMPING LEDGE

Quantity in assembly group: 1 Piece / Pos. 46

FENDER

Quantity in assembly group: 1 Piece / Pos. 47

PANEL

Quantity in assembly group: 1 Piece / Pos. 48

CYL SEAL SET

Quantity in assembly group: 1 Piece / Pos. 49
