Parts by subassemblies

Your machine: POTATO HARVESTER SE75/85-55 SE75-55 ANALOG(S/N: 12502219) modify ▸

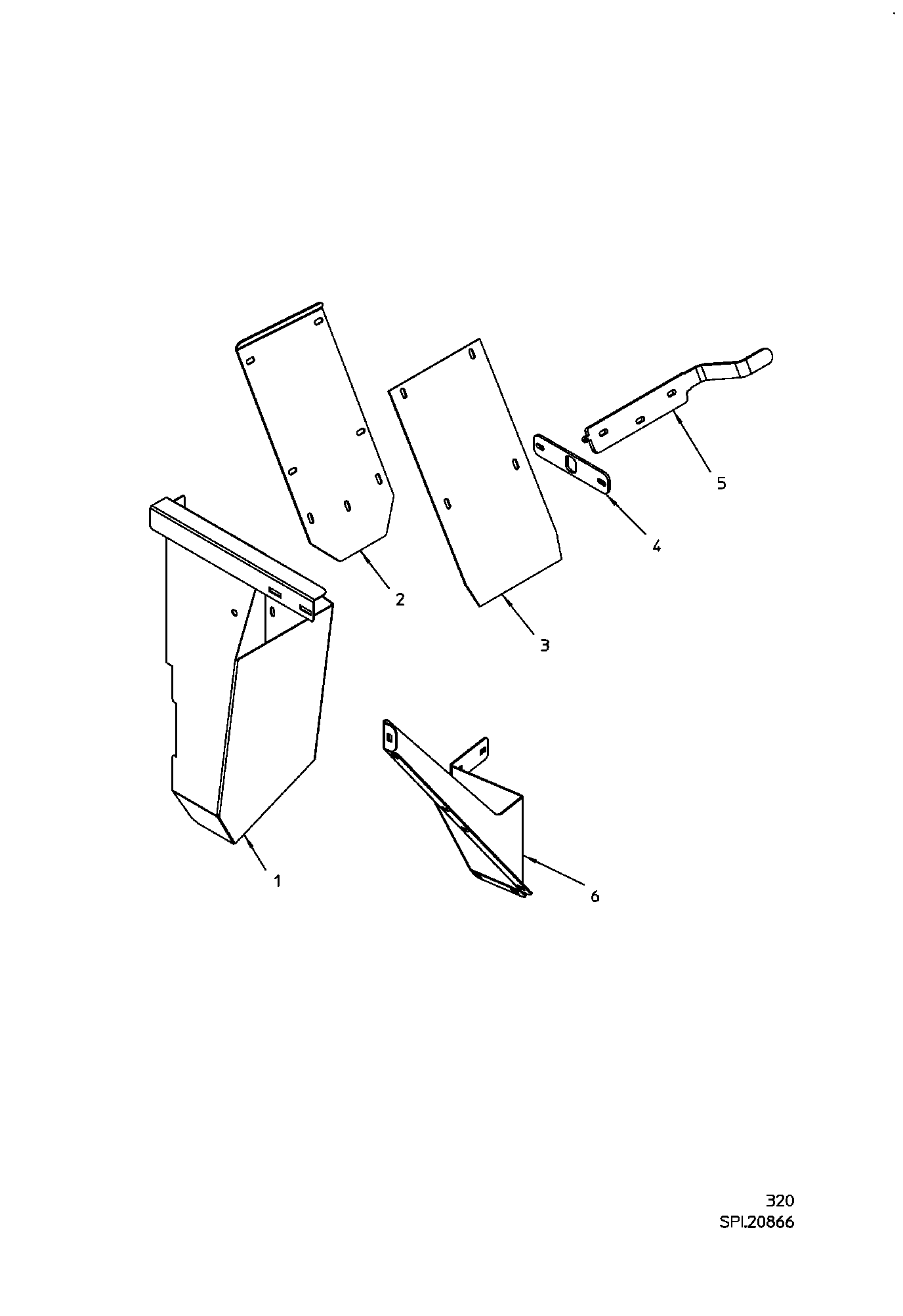

Subassembly drawing

▸ Selected assembly group:

Selected subassembly

▸
DEFLECTOR PLATE STONE BOX (6 Parts)
▸

Subassembly parts

All items Equipment ex work ()
CHUTE PLATE
Quantity in assembly group: 1 Piece / Pos. 1
CHUTE PLATE
Quantity in assembly group: 1 Piece / Pos. 2
RUBBER PLATE
Quantity in assembly group: 1 Piece / Pos. 3
BRACKET
Quantity in assembly group: 1 Piece / Pos. 4
ANGULAR BRACKET STRAP
Quantity in assembly group: 1 Piece / Pos. 5
UPPER PLATE
Quantity in assembly group: 1 Piece / Pos. 6
