Your machine: POTATO HARVESTER SE 150-60 SE150-60(S/N: 41604307) modify ▸

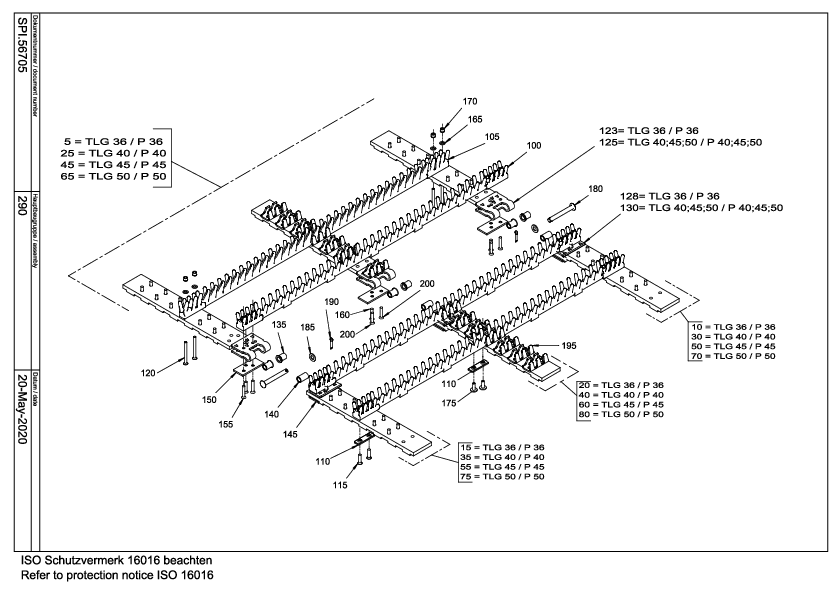

Subassembly drawing

▸ Selected assembly group:

Selected subassembly

▸
2.SEP 750 HGW ELV NT (39 Parts)
▸

Subassembly parts

All items Equipment ex work ()
SEPARATING WEB 36/730/4224
Quantity in assembly group: 1 Piece / Pos. 5
BT SCA-FL 50/36X117
Quantity in assembly group: 1 Piece / Pos. 10
BT SCA-FL 50/36X117
Quantity in assembly group: 1 Piece / Pos. 15
BT SCA-FL 50/36X117
Quantity in assembly group: 1 Piece / Pos. 20
SEPARATING WEB 40/730/4219
Quantity in assembly group: 1 Piece / Pos. 25
BT SCA-FL 50/40X105
Quantity in assembly group: 0 Piece / Pos. 30
BT SCA-FL 50/40X105
Quantity in assembly group: 1 Piece / Pos. 35
BT SCA-FL 50/40X105
Quantity in assembly group: 1 Piece / Pos. 40
SEPARATING WEB 45/730/4206
Quantity in assembly group: 1 Piece / Pos. 45
BT SCA-FL 50/45X93
Quantity in assembly group: 1 Piece / Pos. 50
BT SCA-FL 50/45X93
Quantity in assembly group: 1 Piece / Pos. 55
BT SCA-FL 50/45X93
Quantity in assembly group: 1 Piece / Pos. 60
HWB ELV PB-734-85-50
Quantity in assembly group: 1 Piece / Pos. 65
OB R/H 84SCA-FLAT 50/50
Quantity in assembly group: 1 Piece / Pos. 70
OB L/H 84SCA-FLAT 50/50
Quantity in assembly group: 1 Piece / Pos. 75
BT SCA-FL 50/50X84
Quantity in assembly group: 1 Piece / Pos. 80
V-PB 725
Quantity in assembly group: 1 Piece / Pos. 100
V-PB 724
Quantity in assembly group: 2 Piece / Pos. 105
RIVET PLATE 25/5
Quantity in assembly group: 1 Piece / Pos. 110
COUNTER-SUNK RIVET 5X21
Quantity in assembly group: 1 Piece / Pos. 115
SHEAR TE RIVET 5X13,5-16,5
Quantity in assembly group: 8 Piece / Pos. 120
BT-VBI TYPE2 P35 DBH32/25 OU
Quantity in assembly group: 1 Piece / Pos. 123
BT-VBI TYPE2 P40 DBH32/25 OU
Quantity in assembly group: 3 Piece / Pos. 125
BT-VBI TYPE2 P35 DBH32/25 IN
Quantity in assembly group: 1 Piece / Pos. 128
BT-VBI TYPE2 P40 DBH32/25 IN
Quantity in assembly group: 3 Piece / Pos. 130
THREADED BUSH 12X8,2X16,5
Quantity in assembly group: 6 Piece / Pos. 135
BUSHING 12X8,2X21
Quantity in assembly group: 3 Piece / Pos. 140
THRUST PIECE DBH25/0
Quantity in assembly group: 3 Piece / Pos. 145
THRUST PIECE DBH25/0
Quantity in assembly group: 3 Piece / Pos. 150
COUNTER-SUNK RIVET 5X27
Quantity in assembly group: 8 Piece / Pos. 155
COUNTER-SUNK RIVET 5X24
Quantity in assembly group: 10 Piece / Pos. 160
DISC 5,3 DIN125-GALV
Quantity in assembly group: 8 Piece / Pos. 165
RETAINING RING 5 mm
Quantity in assembly group: 8 Piece / Pos. 170
COUNTER-SUNK HOLLOW RIVET 5X19
Quantity in assembly group: 2 Piece / Pos. 175
COLLAR STUD 7,8X66
Quantity in assembly group: 3 Piece / Pos. 180
FLAT WASHER B8,4 DIN125 -GAL
Quantity in assembly group: 3 Piece / Pos. 185
COTTER PIN 3,2X14 DIN94-GAL
Quantity in assembly group: 3 Piece / Pos. 190
CLAMP
Quantity in assembly group: 1 Piece / Pos. 195
COUNTER-SUNK RIVET 5X25
Quantity in assembly group: 4 Piece / Pos. 200
