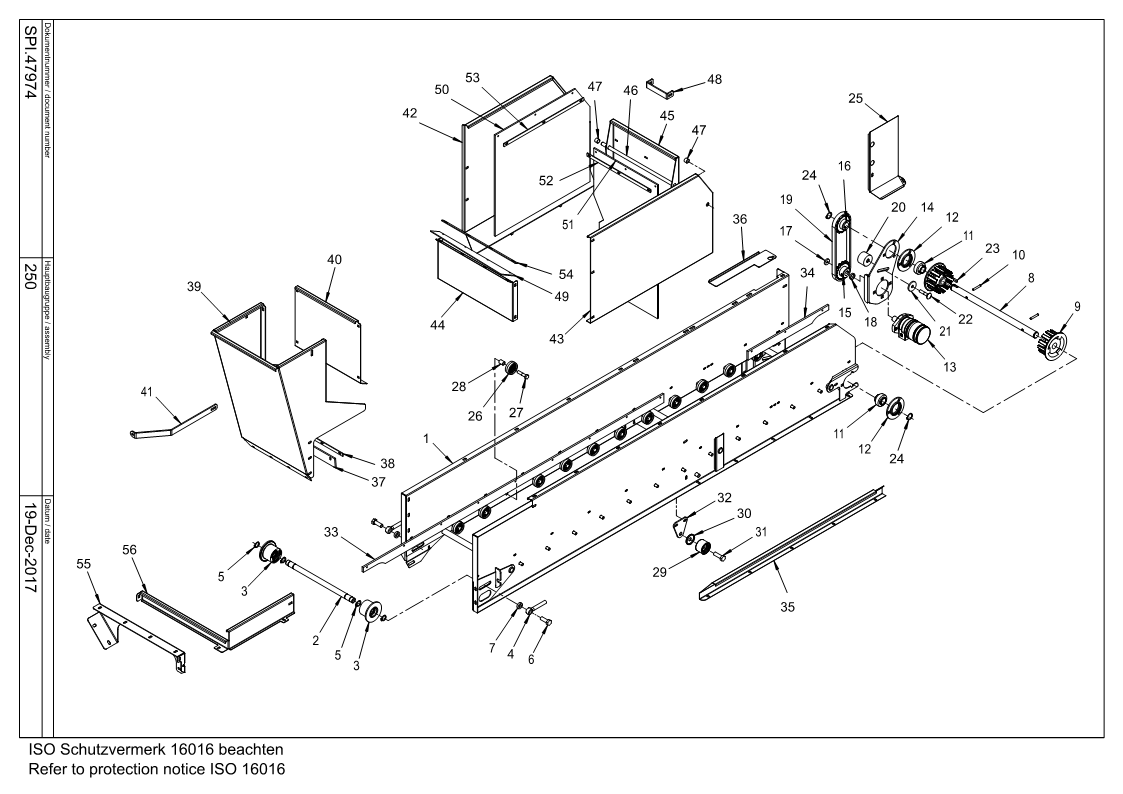

Parts by subassemblies

BUNKER BELT FRAME

Quantity in assembly group: 1 Piece / Pos. 1

SHAFT

Quantity in assembly group: 1 Piece / Pos. 2

SUPPORT ROLLER 75 w FLANGE

Quantity in assembly group: 2 Piece / Pos. 3

EYE BOLT M16X110

Quantity in assembly group: 2 Piece / Pos. 4

RETAINING RING A 25X2 DIN471

Quantity in assembly group: 4 Piece / Pos. 5

SET SCREW M16X45-DIN933-8.8-G

Quantity in assembly group: 2 Piece / Pos. 6

DISC

Quantity in assembly group: 2 Piece / Pos. 7

SHAFT

Quantity in assembly group: 1 Piece / Pos. 8

FINGER ROLLER DM120WD55P32

Quantity in assembly group: 2 Piece / Pos. 9

ROLL PIN 8X50-DIN1481

Quantity in assembly group: 2 Piece / Pos. 10

BEARING YAR 206-2RF/UC206

Quantity in assembly group: 2 Piece / Pos. 11

FLANGE PLATE (PR) PF62/PF206

Quantity in assembly group: 2 Piece / Pos. 12

HYD MOTOR MF130

Quantity in assembly group: 1 Piece / Pos. 13

BEARING PLATE

Quantity in assembly group: 1 Piece / Pos. 14

SPROCKET 3/4"-T15

Quantity in assembly group: 1 Piece / Pos. 15

SPROCKET ASA60-1 T15

Quantity in assembly group: 1 Piece / Pos. 16

WASHER

Quantity in assembly group: 1 Piece / Pos. 17

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 18

CHAIN 3/4"X1/2"-ASA60-36R

Quantity in assembly group: 1 Piece / Pos. 19

CHAIN TENSION ROLLER

Quantity in assembly group: 1 Piece / Pos. 20

RETAINING WASHER

Quantity in assembly group: 1 Piece / Pos. 21

MH-SCREW w SHO SQ M12X55 603-8

Quantity in assembly group: 1 Piece / Pos. 22

FEATHER KEY A 8X8X25 DIN6885

Quantity in assembly group: 1 Piece / Pos. 23

RETAINING RING A 30X1,5 DIN471

Quantity in assembly group: 2 Piece / Pos. 24

GUARD

Quantity in assembly group: 1 Piece / Pos. 25

SUPPORT ROLLER

Quantity in assembly group: 24 Piece / Pos. 26

HEX BOLT M12X55-DIN931-8.8-G

Quantity in assembly group: 24 Piece / Pos. 27

SPACER TUBE

Quantity in assembly group: 24 Piece / Pos. 28

SUPPORT ROLLER 60/42 WIDE

Quantity in assembly group: 2 Piece / Pos. 29

WINDING PROTECTION

Quantity in assembly group: 2 Piece / Pos. 30

SET SCREW M16X50-DIN933-8.8-G

Quantity in assembly group: 2 Piece / Pos. 31

BRACKET

Quantity in assembly group: 1 Piece / Pos. 32

WOODEN LEDGE

Quantity in assembly group: 2 Piece / Pos. 33

WOODEN LEDGE

Quantity in assembly group: 2 Piece / Pos. 34

UPPER PLATE FRONT

Quantity in assembly group: 1 Piece / Pos. 35

UPPER PLATE

Quantity in assembly group: 1 Piece / Pos. 36

SEALING RUBBER STRIP

Quantity in assembly group: 1 Piece / Pos. 37

CLAMPING STRIP

Quantity in assembly group: 1 Piece / Pos. 38

EASY PICK HOPPER

Quantity in assembly group: 1 Piece / Pos. 39

REAR PLATE

Quantity in assembly group: 1 Piece / Pos. 40

BRACKET

Quantity in assembly group: 1 Piece / Pos. 41

SIDE PLATE REAR

Quantity in assembly group: 1 Piece / Pos. 42

SIDE PLATE FRONT

Quantity in assembly group: 1 Piece / Pos. 43

REAR PLATE

Quantity in assembly group: 1 Piece / Pos. 44

HINGE PLATE

Quantity in assembly group: 1 Piece / Pos. 45

THREADED ROD

Quantity in assembly group: 1 Piece / Pos. 46

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 47

BRACKET

Quantity in assembly group: 1 Piece / Pos. 48

SEALING RUBBER STRIP

Quantity in assembly group: 1 Piece / Pos. 49

RUBBER PLATE

Quantity in assembly group: 1 Piece / Pos. 50

RUBBER PLATE

Quantity in assembly group: 1 Piece / Pos. 51

CLAMPING STRIP

Quantity in assembly group: 1 Piece / Pos. 52

CLAMPING STRIP

Quantity in assembly group: 1 Piece / Pos. 53

CLAMPING STRIP

Quantity in assembly group: 1 Piece / Pos. 54

BRACKET

Quantity in assembly group: 1 Piece / Pos. 55

UPPER PLATE

Quantity in assembly group: 1 Piece / Pos. 56
