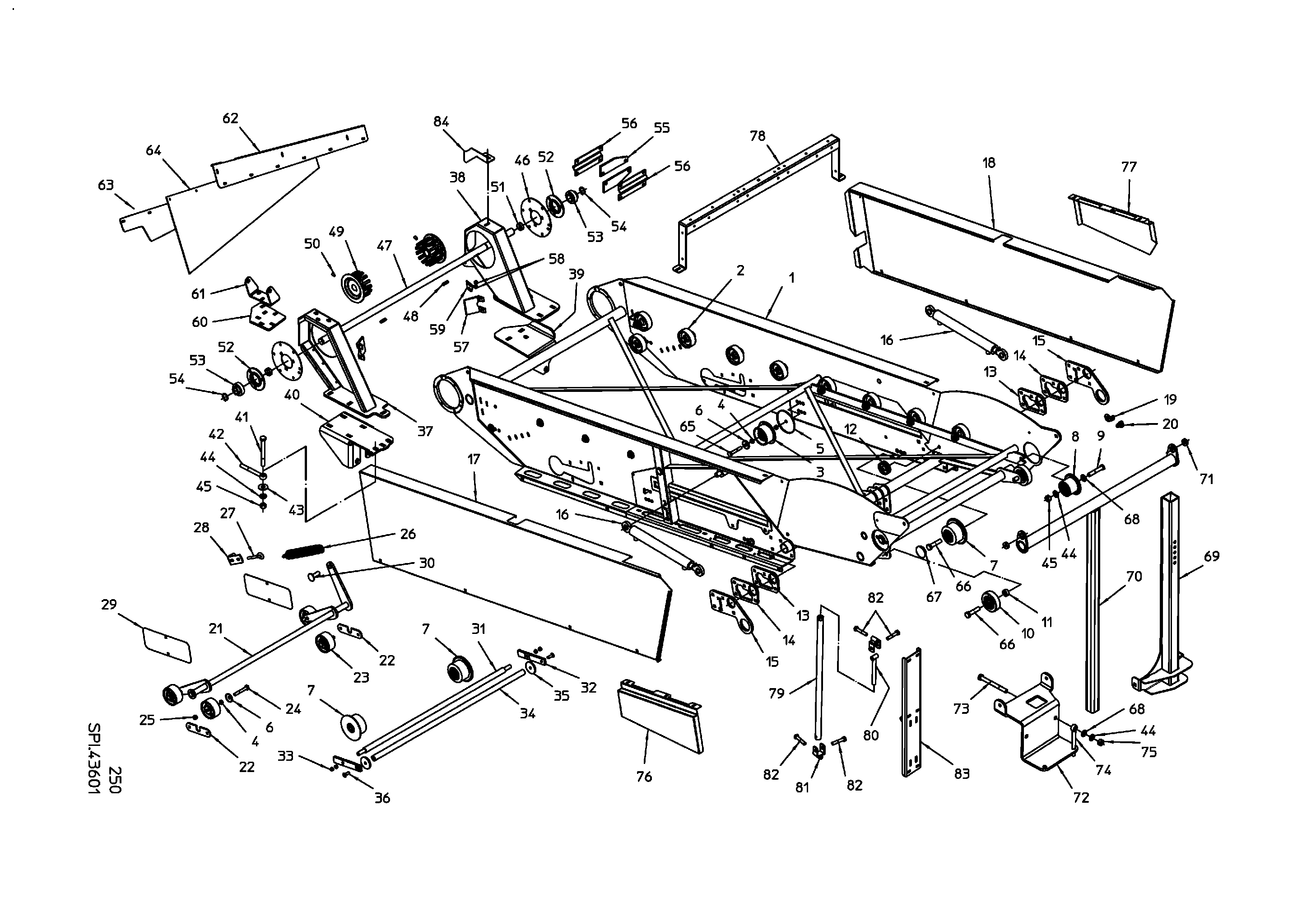

Parts by subassemblies

PTA-FRAME ADJUSTABLE NOSE

Quantity in assembly group: 1 Piece / Pos. 1

SUPPORT ROLLER 90 CPTE

Quantity in assembly group: 18 Piece / Pos. 2

IDLER ROLLER 90 w HOOP

Quantity in assembly group: 2 Piece / Pos. 3

BUSHING

Quantity in assembly group: 8 Piece / Pos. 4

COVER DISC

Quantity in assembly group: 2 Piece / Pos. 5

SEALING DISC

Quantity in assembly group: 10 Piece / Pos. 6

FLANGE ROLLER D95

Quantity in assembly group: 4 Piece / Pos. 7

SUPPORT ROLLER 75 w COLLAR

Quantity in assembly group: 2 Piece / Pos. 8

HHC-SCREW M16X90

Quantity in assembly group: 2 Piece / Pos. 9

ROLLER D100

Quantity in assembly group: 2 Piece / Pos. 10

SPACER

Quantity in assembly group: 2 Piece / Pos. 11

SUPPORT ROLLER 62

Quantity in assembly group: 2 Piece / Pos. 12

DISTNACE PLATE

Quantity in assembly group: 2 Piece / Pos. 13

DISTANCE PLATE

Quantity in assembly group: 2 Piece / Pos. 14

HINGE

Quantity in assembly group: 2 Piece / Pos. 15

DOUBLE ACTING CYLINDER

Quantity in assembly group: 2 Piece / Pos. 16

PROTECTION R/H

Quantity in assembly group: 1 Piece / Pos. 17

PROTECTION L/H

Quantity in assembly group: 1 Piece / Pos. 18

MOUNTING PLATE

Quantity in assembly group: 1 Piece / Pos. 19

PIPE CLAMP RSGU1100 9/15

Quantity in assembly group: 1 Piece / Pos. 20

TENSION SHAFT

Quantity in assembly group: 1 Piece / Pos. 21

HINGE BRACKET

Quantity in assembly group: 2 Piece / Pos. 22

IDLER ROLLER

Quantity in assembly group: 4 Piece / Pos. 23

HEX BOLT M12X80-931-10.9 flZn

Quantity in assembly group: 4 Piece / Pos. 24

SPACER TUBE

Quantity in assembly group: 4 Piece / Pos. 25

TENSION SPRING

Quantity in assembly group: 1 Piece / Pos. 26

EYELET SCREW

Quantity in assembly group: 1 Piece / Pos. 27

STOPPER

Quantity in assembly group: 1 Piece / Pos. 28

PLATE

Quantity in assembly group: 2 Piece / Pos. 29

COACH BOLT/SS M16X50-603-8.8-G

Quantity in assembly group: 1 Piece / Pos. 30

SHAFT

Quantity in assembly group: 1 Piece / Pos. 31

GUIDE

Quantity in assembly group: 2 Piece / Pos. 32

SPACER TUBE

Quantity in assembly group: 4 Piece / Pos. 33

SHAFT

Quantity in assembly group: 1 Piece / Pos. 34

WASHER

Quantity in assembly group: 2 Piece / Pos. 35

CSK. ALLEN SCREW M10X30-DIN791

Quantity in assembly group: 2 Piece / Pos. 36

BEARING R/H

Quantity in assembly group: 1 Piece / Pos. 37

BEARING L/H

Quantity in assembly group: 1 Piece / Pos. 38

BRACKET L/H

Quantity in assembly group: 1 Piece / Pos. 39

BRACKET R/H

Quantity in assembly group: 1 Piece / Pos. 40

HHC-SCREW M16X150 931-8.8-GAL

Quantity in assembly group: 3 Piece / Pos. 41

EB B M16X140 444-8.8 GAL

Quantity in assembly group: 3 Piece / Pos. 42

PLAIN WASHER 17X44X3 GAL

Quantity in assembly group: 3 Piece / Pos. 43

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 8 Piece / Pos. 44

HEXAGON NUT M16 DIN934-8-GAL

Quantity in assembly group: 8 Piece / Pos. 45

BEARING PLATE

Quantity in assembly group: 2 Piece / Pos. 46

DRIVE SHAFT

Quantity in assembly group: 1 Piece / Pos. 47

FEATHER KEY A 8X8X35 DIN6885

Quantity in assembly group: 2 Piece / Pos. 48

FINGER ROLLER B62-P28

Quantity in assembly group: 2 Piece / Pos. 49

GRUB BOLT M10X16-DIN915 flZn

Quantity in assembly group: 2 Piece / Pos. 50

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 51

FLANGE PLATE (PR) PF62/PF206

Quantity in assembly group: 2 Piece / Pos. 52

BEARING YAR 206-2RF/UC206

Quantity in assembly group: 2 Piece / Pos. 53

RETAINING RING AS 30X2 DIN471

Quantity in assembly group: 2 Piece / Pos. 54

RUBBER MAT

Quantity in assembly group: 2 Piece / Pos. 55

CLAMPING PLATE

Quantity in assembly group: 2 Piece / Pos. 56

SCRAPER

Quantity in assembly group: 2 Piece / Pos. 57

SPACER TUBE

Quantity in assembly group: 4 Piece / Pos. 58

SCRAPER

Quantity in assembly group: 2 Piece / Pos. 59

FLANGE

Quantity in assembly group: 1 Piece / Pos. 60

BRACKET NBR

Quantity in assembly group: 1 Piece / Pos. 61

OUTLET PLATE

Quantity in assembly group: 1 Piece / Pos. 62

SUPPORTING PLATE

Quantity in assembly group: 1 Piece / Pos. 63

OUTLET RUBBER

Quantity in assembly group: 1 Piece / Pos. 64

HEX BOLT M12X70-DIN931-8.8-G

Quantity in assembly group: 2 Piece / Pos. 65

HEX BOLT M16X70-DIN931-8.8-G

Quantity in assembly group: 4 Piece / Pos. 66

ROLLER CAP

Quantity in assembly group: 2 Piece / Pos. 67

FLAT WASHER M16

Quantity in assembly group: 5 Piece / Pos. 68

GUIDE LOWER

Quantity in assembly group: 1 Piece / Pos. 69

PUSHER

Quantity in assembly group: 1 Piece / Pos. 70

DISC 11X30X10

Quantity in assembly group: 2 Piece / Pos. 71

ANGULAR PLATE

Quantity in assembly group: 1 Piece / Pos. 72

HEX BOLT M16X160-DIN931-8.8-G

Quantity in assembly group: 3 Piece / Pos. 73

BOLT M16X160 DIN444-8.8-VER

Quantity in assembly group: 3 Piece / Pos. 74

HEX-NUT M16X1,5 DIN934-8-GAL

Quantity in assembly group: 3 Piece / Pos. 75

PROTECTION R/H

Quantity in assembly group: 1 Piece / Pos. 76

PROTECTION L/H UNDER

Quantity in assembly group: 1 Piece / Pos. 77

BRACKET

Quantity in assembly group: 1 Piece / Pos. 78

LIFTING ROD

Quantity in assembly group: 1 Piece / Pos. 79

ADJUSTING SCREW

Quantity in assembly group: 1 Piece / Pos. 80

HINGE PIECE

Quantity in assembly group: 2 Piece / Pos. 81

HEX BOLT M12X65-DIN931-8.8-G

Quantity in assembly group: 4 Piece / Pos. 82

MOUNTING BAR

Quantity in assembly group: 1 Piece / Pos. 83

BACK HOLDER PLATE

Quantity in assembly group: 1 Piece / Pos. 84
