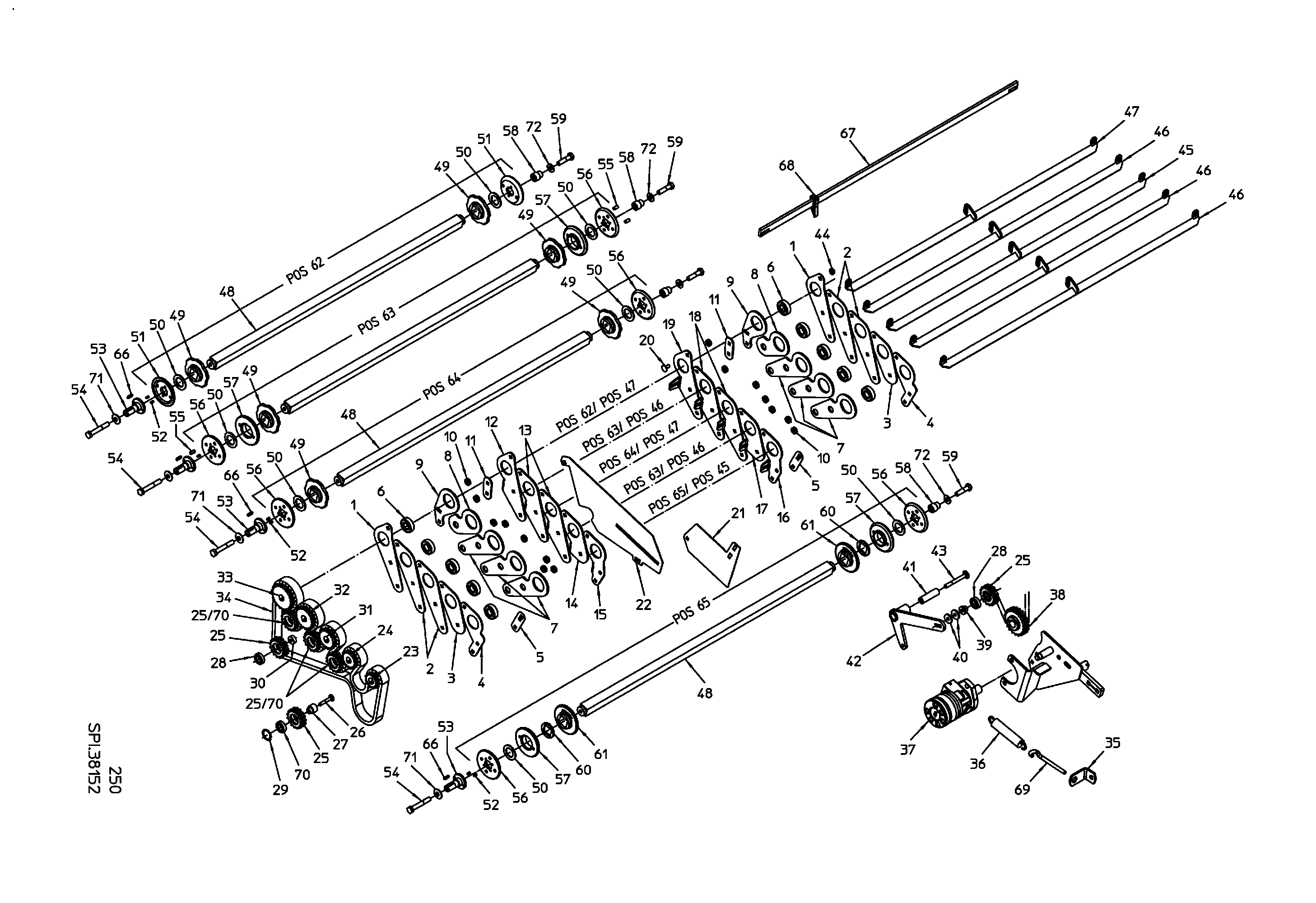

Parts by subassemblies

FLANGE EXTERN

Quantity in assembly group: 2 Piece / Pos. 1

FLANGE OUTSIDE

Quantity in assembly group: 4 Piece / Pos. 2

FLANGE OUTSIDE

Quantity in assembly group: 2 Piece / Pos. 3

FLANGE EXTERN

Quantity in assembly group: 2 Piece / Pos. 4

SPACER

Quantity in assembly group: 2 Piece / Pos. 5

BALL BEARING CS 204 LL

Quantity in assembly group: 10 Piece / Pos. 6

FLANGE CENTRE

Quantity in assembly group: 6 Piece / Pos. 7

FLANGE CENTRE

Quantity in assembly group: 2 Piece / Pos. 8

FLANGE MIDDLE

Quantity in assembly group: 2 Piece / Pos. 9

WASHER

Quantity in assembly group: 15 Piece / Pos. 10

SHACKLE

Quantity in assembly group: 2 Piece / Pos. 11

FLANGE INSIDE R/H

Quantity in assembly group: 1 Piece / Pos. 12

BEARING INDSIDE R/H

Quantity in assembly group: 2 Piece / Pos. 13

FLANGE INSIDE R/H

Quantity in assembly group: 1 Piece / Pos. 14

FLANGE INSIDE R/H

Quantity in assembly group: 1 Piece / Pos. 15

FLANGE INSIDE L/H

Quantity in assembly group: 1 Piece / Pos. 16

FLANGE INSIDE L/H

Quantity in assembly group: 1 Piece / Pos. 17

BEARING INDSIDE L/H

Quantity in assembly group: 2 Piece / Pos. 18

FLANGE INSIDE L/H

Quantity in assembly group: 1 Piece / Pos. 19

COACH BOLT M8X20-603-8.8-GAL

Quantity in assembly group: 24 Piece / Pos. 20

COVER PLATE

Quantity in assembly group: 1 Piece / Pos. 21

COVER PLATE

Quantity in assembly group: 1 Piece / Pos. 22

CHAIN GEAR 1/2X5/16-T12/T12

Quantity in assembly group: 1 Piece / Pos. 23

CHAIN GEAR 1/2X5/16-T14/T14

Quantity in assembly group: 1 Piece / Pos. 24

CHAIN GEAR 1/2"-Z15/Z15

Quantity in assembly group: 6 Piece / Pos. 25

COACH BOLT M8X50-DIN603-8.8-G

Quantity in assembly group: 1 Piece / Pos. 26

BUSH

Quantity in assembly group: 4 Piece / Pos. 27

GBB 6003-2RSH

Quantity in assembly group: 2 Piece / Pos. 28

RETAINING RING J 35X1,5 DIN472

Quantity in assembly group: 6 Piece / Pos. 29

SPACING PIECE 8,5X25X10

Quantity in assembly group: 1 Piece / Pos. 30

CHAIN GEAR 1/2X5/16-T16/T16

Quantity in assembly group: 1 Piece / Pos. 31

CHAIN GEAR 1/2X5/16-T18/T18

Quantity in assembly group: 1 Piece / Pos. 32

CHAIN GEAR 1/2X5/16-T21/T21

Quantity in assembly group: 1 Piece / Pos. 33

DUPLEX-RO CHAIN 1603-2 176LINK

Quantity in assembly group: 1 Piece / Pos. 34

ANGLE

Quantity in assembly group: 1 Piece / Pos. 35

TENSION SPRING

Quantity in assembly group: 1 Piece / Pos. 36

HYDRAULIC MOTOR MF80

Quantity in assembly group: 1 Piece / Pos. 37

CHAIN GEAR 1/2X5/16-T21/T21

Quantity in assembly group: 1 Piece / Pos. 38

BUSH

Quantity in assembly group: 1 Piece / Pos. 39

END DISC

Quantity in assembly group: 2 Piece / Pos. 40

BUSH

Quantity in assembly group: 1 Piece / Pos. 41

CHAIN TENSIONER

Quantity in assembly group: 1 Piece / Pos. 42

COACH BOLT M10X90-DIN603-8.8-G

Quantity in assembly group: 1 Piece / Pos. 43

WASHER NUT M8-W196 flZn

Quantity in assembly group: 24 Piece / Pos. 44

ROD

Quantity in assembly group: 1 Piece / Pos. 45

ROD

Quantity in assembly group: 3 Piece / Pos. 46

ROD

Quantity in assembly group: 1 Piece / Pos. 47

SQUARE SHAFT 30

Quantity in assembly group: 5 Piece / Pos. 48

GRADER DISC

Quantity in assembly group: 39 Piece / Pos. 49

SPLIT WASHER

Quantity in assembly group: 10 Piece / Pos. 50

DISC M30

Quantity in assembly group: 2 Piece / Pos. 51

GROOVED PIN DIN1473-5X10-ST

Quantity in assembly group: 10 Piece / Pos. 52

BEARING PIN

Quantity in assembly group: 5 Piece / Pos. 53

HEX-SCW DIN931 M12X80 12.9flZn

Quantity in assembly group: 5 Piece / Pos. 54

SPRING SLOTTED PIN DIN1481-8X1

Quantity in assembly group: 4 Piece / Pos. 55

DISC M30

Quantity in assembly group: 8 Piece / Pos. 56

PULLEY

Quantity in assembly group: 4 Piece / Pos. 57

BEARING BOLT

Quantity in assembly group: 5 Piece / Pos. 58

HEX BOLT M12X50-DIN931-8.8-G

Quantity in assembly group: 5 Piece / Pos. 59

DISC 31X50X5

Quantity in assembly group: 33 Piece / Pos. 60

GRADER DISC

Quantity in assembly group: 32 Piece / Pos. 61

GRADING ROLLER 5 NW 20

Quantity in assembly group: 1 Piece / Pos. 62

GRADING ROLLER 2+4 NW20

Quantity in assembly group: 2 Piece / Pos. 63

GRADING ROLLER 3 NW20

Quantity in assembly group: 1 Piece / Pos. 64

GRADING ROLLER 1 NW20 NAPLESS

Quantity in assembly group: 1 Piece / Pos. 65

FEATHER KEY A 5X5X20 DIN6885

Quantity in assembly group: 5 Piece / Pos. 66

SCRAPER ROD PTA 1100

Quantity in assembly group: 5 Piece / Pos. 67

SCRAPER

Quantity in assembly group: 192 Piece / Pos. 68

EYELET SCREW

Quantity in assembly group: 1 Piece / Pos. 69

BALL BEARING 6003-2RSH/WTF9

Quantity in assembly group: 4 Piece / Pos. 70

CONTACT WASHER FORM B 12-GAL

Quantity in assembly group: 5 Piece / Pos. 71

CONTACT DISC FORM M 12-GAL

Quantity in assembly group: 5 Piece / Pos. 72
