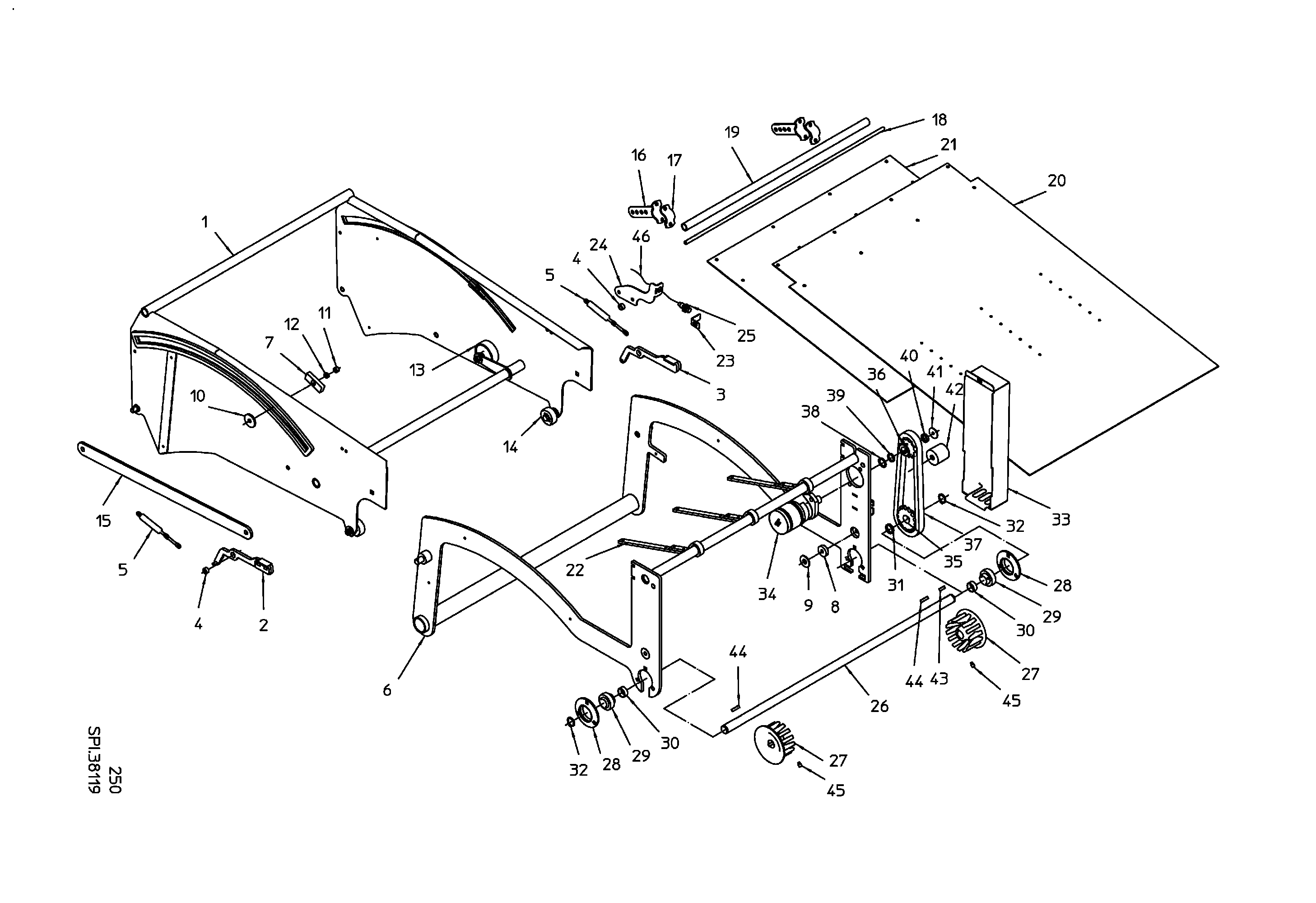

Parts by subassemblies

PICKING TABLE-HEAD

Quantity in assembly group: 1 Piece / Pos. 1

STOPPER R/H

Quantity in assembly group: 1 Piece / Pos. 2

STOPPER L/H

Quantity in assembly group: 1 Piece / Pos. 3

DISC

Quantity in assembly group: 2 Piece / Pos. 4

GAS SPRING 60-750N-588530

Quantity in assembly group: 2 Piece / Pos. 5

FRAME

Quantity in assembly group: 1 Piece / Pos. 6

GUIDE

Quantity in assembly group: 2 Piece / Pos. 7

DISC

Quantity in assembly group: 2 Piece / Pos. 8

PLAIN WASHER 17X44X3 GAL

Quantity in assembly group: 2 Piece / Pos. 9

RETAINING WASHER

Quantity in assembly group: 4 Piece / Pos. 10

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 11

BUSHING

Quantity in assembly group: 2 Piece / Pos. 12

SUPPORT ROLLER 90 CPTE

Quantity in assembly group: 2 Piece / Pos. 13

SUPPORT ROLLER 60

Quantity in assembly group: 2 Piece / Pos. 14

CONNECTING STRAP

Quantity in assembly group: 2 Piece / Pos. 15

BRACKET

Quantity in assembly group: 2 Piece / Pos. 16

CLAMP

Quantity in assembly group: 2 Piece / Pos. 17

THREADED ROD M12

Quantity in assembly group: 1 Piece / Pos. 18

TUBE

Quantity in assembly group: 1 Piece / Pos. 19

RUBBER PLATE

Quantity in assembly group: 1 Piece / Pos. 20

RUBBER PLATE

Quantity in assembly group: 1 Piece / Pos. 21

MOUNTING WEB BELT

Quantity in assembly group: 3 Piece / Pos. 22

ANGULAR PLATE

Quantity in assembly group: 1 Piece / Pos. 23

SENSOR HOLDER

Quantity in assembly group: 1 Piece / Pos. 24

SENSOR

Quantity in assembly group: 1 Piece / Pos. 25

DRIVE SHAFT

Quantity in assembly group: 1 Piece / Pos. 26

FINGER ROLLER B62-P28

Quantity in assembly group: 2 Piece / Pos. 27

FLANGE PLATE (PR) PF62/PF206

Quantity in assembly group: 2 Piece / Pos. 28

BEARING YAR 206-2RF/UC206

Quantity in assembly group: 2 Piece / Pos. 29

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 30

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 31

RETAINING RING AS 30X2 DIN471

Quantity in assembly group: 2 Piece / Pos. 32

PROTECTION

Quantity in assembly group: 1 Piece / Pos. 33

HYD MOTOR MF165 CYL-SHAFT

Quantity in assembly group: 1 Piece / Pos. 34

SPROCKET ASA60-1 T15

Quantity in assembly group: 1 Piece / Pos. 35

SPROCKET 3/4"-T12

Quantity in assembly group: 1 Piece / Pos. 36

CHAIN 3/4"X1/2"-ASA60-51R

Quantity in assembly group: 1 Piece / Pos. 37

SHIM WASHER PS 25X36X1 DIN988

Quantity in assembly group: 1 Piece / Pos. 38

SPACER RING

Quantity in assembly group: 1 Piece / Pos. 39

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 40

PLAIN WASHER 9X40X2,5

Quantity in assembly group: 1 Piece / Pos. 41

CHAIN TENSIONER

Quantity in assembly group: 1 Piece / Pos. 42

FEATHER KEY A 8X8X25 DIN6885

Quantity in assembly group: 1 Piece / Pos. 43

FEATHER KEY A 8X8X35 DIN6885

Quantity in assembly group: 2 Piece / Pos. 44

GRUB BOLT M10X16-DIN915 flZn

Quantity in assembly group: 2 Piece / Pos. 45

SEN-LINE M12 WI,3p SUS,4.5m

Quantity in assembly group: 1 Piece / Pos. 46
