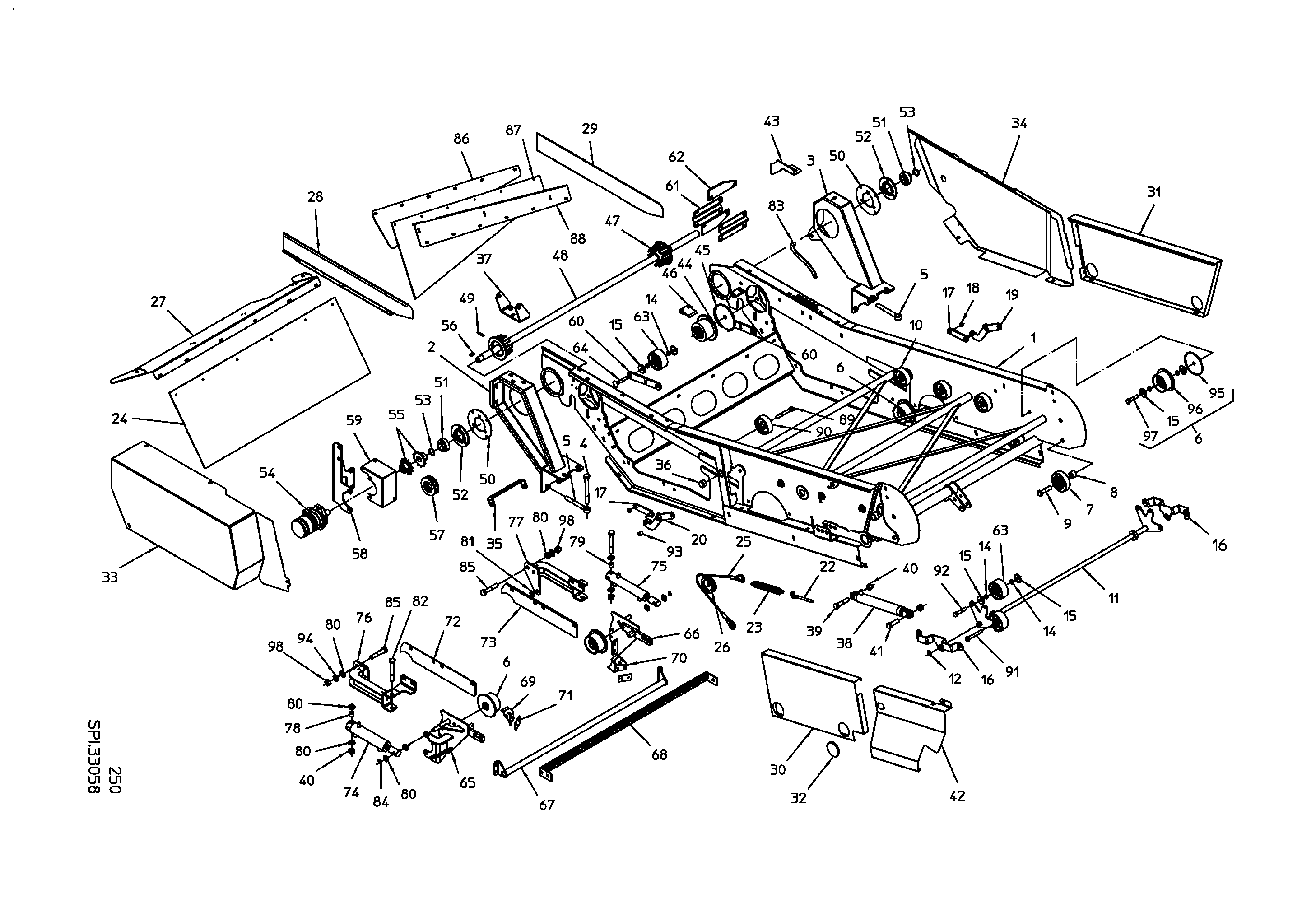

Parts by subassemblies

TENSION JACK

Quantity in assembly group: 1 Piece / Pos. 1

BEARING R/H

Quantity in assembly group: 1 Piece / Pos. 2

BEARING L/H

Quantity in assembly group: 1 Piece / Pos. 3

HHC-SCREW M16X150 931-8.8-GAL

Quantity in assembly group: 2 Piece / Pos. 4

EB B M16X140 444-8.8 GAL

Quantity in assembly group: 2 Piece / Pos. 5

FLANE ROLLER 90 CPTE

Quantity in assembly group: 4 Piece / Pos. 6

ROLLER D100

Quantity in assembly group: 2 Piece / Pos. 7

SPACER 20MM

Quantity in assembly group: 2 Piece / Pos. 8

HEX BOLT M16X65 DIN931-8.8-G

Quantity in assembly group: 2 Piece / Pos. 9

SUPPORT ROLLER 90 CPTE

Quantity in assembly group: 8 Piece / Pos. 10

TENSION SHAFT

Quantity in assembly group: 1 Piece / Pos. 11

SHIM WASHER PS 20X28X1 DIN988

Quantity in assembly group: 2 Piece / Pos. 12

BUSHING

Quantity in assembly group: 12 Piece / Pos. 14

SEALING DISC

Quantity in assembly group: 12 Piece / Pos. 15

FLANGE

Quantity in assembly group: 2 Piece / Pos. 16

LEVER

Quantity in assembly group: 2 Piece / Pos. 17

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 18

LEVER

Quantity in assembly group: 1 Piece / Pos. 19

LEVER

Quantity in assembly group: 1 Piece / Pos. 20

EYELET SCREW

Quantity in assembly group: 2 Piece / Pos. 22

TENSION SPRING

Quantity in assembly group: 2 Piece / Pos. 23

SEALING RUBBER

Quantity in assembly group: 1 Piece / Pos. 24

STEEL CABLE 590LONG

Quantity in assembly group: 2 Piece / Pos. 25

CABLE ROLLER

Quantity in assembly group: 2 Piece / Pos. 26

CHUTE PLATE

Quantity in assembly group: 1 Piece / Pos. 27

UPPER PLATE R/H

Quantity in assembly group: 1 Piece / Pos. 28

UPPER PLATE L/H

Quantity in assembly group: 1 Piece / Pos. 29

PROTECTION R/H

Quantity in assembly group: 1 Piece / Pos. 30

PROTECTION R/H

Quantity in assembly group: 1 Piece / Pos. 31

GPN910 - LOCKING CAP 2713-RED

Quantity in assembly group: 4 Piece / Pos. 32

PROTECTION R/H

Quantity in assembly group: 1 Piece / Pos. 33

PROTECTION L/H

Quantity in assembly group: 1 Piece / Pos. 34

STAY

Quantity in assembly group: 1 Piece / Pos. 35

PLUG GPN320GL32

Quantity in assembly group: 2 Piece / Pos. 36

BRACKET NBR

Quantity in assembly group: 1 Piece / Pos. 37

PRESSURE HYD RAM

Quantity in assembly group: 1 Piece / Pos. 38

HEX BOLT M16X75-DIN931-8.8-G

Quantity in assembly group: 1 Piece / Pos. 39

NYLOC NUT DIN985-M16-8-GAL

Quantity in assembly group: 4 Piece / Pos. 40

SET SCREW M16X55-DIN933-8.8-G

Quantity in assembly group: 1 Piece / Pos. 41

PROTECTION PTA-HEAD

Quantity in assembly group: 1 Piece / Pos. 42

BACK HOLDER PLATE

Quantity in assembly group: 1 Piece / Pos. 43

ROLLER 95

Quantity in assembly group: 2 Piece / Pos. 44

WINDING PROTECTION

Quantity in assembly group: 2 Piece / Pos. 45

SCRAPER

Quantity in assembly group: 2 Piece / Pos. 46

FINGER ROLLER DM100 WD49 p32

Quantity in assembly group: 2 Piece / Pos. 47

DRIVE SHAFT TRANSFER CONVEYOR

Quantity in assembly group: 1 Piece / Pos. 48

ROLL PIN 7X40-DIN1481

Quantity in assembly group: 2 Piece / Pos. 49

BEARING PLATE

Quantity in assembly group: 2 Piece / Pos. 50

BEARING YAR 206-2RF/UC206

Quantity in assembly group: 2 Piece / Pos. 51

FLANGE PLATE (PR) PF62/PF206

Quantity in assembly group: 2 Piece / Pos. 52

RETAINING RING AS 30X2 DIN471

Quantity in assembly group: 2 Piece / Pos. 53

HYD MOTOR MF130

Quantity in assembly group: 1 Piece / Pos. 54

SPROCKET 3/4" -T12-B25

Quantity in assembly group: 2 Piece / Pos. 55

FEATHER KEY A 8X8X25 DIN6885

Quantity in assembly group: 1 Piece / Pos. 56

CHAIN 3/4"X1/2"-ASA60-12R

Quantity in assembly group: 1 Piece / Pos. 57

BRACKET

Quantity in assembly group: 1 Piece / Pos. 58

PROTECTION

Quantity in assembly group: 1 Piece / Pos. 59

LEVER

Quantity in assembly group: 2 Piece / Pos. 60

CLAMPING PLATE

Quantity in assembly group: 2 Piece / Pos. 61

RUBBER MAT

Quantity in assembly group: 2 Piece / Pos. 62

COACH BOLT M12X70-603-8.8-G

Quantity in assembly group: 1 Piece / Pos. 64

SLIDING BRACKET R/H

Quantity in assembly group: 1 Piece / Pos. 65

SLIDING BRACKET L/H

Quantity in assembly group: 1 Piece / Pos. 66

CROSS BRACE

Quantity in assembly group: 1 Piece / Pos. 67

CROSS PROFILE

Quantity in assembly group: 1 Piece / Pos. 68

SCRAPER R/H

Quantity in assembly group: 1 Piece / Pos. 69

SCRAPER L/H

Quantity in assembly group: 1 Piece / Pos. 70

PLATE

Quantity in assembly group: 2 Piece / Pos. 71

COVER R/H

Quantity in assembly group: 1 Piece / Pos. 72

COVER L/H

Quantity in assembly group: 1 Piece / Pos. 73

DAC-DYLINDER (MASTER)

Quantity in assembly group: 1 Piece / Pos. 74

DAC-DYLINDER (SLAVE)

Quantity in assembly group: 1 Piece / Pos. 75

BRACKET R/H

Quantity in assembly group: 1 Piece / Pos. 76

BRACKET L/H

Quantity in assembly group: 1 Piece / Pos. 77

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 78

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 79

DISC B17 DIN125-MS

Quantity in assembly group: 10 Piece / Pos. 80

DISC 17 DIN433-GAL

Quantity in assembly group: 2 Piece / Pos. 81

HEX BOLT M16X110-DIN931-8.8-G

Quantity in assembly group: 2 Piece / Pos. 82

INDICATOR

Quantity in assembly group: 1 Piece / Pos. 83

EXTERNAL CIRCLIP A16X1 DIN471

Quantity in assembly group: 2 Piece / Pos. 84

HEX BOLT M16X85-DIN931-8.8-G

Quantity in assembly group: 2 Piece / Pos. 85

SUPPORTING PLATE

Quantity in assembly group: 1 Piece / Pos. 86

OUTLET RUBBER

Quantity in assembly group: 1 Piece / Pos. 87

OUTLET PLATE

Quantity in assembly group: 1 Piece / Pos. 88

HEX BOLT M12X100-DIN931-8.8-G

Quantity in assembly group: 1 Piece / Pos. 89

SUPPORT ROLLER 90

Quantity in assembly group: 9 Piece / Pos. 90

HHC-SCREW M12X90 DIN933-8.8-GA

Quantity in assembly group: 1 Piece / Pos. 91

HEX BOLT M12X65-DIN931-8.8-G

Quantity in assembly group: 1 Piece / Pos. 92

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 93

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 2 Piece / Pos. 94

COVER DISC

Quantity in assembly group: 6 Piece / Pos. 95

IDLER ROLLER

Quantity in assembly group: 4 Piece / Pos. 96

HEX BOLT M12X60-DIN931-838-G

Quantity in assembly group: 6 Piece / Pos. 97

HEXAGON NUT M16 DIN934-8-GAL

Quantity in assembly group: 2 Piece / Pos. 98
