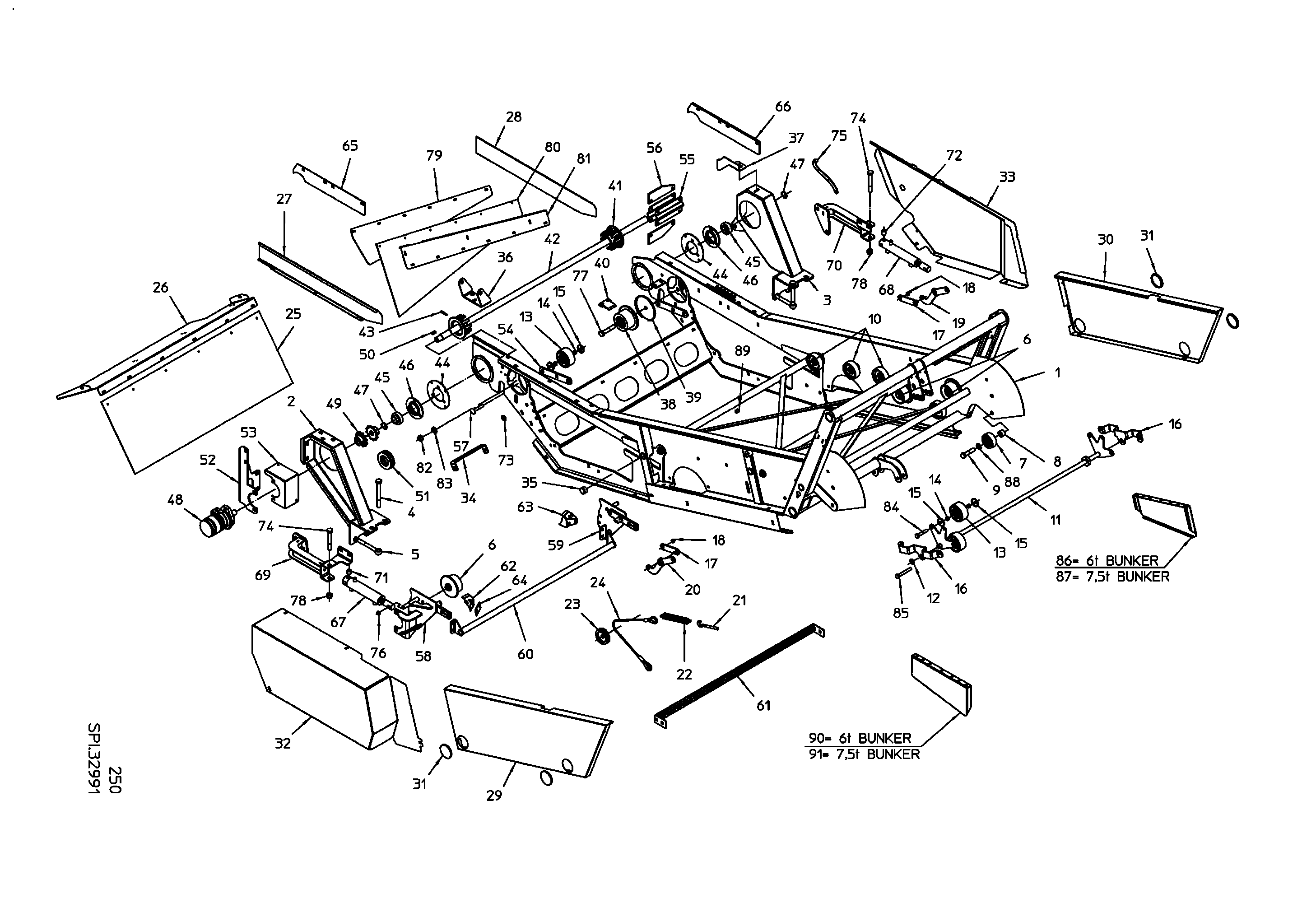

Parts by subassemblies

TENSION JACK

Quantity in assembly group: 1 Piece / Pos. 1

BEARING R/H

Quantity in assembly group: 1 Piece / Pos. 2

BEARING L/H

Quantity in assembly group: 1 Piece / Pos. 3

HHC-SCREW M16X150 931-8.8-GAL

Quantity in assembly group: 2 Piece / Pos. 4

EB B M16X140 444-8.8 GAL

Quantity in assembly group: 2 Piece / Pos. 5

FLANE ROLLER 90 CPTE

Quantity in assembly group: 8 Piece / Pos. 6

ROLLE D75

Quantity in assembly group: 2 Piece / Pos. 7

SPACER 20MM

Quantity in assembly group: 2 Piece / Pos. 8

HEX BOLT M16X70-DIN931-8.8-G

Quantity in assembly group: 2 Piece / Pos. 9

SUPPORT ROLLER 90 CPTE

Quantity in assembly group: 10 Piece / Pos. 10

TENSION SHAFT

Quantity in assembly group: 1 Piece / Pos. 11

SHIM WASHER PS 20X28X1 DIN988

Quantity in assembly group: 2 Piece / Pos. 12

IDLER ROLLER

Quantity in assembly group: 6 Piece / Pos. 13

BUSHING

Quantity in assembly group: 12 Piece / Pos. 14

SEALING DISC

Quantity in assembly group: 12 Piece / Pos. 15

FLANGE

Quantity in assembly group: 2 Piece / Pos. 16

LEVER

Quantity in assembly group: 2 Piece / Pos. 17

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 18

LEVER

Quantity in assembly group: 1 Piece / Pos. 19

LEVER

Quantity in assembly group: 1 Piece / Pos. 20

EYELET SCREW

Quantity in assembly group: 2 Piece / Pos. 21

TENSION SPRING

Quantity in assembly group: 2 Piece / Pos. 22

CABLE ROLLER

Quantity in assembly group: 2 Piece / Pos. 23

STEEL CABLE 590LONG

Quantity in assembly group: 2 Piece / Pos. 24

SEALING RUBBER

Quantity in assembly group: 1 Piece / Pos. 25

CHUTE PLATE

Quantity in assembly group: 1 Piece / Pos. 26

UPPER PLATE R/H

Quantity in assembly group: 1 Piece / Pos. 27

UPPER PLATE L/H

Quantity in assembly group: 1 Piece / Pos. 28

PROTECTION R/H

Quantity in assembly group: 1 Piece / Pos. 29

PROTECTION L/H

Quantity in assembly group: 1 Piece / Pos. 30

GPN910 - LOCKING CAP 2713-RED

Quantity in assembly group: 4 Piece / Pos. 31

PROTECTION R/H

Quantity in assembly group: 1 Piece / Pos. 32

PROTECTION L/H

Quantity in assembly group: 1 Piece / Pos. 33

STAY

Quantity in assembly group: 1 Piece / Pos. 34

PLUG GPN320GL32

Quantity in assembly group: 2 Piece / Pos. 35

BRACKET NBR

Quantity in assembly group: 1 Piece / Pos. 36

BACK HOLDER PLATE

Quantity in assembly group: 1 Piece / Pos. 37

ROLLER 95

Quantity in assembly group: 2 Piece / Pos. 38

WINDING PROTECTION

Quantity in assembly group: 2 Piece / Pos. 39

SCRAPER

Quantity in assembly group: 2 Piece / Pos. 40

FINGER ROLLER DM100 WD49 p32

Quantity in assembly group: 2 Piece / Pos. 41

DRIVE SHAFT TRANSFER CONVEYOR

Quantity in assembly group: 1 Piece / Pos. 42

ROLL PIN 7X40-DIN1481

Quantity in assembly group: 1 Piece / Pos. 43

BEARING PLATE

Quantity in assembly group: 2 Piece / Pos. 44

BEARING YAR 206-2RF/UC206

Quantity in assembly group: 2 Piece / Pos. 45

FLANGE PLATE (PR) PF62/PF206

Quantity in assembly group: 2 Piece / Pos. 46

RETAINING RING AS 30X2 DIN471

Quantity in assembly group: 2 Piece / Pos. 47

HYD MOTOR MF130

Quantity in assembly group: 1 Piece / Pos. 48

SPROCKET 3/4" -T12-B25

Quantity in assembly group: 2 Piece / Pos. 49

FEATHER KEY A 8X8X25 DIN6885

Quantity in assembly group: 1 Piece / Pos. 50

CHAIN 3/4"X1/2"-ASA60-12R

Quantity in assembly group: 1 Piece / Pos. 51

BRACKET

Quantity in assembly group: 1 Piece / Pos. 52

PROTECTION

Quantity in assembly group: 1 Piece / Pos. 53

LEVER

Quantity in assembly group: 2 Piece / Pos. 54

CLAMPING PLATE

Quantity in assembly group: 2 Piece / Pos. 55

RUBBER MAT

Quantity in assembly group: 2 Piece / Pos. 56

COACH BOLT M12X70-603-8.8-G

Quantity in assembly group: 2 Piece / Pos. 57

SLIDING BRACKET R/H

Quantity in assembly group: 1 Piece / Pos. 58

SLIDING BRACKET L/H

Quantity in assembly group: 1 Piece / Pos. 59

CROSS BRACE

Quantity in assembly group: 1 Piece / Pos. 60

CROSS PROFILE

Quantity in assembly group: 1 Piece / Pos. 61

SCRAPER R/H

Quantity in assembly group: 1 Piece / Pos. 62

SCRAPER L/H

Quantity in assembly group: 1 Piece / Pos. 63

PLATE

Quantity in assembly group: 2 Piece / Pos. 64

COVER R/H

Quantity in assembly group: 1 Piece / Pos. 65

COVER L/H

Quantity in assembly group: 1 Piece / Pos. 66

DAC-DYLINDER (MASTER)

Quantity in assembly group: 1 Piece / Pos. 67

DAC-DYLINDER (SLAVE)

Quantity in assembly group: 1 Piece / Pos. 68

BRACKET R/H

Quantity in assembly group: 1 Piece / Pos. 69

BRACKET L/H

Quantity in assembly group: 1 Piece / Pos. 70

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 71

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 72

DISC 17 DIN433-GAL

Quantity in assembly group: 2 Piece / Pos. 73

HEX BOLT M16X110-DIN931-8.8-G

Quantity in assembly group: 2 Piece / Pos. 74

INDICATOR

Quantity in assembly group: 1 Piece / Pos. 75

EXTERNAL CIRCLIP A16X1 DIN471

Quantity in assembly group: 2 Piece / Pos. 76

HEX BOLT M16X85-DIN931-8.8-G

Quantity in assembly group: 2 Piece / Pos. 77

NYLOC NUT DIN985-M16-8-GAL

Quantity in assembly group: 2 Piece / Pos. 78

SUPPORTING PLATE

Quantity in assembly group: 1 Piece / Pos. 79

OUTLET RUBBER

Quantity in assembly group: 1 Piece / Pos. 80

OUTLET PLATE

Quantity in assembly group: 1 Piece / Pos. 81

HEXAGON NUT M16 DIN934-8-GAL

Quantity in assembly group: 2 Piece / Pos. 82

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 2 Piece / Pos. 83

HEX BOLT M12X65-DIN931-8.8-G

Quantity in assembly group: 1 Piece / Pos. 84

HHC-SCREW M12X90 DIN933-8.8-GA

Quantity in assembly group: 1 Piece / Pos. 85

PROTECTION L/H

Quantity in assembly group: 1 Piece / Pos. 86

PROTECTION L/H NRB w GRA

Quantity in assembly group: 1 Piece / Pos. 87

FLAT WASHER M16

Quantity in assembly group: 1 Piece / Pos. 88

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 89

PROTECTION R/H

Quantity in assembly group: 1 Piece / Pos. 90

PROTECTION R/H NRB w GRA

Quantity in assembly group: 1 Piece / Pos. 91
