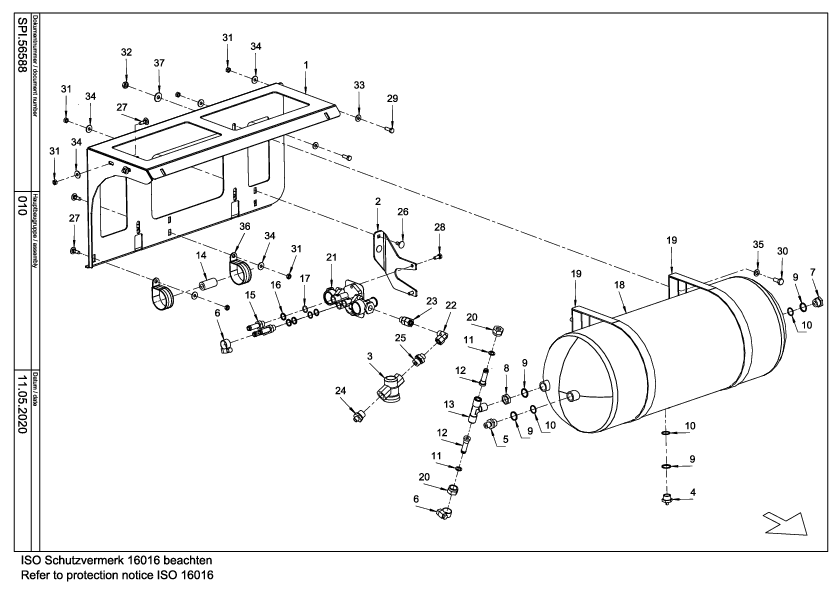

Parts by subassemblies

MOUNTING PLATE

Quantity in assembly group: 1 Piece / Pos. 1

BRACKET

Quantity in assembly group: 1 Piece / Pos. 2

FILTER F PIPES

Quantity in assembly group: 1 Piece / Pos. 3

DRAIN VALVE

Quantity in assembly group: 1 Piece / Pos. 4

TEST ADAPTOR (ISO3583)

Quantity in assembly group: 1 Piece / Pos. 5

HOSE CLIP F S13

Quantity in assembly group: 2 Piece / Pos. 6

HOLLOW SCREW M22X1,5

Quantity in assembly group: 1 Piece / Pos. 7

HEXAGON NUT

Quantity in assembly group: 1 Piece / Pos. 8

SEALING RING M22X1,5

Quantity in assembly group: 4 Piece / Pos. 9

ROUND CORD RING M22X1,5

Quantity in assembly group: 3 Piece / Pos. 10

SEALING RING

Quantity in assembly group: 2 Piece / Pos. 11

HOSE PLUG w NECK

Quantity in assembly group: 2 Piece / Pos. 12

T-PIECE

Quantity in assembly group: 1 Piece / Pos. 13

HOSE 25X13

Quantity in assembly group: 0 Piece / Pos. 14

HOSE FITTING w THREAD M16X1,5

Quantity in assembly group: 3 Piece / Pos. 15

SEALING RING M16X1,5

Quantity in assembly group: 3 Piece / Pos. 16

ROUND CORD RING M16X1,5

Quantity in assembly group: 3 Piece / Pos. 17

AIR RESERVOIR 60l DM=310

Quantity in assembly group: 1 Piece / Pos. 18

TIGHTENING STRAP w CONSOLE

Quantity in assembly group: 2 Piece / Pos. 19

SWIVEL NUT F HOSE FITTING

Quantity in assembly group: 2 Piece / Pos. 20

PARK-SHUNT VALVE

Quantity in assembly group: 1 Piece / Pos. 21

P-EWS 12L-SV

Quantity in assembly group: 1 Piece / Pos. 22

EGE12LMEDCF

Quantity in assembly group: 1 Piece / Pos. 23

GE08LM22EDOMDCFQ4

Quantity in assembly group: 1 Piece / Pos. 24

P-GES 12L/M22X1.5

Quantity in assembly group: 1 Piece / Pos. 25

COACH BOLT M8X20-603-8.8-GAL

Quantity in assembly group: 2 Piece / Pos. 26

COACH BOLT M8X25-603-8.8-GAL

Quantity in assembly group: 4 Piece / Pos. 27

SET SCREW M8X20-DIN933-8.8-G

Quantity in assembly group: 2 Piece / Pos. 28

SET SCREW M8X25-DIN933-8.8-G

Quantity in assembly group: 2 Piece / Pos. 29

HHC-SCREW M10X25 933-8.8-GAL

Quantity in assembly group: 4 Piece / Pos. 30

HEXAGON NUT M8 DIN934-8-GAL

Quantity in assembly group: 8 Piece / Pos. 31

HEXAGON NUT M10 DIN934-8-GAL

Quantity in assembly group: 4 Piece / Pos. 32

PLAIN WASHER 8.4X20X2 GAL

Quantity in assembly group: 2 Piece / Pos. 33

CONTACT DISC SHAPE B8 GAL

Quantity in assembly group: 8 Piece / Pos. 34

WASHER A10,5 DIN125-VERZ

Quantity in assembly group: 4 Piece / Pos. 35

PIPE CLAMP RSGU1100 60/25

Quantity in assembly group: 2 Piece / Pos. 36

CONTACT WASHER FORM B 10-GAL

Quantity in assembly group: 4 Piece / Pos. 37
