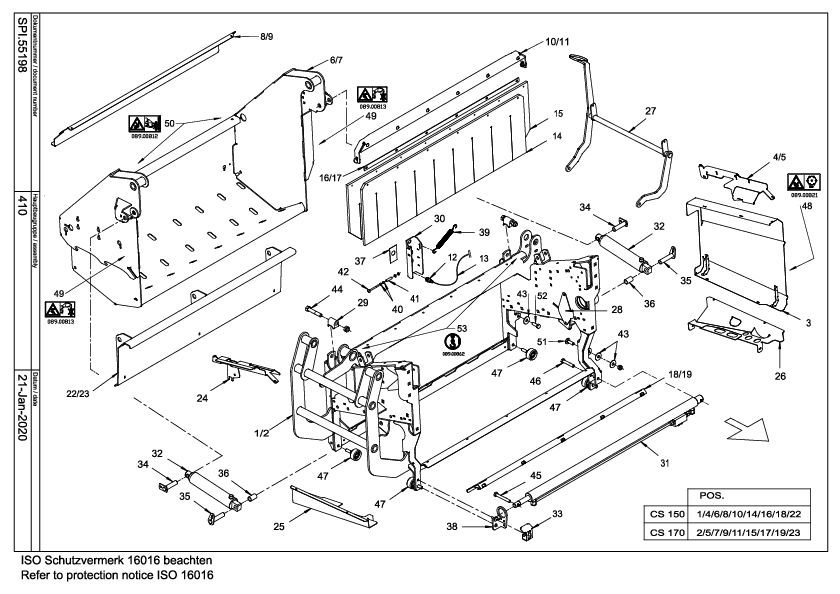

Parts by subassemblies

CYL SEAL SET

Quantity in assembly group: 1 Piece / Pos. 0

CHECK VALVE FOR D/A RAM

Quantity in assembly group: 1 Piece / Pos. 0

CYL-SEAL SET

Quantity in assembly group: 1 Piece / Pos. 0

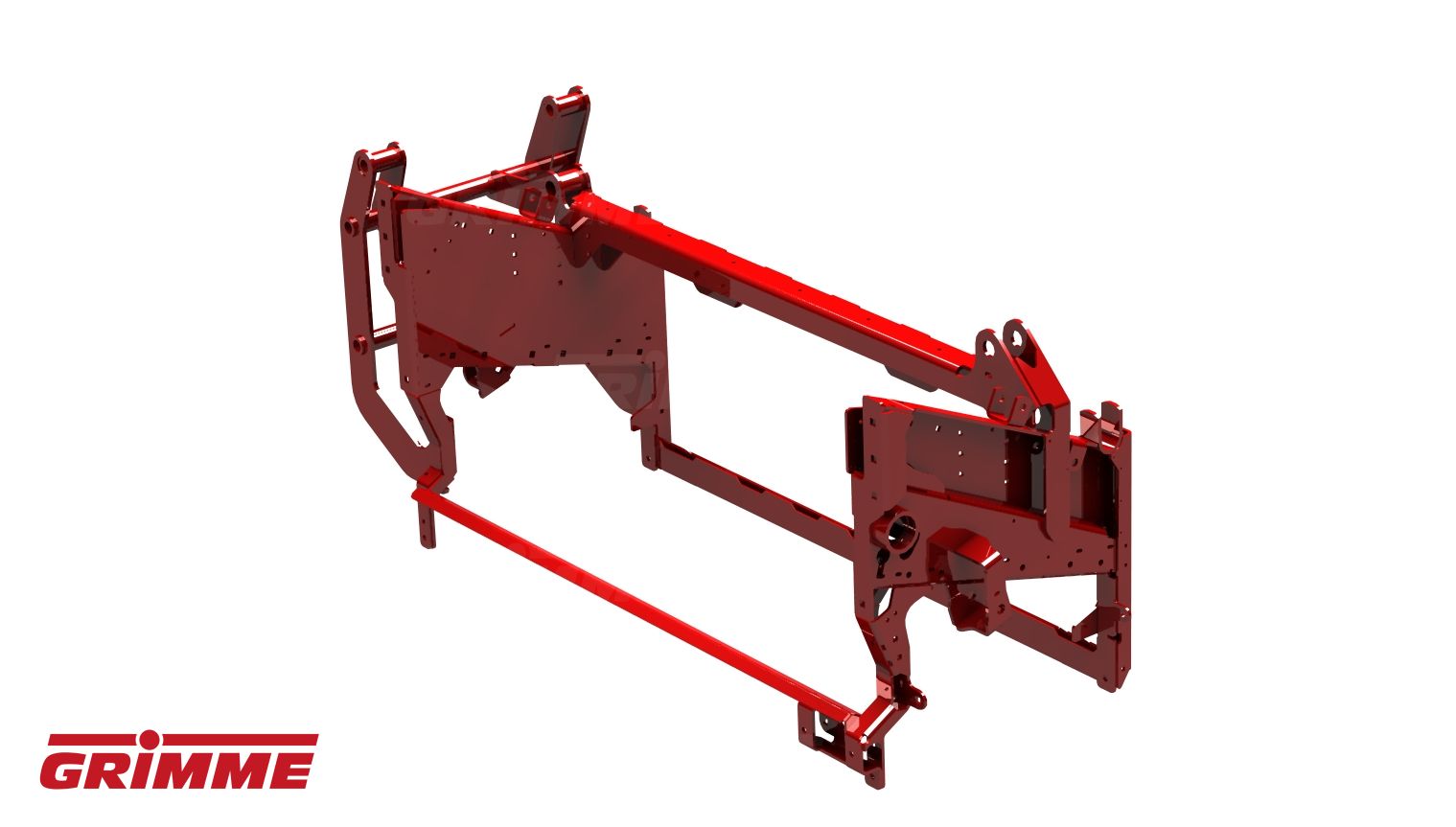

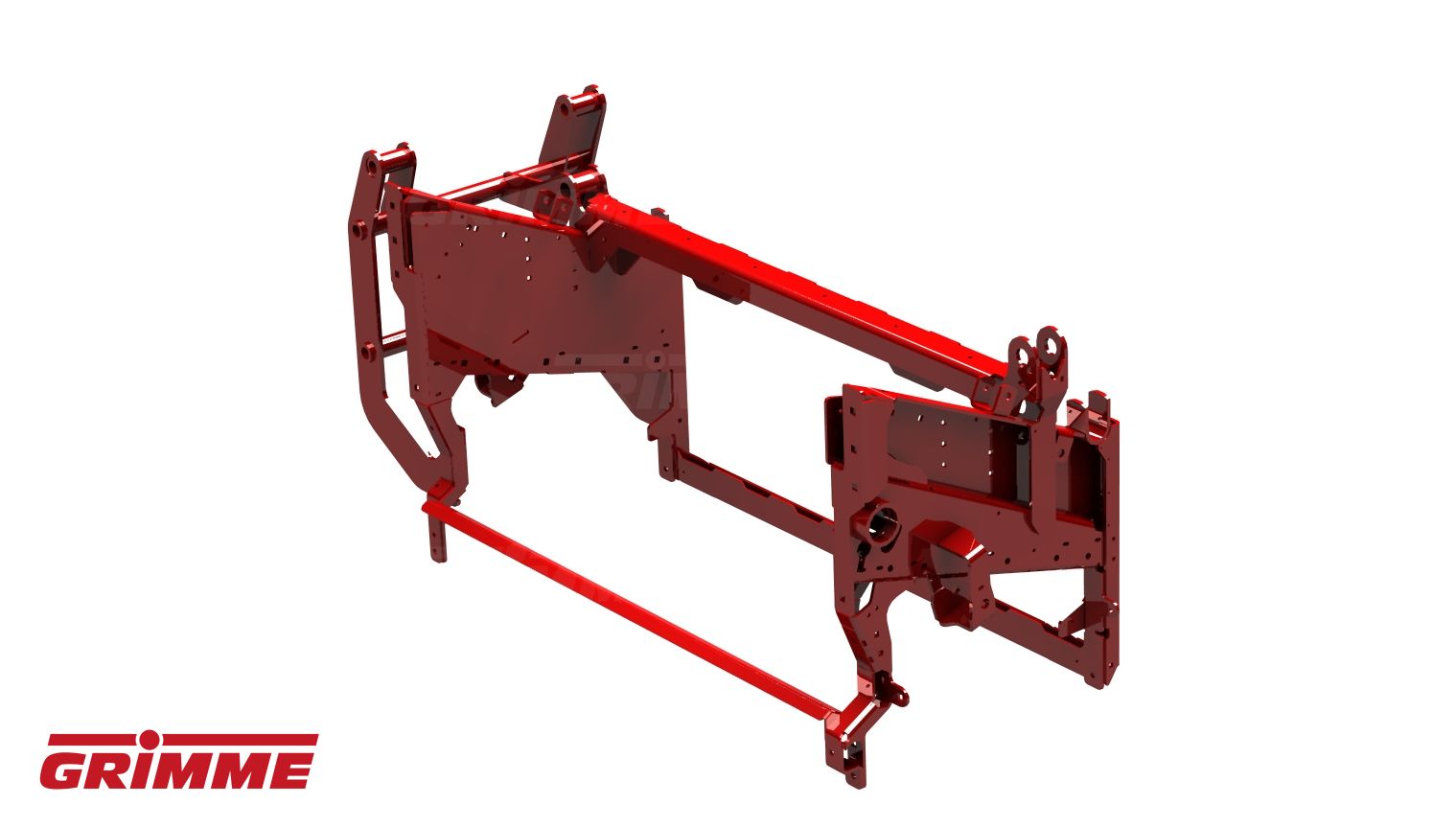

CROSS CONVEYOR FRAME

Quantity in assembly group: 1 Piece / Pos. 1

CROSS CONVEYOR FRAME

Quantity in assembly group: 1 Piece / Pos. 2

PROTECTION HOOD L/H w BUNKER

Quantity in assembly group: 1 Piece / Pos. 3

PROTECTION HOOD L/H

Quantity in assembly group: 1 Piece / Pos. 4

PROTECTION HOOD L/H

Quantity in assembly group: 1 Piece / Pos. 5

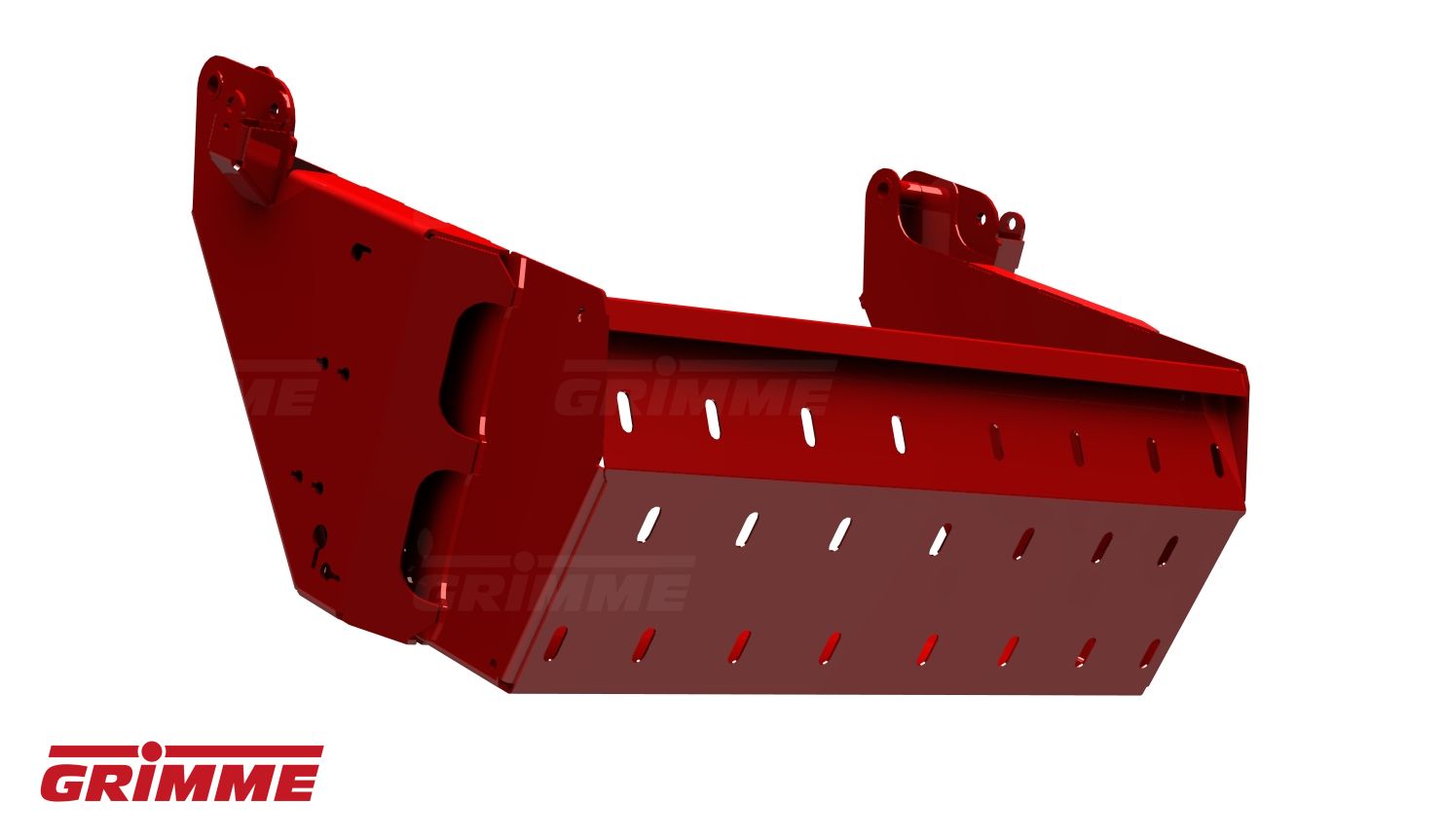

BUNKER

Quantity in assembly group: 1 Piece / Pos. 6

BUNKER CS170

Quantity in assembly group: 1 Piece / Pos. 7

PLATE

Quantity in assembly group: 1 Piece / Pos. 8

PLATE

Quantity in assembly group: 1 Piece / Pos. 9

FIXING BRACKET

Quantity in assembly group: 1 Piece / Pos. 10

FIXING ANGLE 170

Quantity in assembly group: 1 Piece / Pos. 11

PROXIMITY SWITCH INDUCIVE M18X

Quantity in assembly group: 1 Piece / Pos. 12

CABLE

Quantity in assembly group: 1 Piece / Pos. 13

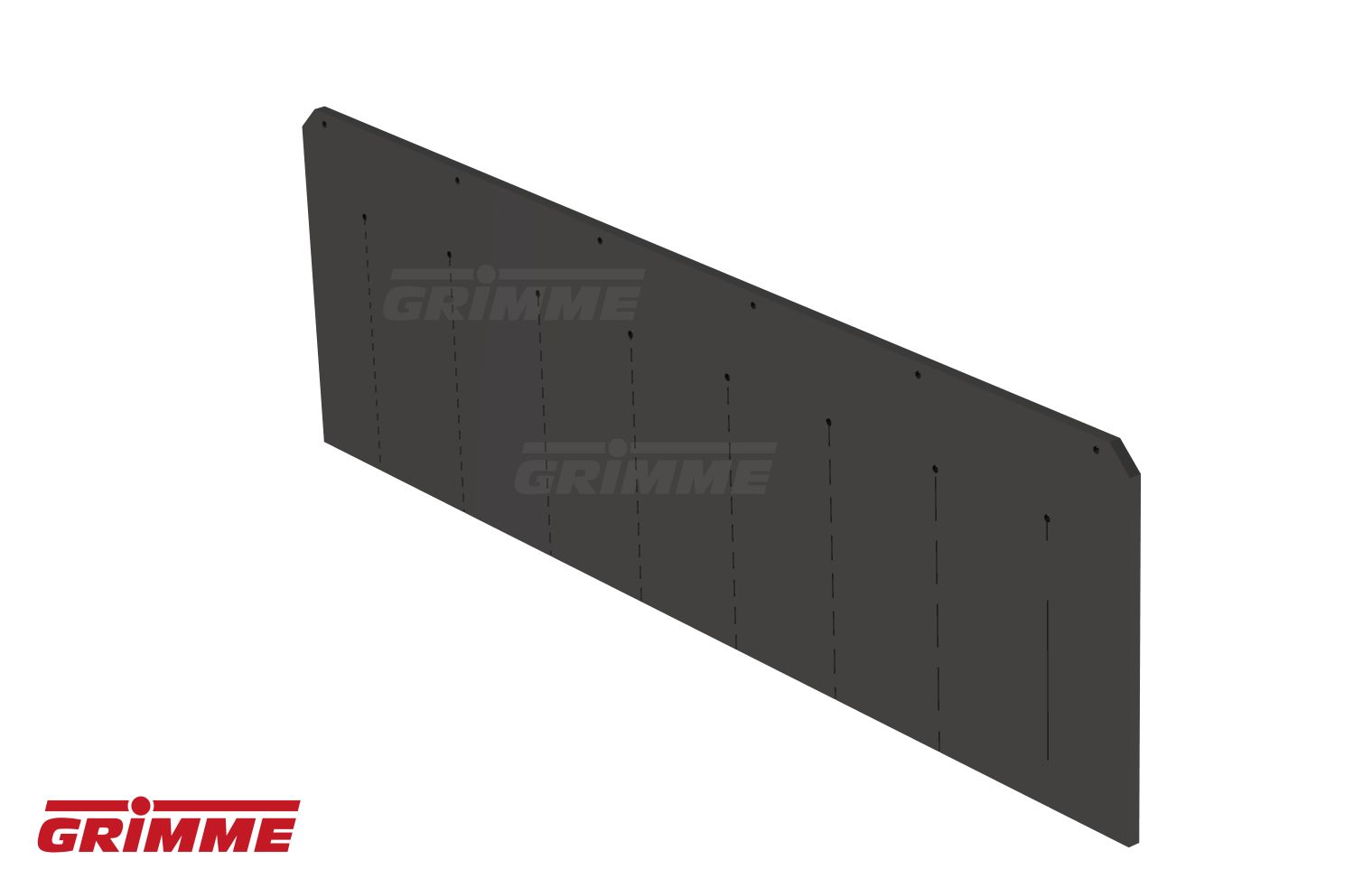

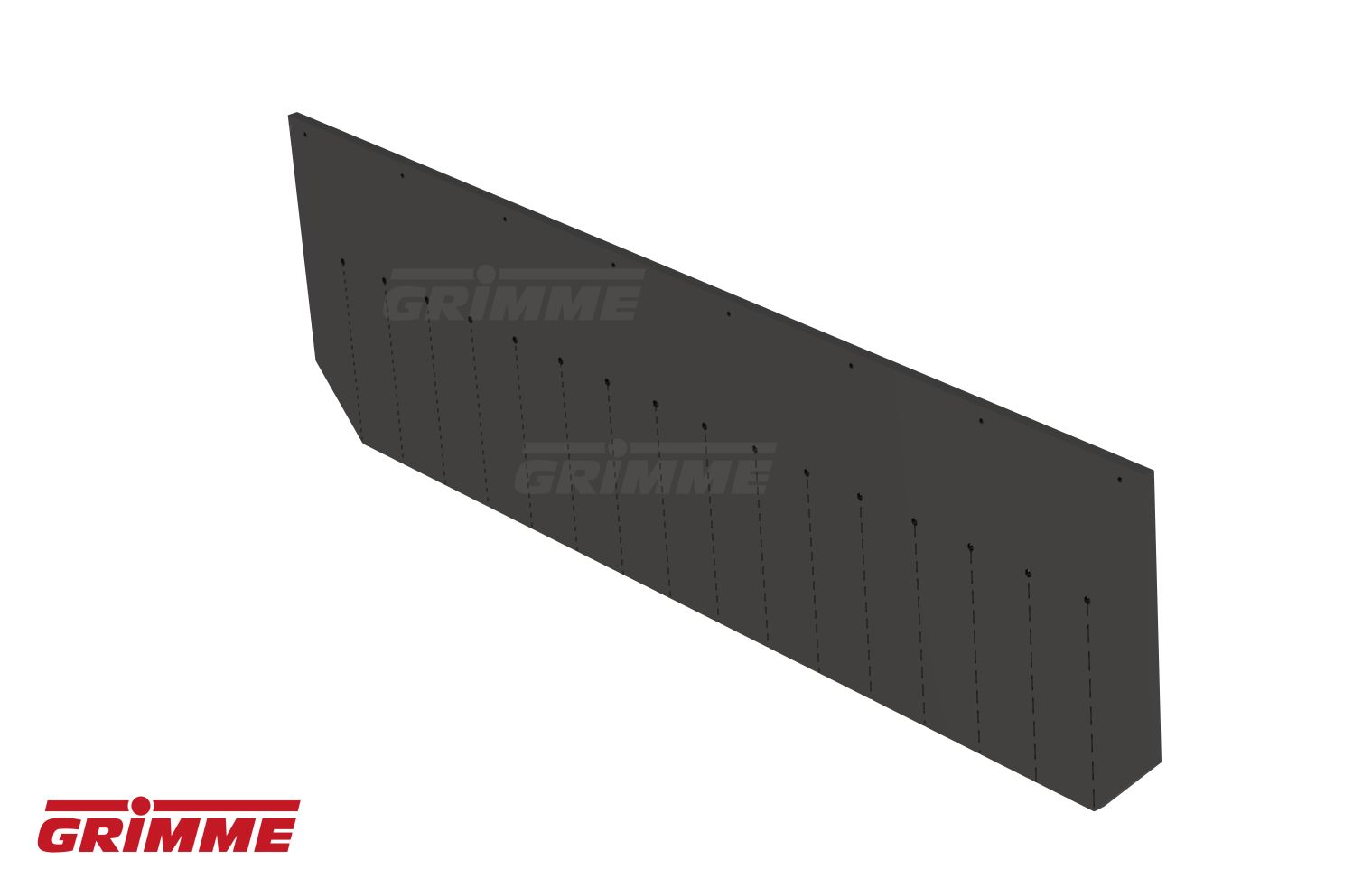

CURTAIN

Quantity in assembly group: 1 Piece / Pos. 14

IMPACT RUBBER

Quantity in assembly group: 1 Piece / Pos. 15

CLAMP STRIP

Quantity in assembly group: 1 Piece / Pos. 16

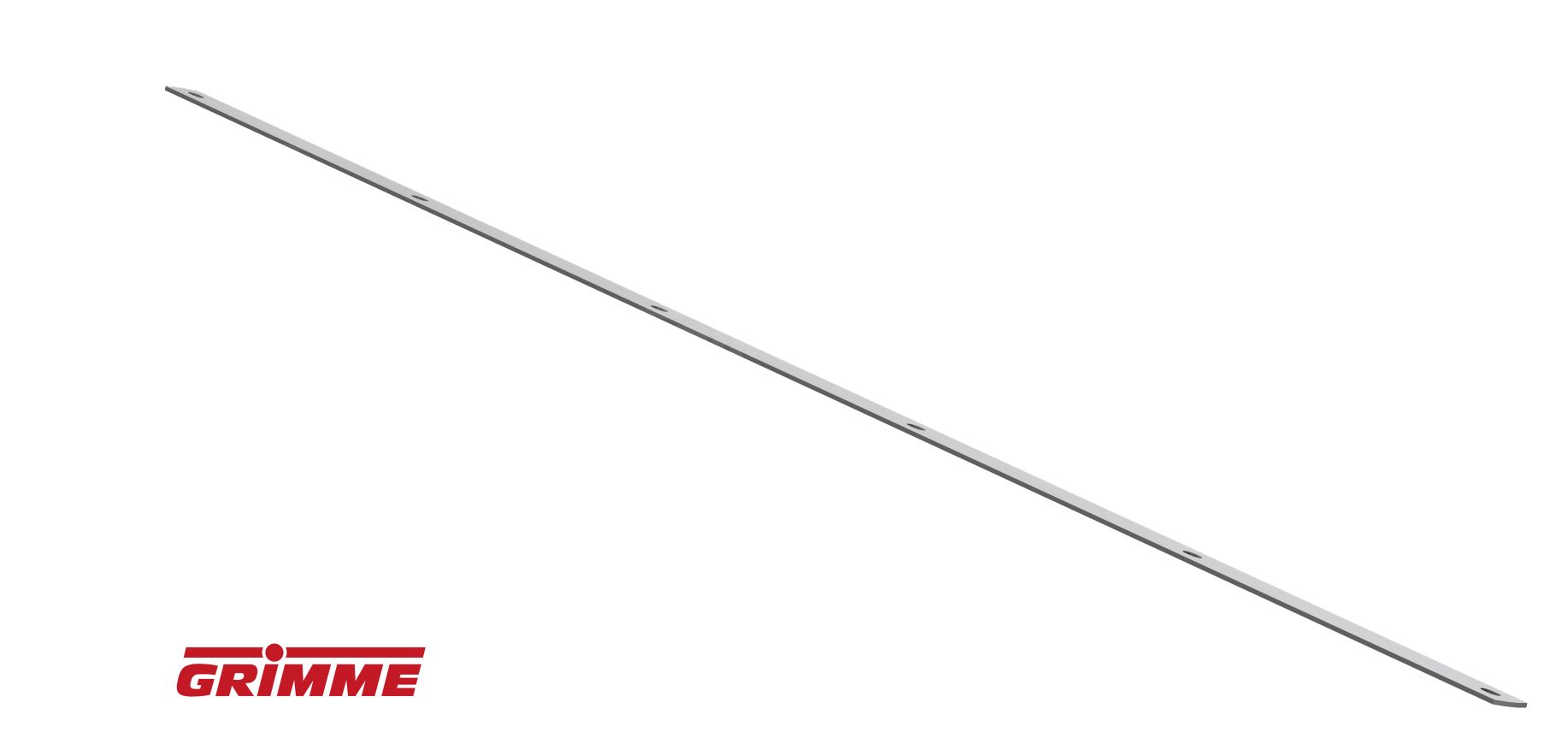

FLAT STAY

Quantity in assembly group: 1 Piece / Pos. 17

SHEET-METAL FRONT

Quantity in assembly group: 1 Piece / Pos. 18

SHEET-METAL FRONT

Quantity in assembly group: 1 Piece / Pos. 19

BUNKER END PLATE

Quantity in assembly group: 1 Piece / Pos. 22

BUNKER PLATE CS170

Quantity in assembly group: 1 Piece / Pos. 23

PROTECTION HOOD R/H

Quantity in assembly group: 1 Piece / Pos. 24

BOTTOM COVER R/H

Quantity in assembly group: 1 Piece / Pos. 25

BOTTOM COVER L/H

Quantity in assembly group: 1 Piece / Pos. 26

BRACKET

Quantity in assembly group: 1 Piece / Pos. 27

COVER

Quantity in assembly group: 1 Piece / Pos. 28

STOPPER

Quantity in assembly group: 2 Piece / Pos. 29

BRACKET

Quantity in assembly group: 1 Piece / Pos. 30

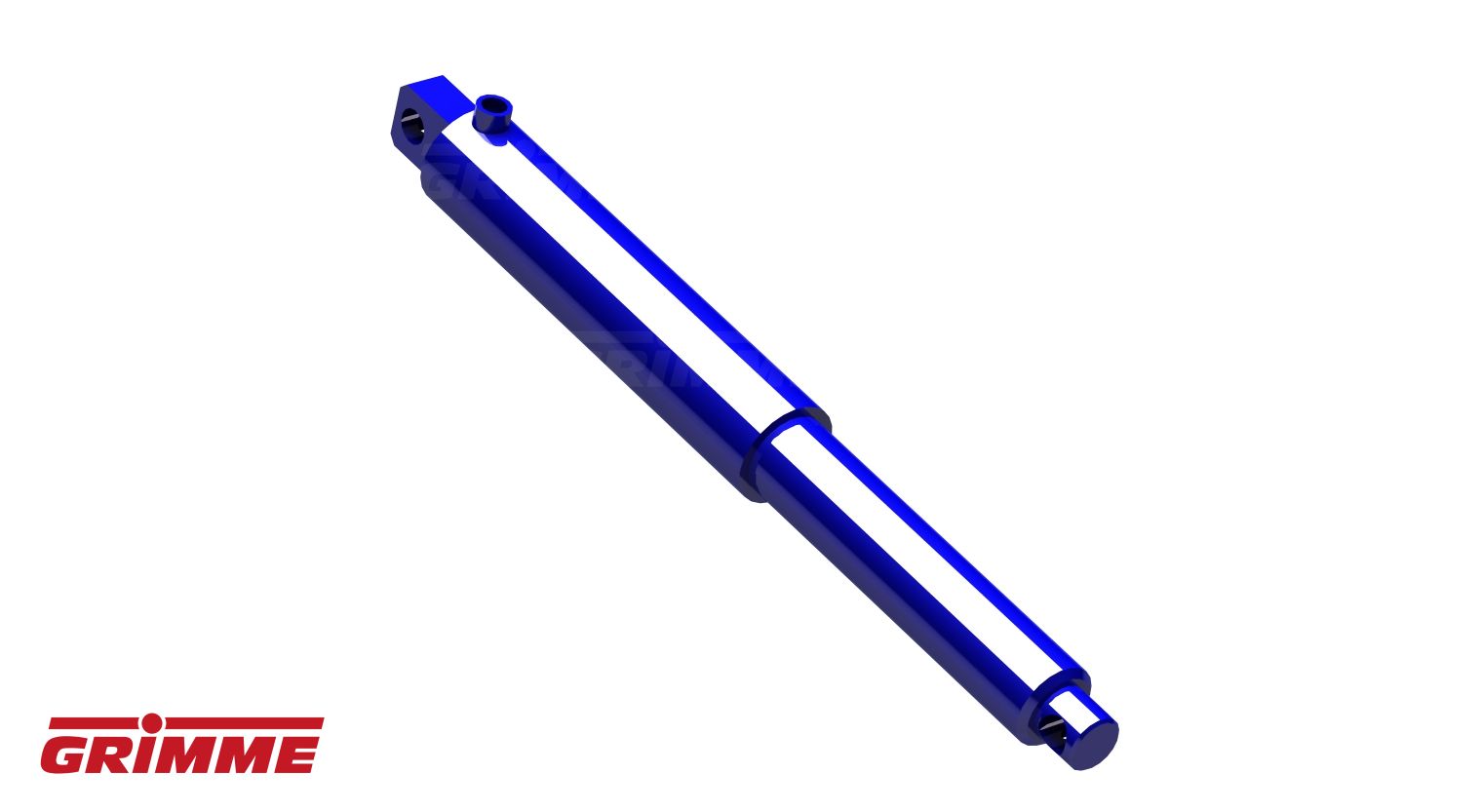

DOUBLE ACTING RAM

Quantity in assembly group: 1 Piece / Pos. 31

PRESSURE HYD RAM

Quantity in assembly group: 1 Piece / Pos. 32

GUARD FOR CYLINDER

Quantity in assembly group: 1 Piece / Pos. 33

CYLINDER BOLT

Quantity in assembly group: 2 Piece / Pos. 34

PIN

Quantity in assembly group: 2 Piece / Pos. 35

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 36

STICKER F CROSS CO WEB HEAD

Quantity in assembly group: 1 Piece / Pos. 37

CYLINDER SUPPORT

Quantity in assembly group: 1 Piece / Pos. 38

TENSION SPRING

Quantity in assembly group: 1 Piece / Pos. 39

SPACER

Quantity in assembly group: 2 Piece / Pos. 40

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 41

COACH BOLT M8X85-DIN603-8.8-G

Quantity in assembly group: 1 Piece / Pos. 42

DISC A 17 DIN9021-GAL

Quantity in assembly group: 3 Piece / Pos. 43

HHC-SCREW M20X110 931-8.8-GAL

Quantity in assembly group: 2 Piece / Pos. 44

HEX BOLT M16X120-DIN931-8.8-G

Quantity in assembly group: 1 Piece / Pos. 45

HEX BOLT M16X90-DIN931-8.8-G

Quantity in assembly group: 1 Piece / Pos. 46

SUPPORT ROLLER

Quantity in assembly group: 4 Piece / Pos. 47

089.00821-WARNING SYM

Quantity in assembly group: 1 Piece / Pos. 48

089.00813-DANGER SIGNAL

Quantity in assembly group: 2 Piece / Pos. 49

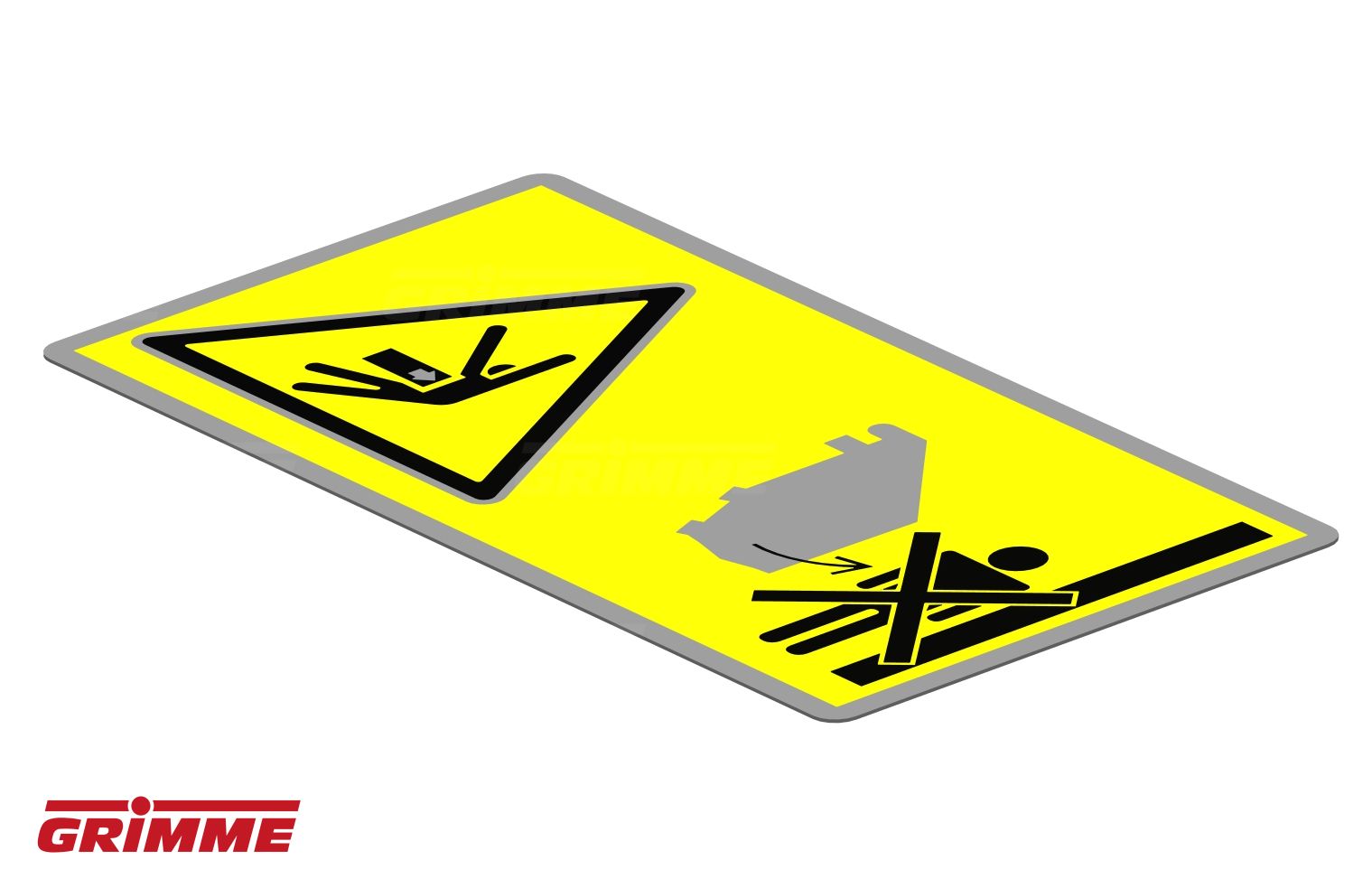

089.00812-WARNING SIGN

Quantity in assembly group: 2 Piece / Pos. 50

COACH BOLT/SS M16X50-603-8.8-G

Quantity in assembly group: 1 Piece / Pos. 51

SET SCREW M16X45-DIN933-8.8-G

Quantity in assembly group: 1 Piece / Pos. 52

STICKER-LIFTING POINT HOOK

Quantity in assembly group: 2 Piece / Pos. 53
