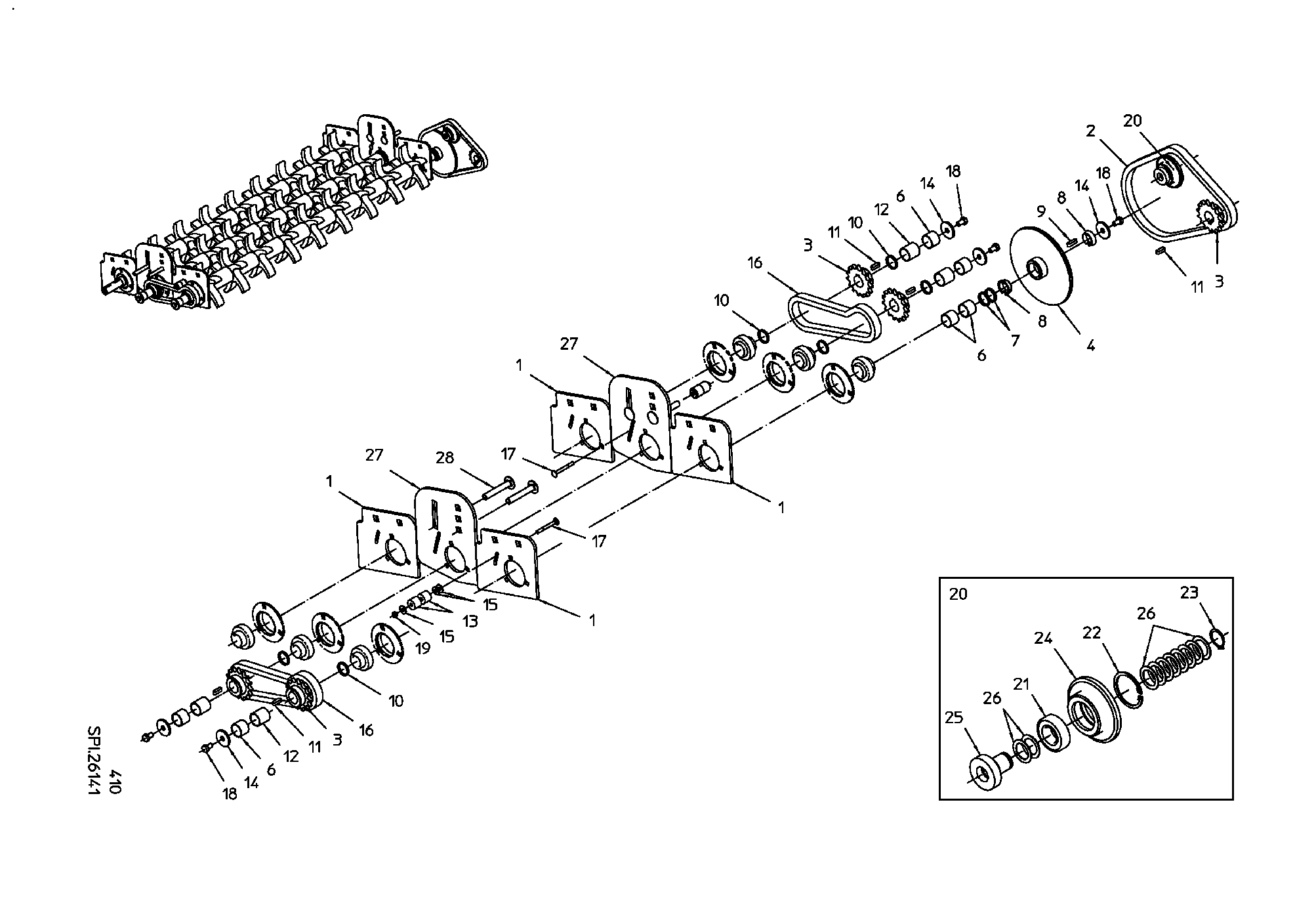

Parts by subassemblies

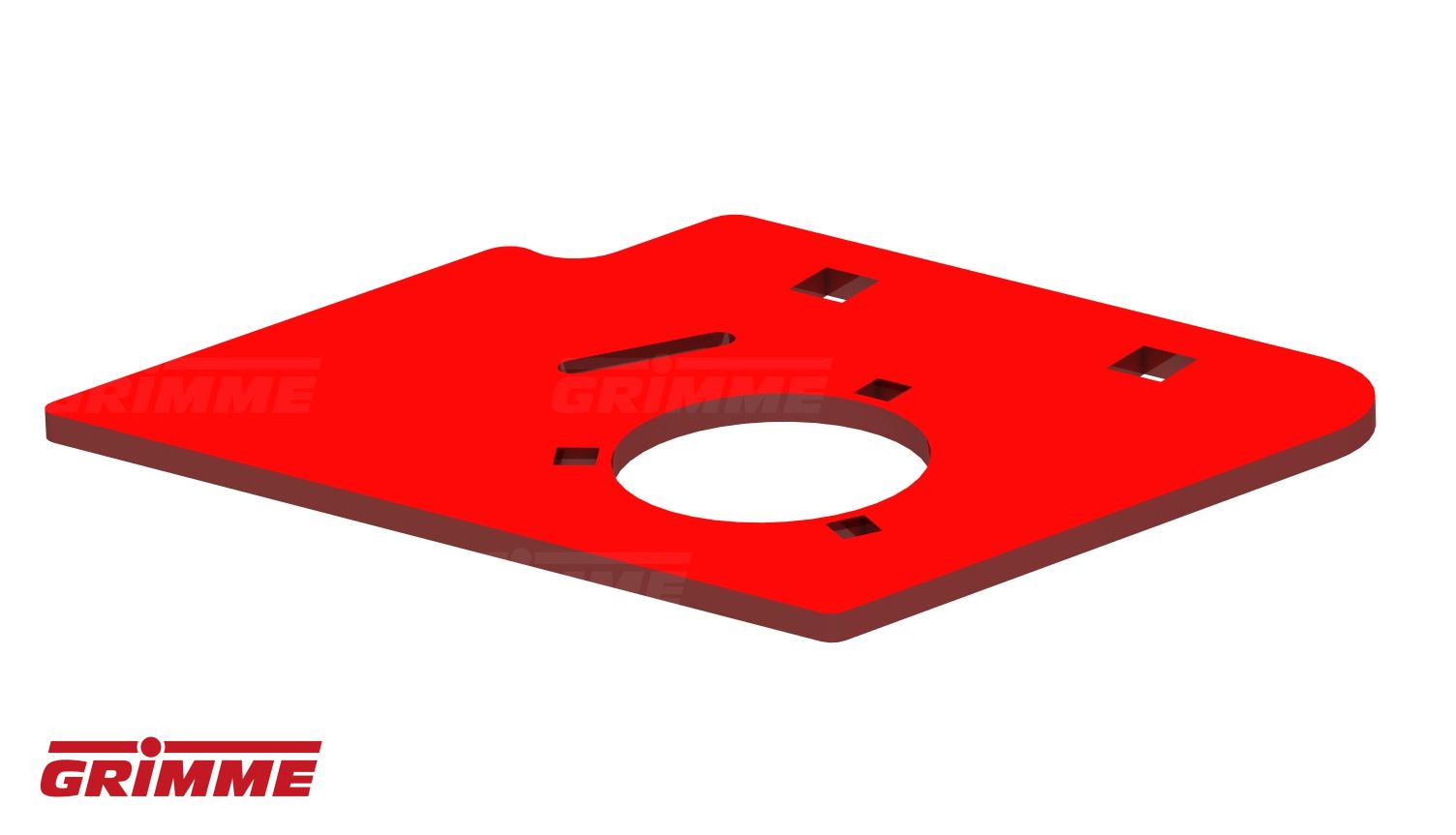

PLATE

Quantity in assembly group: 4 Piece / Pos. 1

CHAIN 3/4"X1/2"-ASA 60H-58R

Quantity in assembly group: 1 Piece / Pos. 2

SPROCKET ASA60-T15

Quantity in assembly group: 5 Piece / Pos. 3

SPROCKET 3/4X1/2-T38

Quantity in assembly group: 1 Piece / Pos. 4

SPACER TUBE

Quantity in assembly group: 6 Piece / Pos. 6

SPACER RING

Quantity in assembly group: 2 Piece / Pos. 7

CLAMPING RING

Quantity in assembly group: 2 Piece / Pos. 8

FEATHER KEY A 10X8X35 DIN6885

Quantity in assembly group: 1 Piece / Pos. 9

SPACER TUBE

Quantity in assembly group: 6 Piece / Pos. 10

FEATHER KEY A 10X8X30 DIN6885

Quantity in assembly group: 5 Piece / Pos. 11

SPACER TUBE

Quantity in assembly group: 4 Piece / Pos. 12

CHAIN TENSIONER

Quantity in assembly group: 4 Piece / Pos. 13

RETAINING WASHER

Quantity in assembly group: 5 Piece / Pos. 14

DISC A 8,4 DIN9021-GAL

Quantity in assembly group: 6 Piece / Pos. 15

CHAIN 3/4"X1/2"-ASA 60H-42R

Quantity in assembly group: 2 Piece / Pos. 16

MH-SCREW M8X75-603-8.8-GAL

Quantity in assembly group: 2 Piece / Pos. 17

SET SCREW M12X20-DIN933-8.8-G

Quantity in assembly group: 5 Piece / Pos. 18

NYLOC NUT DIN985-M8-8-GAL

Quantity in assembly group: 2 Piece / Pos. 19

IDLER SPROCKET 3/4"-T15

Quantity in assembly group: 1 Piece / Pos. 20

BALL BEARING 6205-2RS

Quantity in assembly group: 1 Piece / Pos. 21

RETAINING RING J 52X2 DIN472

Quantity in assembly group: 1 Piece / Pos. 22

RETAINING RING A 25X1,2 DIN471

Quantity in assembly group: 1 Piece / Pos. 23

SPROCKET 3/4"-T15

Quantity in assembly group: 1 Piece / Pos. 24

BEARING BECK

Quantity in assembly group: 1 Piece / Pos. 25

SHIM WASHER PS 25X36X1 DIN988

Quantity in assembly group: 10 Piece / Pos. 26

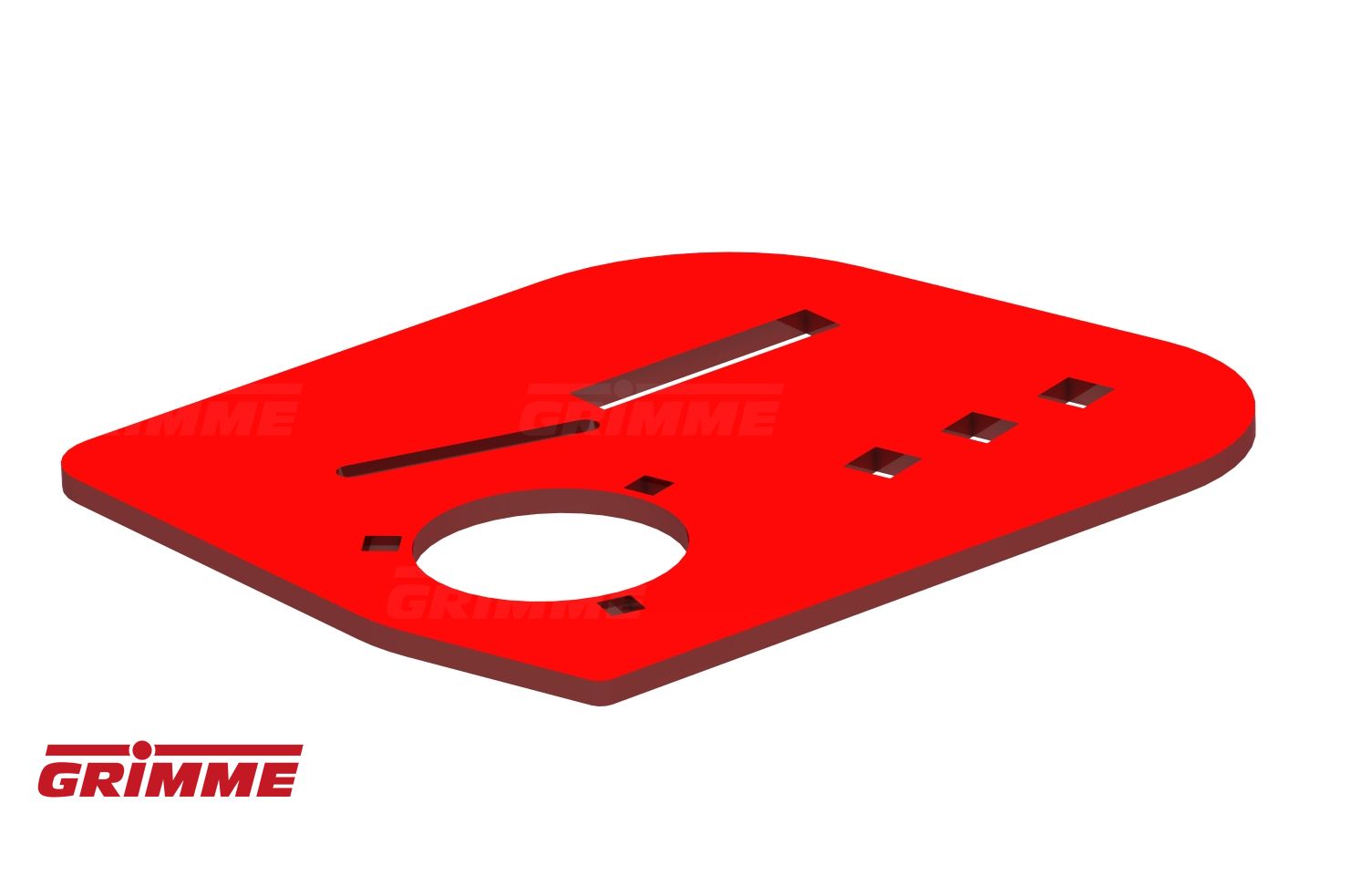

PLATE

Quantity in assembly group: 2 Piece / Pos. 27

MH-SCREW wSS M16X100 603-8.8

Quantity in assembly group: 4 Piece / Pos. 28
