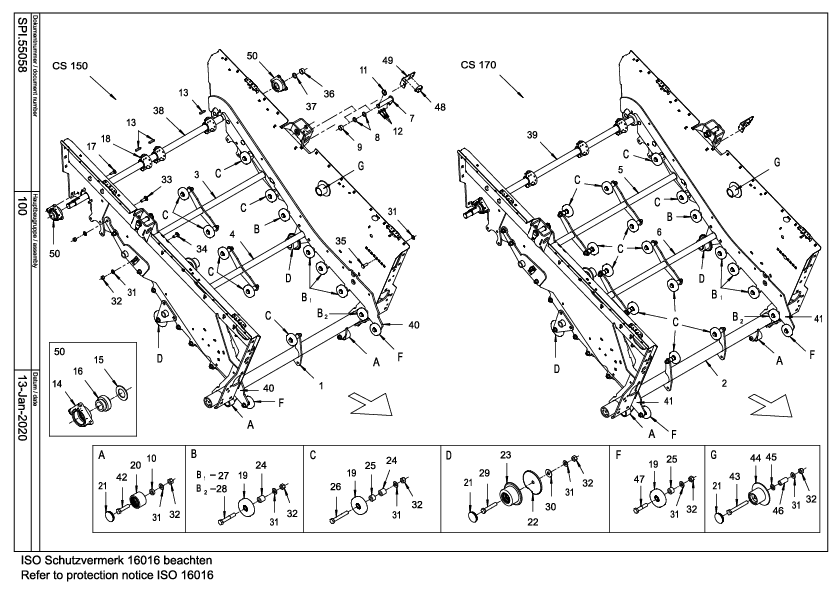

Parts by subassemblies

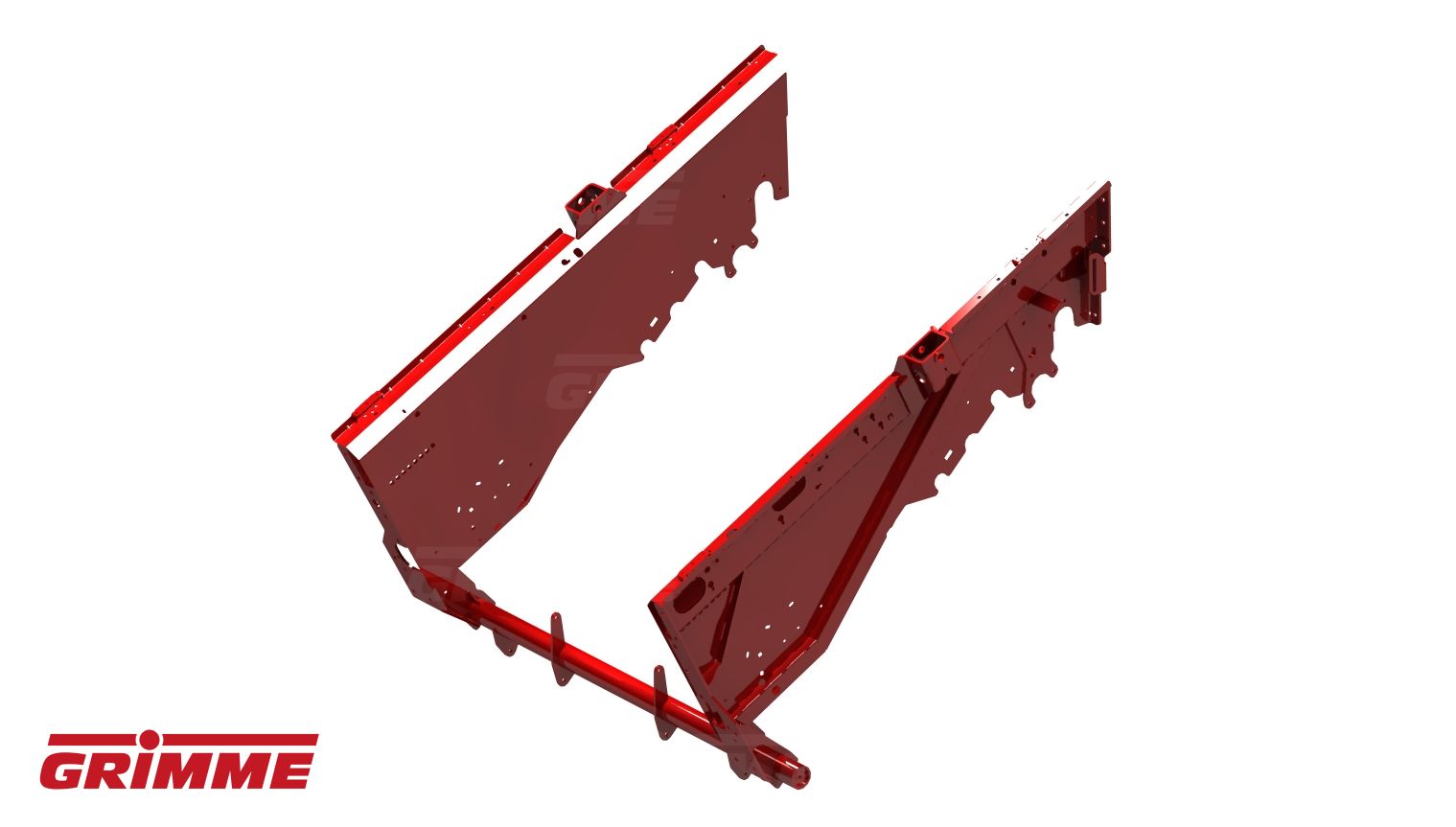

MAIN WEB FRAME 150

Quantity in assembly group: 1 Piece / Pos. 1

MAIN WEB FRAME LG 170

Quantity in assembly group: 1 Piece / Pos. 2

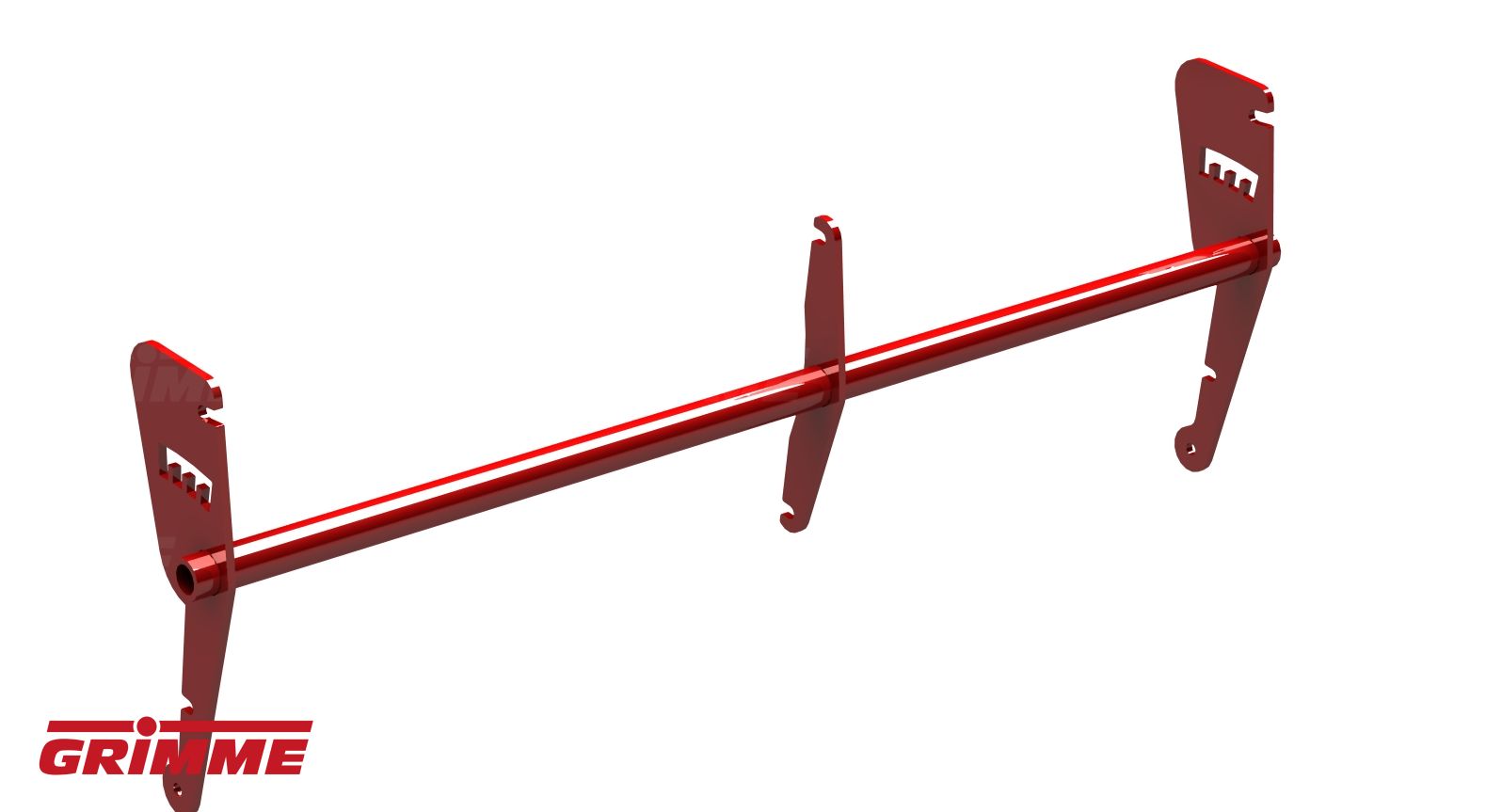

ROLLER HOLDER

Quantity in assembly group: 1 Piece / Pos. 3

ROLLER HOLDER

Quantity in assembly group: 1 Piece / Pos. 4

ROLLER HOLDER 170

Quantity in assembly group: 1 Piece / Pos. 5

ROLLER HOLDER 170

Quantity in assembly group: 1 Piece / Pos. 6

BOLT LONG

Quantity in assembly group: 2 Piece / Pos. 7

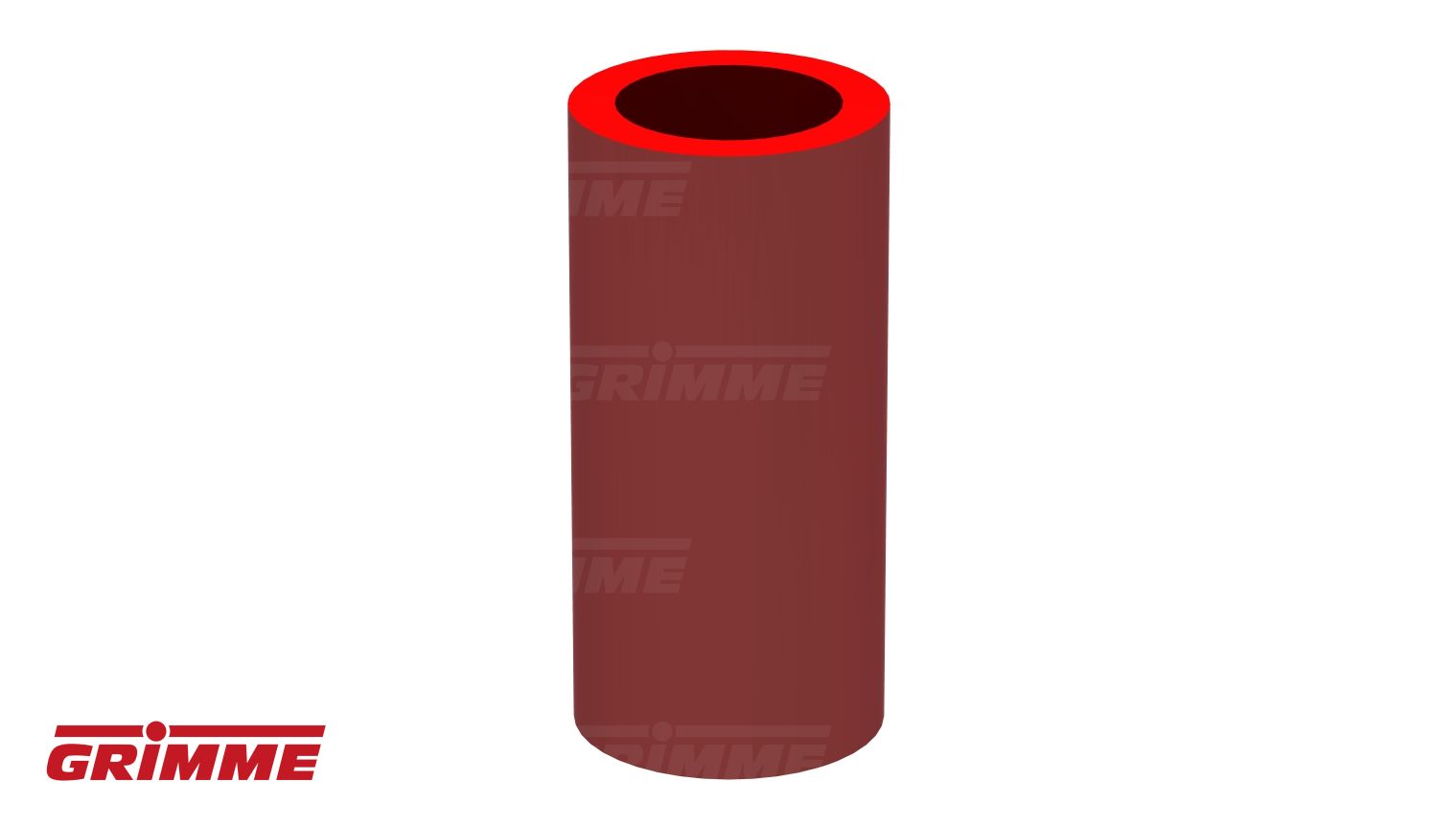

SPACER TUBE

Quantity in assembly group: 4 Piece / Pos. 8

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 9

SPACER PIECE 16,5X30X10

Quantity in assembly group: 1 Piece / Pos. 10

LINCH PIN 4,5

Quantity in assembly group: 2 Piece / Pos. 11

DISC A 8,4 DIN9021-GAL

Quantity in assembly group: 6 Piece / Pos. 12

FEATHER KEY A 12X8X55 DIN6885

Quantity in assembly group: 4 Piece / Pos. 13

BEARING HOUSING

Quantity in assembly group: 1 Piece / Pos. 14

SEALING RING 84-50-4

Quantity in assembly group: 1 Piece / Pos. 15

BEARING YEL 209-2FF

Quantity in assembly group: 1 Piece / Pos. 16

MH-SCREW M12X45 DIN603-8.8GAL

Quantity in assembly group: 6 Piece / Pos. 17

SPLIT ROLLER HUB D50

Quantity in assembly group: 4 Piece / Pos. 18

ROLLER D100

Quantity in assembly group: 1 Piece / Pos. 19

SUPPORT ROLLER DM75

Quantity in assembly group: 1 Piece / Pos. 20

ROLLER CAP

Quantity in assembly group: 1 Piece / Pos. 21

WINDING PROTECTION

Quantity in assembly group: 1 Piece / Pos. 22

FLANGE ROLLER D95

Quantity in assembly group: 1 Piece / Pos. 23

SPACER 16,5X30X30

Quantity in assembly group: 1 Piece / Pos. 24

SPACER 20MM

Quantity in assembly group: 1 Piece / Pos. 25

HEX BOLT M16X110-DIN931-8.8-G

Quantity in assembly group: 1 Piece / Pos. 26

HEX BOLT M16X85-DIN931-8.8-G

Quantity in assembly group: 1 Piece / Pos. 27

HEX BOLT M16X100 DIN931-8.8-G

Quantity in assembly group: 1 Piece / Pos. 28

HEX BOLT M16X90-DIN931-8.8-G

Quantity in assembly group: 1 Piece / Pos. 29

PLAIN WASHER 17X44X3 GAL

Quantity in assembly group: 1 Piece / Pos. 30

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 1 Piece / Pos. 31

HEXAGON NUT M16 DIN934-8-GAL

Quantity in assembly group: 1 Piece / Pos. 32

COACH BOLT/SS M16X50-603-8.8-G

Quantity in assembly group: 2 Piece / Pos. 33

COACH BOLT/SS M16X40-603-8.8-G

Quantity in assembly group: 2 Piece / Pos. 34

CS-SCREW M16X50 7991-GAL

Quantity in assembly group: 2 Piece / Pos. 35

SPACER RING

Quantity in assembly group: 1 Piece / Pos. 36

SPACER RING

Quantity in assembly group: 1 Piece / Pos. 37

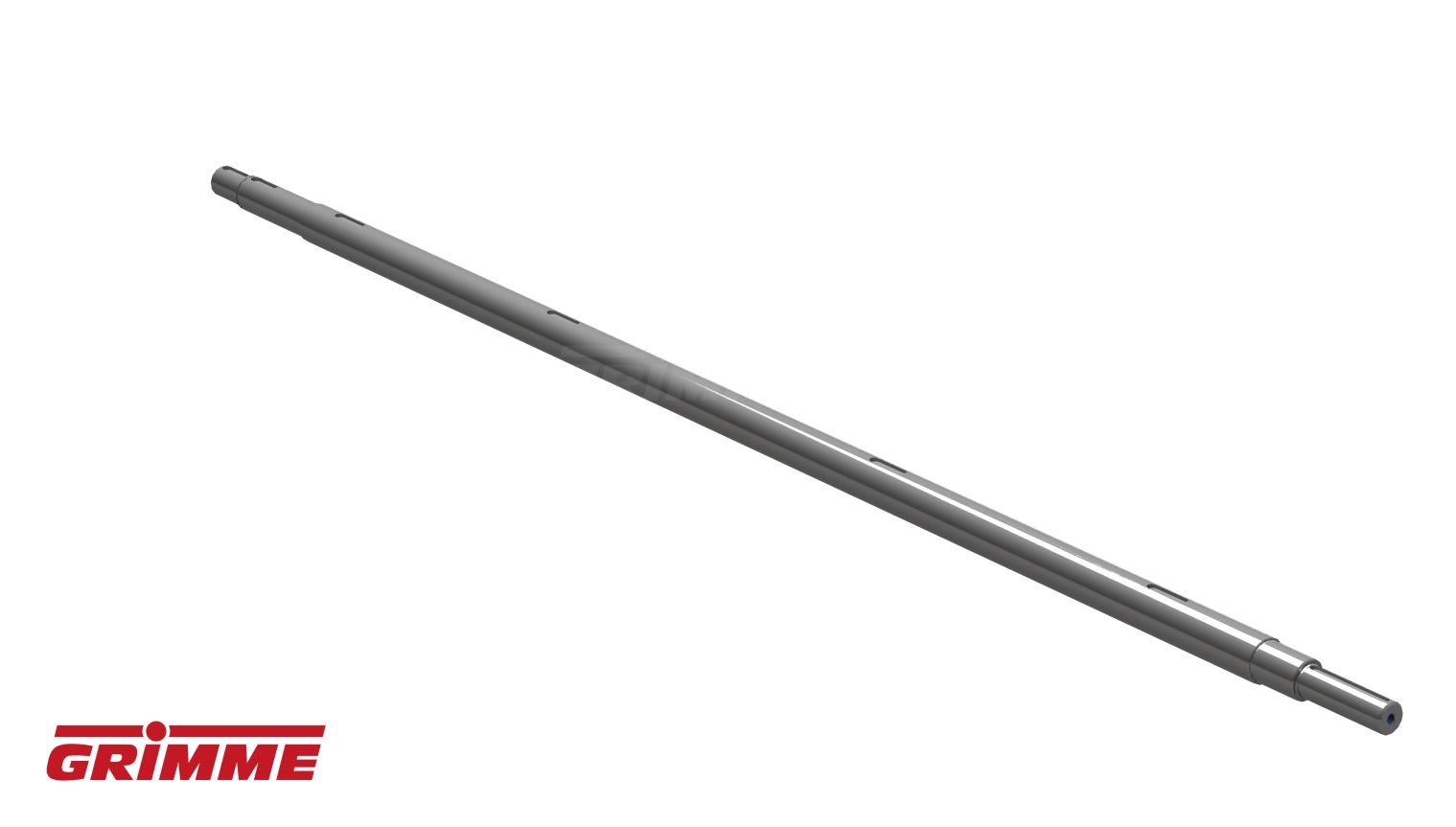

2ND WEB DRIVE SHAFT CS150

Quantity in assembly group: 1 Piece / Pos. 38

2ND WEB DRIVE SHAFT CS170

Quantity in assembly group: 1 Piece / Pos. 39

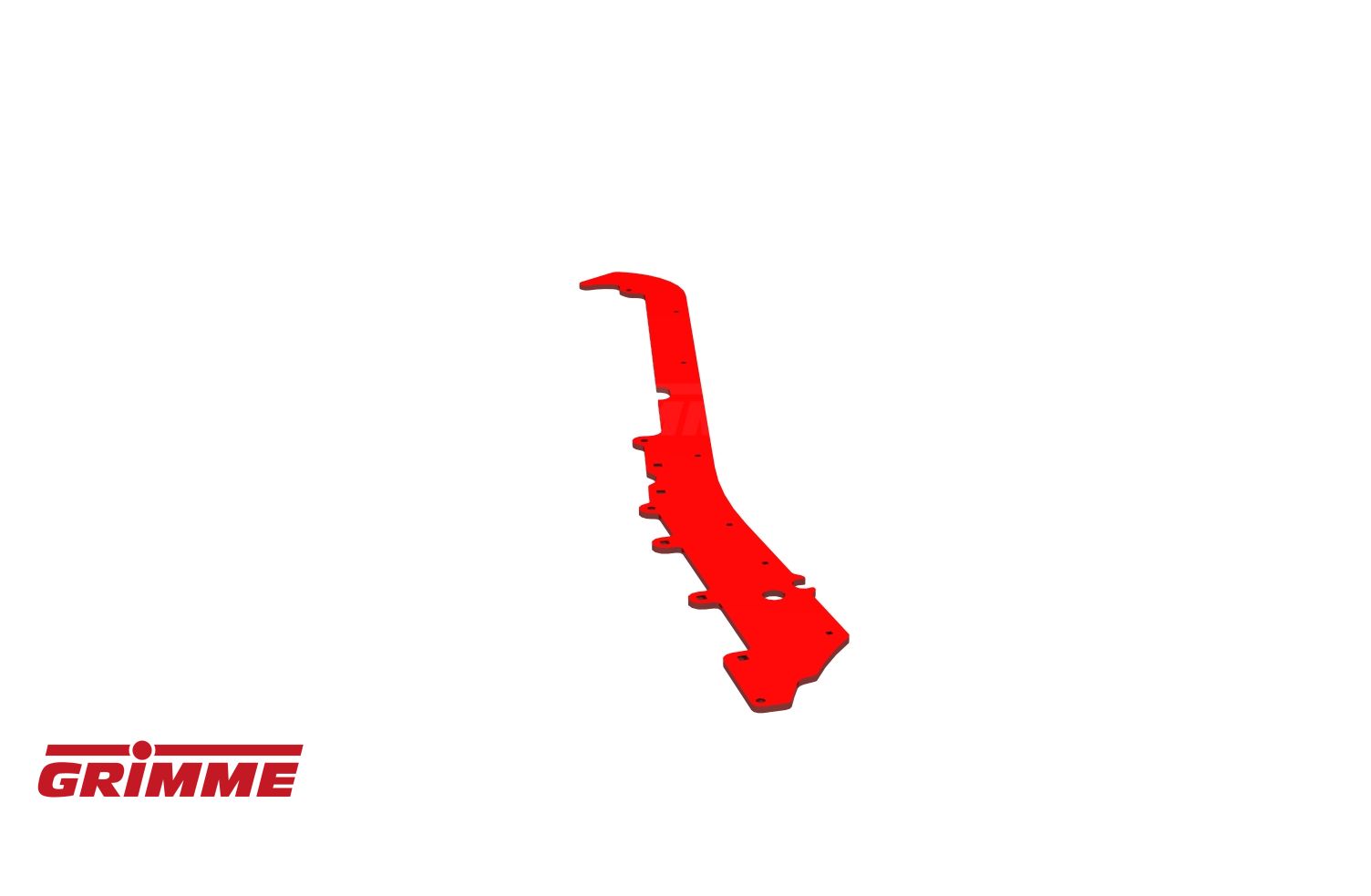

WEAR GUARD 2.MAIN WEB LG 150

Quantity in assembly group: 2 Piece / Pos. 40

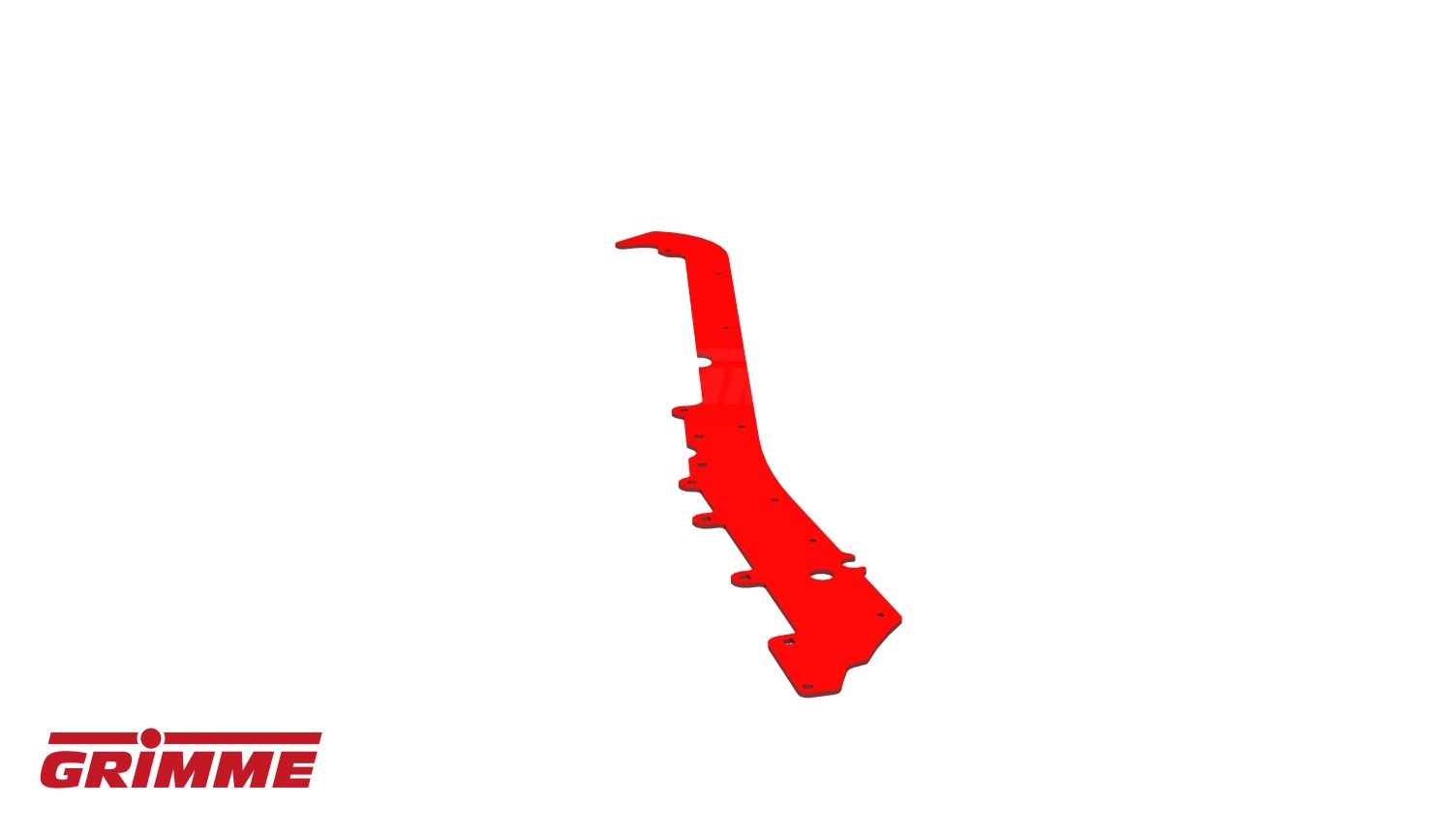

WEAR GUARD 170

Quantity in assembly group: 2 Piece / Pos. 41

HEX BOLT M16X70-DIN931-8.8-G

Quantity in assembly group: 1 Piece / Pos. 42

HEX BOLT M16X130-DIN931-8.8-G

Quantity in assembly group: 1 Piece / Pos. 43

FLANGED SUPPORT ROLLER D75

Quantity in assembly group: 1 Piece / Pos. 44

PLAIN WASHER 17X30X4

Quantity in assembly group: 1 Piece / Pos. 45

HINGE TUBE

Quantity in assembly group: 1 Piece / Pos. 46

HEX BOLT M16X75-DIN931-8.8-G

Quantity in assembly group: 1 Piece / Pos. 47

LEVELLING SENSOR,+/-20,4-20mA

Quantity in assembly group: 1 Piece / Pos. 48

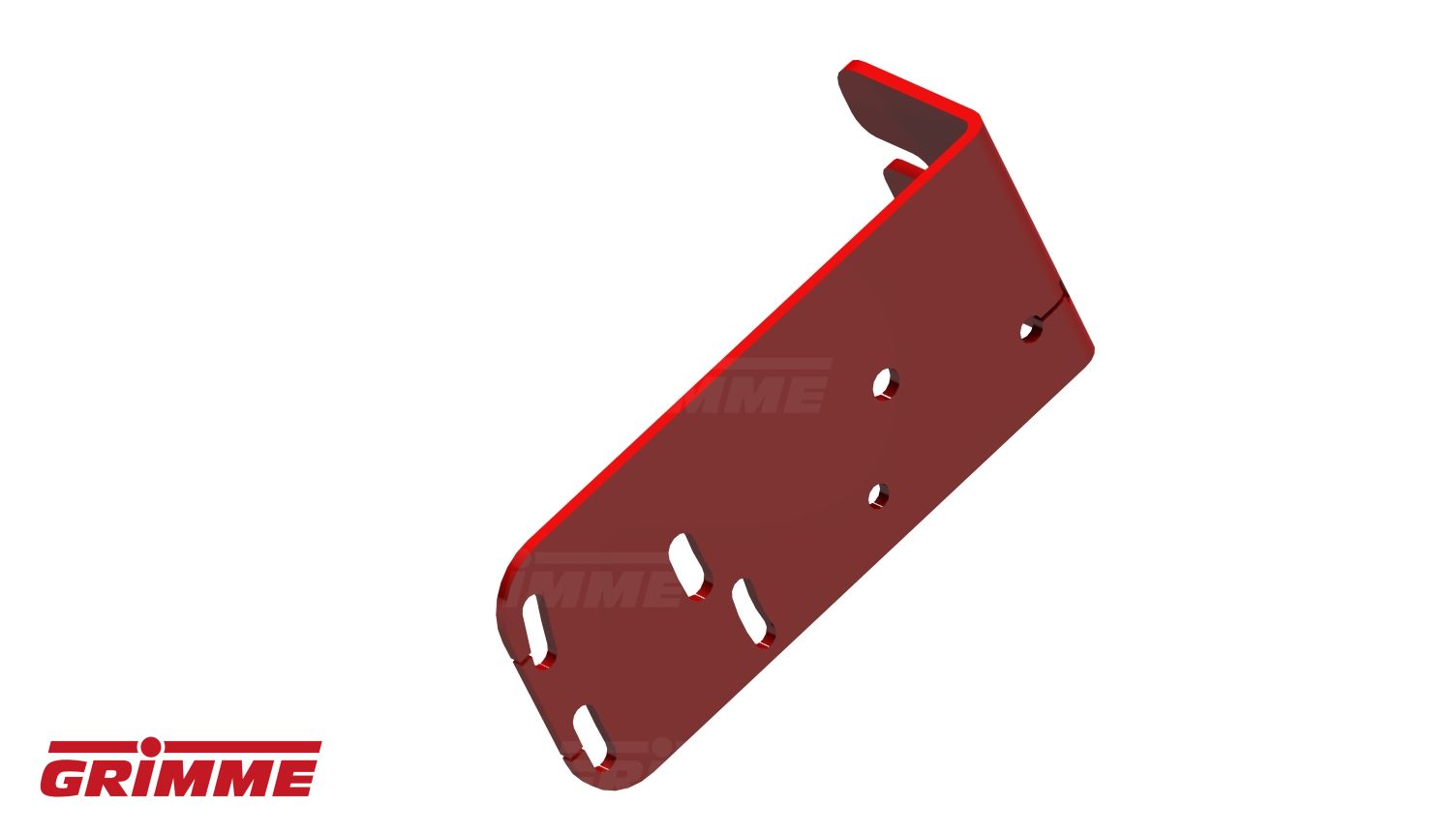

BRACKET

Quantity in assembly group: 1 Piece / Pos. 49

BEARING CPTE B45

Quantity in assembly group: 2 Piece / Pos. 50
