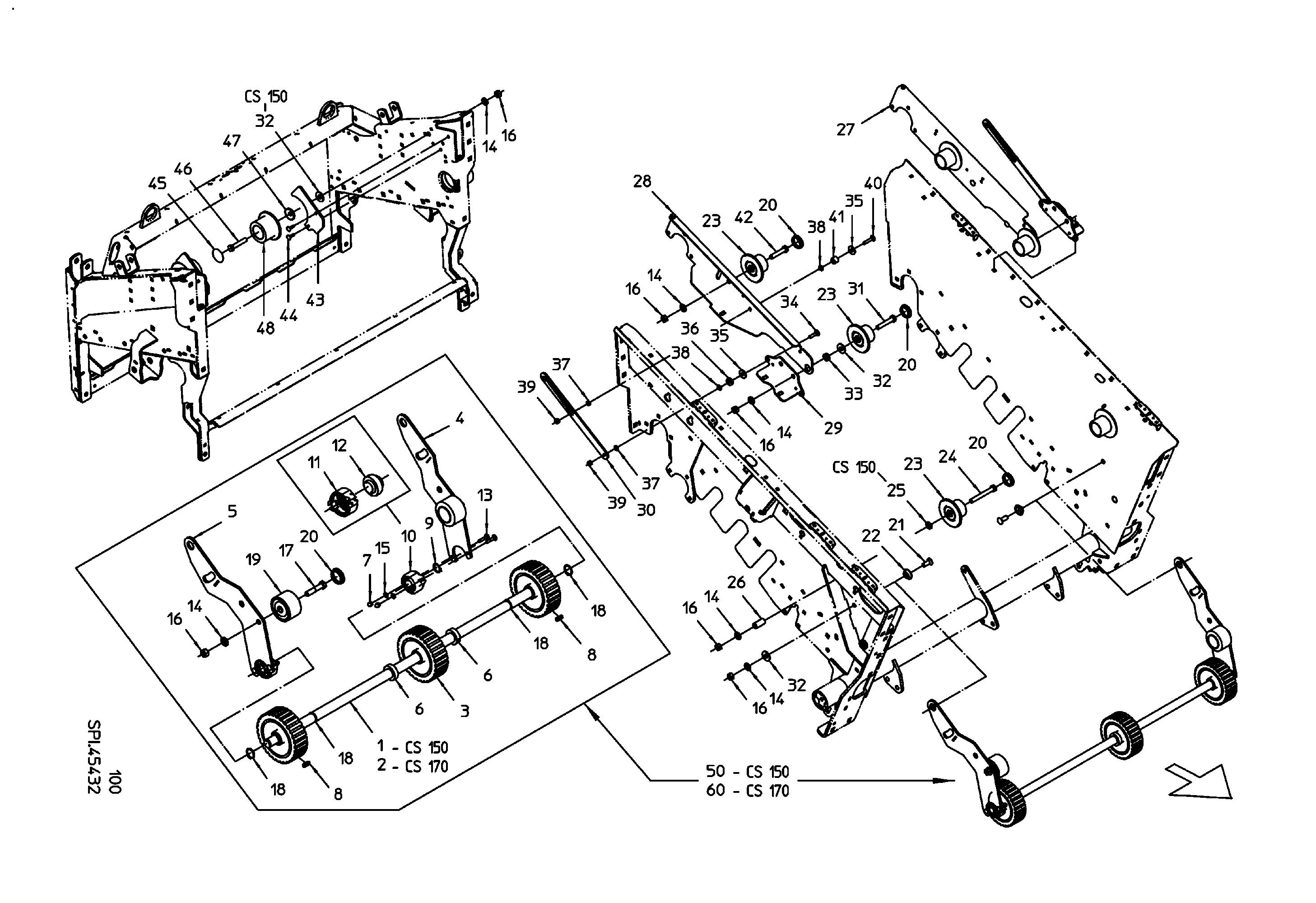

Parts by subassemblies

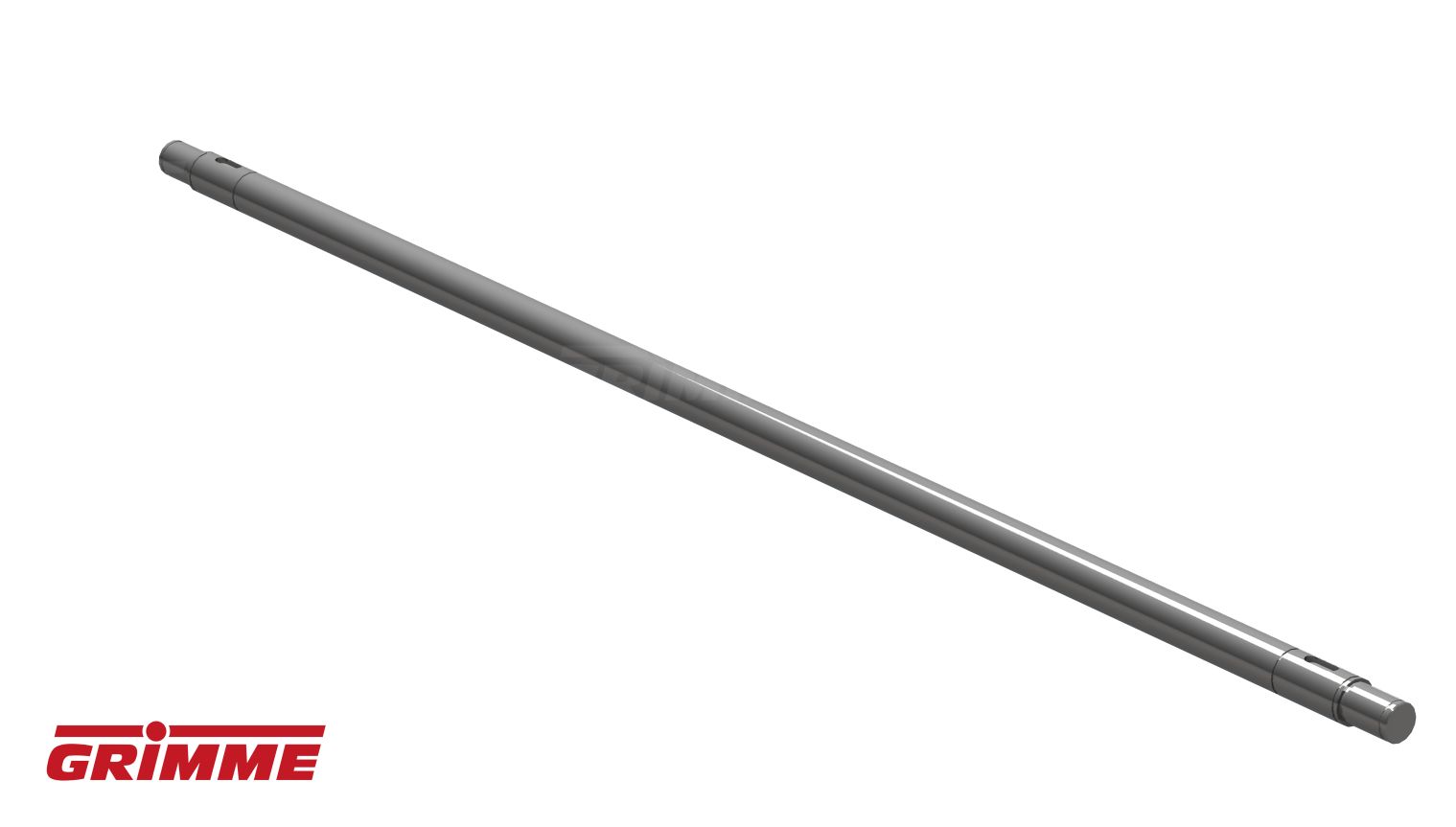

LOWER SHAFT CS150

Quantity in assembly group: 1 Piece / Pos. 1

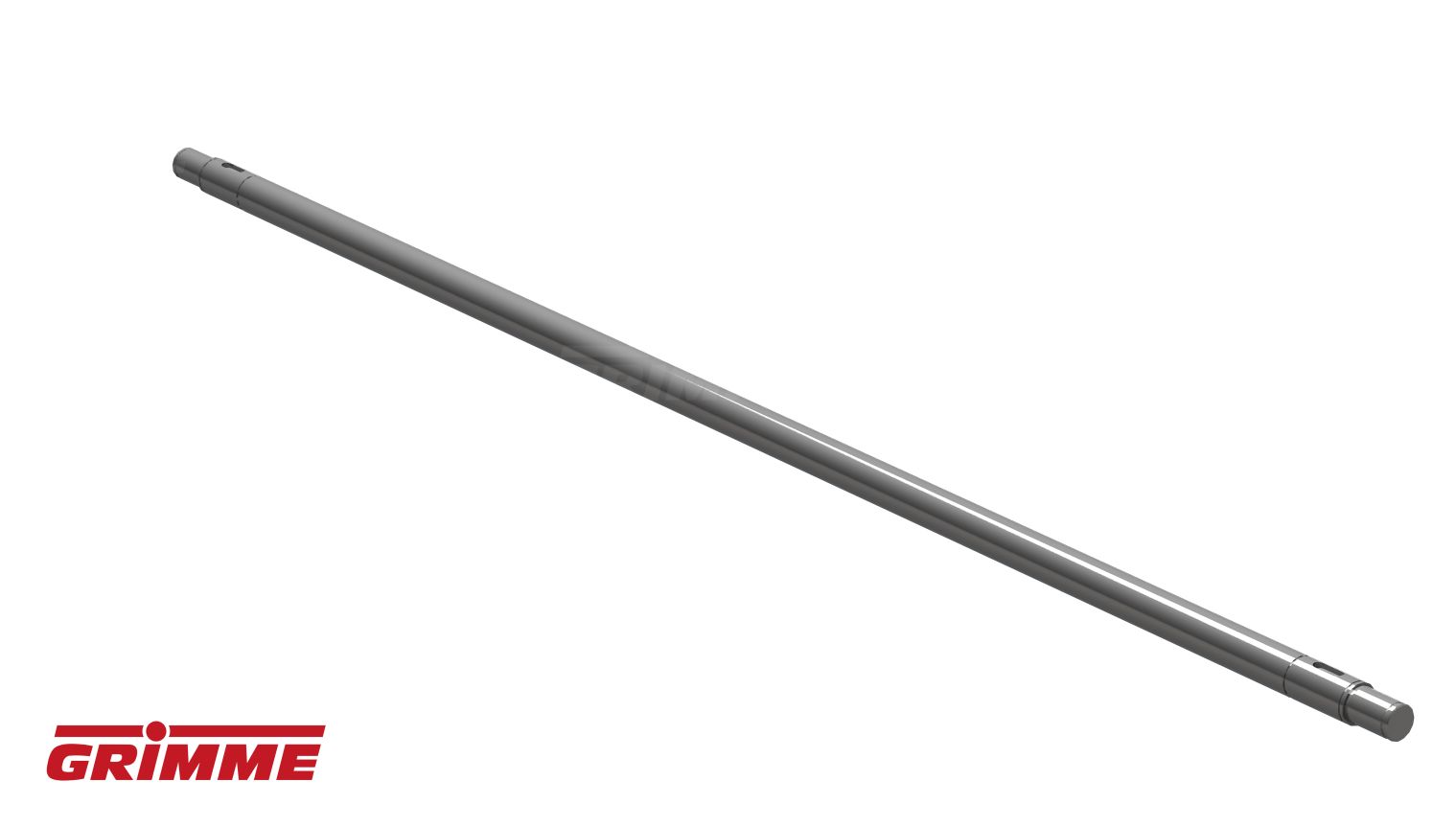

LOWER SHAFT CS170

Quantity in assembly group: 1 Piece / Pos. 2

DRIVE ROLLER

Quantity in assembly group: 3 Piece / Pos. 3

PLATE L/H

Quantity in assembly group: 1 Piece / Pos. 4

PLATE R/H

Quantity in assembly group: 1 Piece / Pos. 5

SET COLLAR A35 DIN705

Quantity in assembly group: 2 Piece / Pos. 6

DOME NUT DIN1587 M8-GAL

Quantity in assembly group: 4 Piece / Pos. 7

FEATHER KEY A 10X8X30 DIN6885

Quantity in assembly group: 2 Piece / Pos. 8

RETAINING RING AS 30X2 DIN471

Quantity in assembly group: 2 Piece / Pos. 9

FLANGE BEARING

Quantity in assembly group: 2 Piece / Pos. 10

BEARING HOUSING

Quantity in assembly group: 1 Piece / Pos. 11

BEARING YAR 206-2RF/UC206

Quantity in assembly group: 1 Piece / Pos. 12

COACH BOLT M8X40-DIN603-8.8-G

Quantity in assembly group: 4 Piece / Pos. 13

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 9 Piece / Pos. 14

CONTACT WASHER FORM M 8-GAL

Quantity in assembly group: 2 Piece / Pos. 15

HEXAGON NUT M16 DIN934-8-GAL

Quantity in assembly group: 11 Piece / Pos. 16

HEX BOLT M16X75-DIN931-8.8-G

Quantity in assembly group: 2 Piece / Pos. 17

RETAINING RING A 35X1,5 DIN471

Quantity in assembly group: 2 Piece / Pos. 18

SUPPORT ROLLER D95

Quantity in assembly group: 2 Piece / Pos. 19

ROLLER CAP

Quantity in assembly group: 8 Piece / Pos. 20

CS-SCREW M16X40 DIN7991

Quantity in assembly group: 2 Piece / Pos. 21

BUSHING

Quantity in assembly group: 2 Piece / Pos. 22

FLANGED SUPPORT ROLLER D75

Quantity in assembly group: 6 Piece / Pos. 23

HEX BOLT M16X130-DIN931-8.8-G

Quantity in assembly group: 2 Piece / Pos. 24

PLAIN WASHER 17X30X4

Quantity in assembly group: 2 Piece / Pos. 25

HINGE TUBE

Quantity in assembly group: 2 Piece / Pos. 26

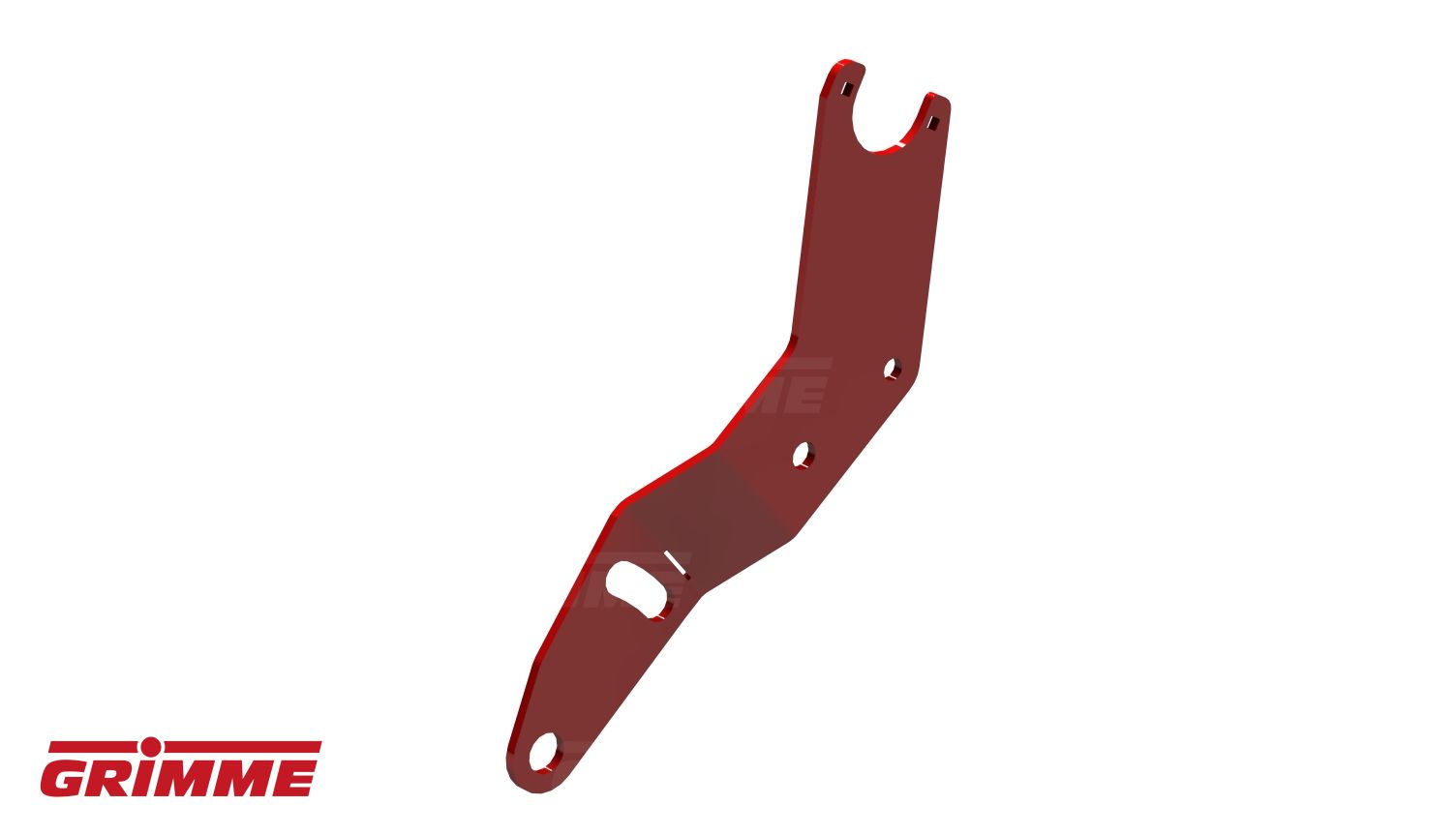

BRACKET L/H

Quantity in assembly group: 1 Piece / Pos. 27

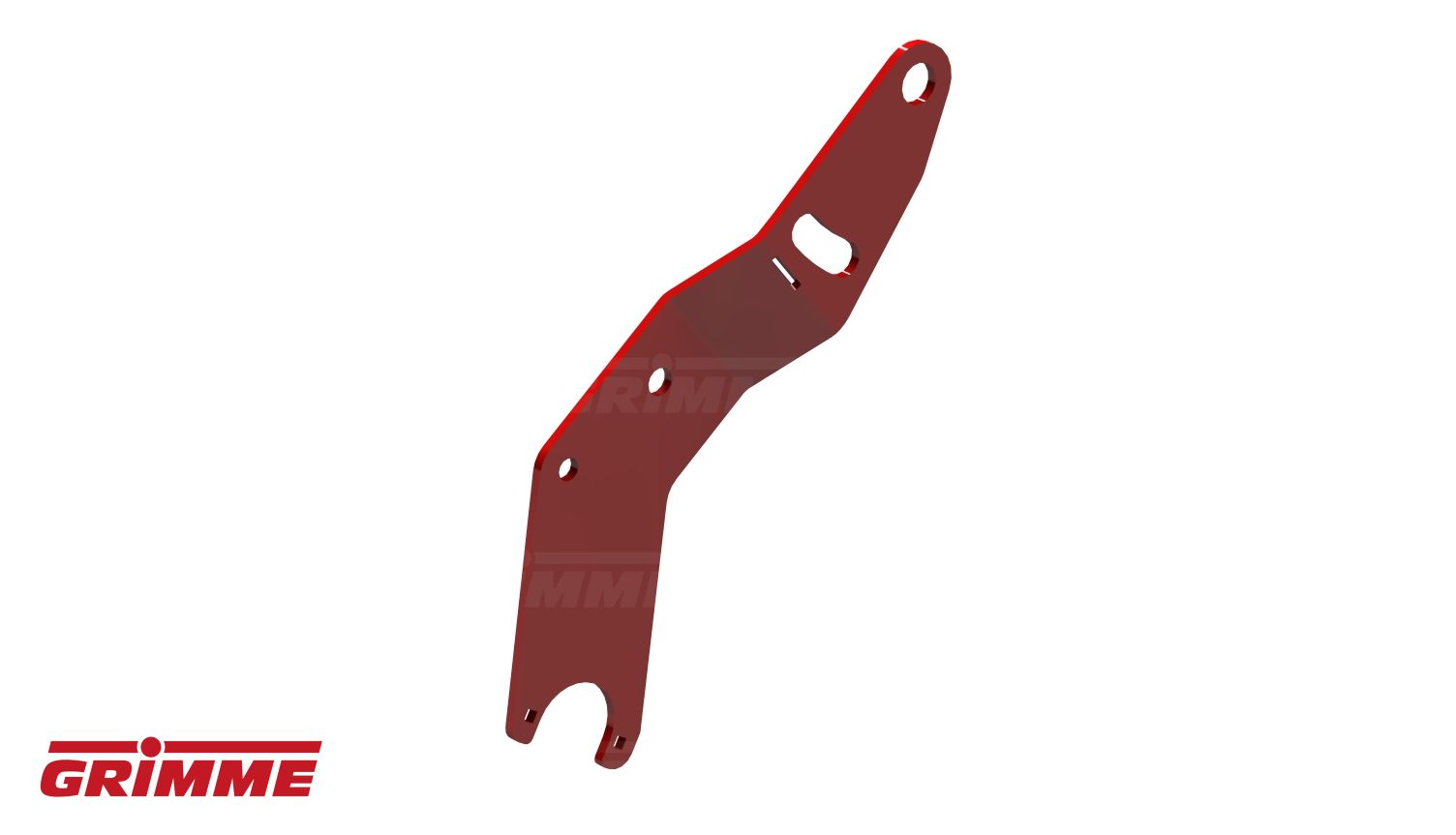

BRACKET R/H

Quantity in assembly group: 1 Piece / Pos. 28

BRACKET

Quantity in assembly group: 2 Piece / Pos. 29

BRACKET

Quantity in assembly group: 2 Piece / Pos. 30

HEX BOLT M16X90-DIN931-8.8-G

Quantity in assembly group: 2 Piece / Pos. 31

PLAIN WASHER 17X44X3 GAL

Quantity in assembly group: 5 Piece / Pos. 32

SPACER PIECE 16,5X30X10

Quantity in assembly group: 2 Piece / Pos. 33

MH-SCREW M10X45-603-8.8-GAL

Quantity in assembly group: 2 Piece / Pos. 34

DISC A 13 DIN9021-GAL

Quantity in assembly group: 4 Piece / Pos. 35

DISC 11X30X10

Quantity in assembly group: 2 Piece / Pos. 36

HALF NUT M10 DIN936-17H-GAL

Quantity in assembly group: 4 Piece / Pos. 37

CONTACT WASHER FORM M 10-GAL

Quantity in assembly group: 4 Piece / Pos. 38

NYLOC NUT DIN985-M10-8-GAL

Quantity in assembly group: 4 Piece / Pos. 39

COACH BOLT M10X55-DIN603-8.8-G

Quantity in assembly group: 2 Piece / Pos. 40

BUSH

Quantity in assembly group: 2 Piece / Pos. 41

HEX BOLT M16X80-DIN931-8.8-G

Quantity in assembly group: 2 Piece / Pos. 42

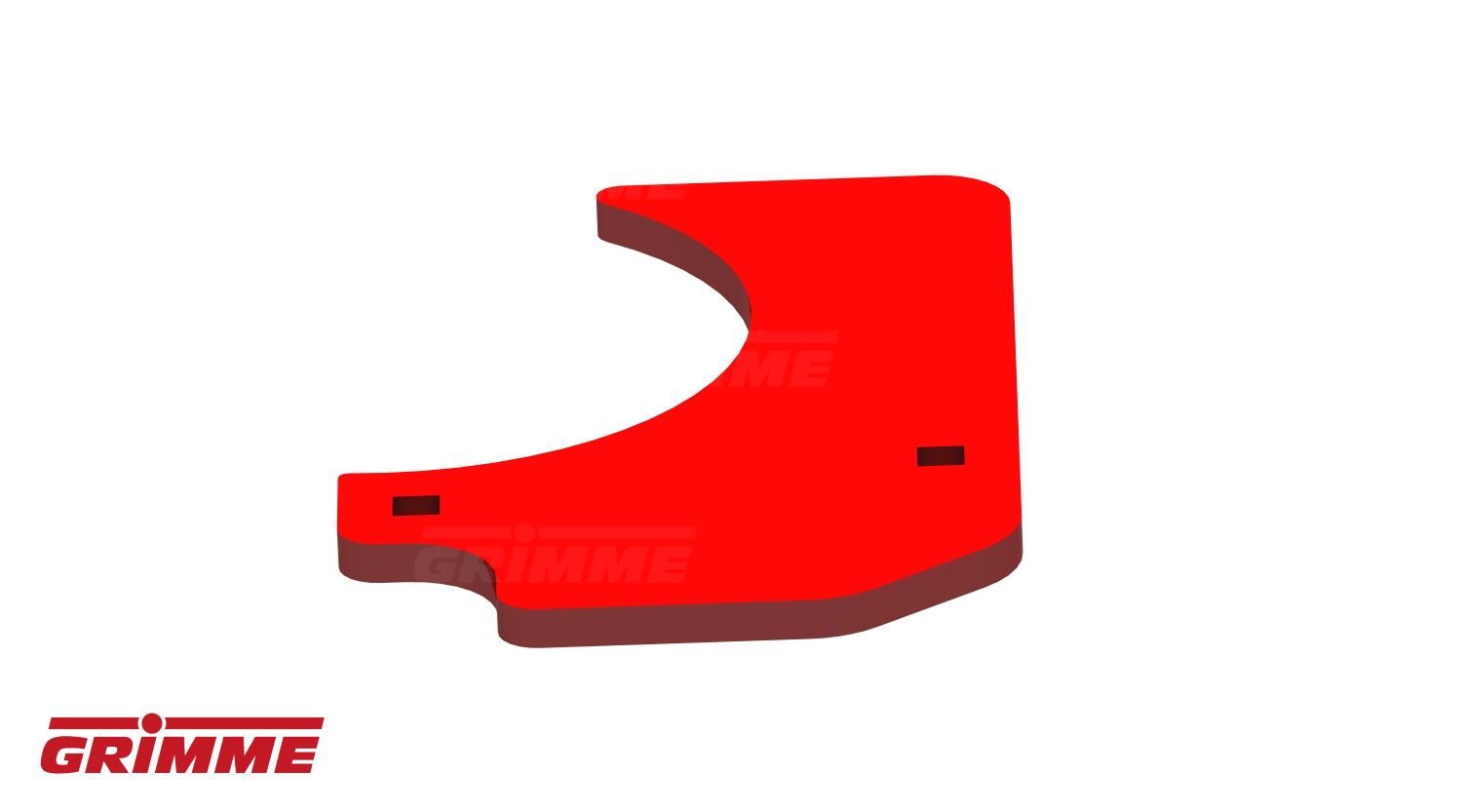

PLATE

Quantity in assembly group: 2 Piece / Pos. 43

COACH BOLT M8X30-DIN603-8.8-G

Quantity in assembly group: 4 Piece / Pos. 44

ROLLER CAP

Quantity in assembly group: 2 Piece / Pos. 45

HEX BOLT M16X85-DIN931-8.8-G

Quantity in assembly group: 2 Piece / Pos. 46

WINDING PROTECTION

Quantity in assembly group: 2 Piece / Pos. 47

STEEL ROLLER CPTE. D=95

Quantity in assembly group: 2 Piece / Pos. 48

PRA IDLER SHAFT CLM 150

Quantity in assembly group: 1 Piece / Pos. 50

PRA IDLER SHAFT CLM 170

Quantity in assembly group: 1 Piece / Pos. 60
