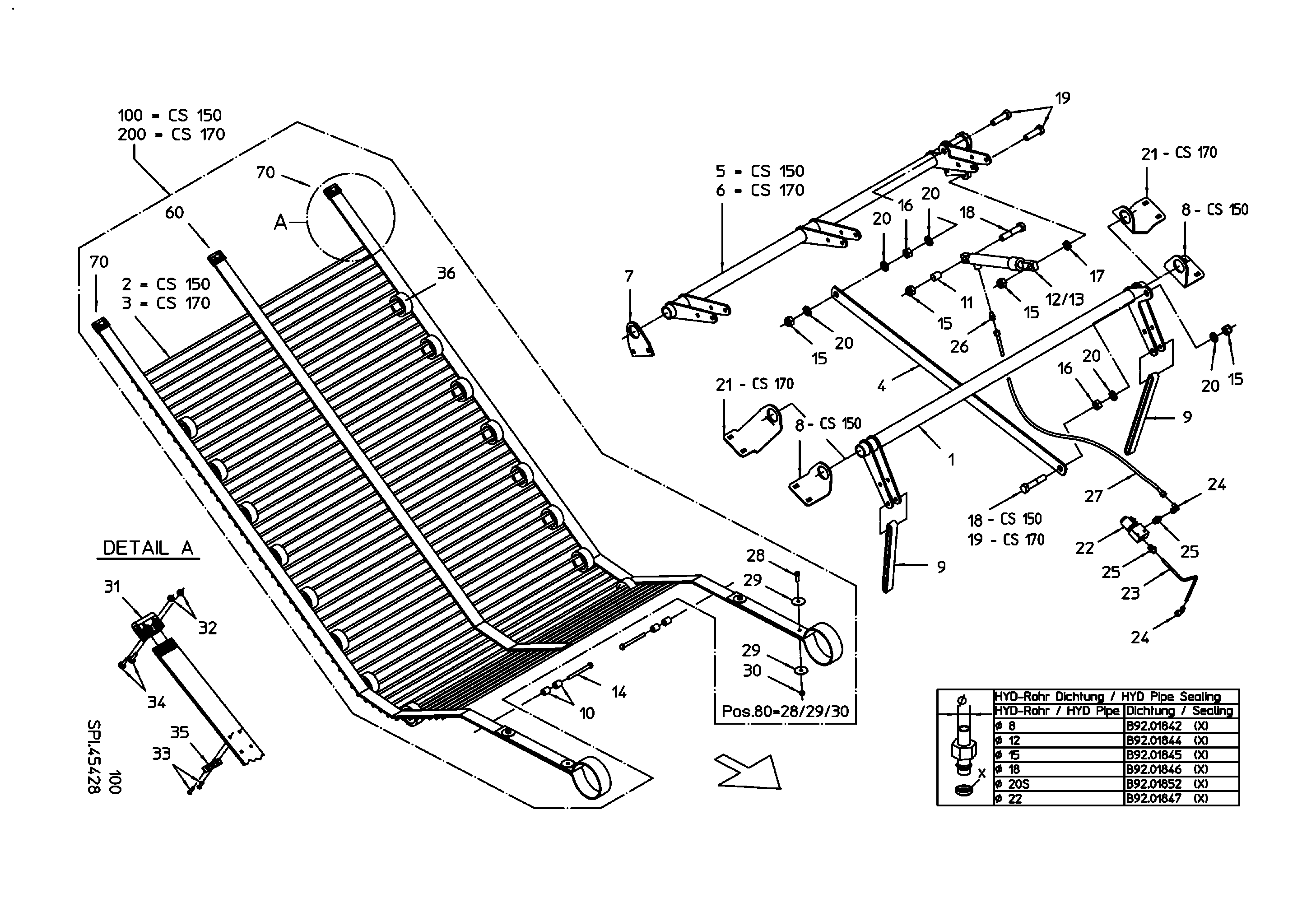

Parts by subassemblies

CROSS TUBE

Quantity in assembly group: 1 Piece / Pos. 1

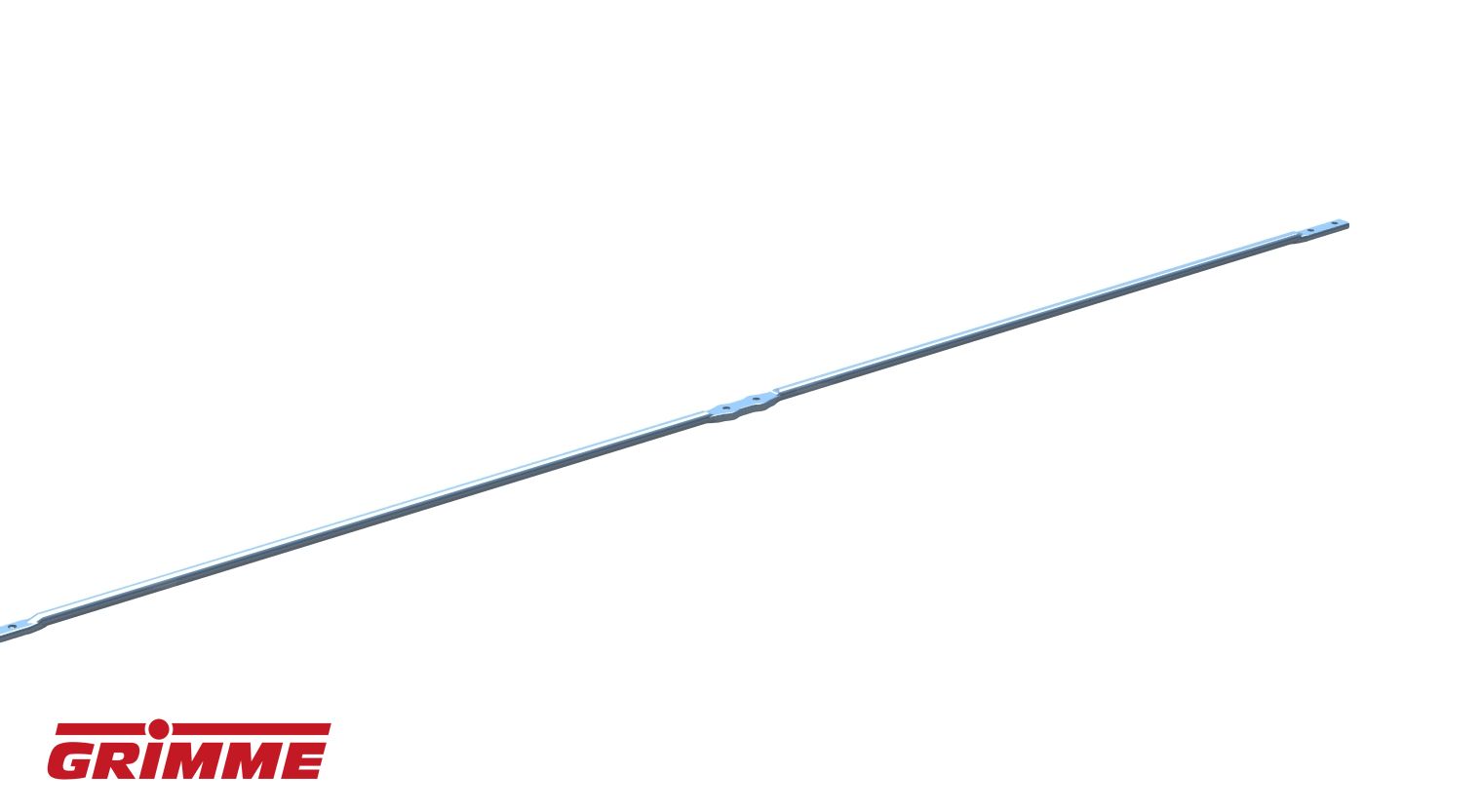

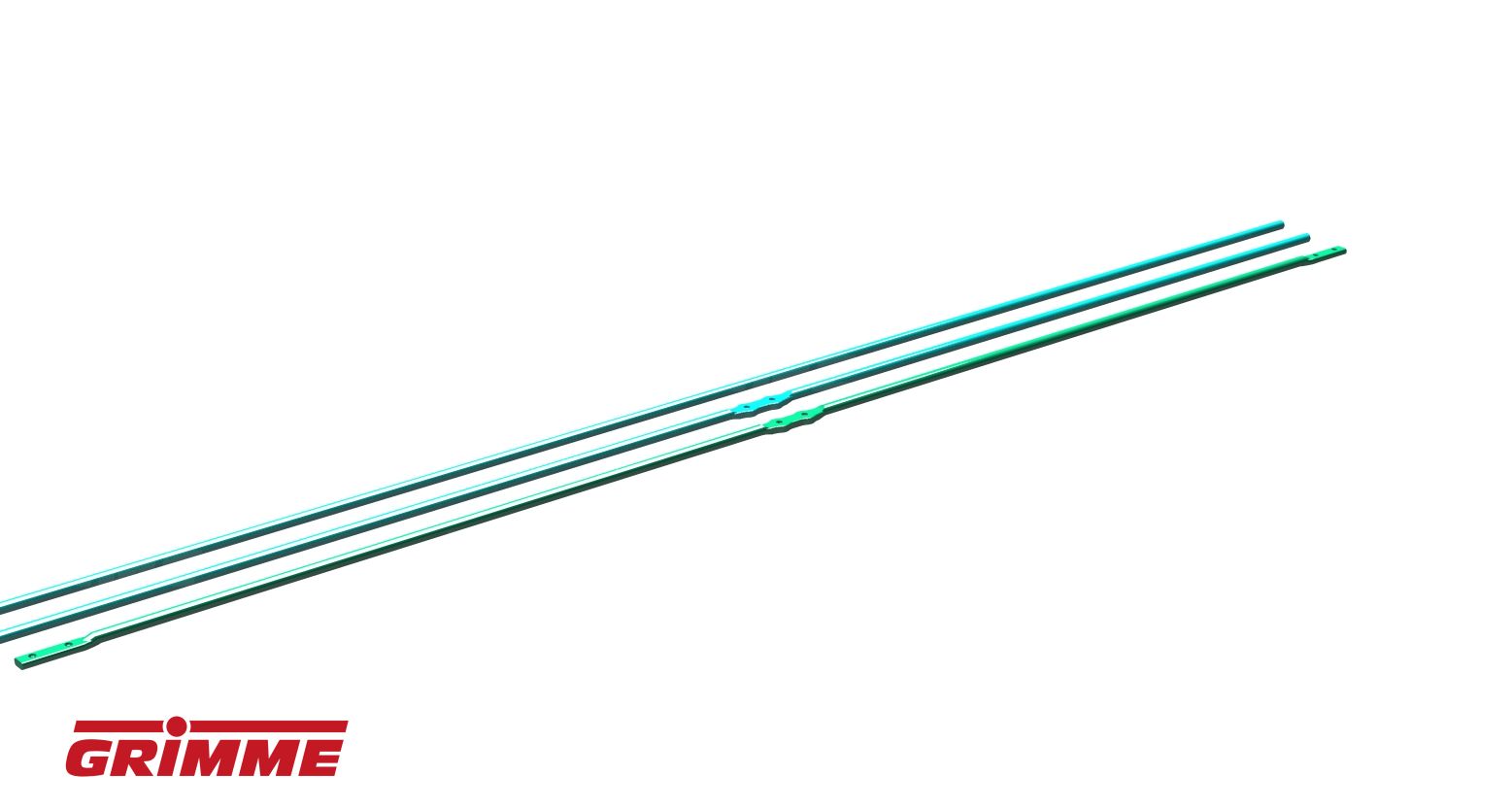

BAR 11X1456 CEFL

Quantity in assembly group: 46 Piece / Pos. 2

BAR 11X1624 CEN FLATENED

Quantity in assembly group: 46 Piece / Pos. 3

PULL STAY

Quantity in assembly group: 1 Piece / Pos. 4

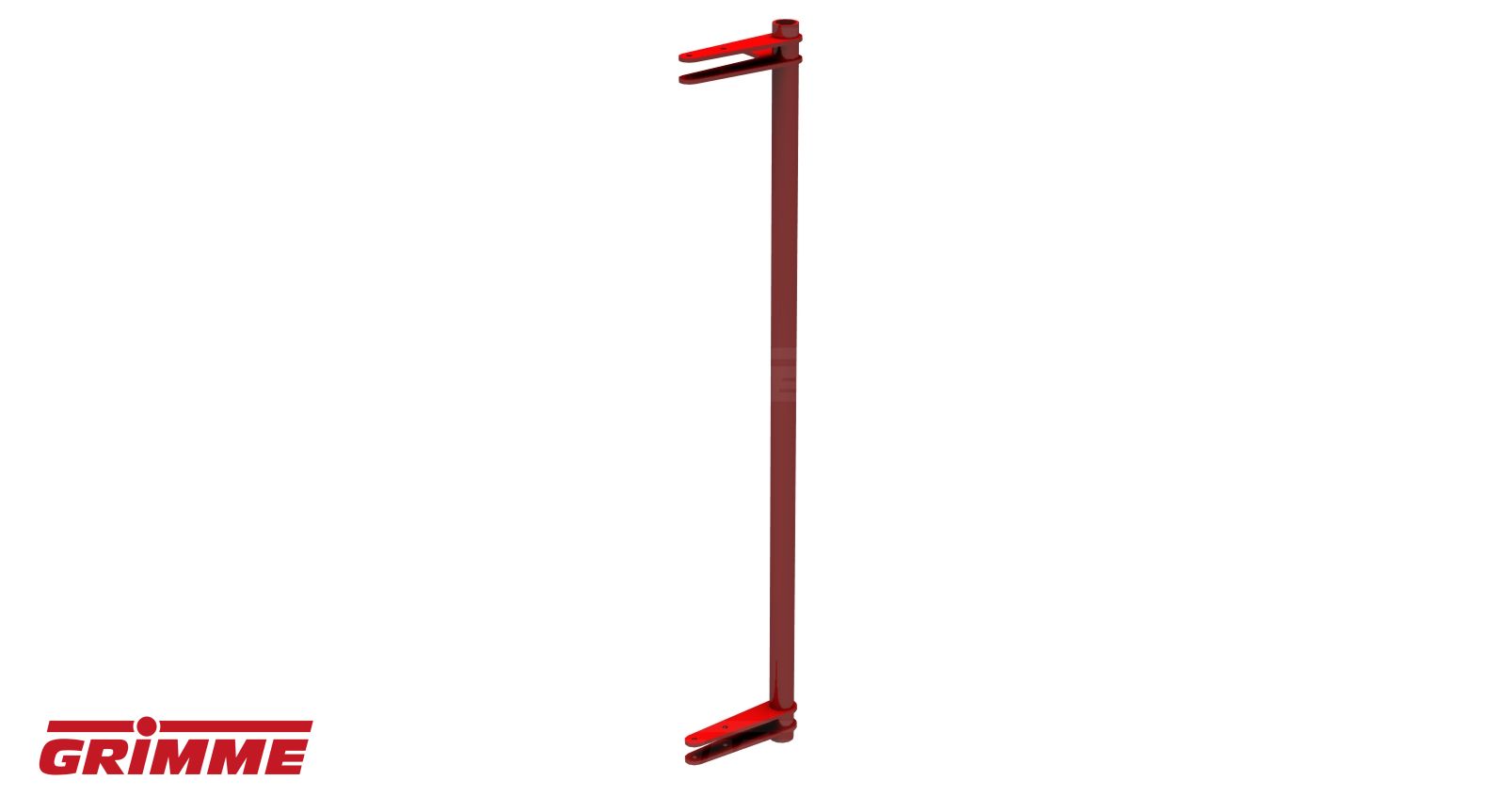

CHARGE LEVER

Quantity in assembly group: 1 Piece / Pos. 5

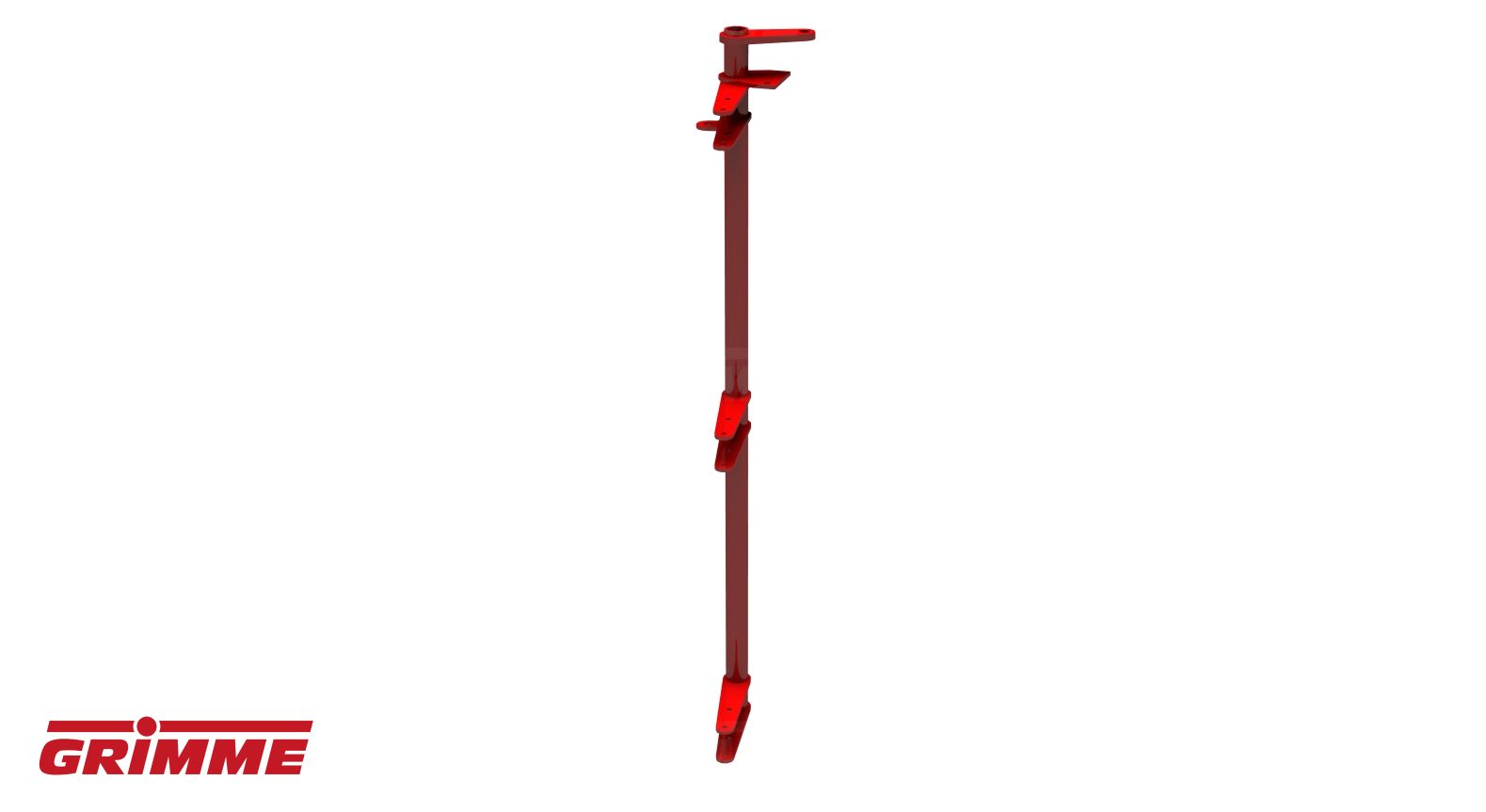

CHARGE LEVER 170

Quantity in assembly group: 1 Piece / Pos. 6

MOUNTING BRACKET

Quantity in assembly group: 1 Piece / Pos. 7

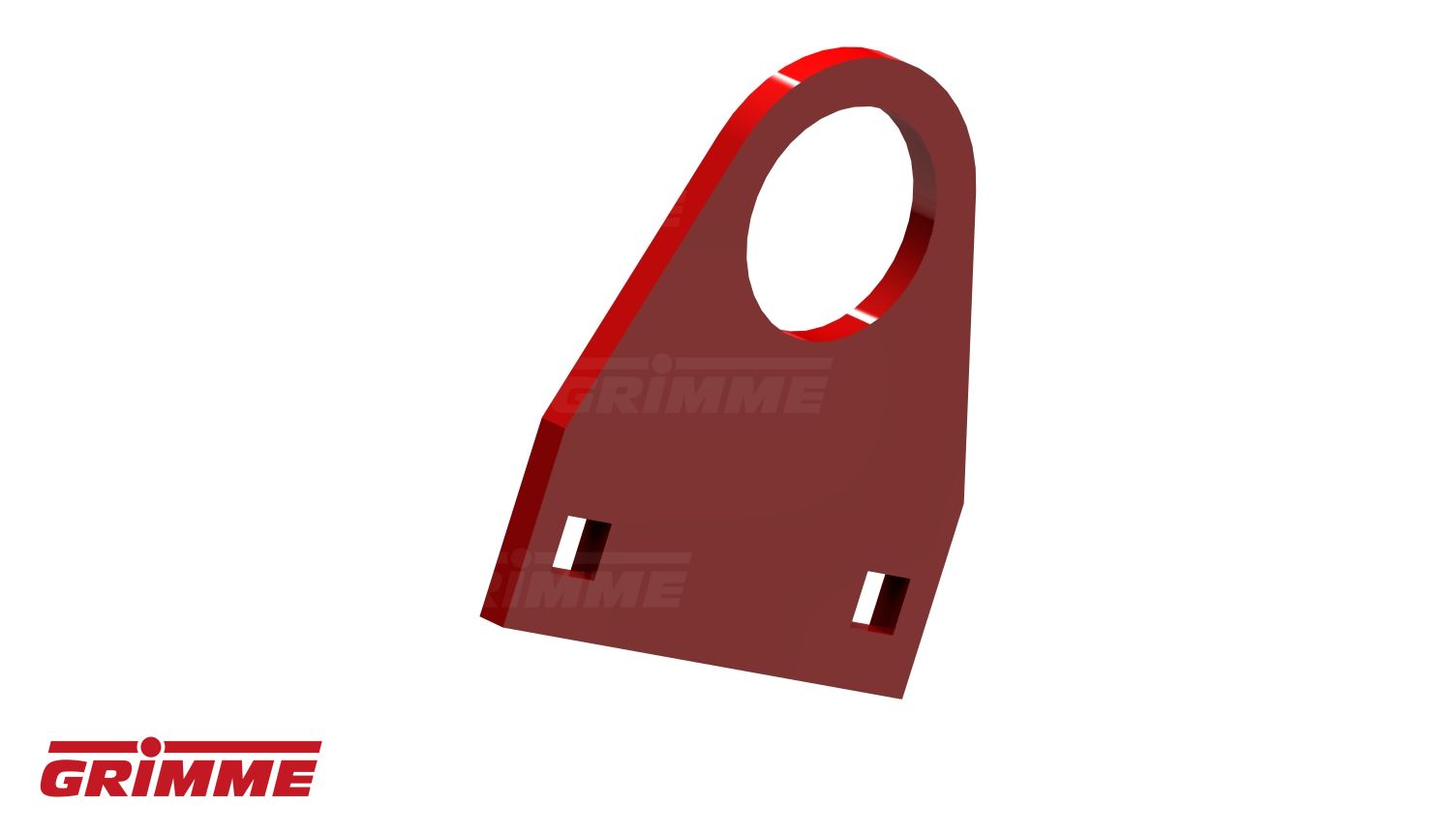

BRACKET

Quantity in assembly group: 2 Piece / Pos. 8

WEB BELT

Quantity in assembly group: 4 Piece / Pos. 9

SPACER TUBE

Quantity in assembly group: 4 Piece / Pos. 10

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 11

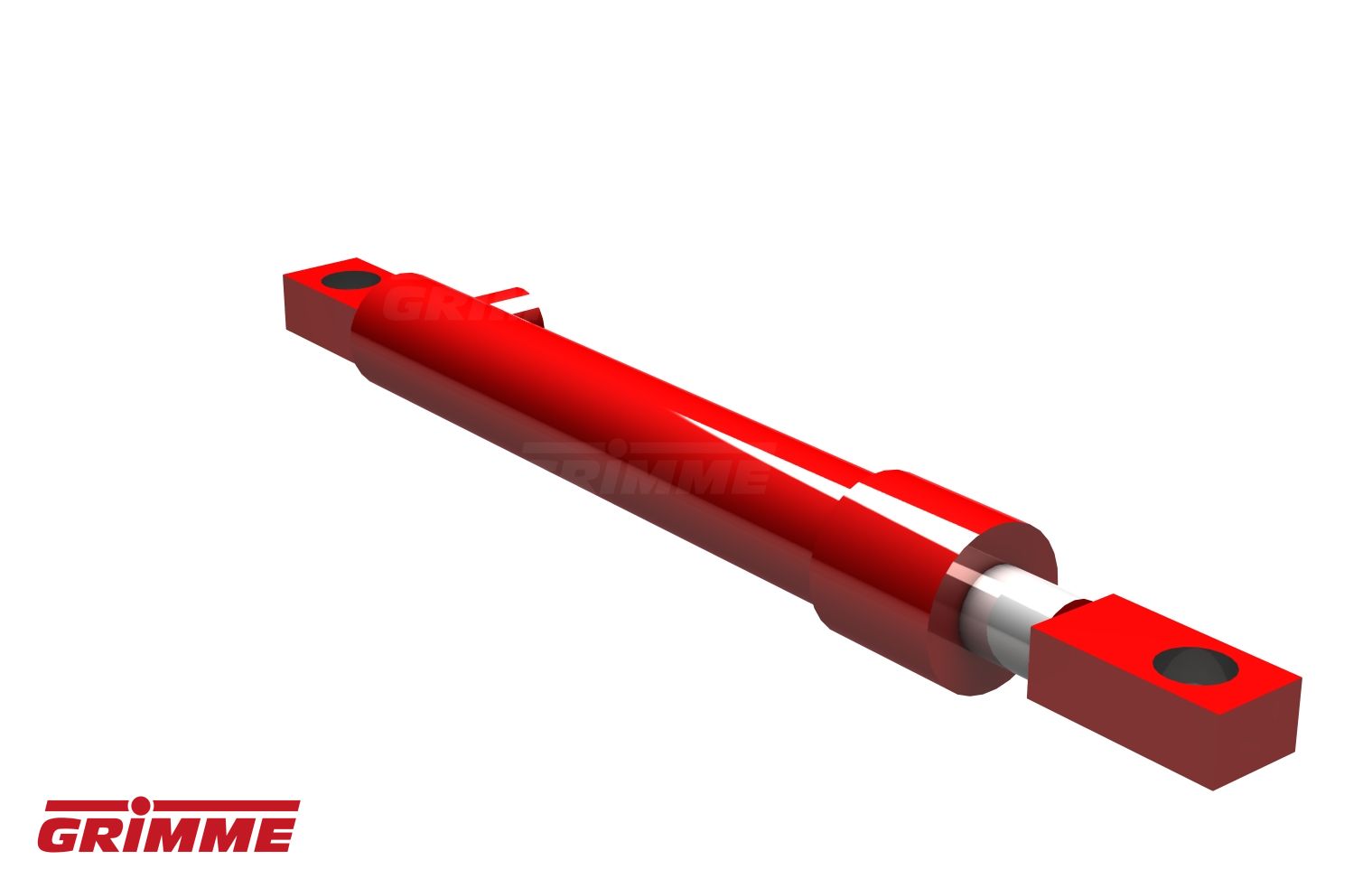

PRESSURE HYD RAM

Quantity in assembly group: 1 Piece / Pos. 12

CYL-SEAL SET

Quantity in assembly group: 1 Piece / Pos. 13

HEX BOLT M12X130-DIN931-8.8-G

Quantity in assembly group: 2 Piece / Pos. 14

NYLOC NUT DIN985-M20-8-GAL

Quantity in assembly group: 4 Piece / Pos. 15

HEXAGON NUT M20 DIN934-8-GAL

Quantity in assembly group: 2 Piece / Pos. 16

HALF NUT M20 DIN936-17H-GAL

Quantity in assembly group: 1 Piece / Pos. 17

HEX BOLT M20X100-DIN931-8.8-G

Quantity in assembly group: 2 Piece / Pos. 18

HHC-SCREW M20X70 DIN933-8.8-GA

Quantity in assembly group: 3 Piece / Pos. 19

FLAT WASHER M20-FORM A

Quantity in assembly group: 5 Piece / Pos. 20

BRACKET 170

Quantity in assembly group: 2 Piece / Pos. 21

FLUTEC 2/2 CHECK VALVE F PIPE

Quantity in assembly group: 1 Piece / Pos. 22

HYD PIPE

Quantity in assembly group: 1 Piece / Pos. 23

P-EWS 8L-SV

Quantity in assembly group: 2 Piece / Pos. 24

P-GES 8L/R3/8-WD

Quantity in assembly group: 2 Piece / Pos. 25

GE08LMEDOMDCF

Quantity in assembly group: 1 Piece / Pos. 26

HOSE-2000-NW4-240BAR

Quantity in assembly group: 1 Piece / Pos. 27

SET SCREW M10X35-DIN933-8.8-G

Quantity in assembly group: 4 Piece / Pos. 28

DISC 11X55X3

Quantity in assembly group: 8 Piece / Pos. 29

NYLOC NUT DIN985-M10-8-GAL

Quantity in assembly group: 4 Piece / Pos. 30

BT-BIN TYPE6 P22 DBH32 CEN

Quantity in assembly group: 3 Piece / Pos. 31

WASHER NUT M6-W196

Quantity in assembly group: 6 Piece / Pos. 32

COUNTER-SUNK RIVET 5,3X22

Quantity in assembly group: 276 Piece / Pos. 33

COACH BOLT M6X25-DIN603-8.8-G

Quantity in assembly group: 6 Piece / Pos. 34

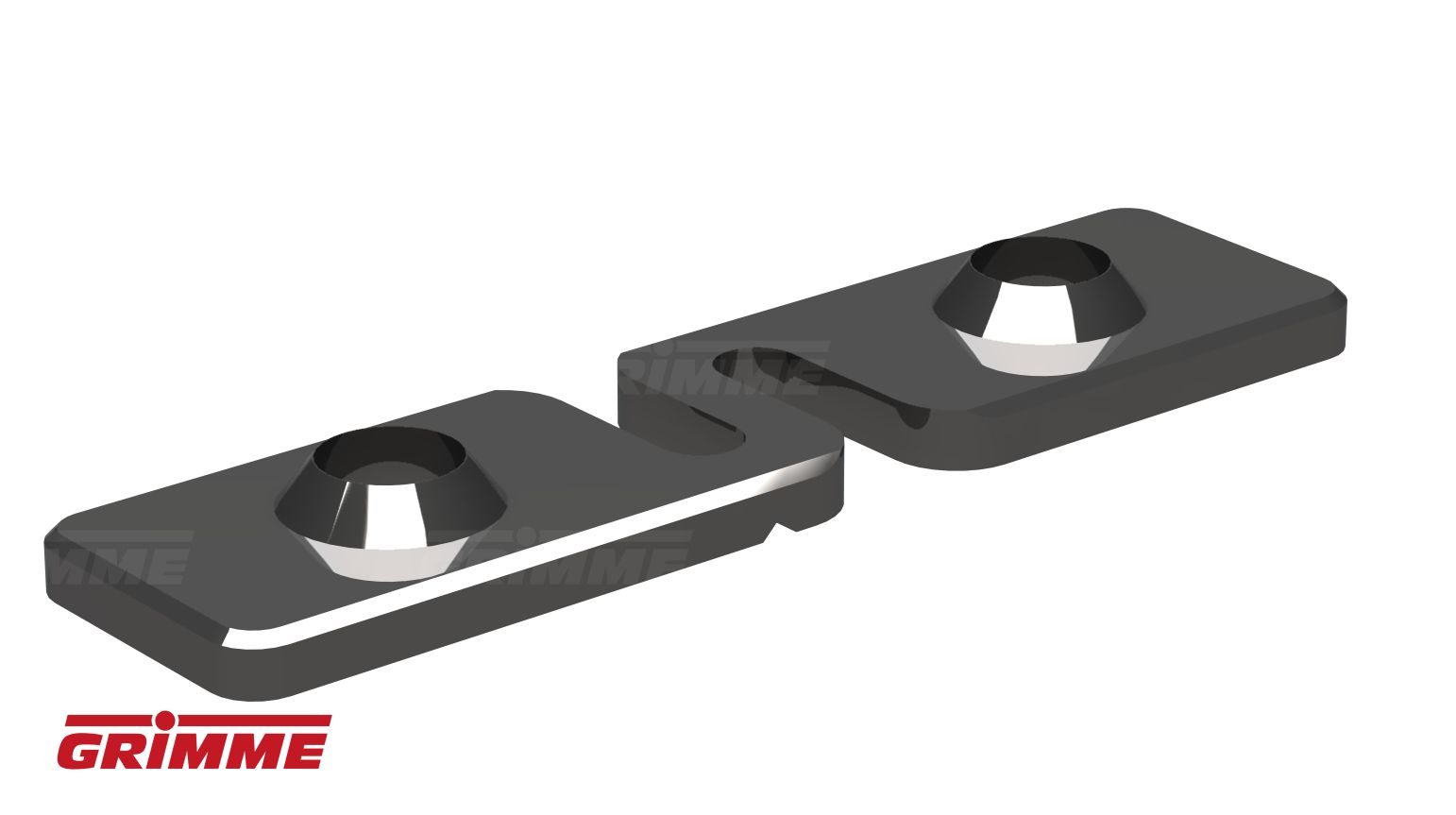

RIVET PLATE 32/5,3

Quantity in assembly group: 138 Piece / Pos. 35

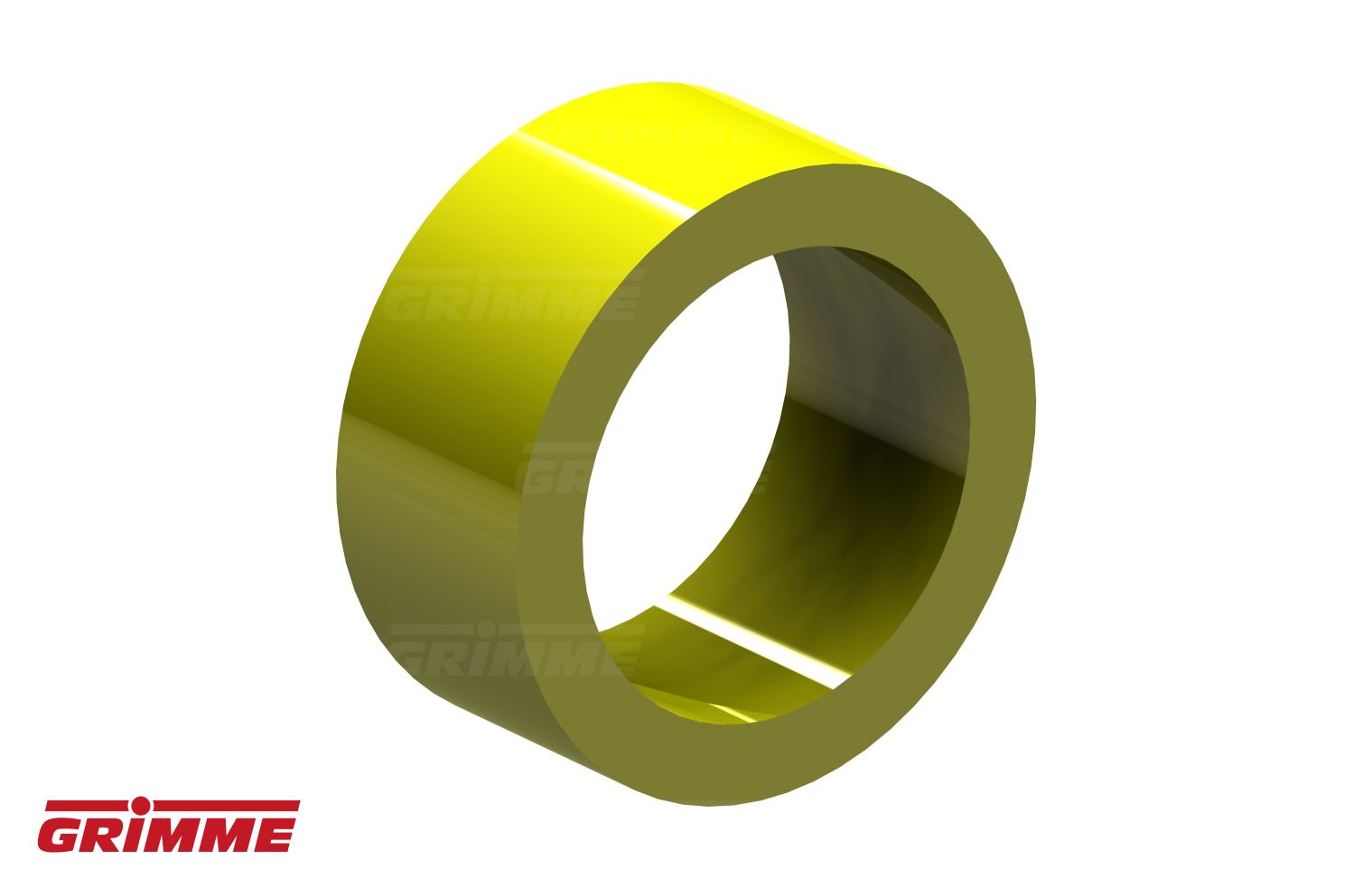

BUSH

Quantity in assembly group: 16 Piece / Pos. 36

CENTRE BELT FLAT 60/45

Quantity in assembly group: 1 Piece / Pos. 60

OUTER BELT FLAT 60/45

Quantity in assembly group: 2 Piece / Pos. 70

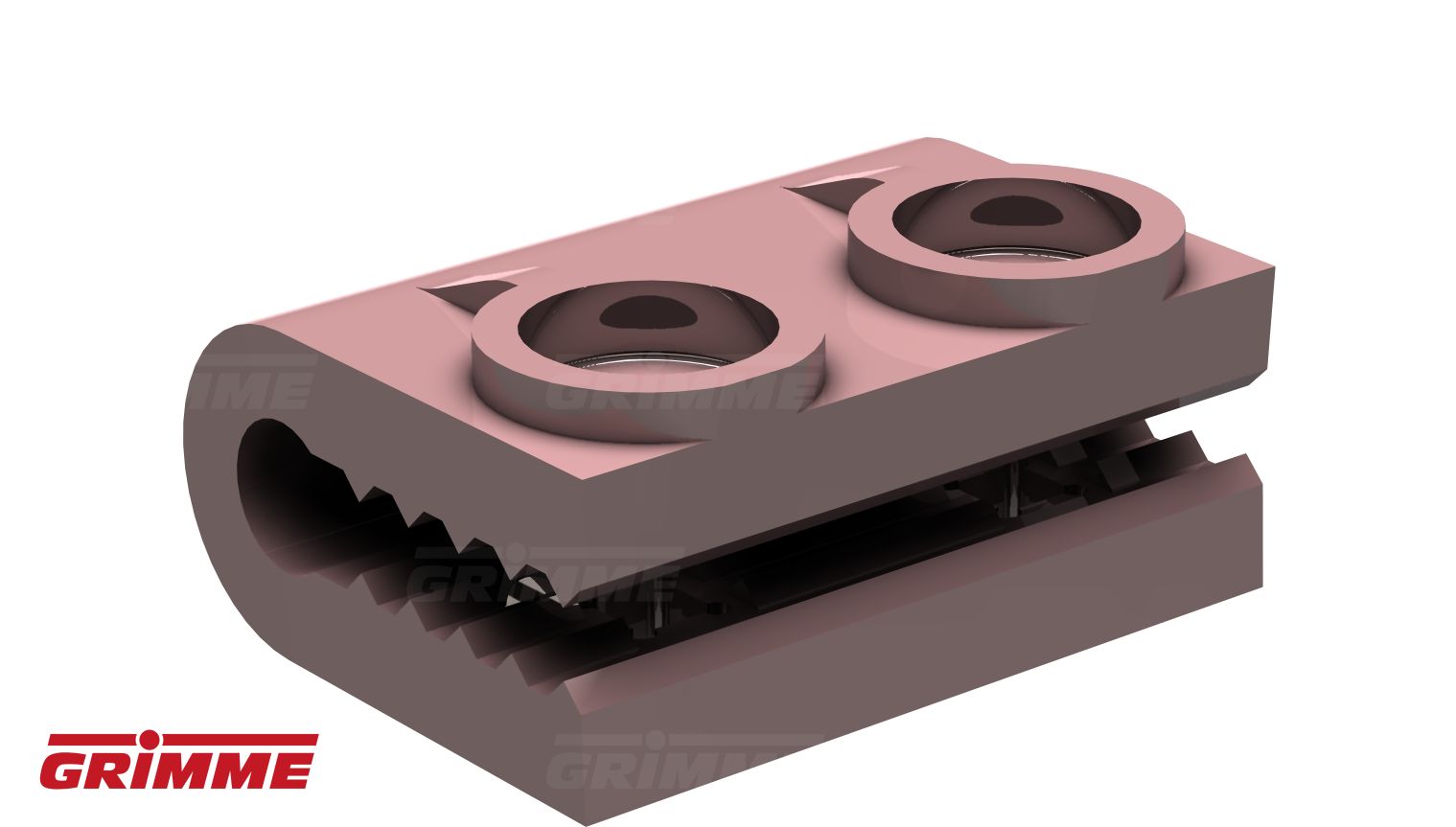

JOINING ELEMENT M10-35

Quantity in assembly group: 2 Piece / Pos. 80

CLOD MAT LIGHT DUTY 1463-49-45

Quantity in assembly group: 1 Piece / Pos. 100

CLOD MAT LIGHT DUTY 1631-49-45

Quantity in assembly group: 1 Piece / Pos. 200
