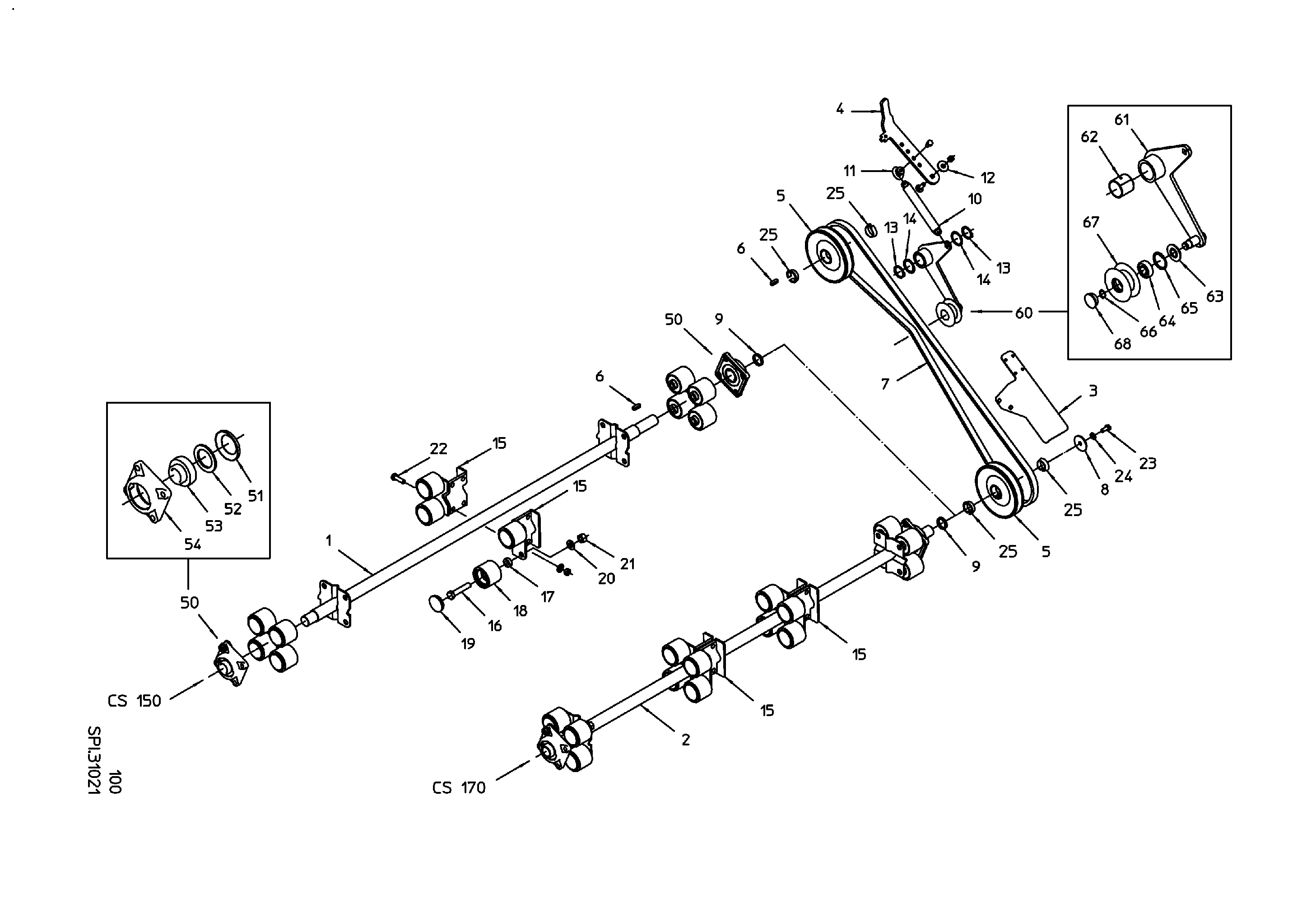

Parts by subassemblies

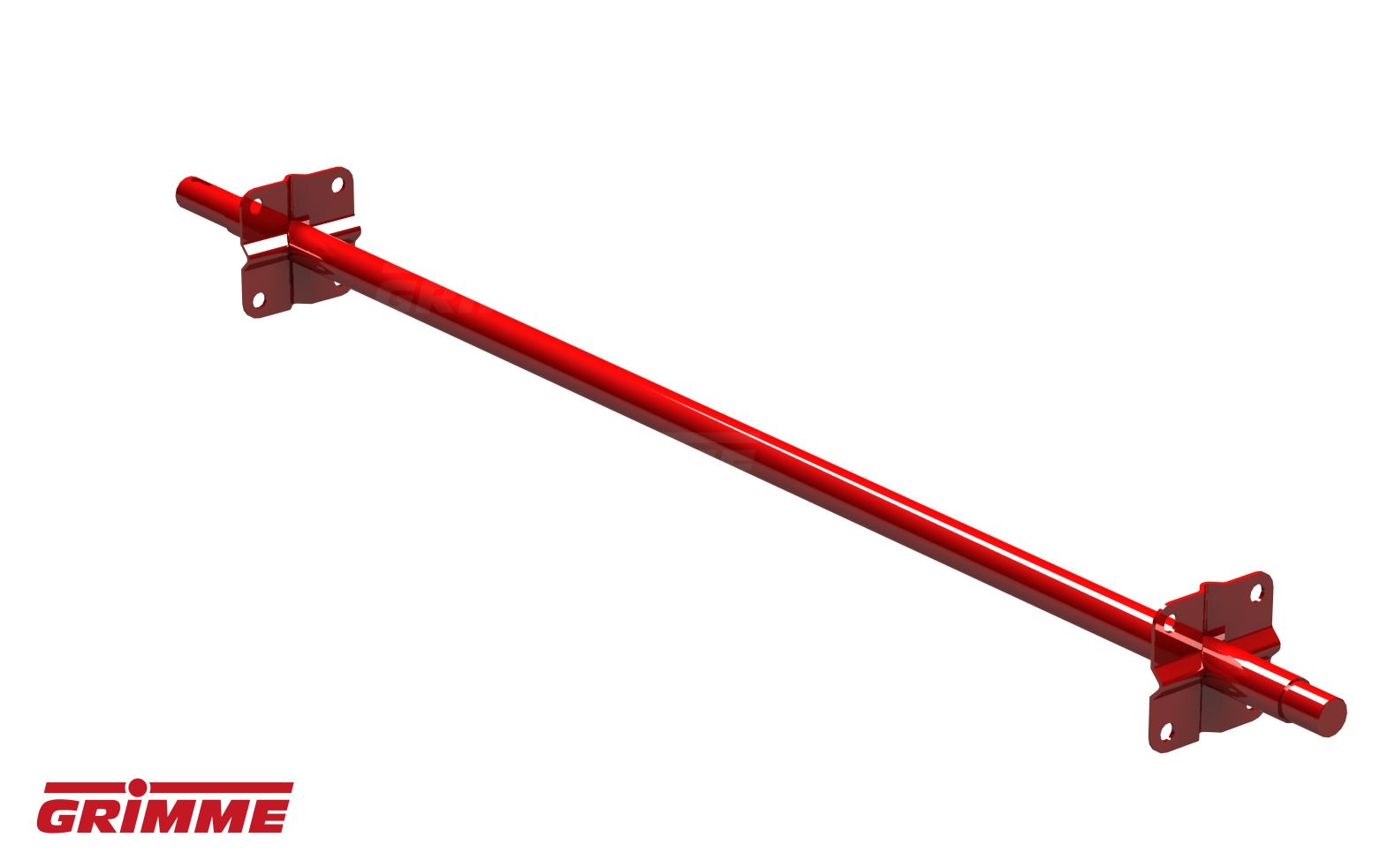

AGITATOR SHAFT CS150

Quantity in assembly group: 1 Piece / Pos. 1

AGITATOR SHAFT CS170

Quantity in assembly group: 1 Piece / Pos. 2

COVER

Quantity in assembly group: 1 Piece / Pos. 3

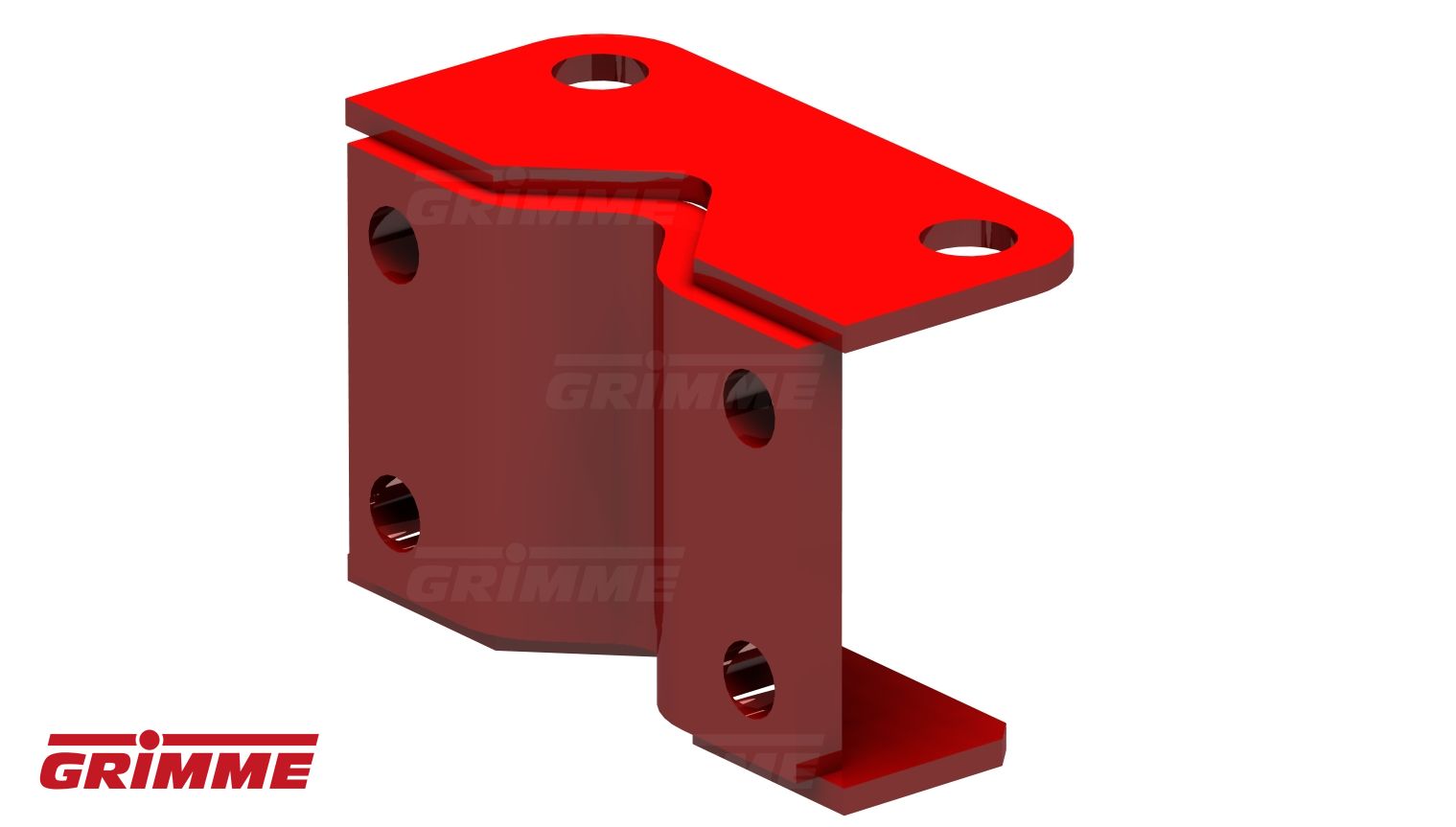

BRACKET

Quantity in assembly group: 1 Piece / Pos. 4

PULLEY C180

Quantity in assembly group: 2 Piece / Pos. 5

FEATHER KEY A 10X8X30 DIN6885

Quantity in assembly group: 2 Piece / Pos. 6

V-BELT 22X2464LI

Quantity in assembly group: 1 Piece / Pos. 7

DISC 11X55X3

Quantity in assembly group: 1 Piece / Pos. 8

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 9

TENSION SPRING

Quantity in assembly group: 1 Piece / Pos. 10

RING NUT M10

Quantity in assembly group: 1 Piece / Pos. 11

DISC A 13 DIN9021-GAL

Quantity in assembly group: 1 Piece / Pos. 12

RETAINING RING AS 40X2,5 DIN47

Quantity in assembly group: 2 Piece / Pos. 13

SHIM WASHER PS 40X50X1 DIN988

Quantity in assembly group: 2 Piece / Pos. 14

BRACKET

Quantity in assembly group: 3 Piece / Pos. 15

HEX BOLT M16X80-DIN931-8.8-G

Quantity in assembly group: 1 Piece / Pos. 16

SPACER PIECE 16,5X30X10

Quantity in assembly group: 14 Piece / Pos. 17

SUPPORT ROLLER D75

Quantity in assembly group: 14 Piece / Pos. 18

ROLLER CAP

Quantity in assembly group: 14 Piece / Pos. 19

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 1 Piece / Pos. 20

HEXAGON NUT M16 DIN934-8-GAL

Quantity in assembly group: 1 Piece / Pos. 21

SET SCREW M12X40-DIN933-8.8-G

Quantity in assembly group: 1 Piece / Pos. 22

HHC-SCREW M10X25 933-8.8-GAL

Quantity in assembly group: 1 Piece / Pos. 23

CONTACT WASHER FORM M 10-GAL

Quantity in assembly group: 1 Piece / Pos. 24

CLAMPING RING

Quantity in assembly group: 4 Piece / Pos. 25

FLANGE BEARING

Quantity in assembly group: 2 Piece / Pos. 50

SEALING CAP

Quantity in assembly group: 2 Piece / Pos. 51

SEALING RING

Quantity in assembly group: 2 Piece / Pos. 52

BEARING YAR 207-2RF/UC207

Quantity in assembly group: 2 Piece / Pos. 53

BEARING HOUSING

Quantity in assembly group: 2 Piece / Pos. 54

TENSION ARM

Quantity in assembly group: 1 Piece / Pos. 60

TENSION ARM

Quantity in assembly group: 1 Piece / Pos. 61

PLAIN BEARING BUSH 404440

Quantity in assembly group: 1 Piece / Pos. 62

SEALING RING 43-19,5-3

Quantity in assembly group: 1 Piece / Pos. 63

BALL BEARING 6203-2RS

Quantity in assembly group: 1 Piece / Pos. 64

RETAINING RING J 40X1,75 DIN47

Quantity in assembly group: 1 Piece / Pos. 65

RETAINING RING A 17X1 DIN471

Quantity in assembly group: 1 Piece / Pos. 66

TENSION ROLLER F V-BELT

Quantity in assembly group: 1 Piece / Pos. 67

DUST CAP F25

Quantity in assembly group: 1 Piece / Pos. 68
