Parts by subassemblies

Your machine: CLOD SEPARATOR CS 150 CS 150 modify ▸

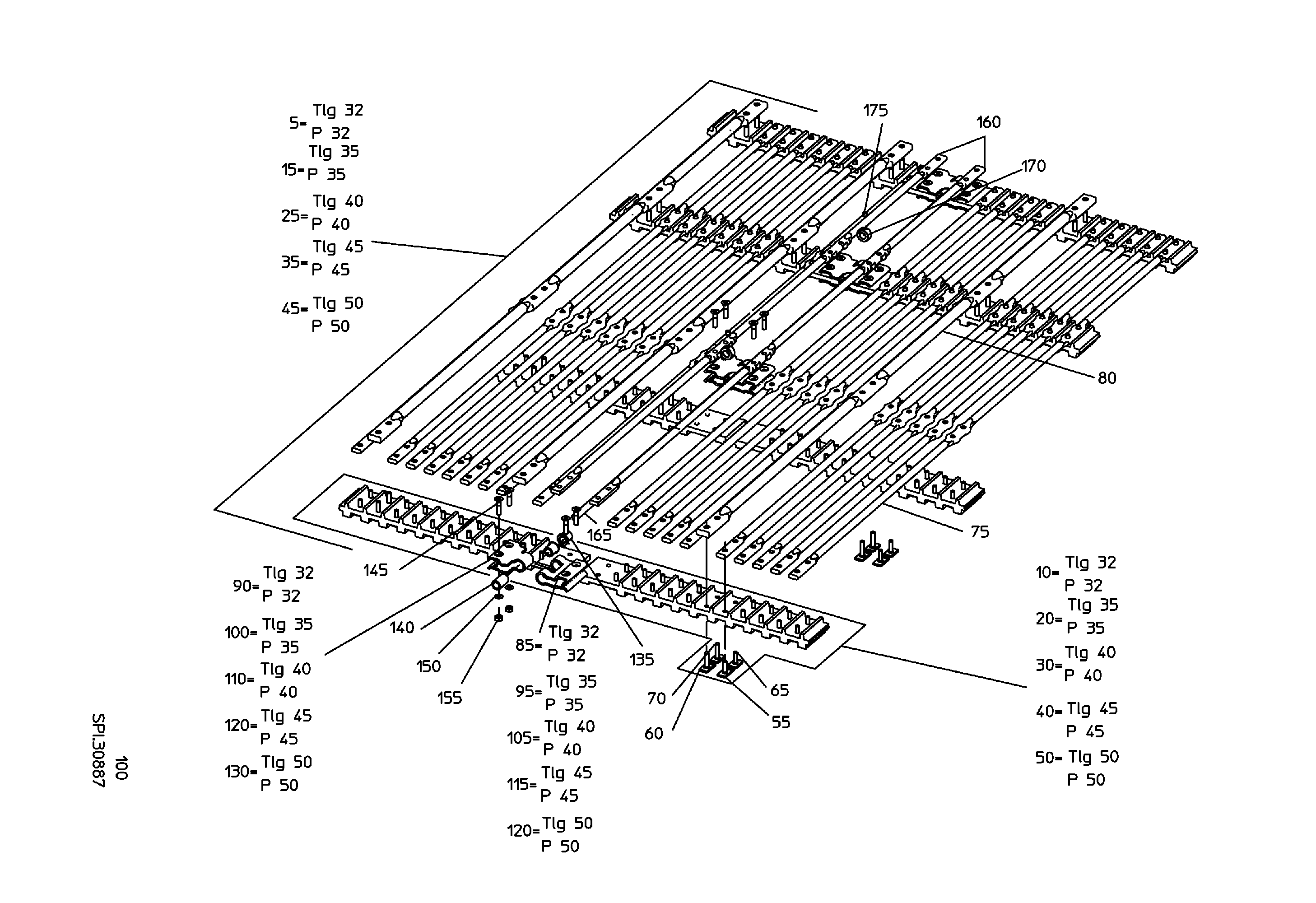

Subassembly drawing

▸ Selected assembly group:

Selected subassembly

▸
2.MW P 32/35/40/45/50 170 (35 Parts)
▸

Subassembly parts

2ND MAIN WEB 1631-136-32
Quantity in assembly group: 1 Piece / Pos. 5
BT DCA 60/32X135
Quantity in assembly group: 4 Piece / Pos. 10
2ND MAIN WEB 1631-125-35
Quantity in assembly group: 1 Piece / Pos. 15
OB/CB 124DCA 60/35
Quantity in assembly group: 4 Piece / Pos. 20
2ND MAIN WEB 1631-109-40
Quantity in assembly group: 1 Piece / Pos. 25
OB/CB 108DCA 60/40
Quantity in assembly group: 4 Piece / Pos. 30
2ND MAIN WEB 1631-97-45
Quantity in assembly group: 1 Piece / Pos. 35
OB/CB 96DCA 60/45
Quantity in assembly group: 4 Piece / Pos. 40
2ND MAIN WEB 1631-87-50
Quantity in assembly group: 1 Piece / Pos. 45
OB/CB 86SCA-ONO 60/50
Quantity in assembly group: 4 Piece / Pos. 50
RIVET PLATE 32/5,3
Quantity in assembly group: 1 Piece / Pos. 55
RIVET PLATE 32/6
Quantity in assembly group: 1 Piece / Pos. 60
COUNTER-SUNK RIVET 5,3X22
Quantity in assembly group: 1 Piece / Pos. 65
COUNTER-SUNK RIVET 6X25
Quantity in assembly group: 1 Piece / Pos. 70
BAR 11X1624 CEFL
Quantity in assembly group: 1 Piece / Pos. 75
BAR 16X1627 CEFL
Quantity in assembly group: 1 Piece / Pos. 80
BT-BIN TYPE1 P32 DBH32 OU
Quantity in assembly group: 4 Piece / Pos. 85
BT-BIN TYPE1 P32 DBH32 IN
Quantity in assembly group: 4 Piece / Pos. 90
BT-BIN TYPE1 P36 DBH32 OU
Quantity in assembly group: 4 Piece / Pos. 95
BT-BIN TYPE1 P36 DBH32 IN
Quantity in assembly group: 4 Piece / Pos. 100
BT-BIN TYPE1 P40 DBH32 OU
Quantity in assembly group: 4 Piece / Pos. 105
BT-BIN TYPE1 P40 DBH32 IN
Quantity in assembly group: 4 Piece / Pos. 110
BT-BIN TYPE1 P45 DBH32 OU
Quantity in assembly group: 4 Piece / Pos. 115
BT-BIN TYPE1 P45 DBH32 IN
Quantity in assembly group: 4 Piece / Pos. 120
BT-BIN TYPE1 P50 DBH32 OU
Quantity in assembly group: 4 Piece / Pos. 125
BT-BIN TYPE1 P50 DBH32 IN
Quantity in assembly group: 4 Piece / Pos. 130
THREADED BUSH 15X10,2X17
Quantity in assembly group: 8 Piece / Pos. 135
BUSHING 15X10,2X25,5
Quantity in assembly group: 4 Piece / Pos. 140
CS SCREW DIN604 M6X28-10.9
Quantity in assembly group: 16 Piece / Pos. 145
SPHERICAL WASHER M6 DIN6319
Quantity in assembly group: 16 Piece / Pos. 150
HEX NUT M6 DIN934/10
Quantity in assembly group: 16 Piece / Pos. 155
BAR 11X1624 CEFL
Quantity in assembly group: 2 Piece / Pos. 160
JOINING BAR 9,9X1628
Quantity in assembly group: 1 Piece / Pos. 165
COLLAR DM10.2
Quantity in assembly group: 2 Piece / Pos. 170
GRUB BOLT M6X8-DIN914 flZn
Quantity in assembly group: 2 Piece / Pos. 175
