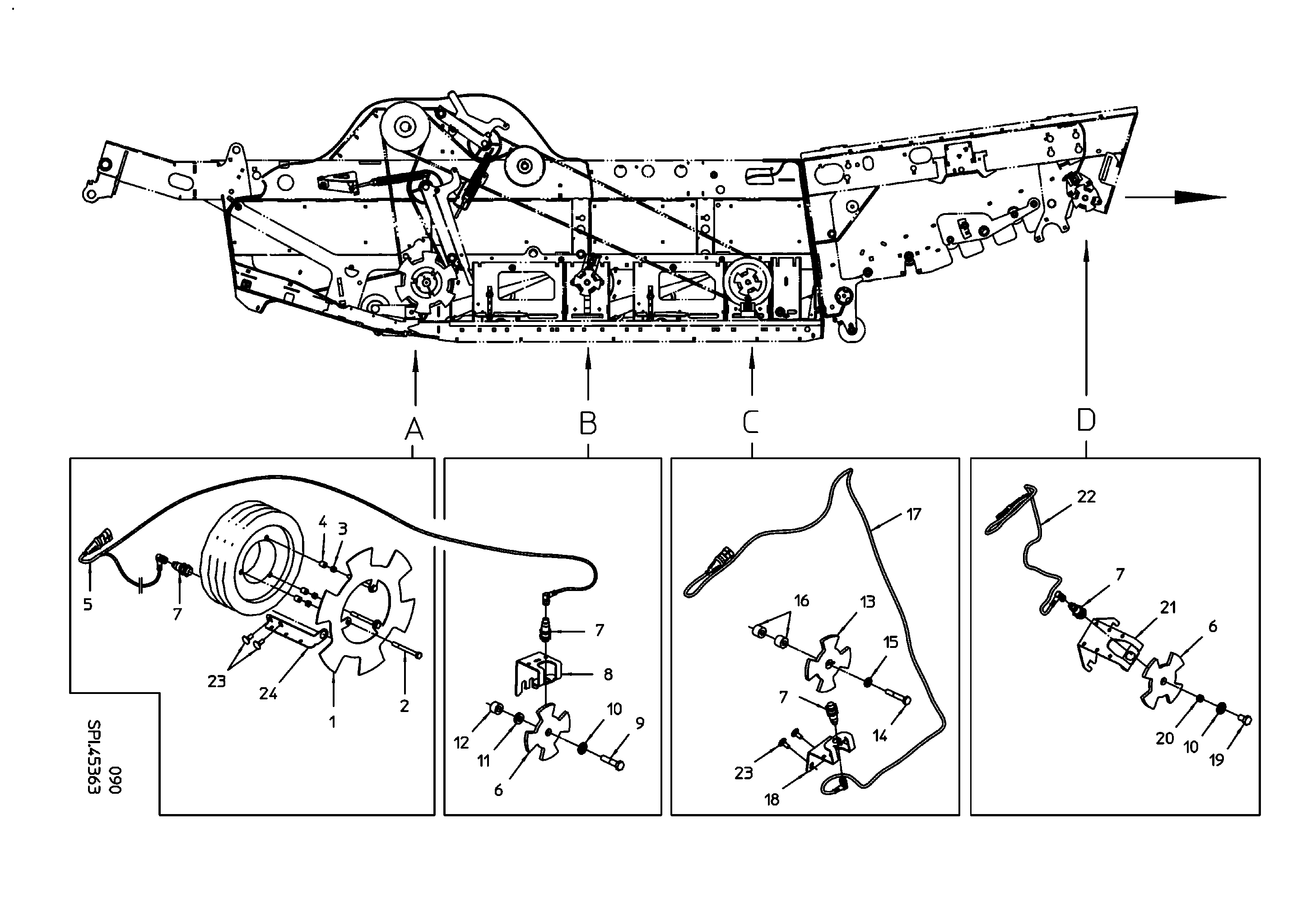

Parts by subassemblies

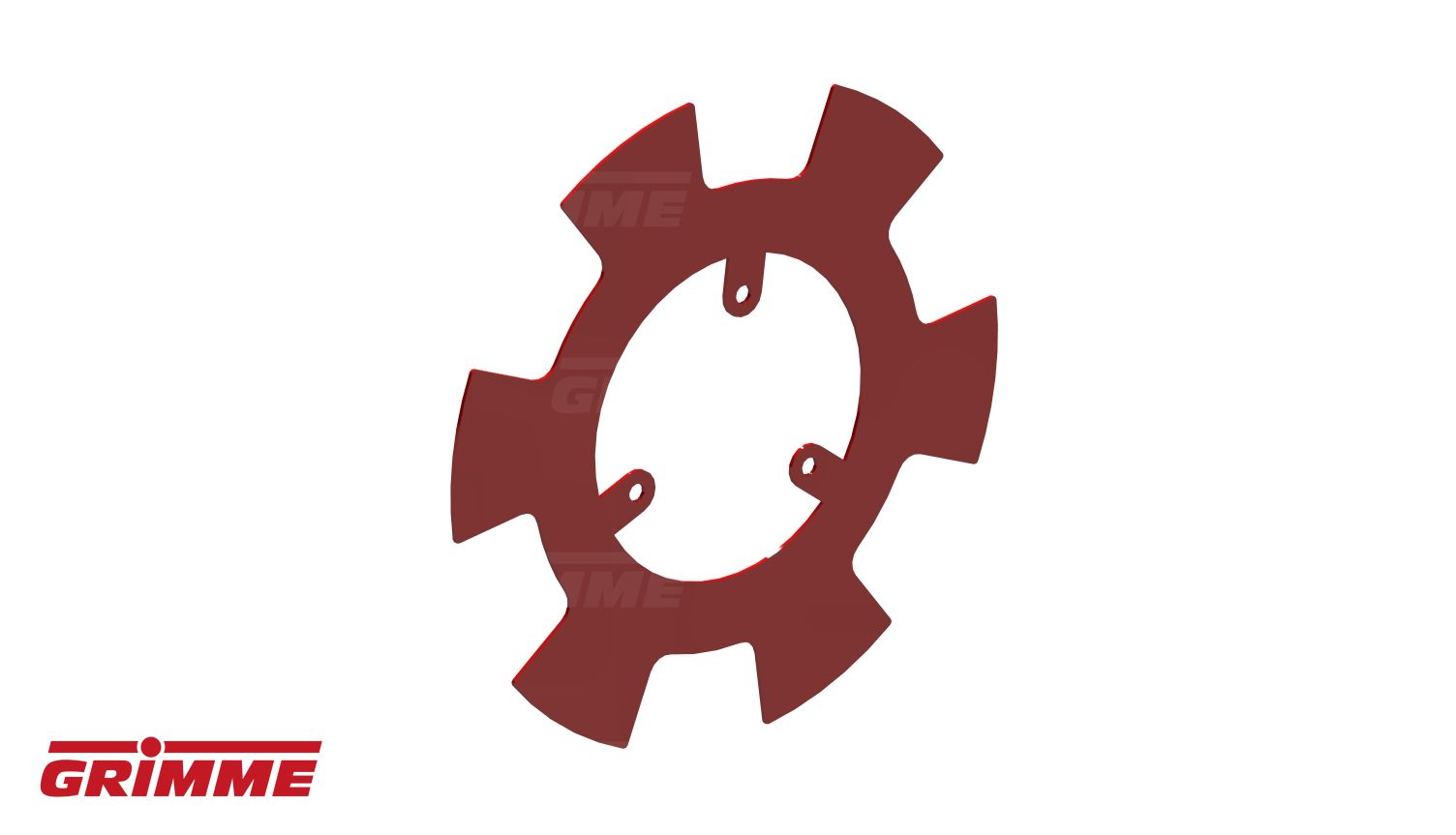

SHEET-METAL DISC

Quantity in assembly group: 1 Piece / Pos. 1

HEX BOLT M8X85-DIN931-8.8-G

Quantity in assembly group: 3 Piece / Pos. 2

SPACER TUBE

Quantity in assembly group: 3 Piece / Pos. 3

SPACER TUBE

Quantity in assembly group: 3 Piece / Pos. 4

CON-LINE-WSC-W1

Quantity in assembly group: 1 Piece / Pos. 5

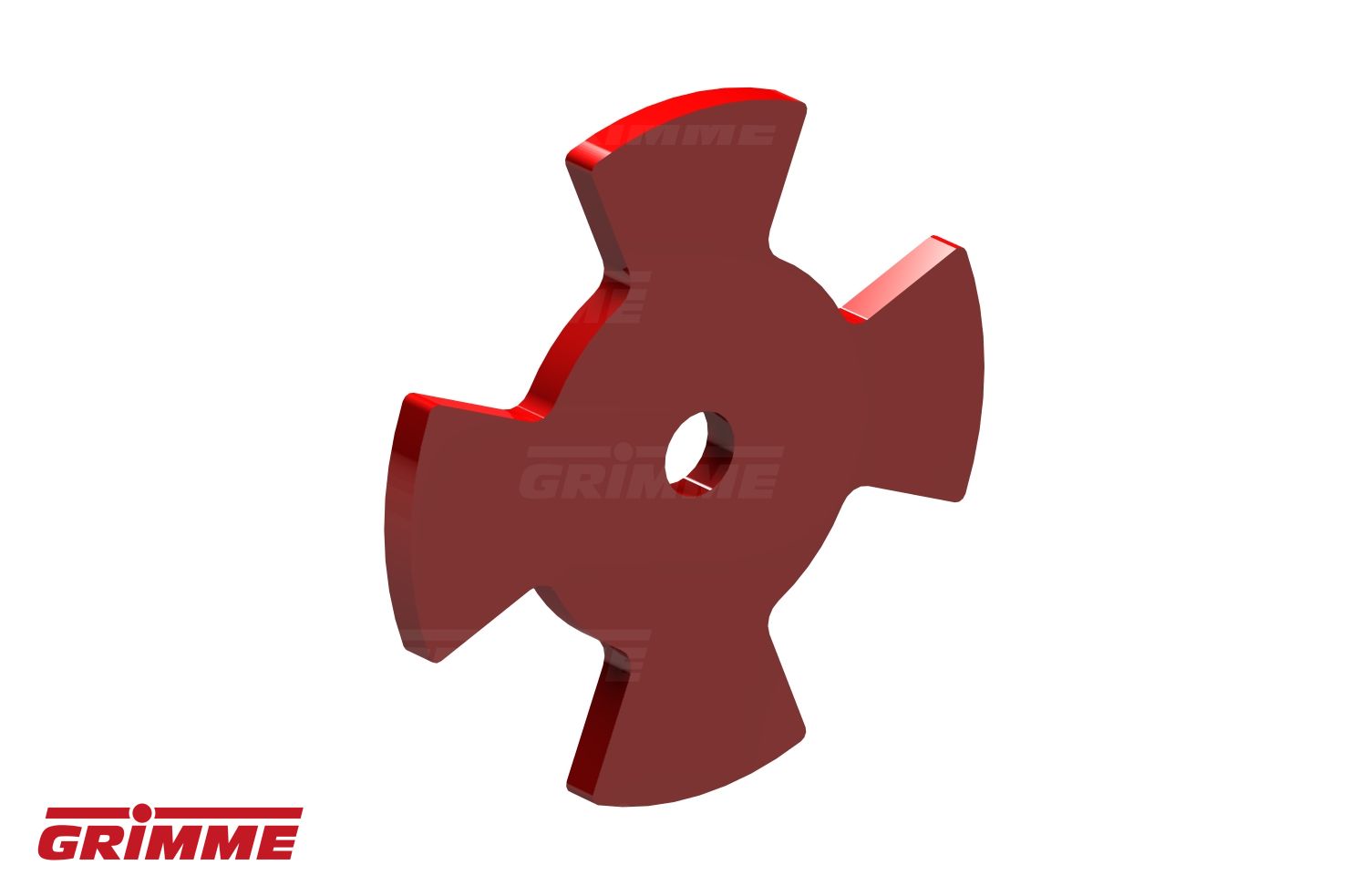

SENSOR PLATE

Quantity in assembly group: 2 Piece / Pos. 6

PROXIMITY SWITCH INDUCIVE M18X

Quantity in assembly group: 4 Piece / Pos. 7

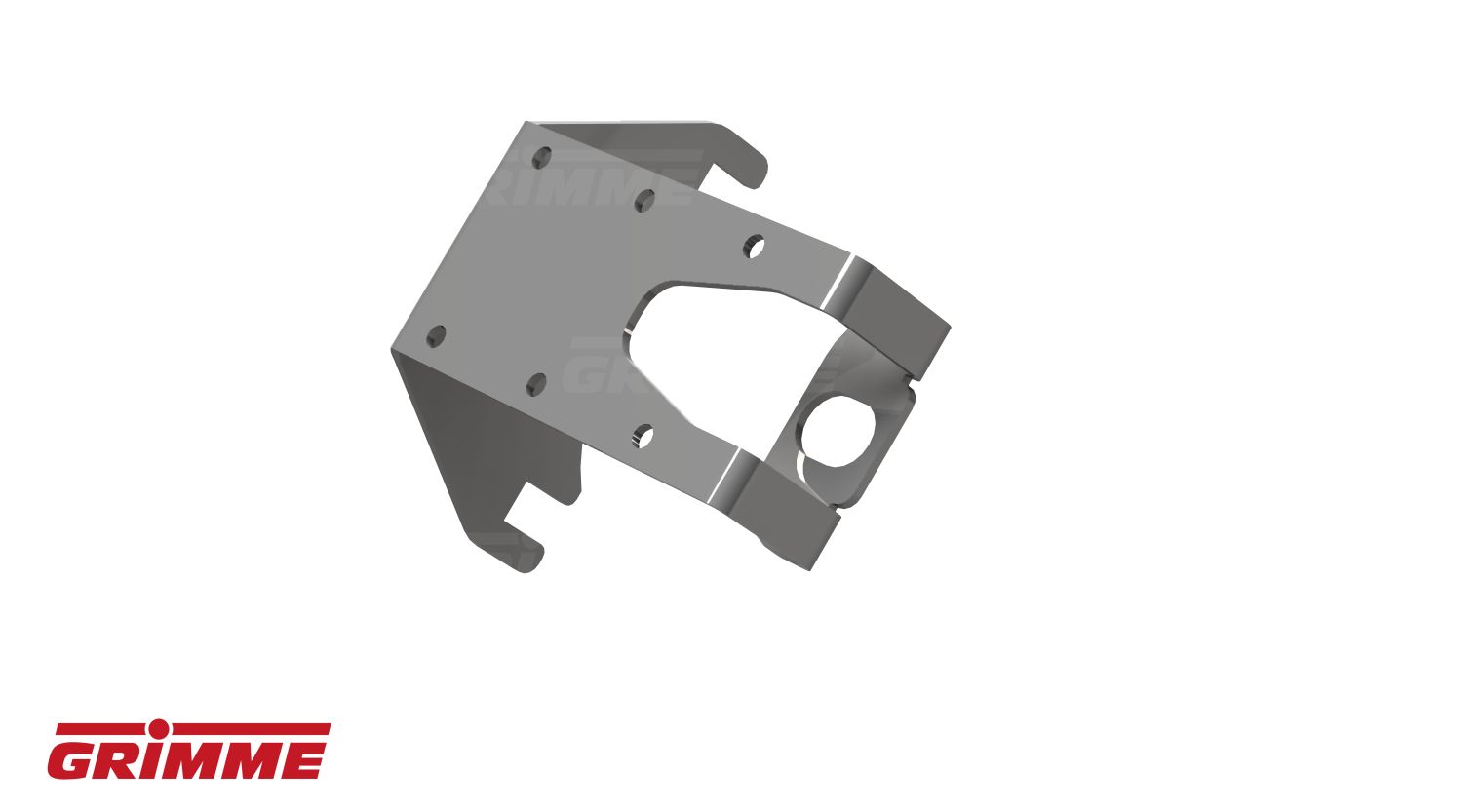

SENSOR HOLDER

Quantity in assembly group: 1 Piece / Pos. 8

HEX BOLT M12X55-DIN931-8.8-G

Quantity in assembly group: 1 Piece / Pos. 9

CONTACT DISC FORM M 12-GAL

Quantity in assembly group: 2 Piece / Pos. 10

DISC

Quantity in assembly group: 1 Piece / Pos. 11

BUSH

Quantity in assembly group: 1 Piece / Pos. 12

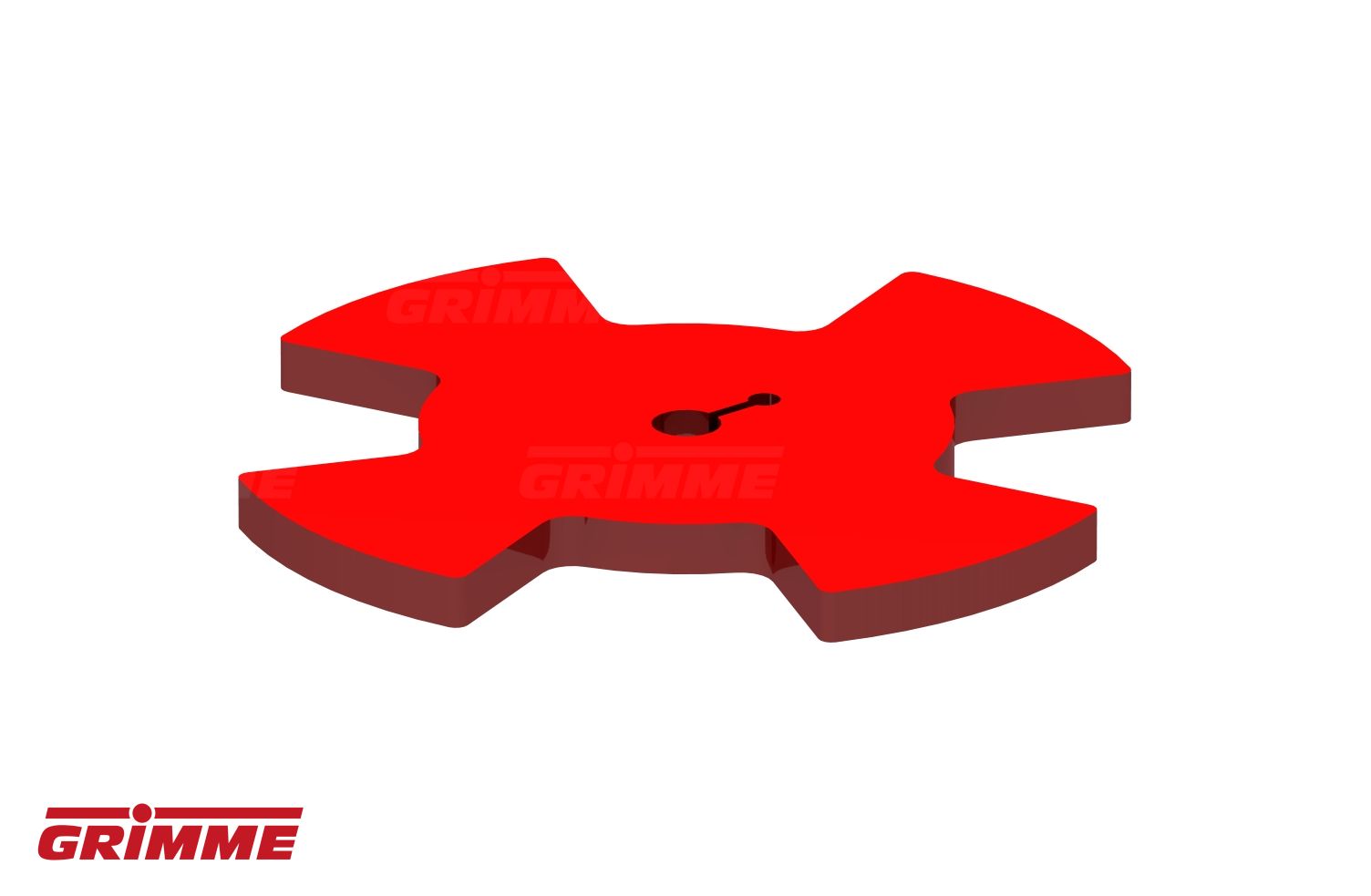

SENSOR DISC

Quantity in assembly group: 1 Piece / Pos. 13

HEX BOLT M10X65-DIN931-8.8-G

Quantity in assembly group: 1 Piece / Pos. 14

CONTACT WASHER FORM M 10-GAL

Quantity in assembly group: 1 Piece / Pos. 15

BUSH

Quantity in assembly group: 2 Piece / Pos. 16

SEN-LINE M12 ANG PL,3p SUS,2m

Quantity in assembly group: 1 Piece / Pos. 17

SENSOR HOLDER

Quantity in assembly group: 1 Piece / Pos. 18

SET SCREW M12X20-DIN933-8.8-G

Quantity in assembly group: 1 Piece / Pos. 19

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 20

SENSOR HOLDER

Quantity in assembly group: 1 Piece / Pos. 21

SENSOR-LTG,M12X1,1m,3p,WI,SD

Quantity in assembly group: 1 Piece / Pos. 22

COACH BOLT M8X20-603-8.8-GAL

Quantity in assembly group: 4 Piece / Pos. 23

SENSOR BRACKET

Quantity in assembly group: 1 Piece / Pos. 24

PULLEY 3V SPC250

Quantity in assembly group: 1 Piece / Pos. 25
