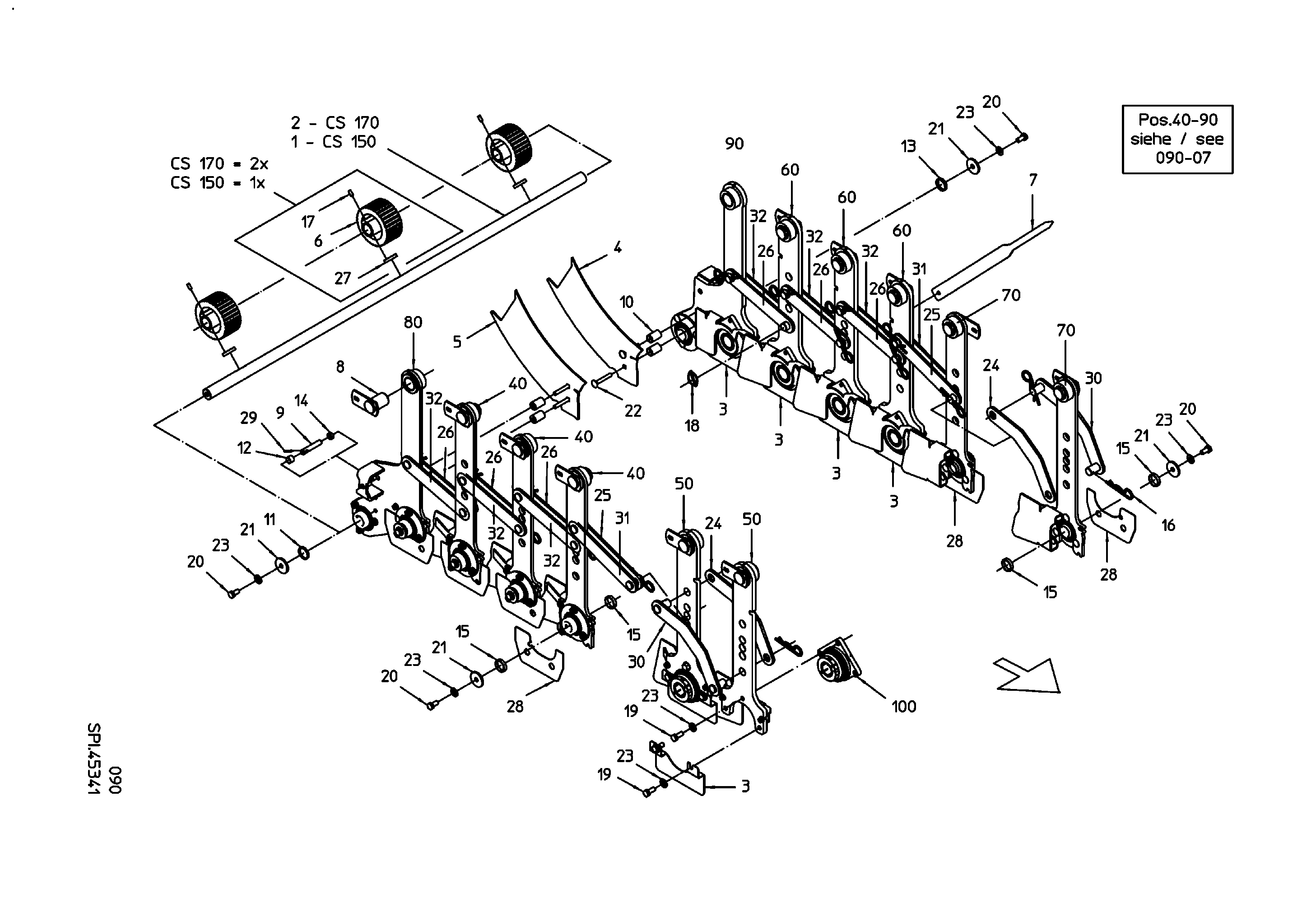

Parts by subassemblies

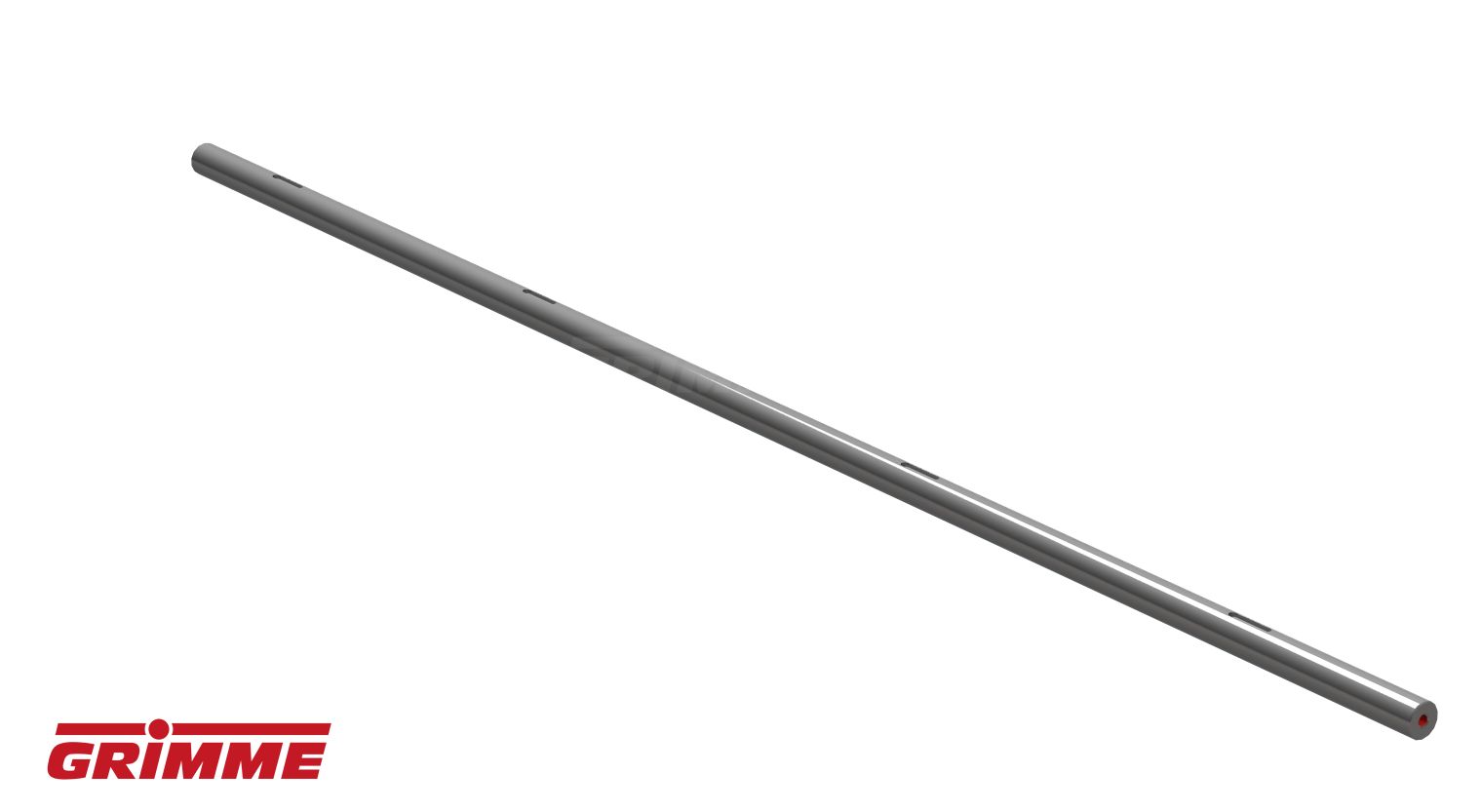

FRONT SHAFT CS150

Quantity in assembly group: 1 Piece / Pos. 1

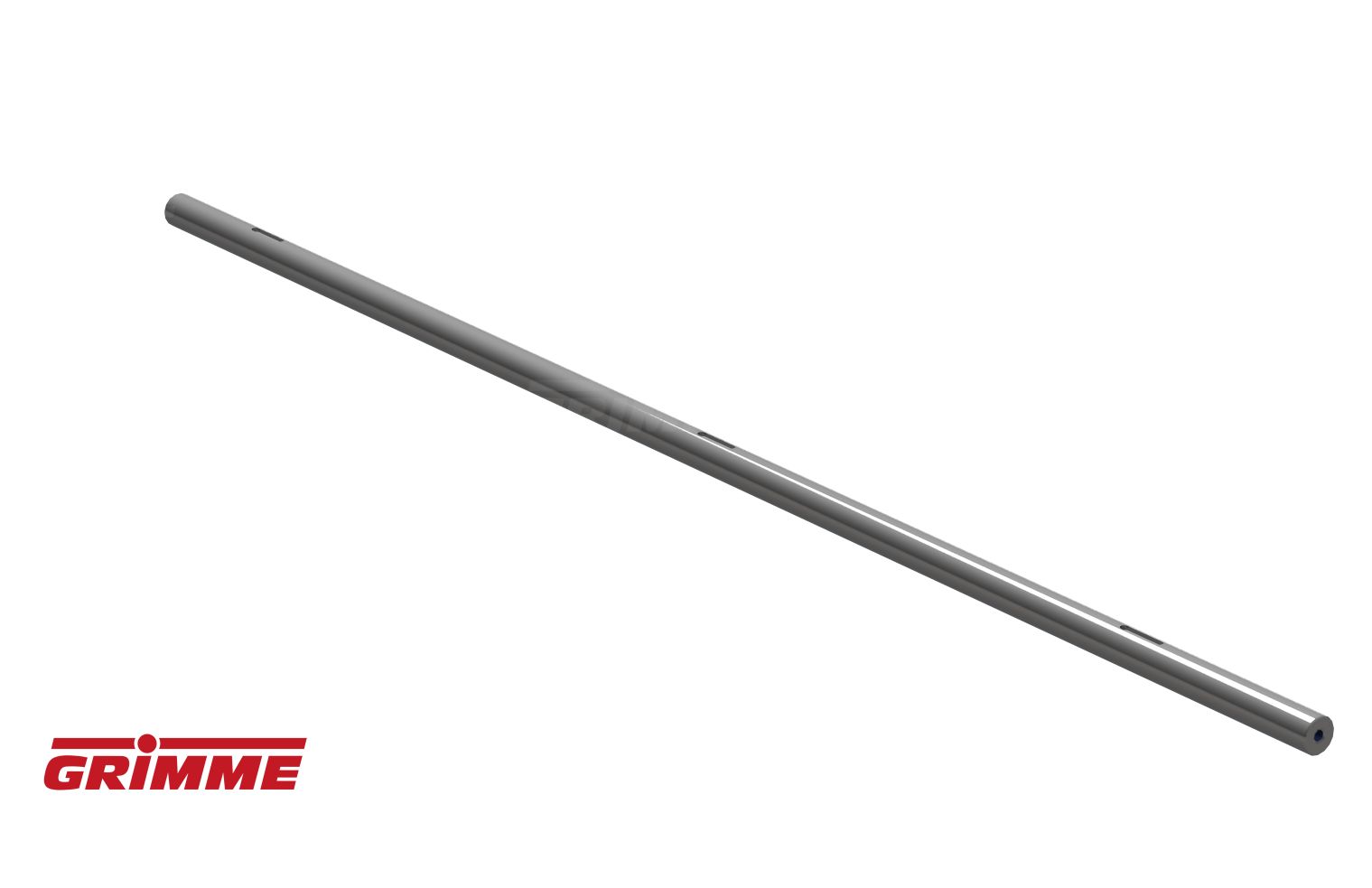

FRONT SHAFT CS170

Quantity in assembly group: 1 Piece / Pos. 2

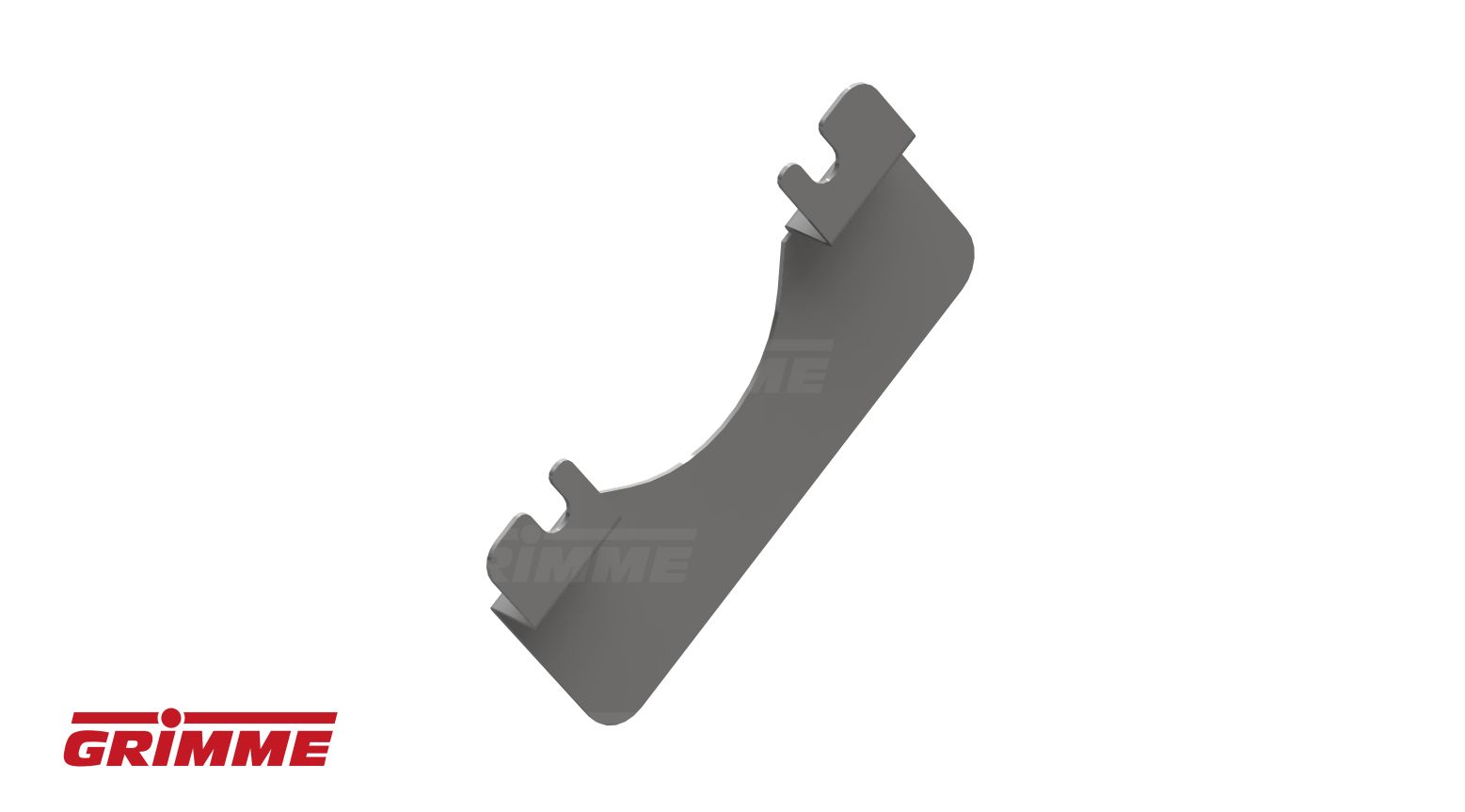

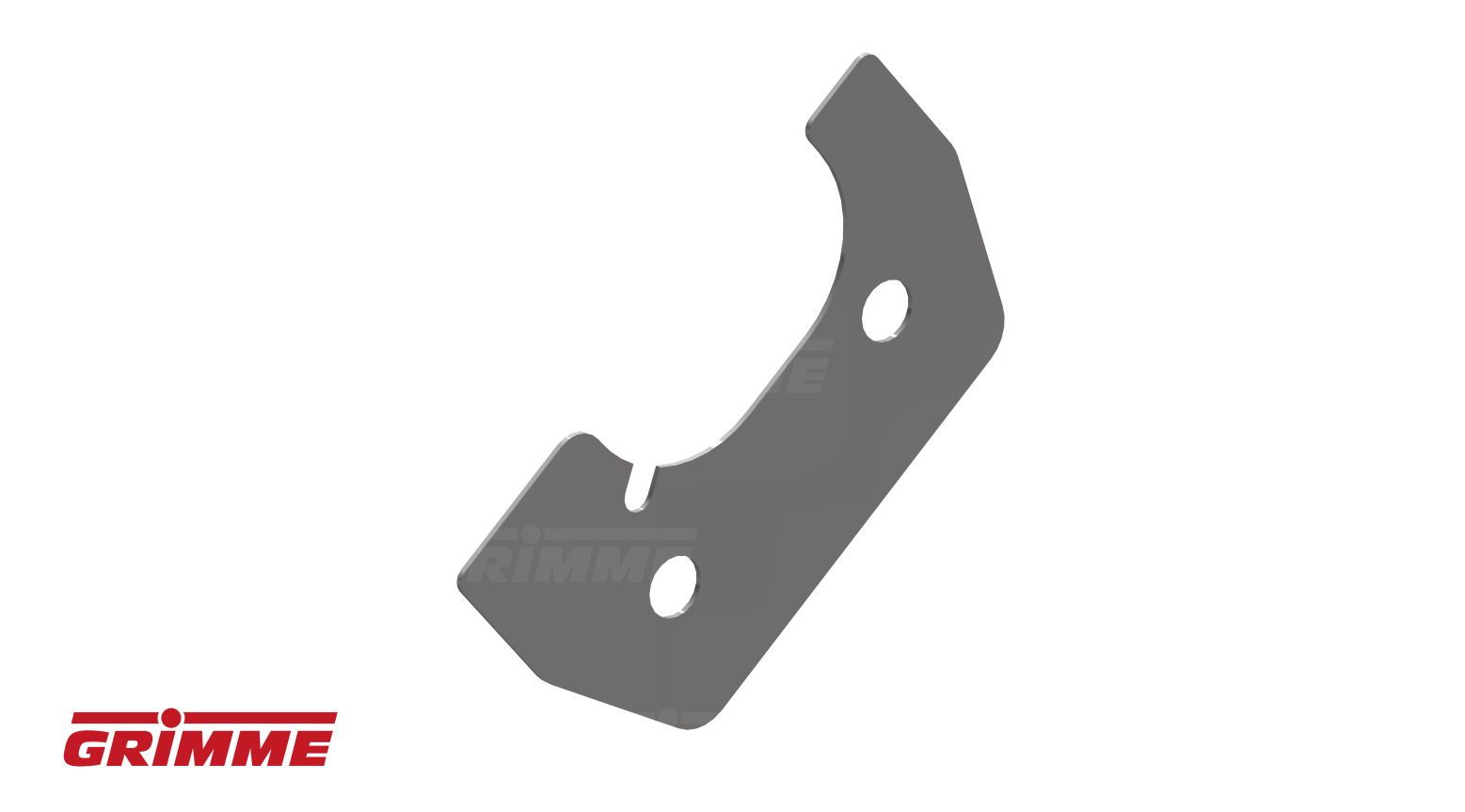

BEARING COVER PLATE

Quantity in assembly group: 6 Piece / Pos. 3

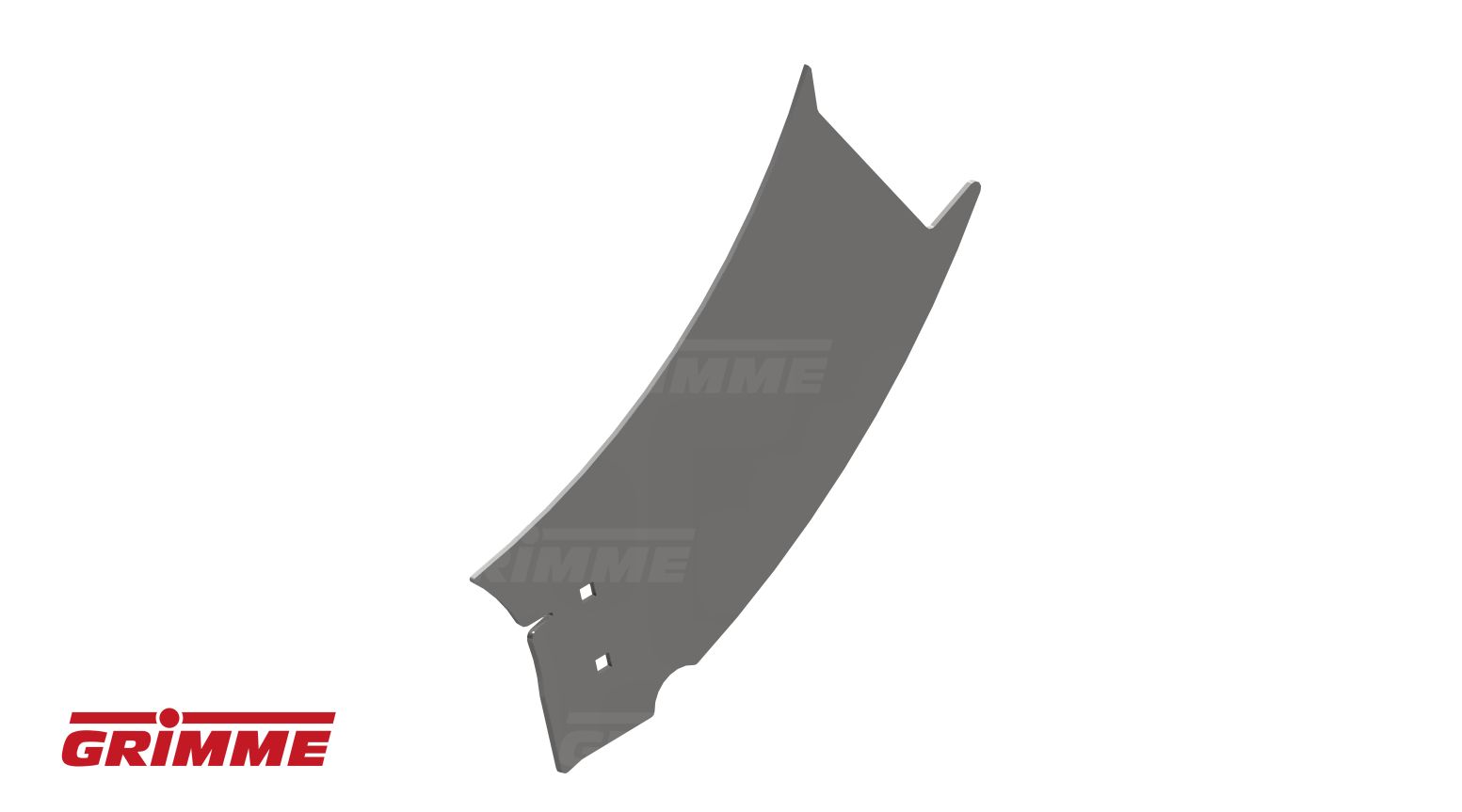

COVER L/H

Quantity in assembly group: 1 Piece / Pos. 4

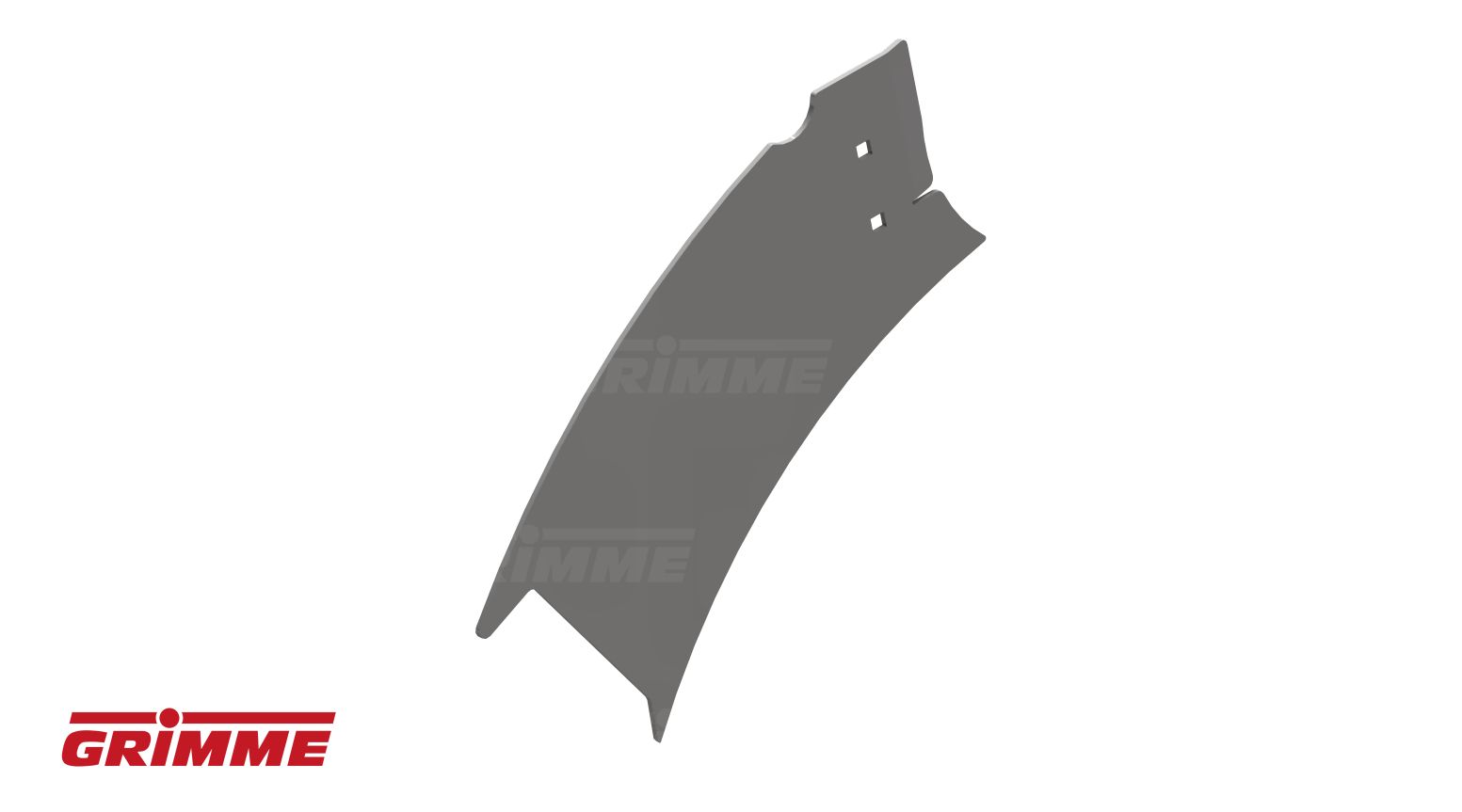

COVER R/H

Quantity in assembly group: 1 Piece / Pos. 5

DRIVE ROLLER -VULC-

Quantity in assembly group: 3 Piece / Pos. 6

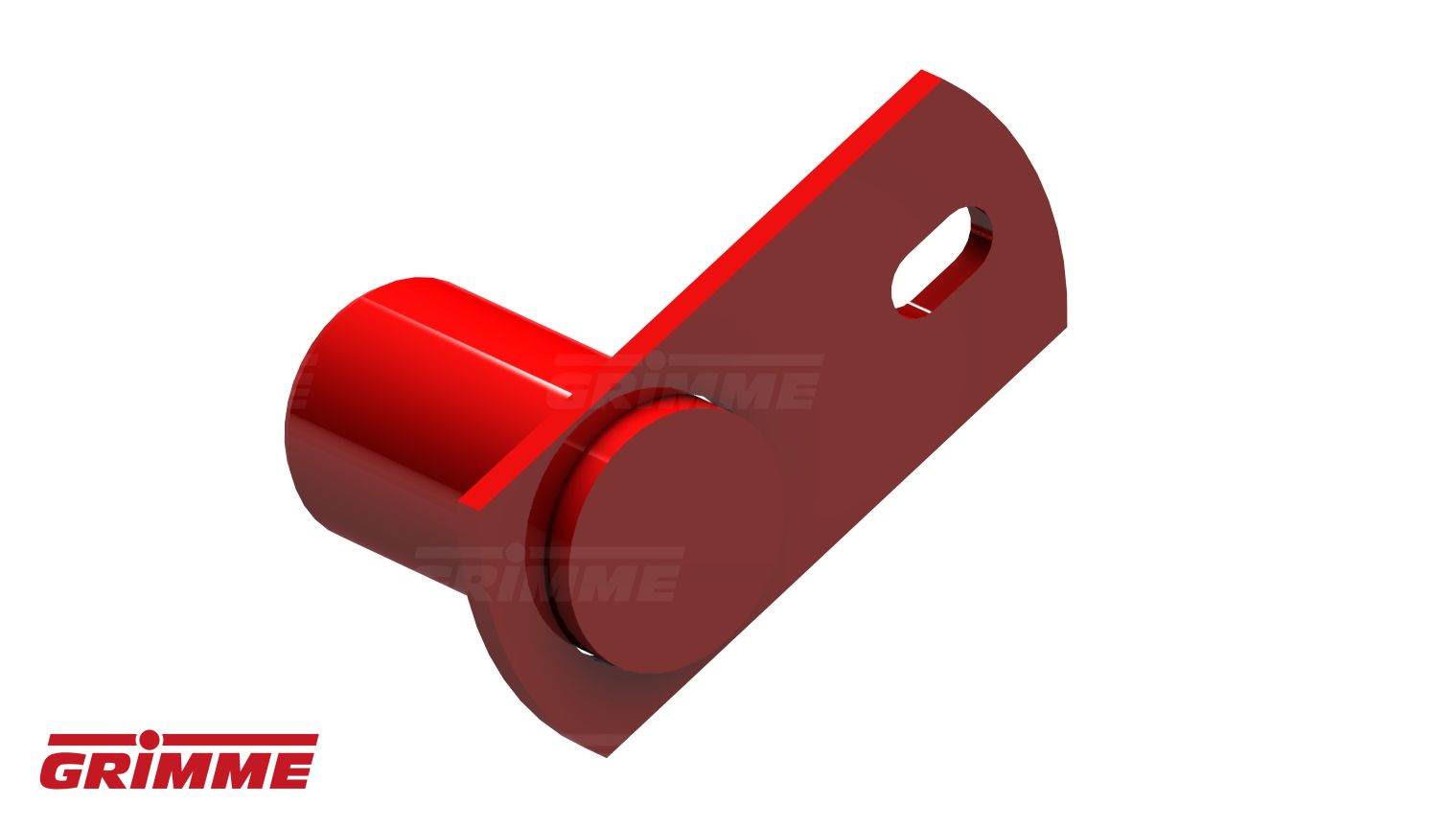

INDICATOR

Quantity in assembly group: 1 Piece / Pos. 7

PIN

Quantity in assembly group: 11 Piece / Pos. 8

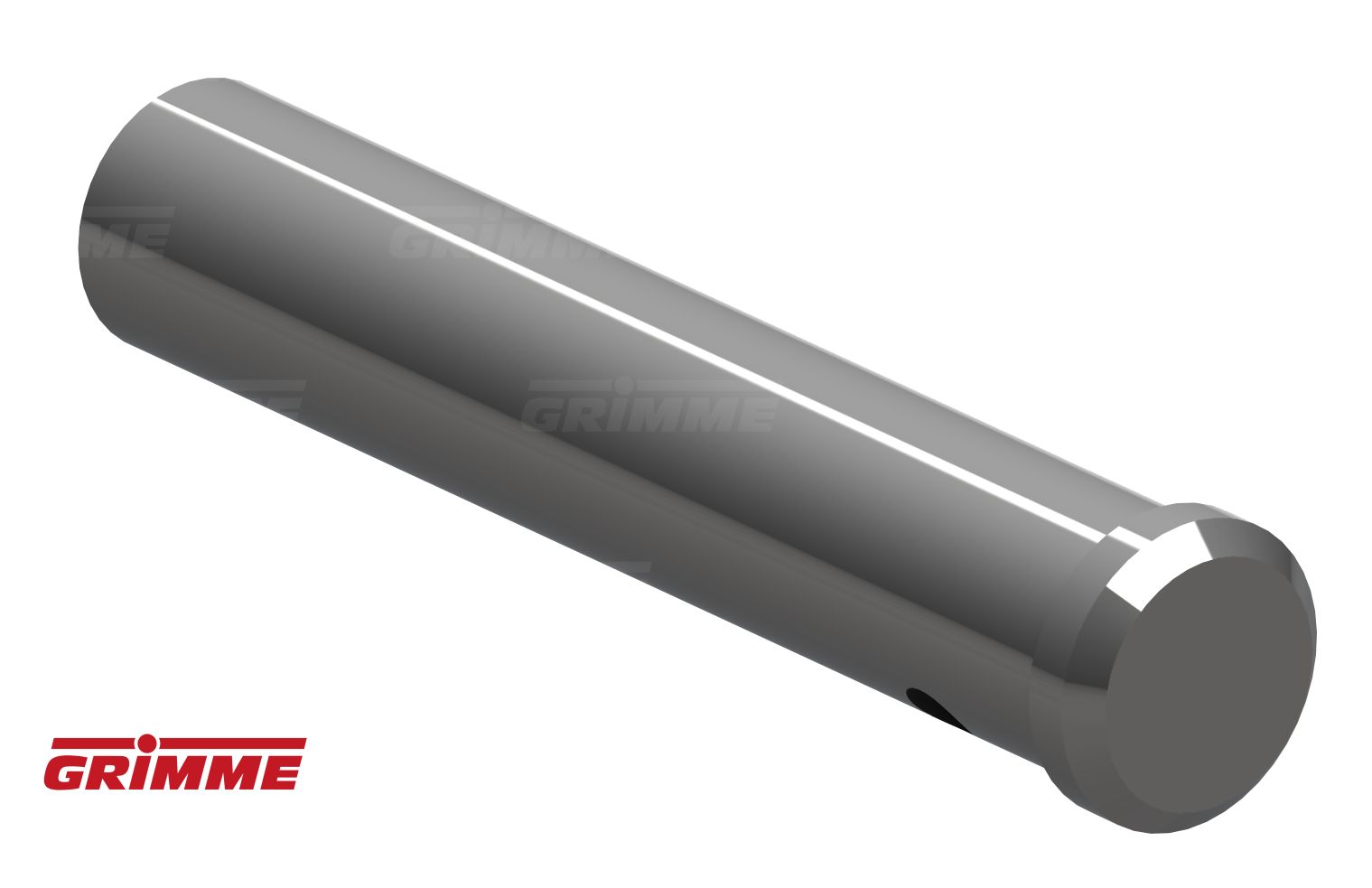

BOLT

Quantity in assembly group: 2 Piece / Pos. 9

BUSH

Quantity in assembly group: 4 Piece / Pos. 10

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 11

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 12

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 13

SPACER RING

Quantity in assembly group: 2 Piece / Pos. 14

SPACER RING

Quantity in assembly group: 12 Piece / Pos. 15

SPRING CLIP 6,3 DIN11024-GAL

Quantity in assembly group: 18 Piece / Pos. 16

ALLEN CONE SCREW M8X20-914flZn

Quantity in assembly group: 3 Piece / Pos. 17

LINCH PIN 4,5

Quantity in assembly group: 2 Piece / Pos. 18

SET SCREW M12X30-DIN933-8.8-G

Quantity in assembly group: 18 Piece / Pos. 19

SET SCREW M12X25-DIN933-8.8-G

Quantity in assembly group: 8 Piece / Pos. 20

RETAINING WASHER

Quantity in assembly group: 8 Piece / Pos. 21

COACH BOLT M10X70-DIN603-8.8-G

Quantity in assembly group: 4 Piece / Pos. 22

CONTACT DISC FORM M 12-GAL

Quantity in assembly group: 14 Piece / Pos. 23

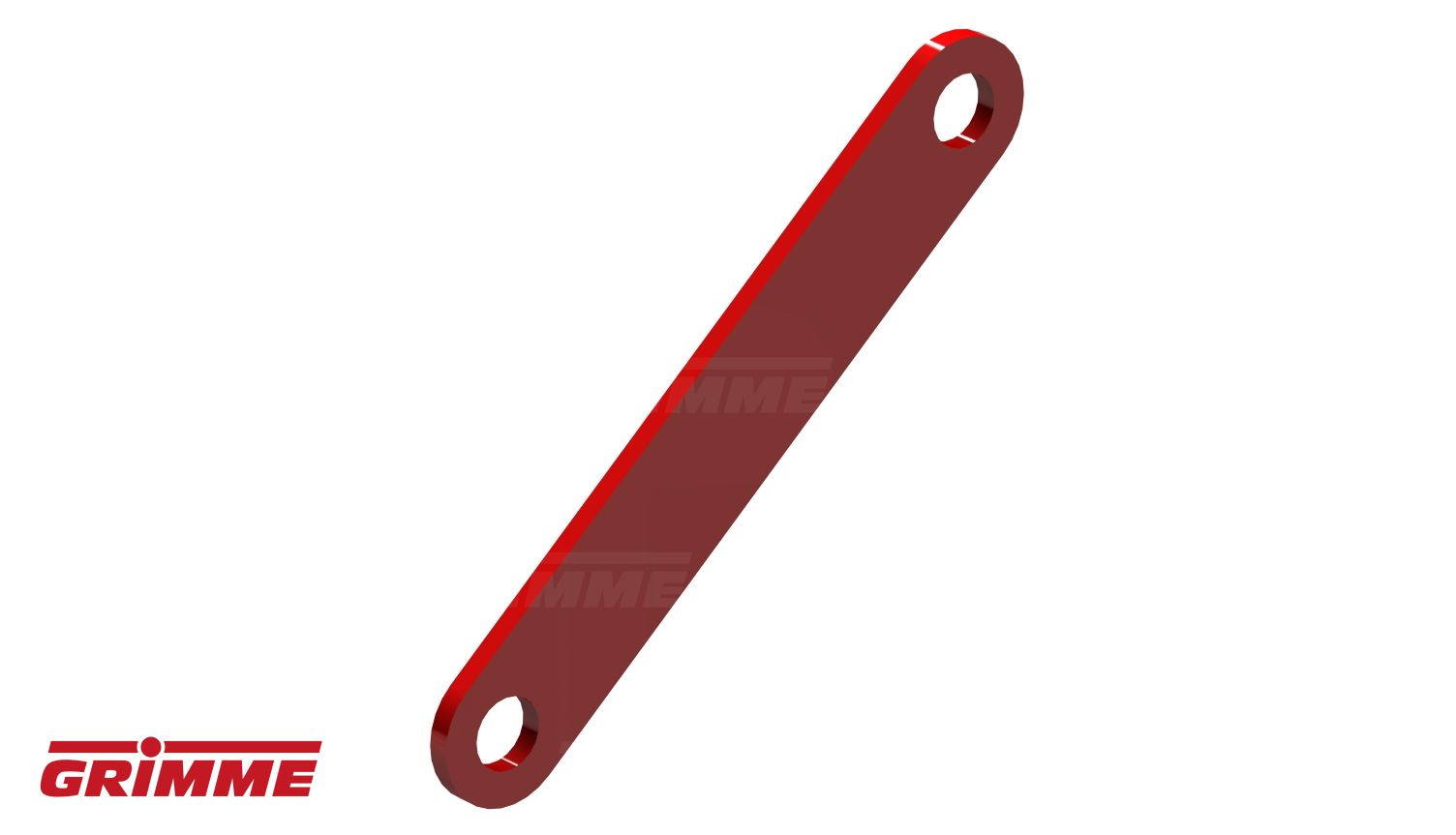

STRAP

Quantity in assembly group: 2 Piece / Pos. 24

STRAP

Quantity in assembly group: 2 Piece / Pos. 25

STRAP

Quantity in assembly group: 6 Piece / Pos. 26

FEATHER KEY

Quantity in assembly group: 3 Piece / Pos. 27

BEARING COVER PLATE

Quantity in assembly group: 6 Piece / Pos. 28

SPRING SLOTTED PIN DIN1481-4X3

Quantity in assembly group: 2 Piece / Pos. 29

CONNECTING LEVER

Quantity in assembly group: 2 Piece / Pos. 30

CONNECTING LEVER

Quantity in assembly group: 2 Piece / Pos. 31

CONNECTING LEVER

Quantity in assembly group: 6 Piece / Pos. 32

SUPPORTING BRACKET 4-6 R/H

Quantity in assembly group: 3 Piece / Pos. 40

SUPPORTING BRACKET 2-3 R/H

Quantity in assembly group: 1 Piece / Pos. 50

SUPPORTING BRACKET 4-6 L/H

Quantity in assembly group: 3 Piece / Pos. 60

SUPPORTING BRACKET 2-3 L/H

Quantity in assembly group: 1 Piece / Pos. 70

SUPPORTING BRACKET 7 R/H

Quantity in assembly group: 1 Piece / Pos. 80

SUPPORTING BRACKET 7 L/H

Quantity in assembly group: 1 Piece / Pos. 90

BEARING CPTE D40

Quantity in assembly group: 6 Piece / Pos. 100
