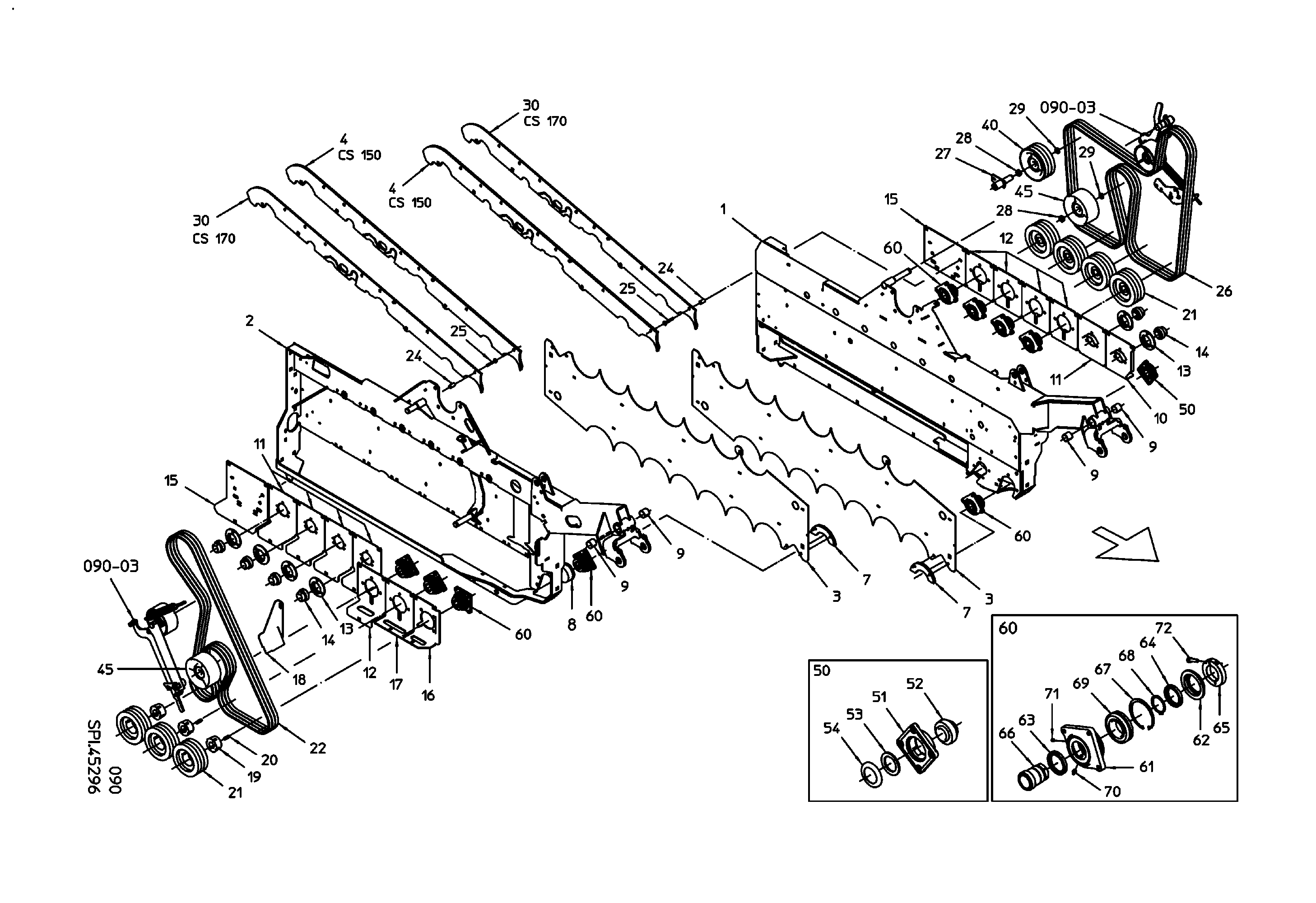

Parts by subassemblies

ROLLER DM200 WD93

Quantity in assembly group: 1 Piece / Pos. 0

PULLEY

Quantity in assembly group: 1 Piece / Pos. 0

BEARING 6306-2RS C3

Quantity in assembly group: 2 Piece / Pos. 0

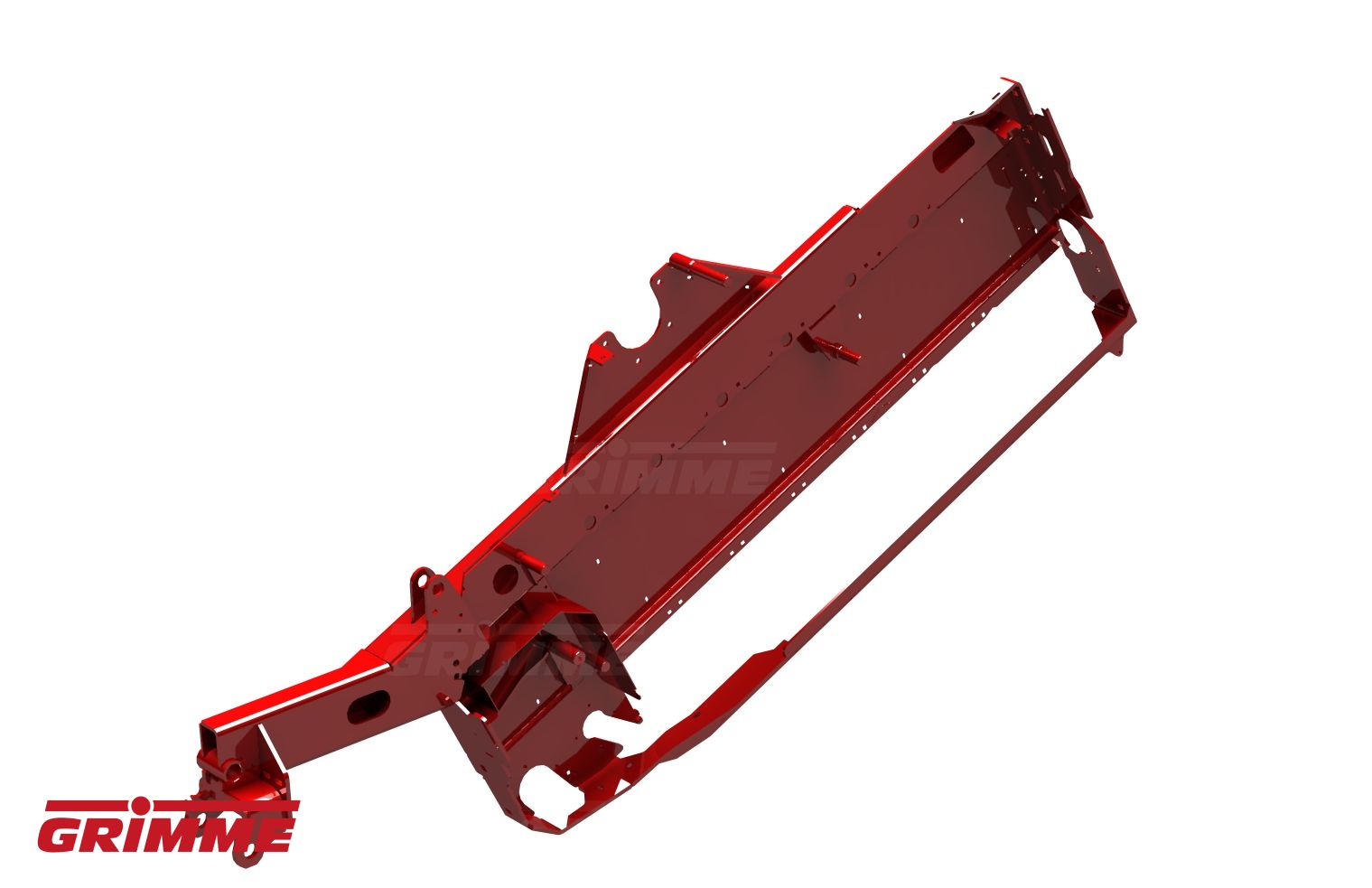

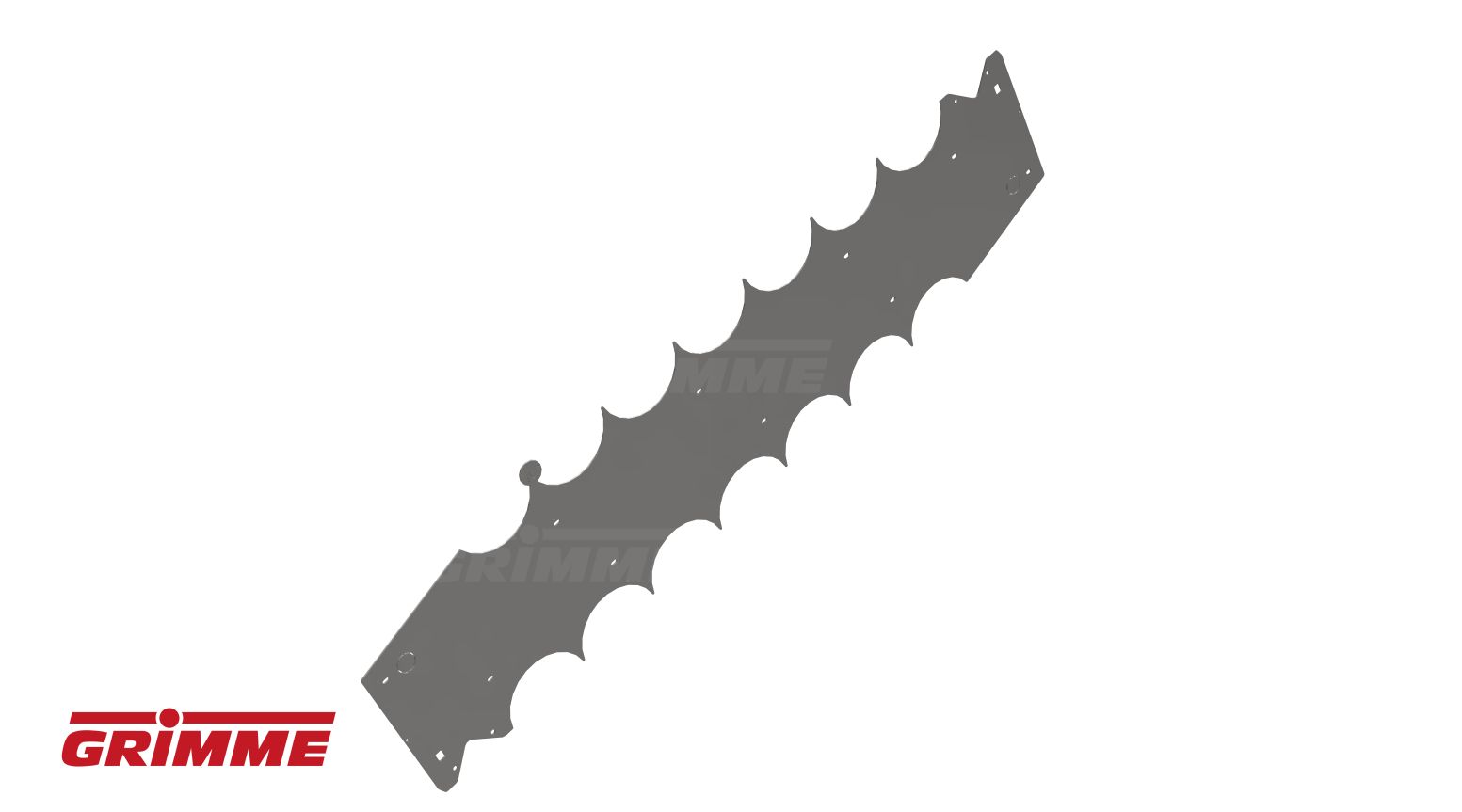

SIDE PART L/H

Quantity in assembly group: 1 Piece / Pos. 1

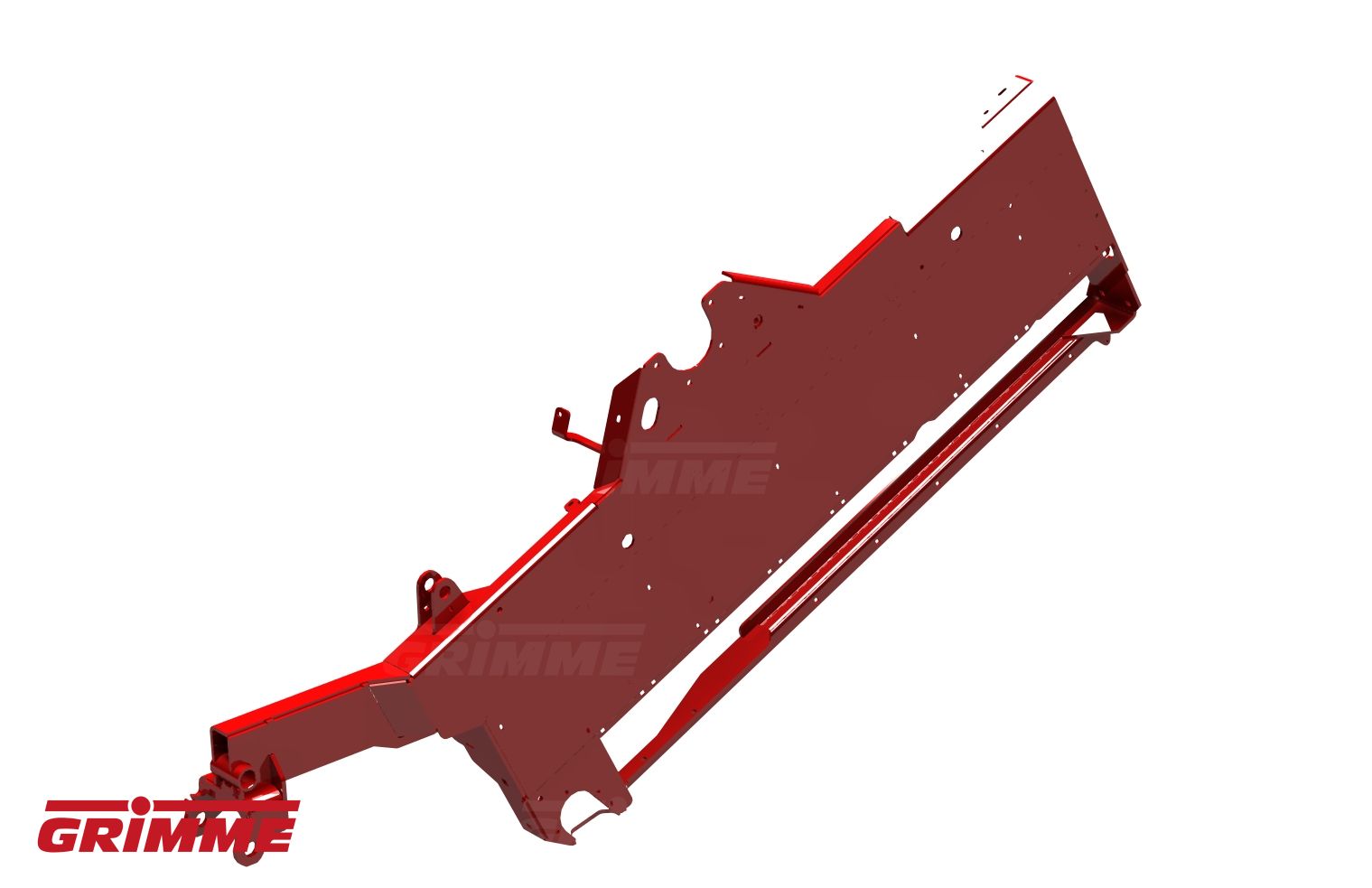

SIDE PART R/H

Quantity in assembly group: 1 Piece / Pos. 2

STAINLESS SIDE PLATE

Quantity in assembly group: 2 Piece / Pos. 3

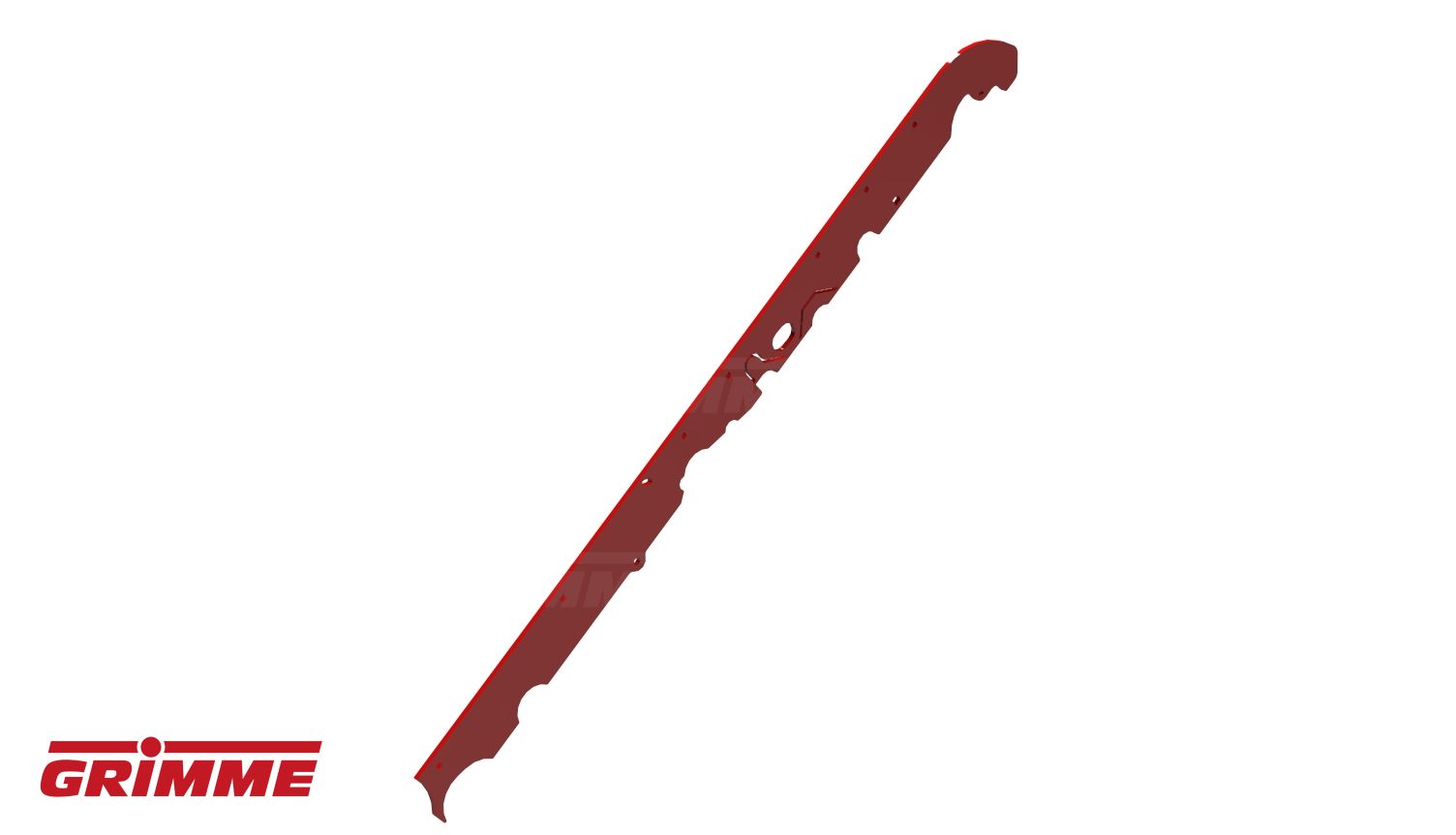

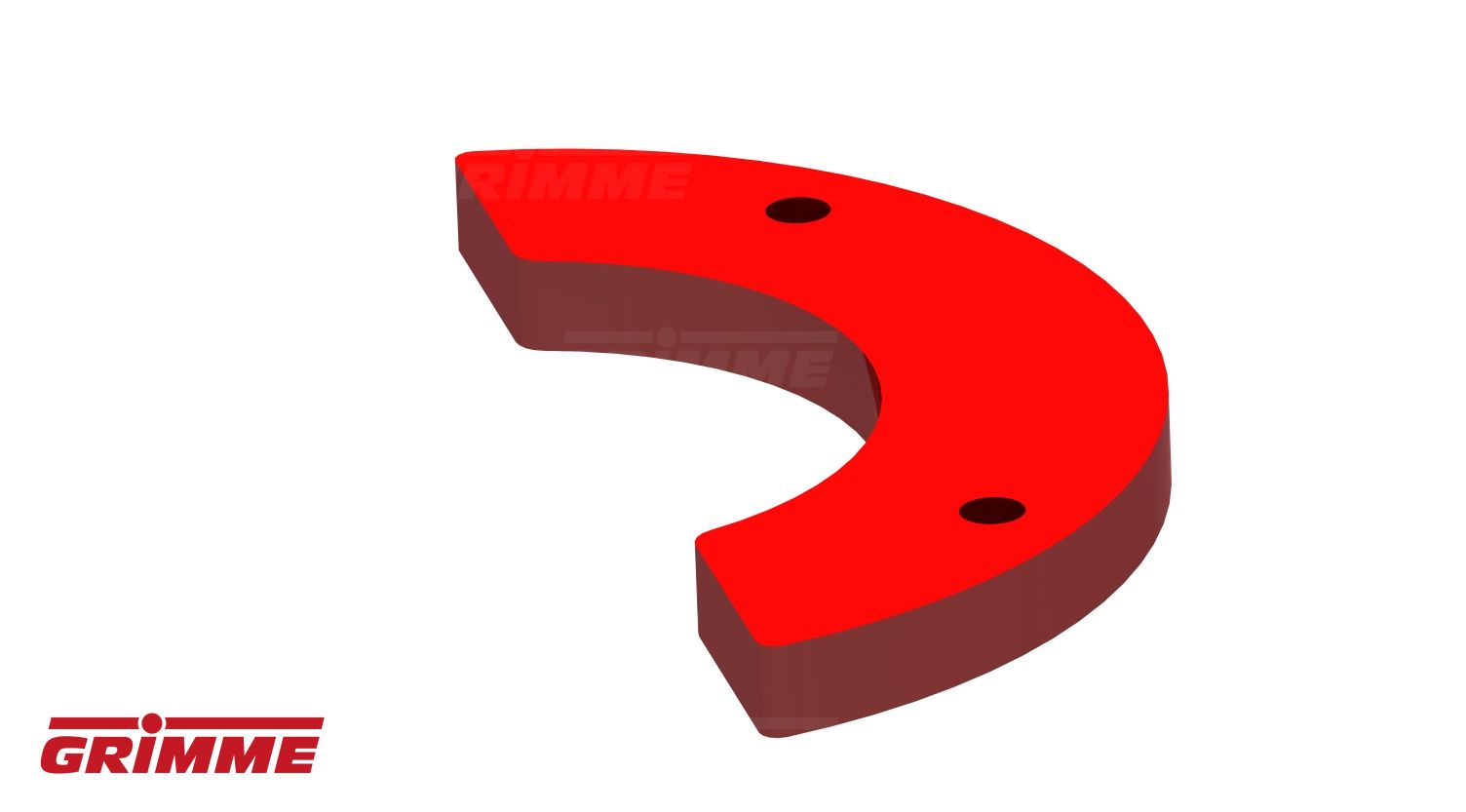

WEAR PLATE

Quantity in assembly group: 2 Piece / Pos. 4

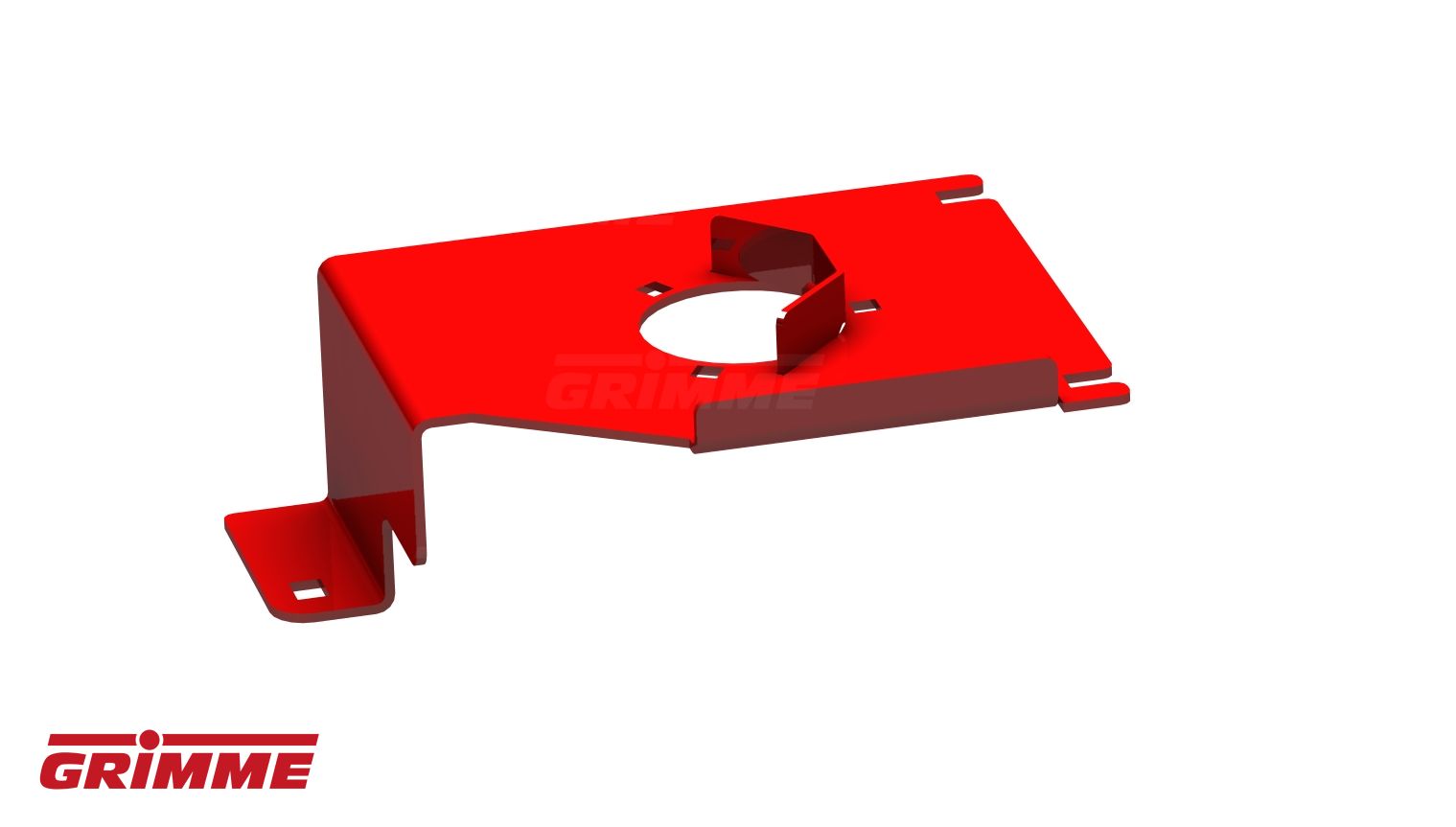

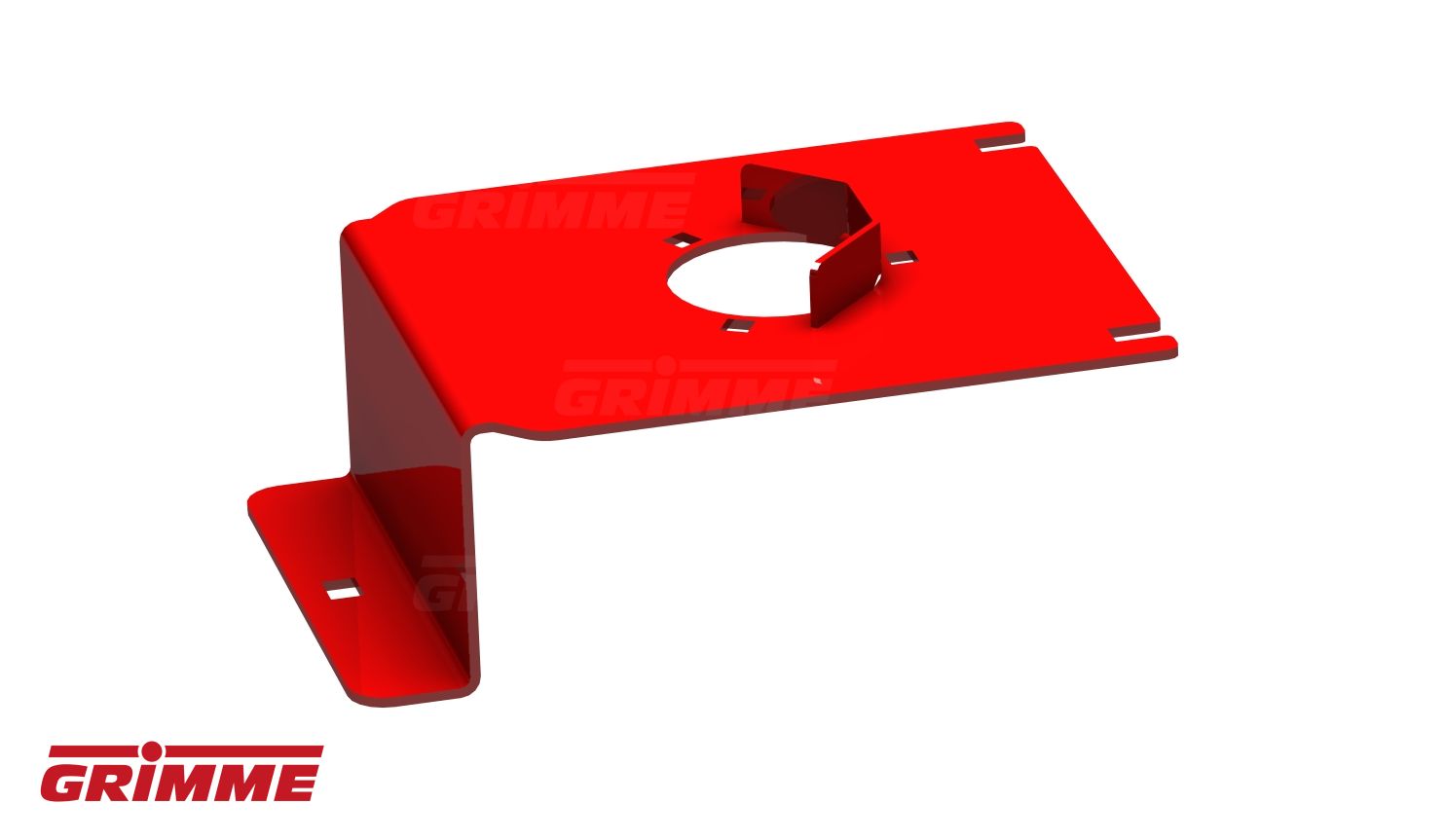

PROTECTION PLATE

Quantity in assembly group: 2 Piece / Pos. 7

DUST CAP

Quantity in assembly group: 1 Piece / Pos. 8

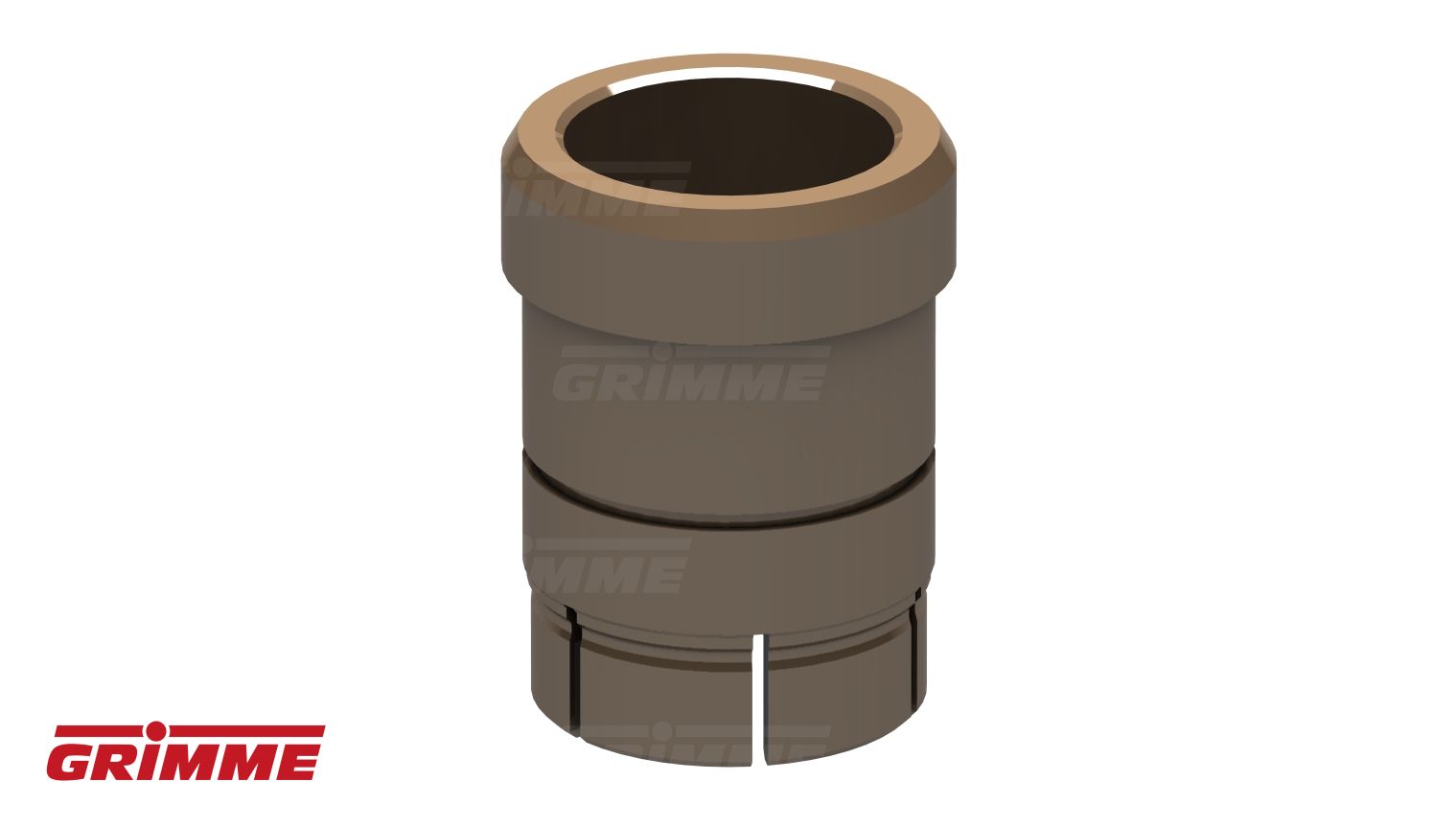

PLAIN BEARING BUSH 404440

Quantity in assembly group: 4 Piece / Pos. 9

BEARING PLATE L/H

Quantity in assembly group: 1 Piece / Pos. 10

BEARING PLATE

Quantity in assembly group: 5 Piece / Pos. 11

BEARING PLATE

Quantity in assembly group: 5 Piece / Pos. 12

FLANGE PLATE (PR) PF72/PF207

Quantity in assembly group: 6 Piece / Pos. 13

BEARING YEL 207-2RF/VL065

Quantity in assembly group: 6 Piece / Pos. 14

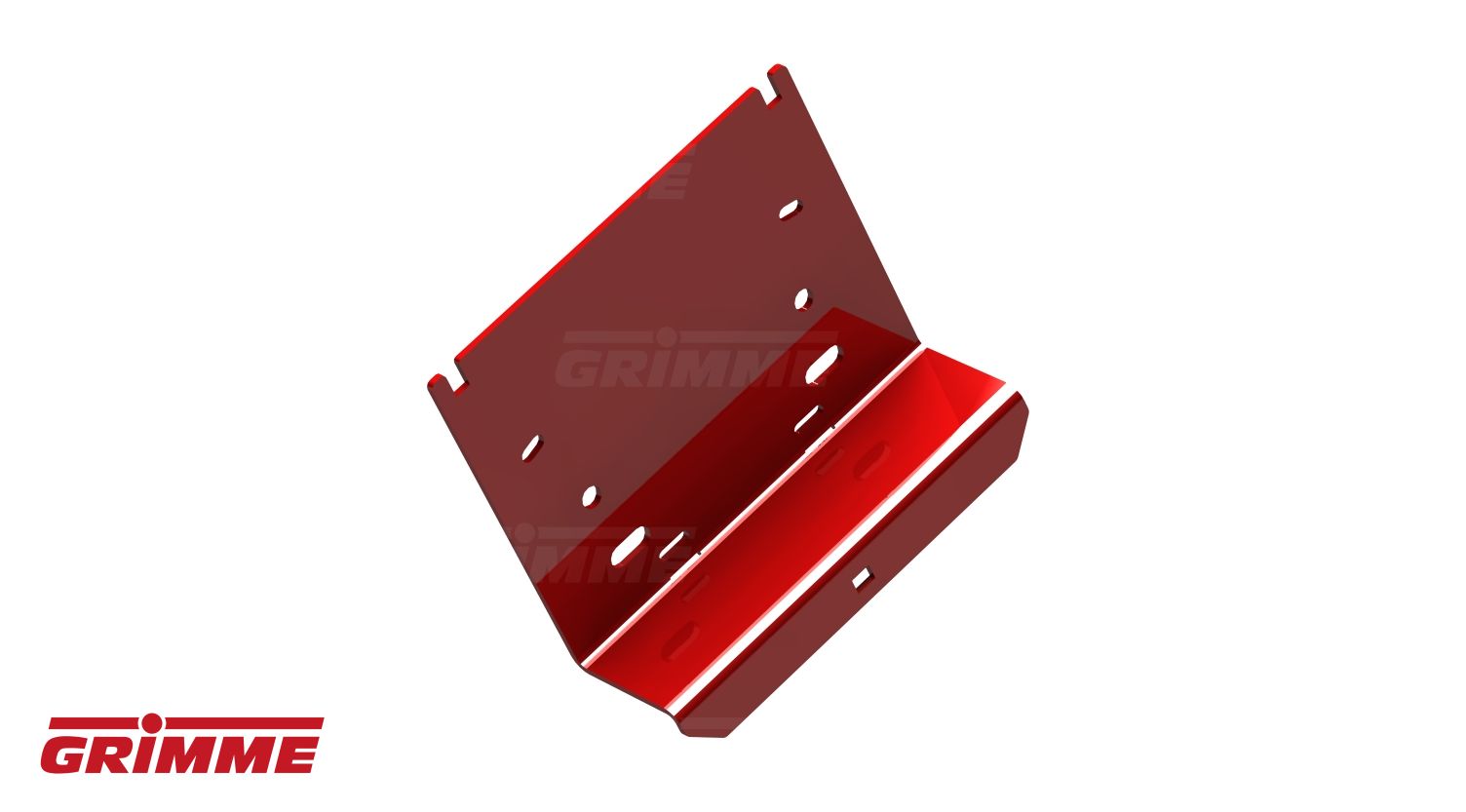

MOUNTING PLATE

Quantity in assembly group: 2 Piece / Pos. 15

BEARING PLATE

Quantity in assembly group: 1 Piece / Pos. 16

BEARING PLATE

Quantity in assembly group: 1 Piece / Pos. 17

PLATE

Quantity in assembly group: 1 Piece / Pos. 18

TAPER-BUSH 2517-040

Quantity in assembly group: 7 Piece / Pos. 19

FEATHER KEY A 12X8X45 DIN6885

Quantity in assembly group: 2 Piece / Pos. 20

PULLEY 3V SPCX200

Quantity in assembly group: 7 Piece / Pos. 21

BUSHING

Quantity in assembly group: 2 Piece / Pos. 24

COACH BOLT M10X70-DIN603-8.8-G

Quantity in assembly group: 2 Piece / Pos. 25

V-BELT 22X5040 LI - SET=3

Quantity in assembly group: 1 Piece / Pos. 26

SPINDLE

Quantity in assembly group: 1 Piece / Pos. 27

SPACER RING

Quantity in assembly group: 2 Piece / Pos. 28

RETAINING RING AS 30X2 DIN471

Quantity in assembly group: 5 Piece / Pos. 29

WEAR PLATE

Quantity in assembly group: 2 Piece / Pos. 30

IDLER PULLEY C/W BEARINGS

Quantity in assembly group: 1 Piece / Pos. 40

IDLER PULLEY C/W BEARINGS

Quantity in assembly group: 2 Piece / Pos. 45

FLANGE BEARING

Quantity in assembly group: 1 Piece / Pos. 50

BEARING HOUSING

Quantity in assembly group: 1 Piece / Pos. 51

BEARING YAR 207-2RF/UC207

Quantity in assembly group: 1 Piece / Pos. 52

SEALING RING

Quantity in assembly group: 1 Piece / Pos. 53

SEALING CAP

Quantity in assembly group: 1 Piece / Pos. 54

BEARING CPTE D40

Quantity in assembly group: 9 Piece / Pos. 60

FLANGE BEARING HOUSING

Quantity in assembly group: 9 Piece / Pos. 61

BEARING COVER

Quantity in assembly group: 9 Piece / Pos. 62

OIL SEAL 55X70X8

Quantity in assembly group: 9 Piece / Pos. 63

SHAFT SEALING RING 50X65X8

Quantity in assembly group: 9 Piece / Pos. 64

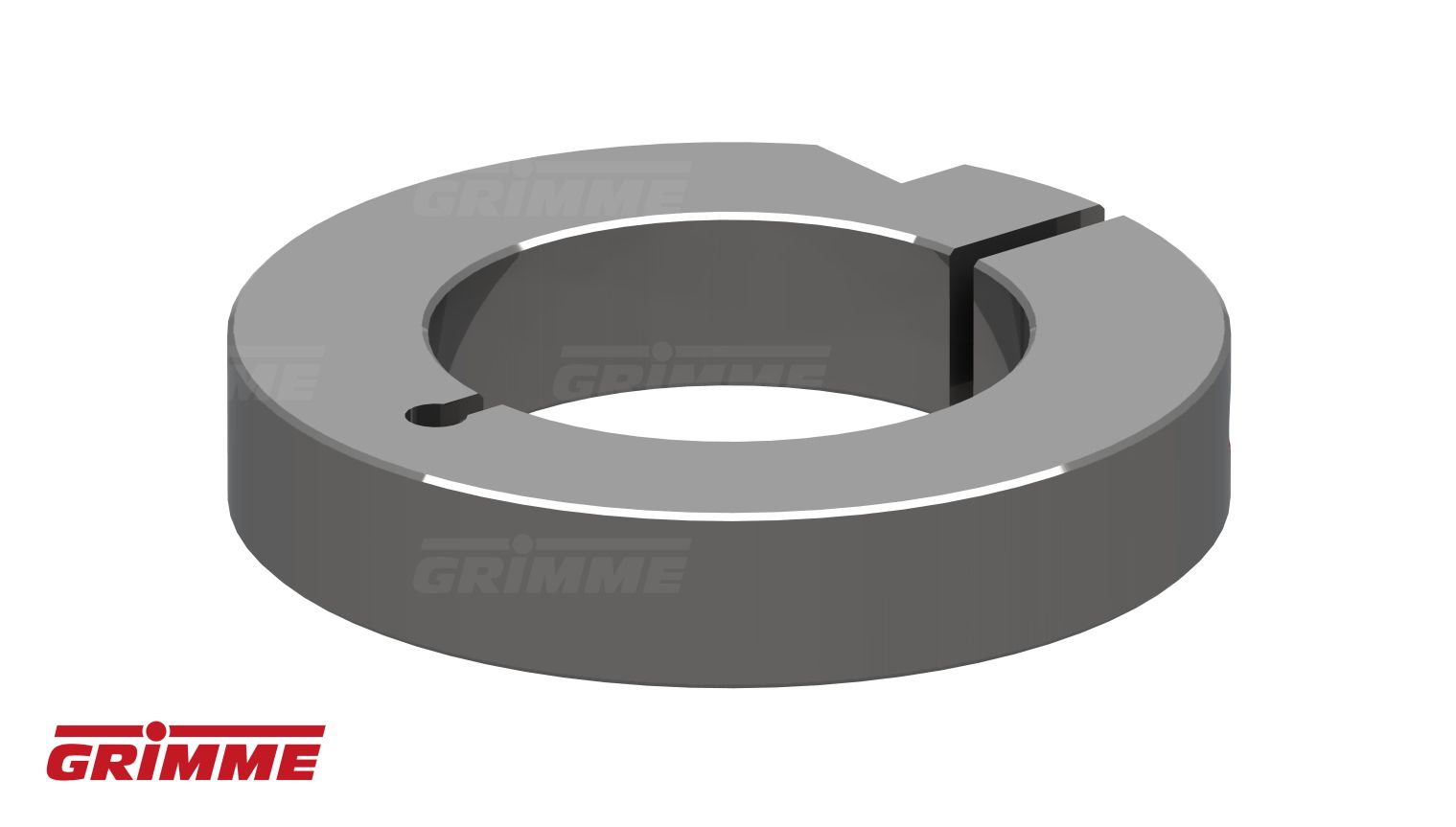

LOCKING RING

Quantity in assembly group: 9 Piece / Pos. 65

LOCKING SLEEVE

Quantity in assembly group: 9 Piece / Pos. 66

RETAINING RING J 90X3 DIN472

Quantity in assembly group: 9 Piece / Pos. 67

RETAINING RING A 50X2 DIN471

Quantity in assembly group: 9 Piece / Pos. 68

SELF ALIGNING BEARING 22210

Quantity in assembly group: 9 Piece / Pos. 69

GREASE NIPPLE H1/S-M8X1 DIN714

Quantity in assembly group: 11 Piece / Pos. 70

GRUB BOLT M6X8-DIN916 flZn

Quantity in assembly group: 9 Piece / Pos. 71

SHC-SCREW DIN912 M8X30-8 GAL

Quantity in assembly group: 9 Piece / Pos. 72
