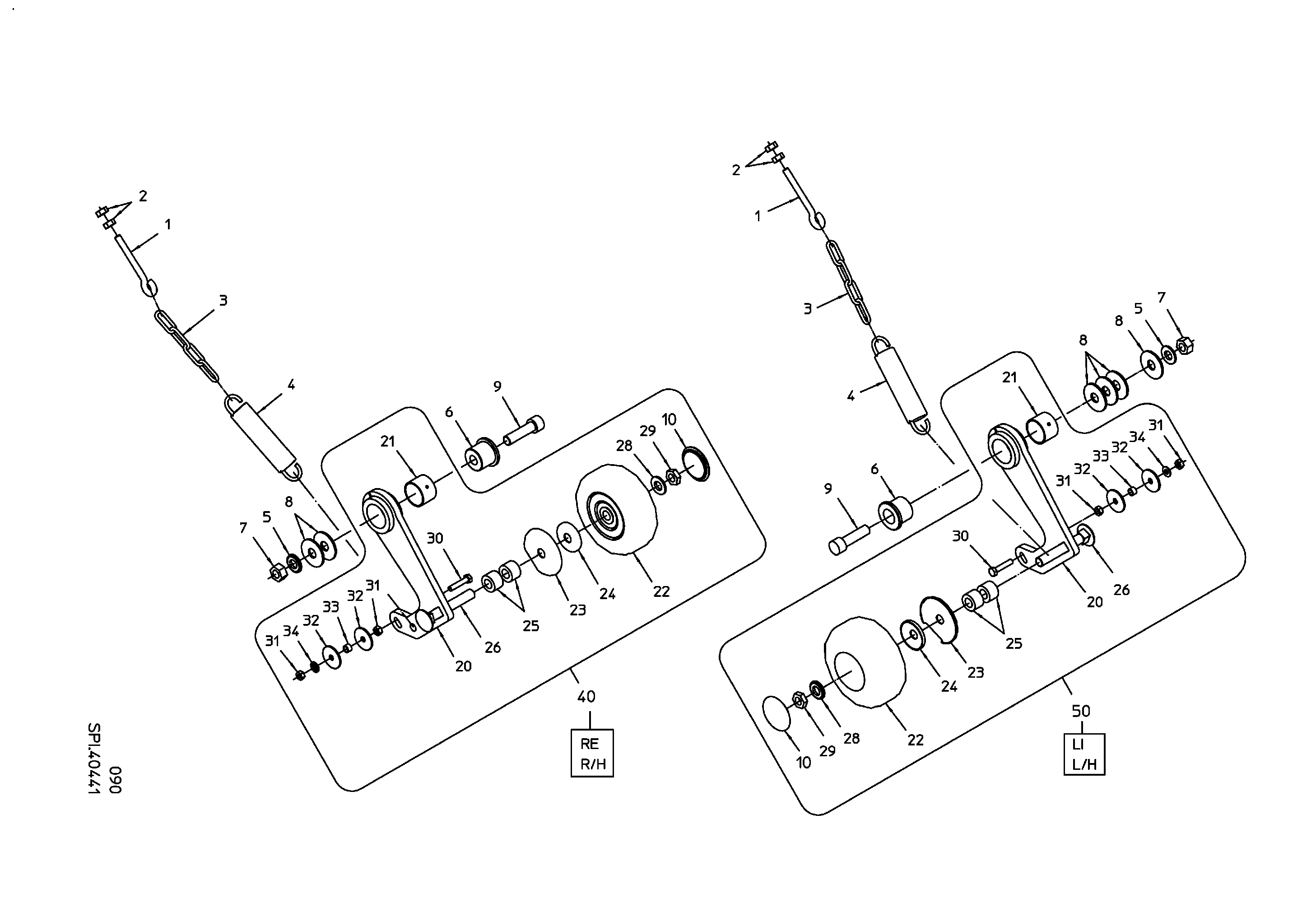

Parts by subassemblies

EYELET SCREW

Quantity in assembly group: 2 Piece / Pos. 1

HEXAGON NUT M10 DIN934-8-GAL

Quantity in assembly group: 4 Piece / Pos. 2

LINK CHAIN-4 LINKS C5X36

Quantity in assembly group: 2 Piece / Pos. 3

TENSION SPRING

Quantity in assembly group: 2 Piece / Pos. 4

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 2 Piece / Pos. 5

PIN

Quantity in assembly group: 2 Piece / Pos. 6

HEXAGON NUT M16 DIN934-8-GAL

Quantity in assembly group: 2 Piece / Pos. 7

DISC A 17 DIN9021-GAL

Quantity in assembly group: 6 Piece / Pos. 8

SHC-SCREW DIN912M16X60-8.8-GAL

Quantity in assembly group: 2 Piece / Pos. 9

ROLLER CAP

Quantity in assembly group: 2 Piece / Pos. 10

TENSION ARM - CS

Quantity in assembly group: 2 Piece / Pos. 20

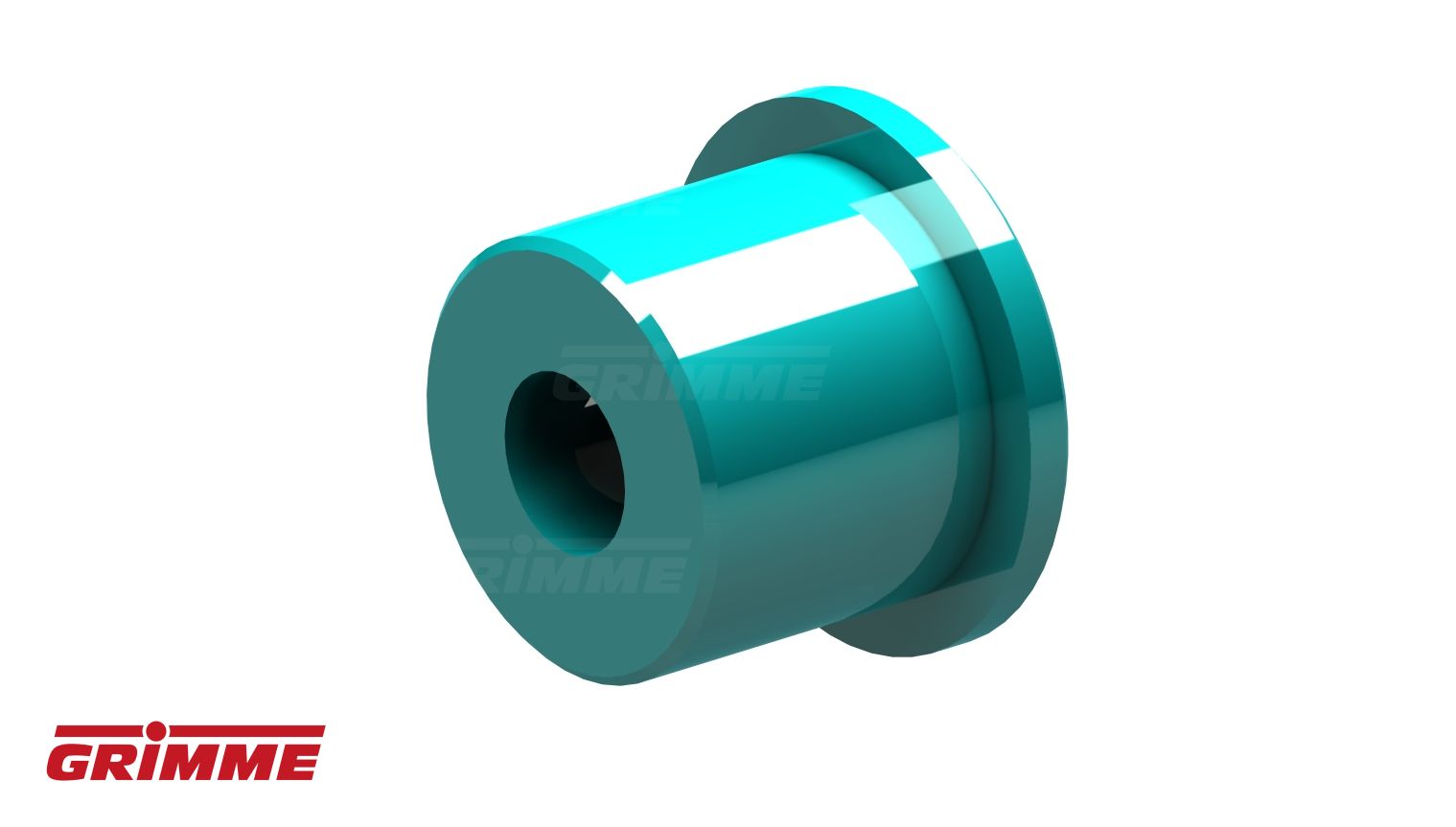

PLAIN BEARING BUSH 404430

Quantity in assembly group: 2 Piece / Pos. 21

SUPPORT ROLLER 150

Quantity in assembly group: 2 Piece / Pos. 22

WINDING PROTECTION

Quantity in assembly group: 2 Piece / Pos. 23

WINDING PROTECTION

Quantity in assembly group: 2 Piece / Pos. 24

SPACER 20MM

Quantity in assembly group: 4 Piece / Pos. 25

COACH BOLT M16X110-DIN603-8.8G

Quantity in assembly group: 2 Piece / Pos. 26

HALF NUT M16 DIN936-17H-GAL

Quantity in assembly group: 2 Piece / Pos. 29

HHC-SCREW M8X40 DIN933-8.8-GAL

Quantity in assembly group: 2 Piece / Pos. 30

HEXAGON NUT M8 DIN934-8-GAL

Quantity in assembly group: 4 Piece / Pos. 31

PLAIN WASHER 9X40X2,5

Quantity in assembly group: 4 Piece / Pos. 32

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 33

CONTACT WASHER FORM M 8-GAL

Quantity in assembly group: 2 Piece / Pos. 34

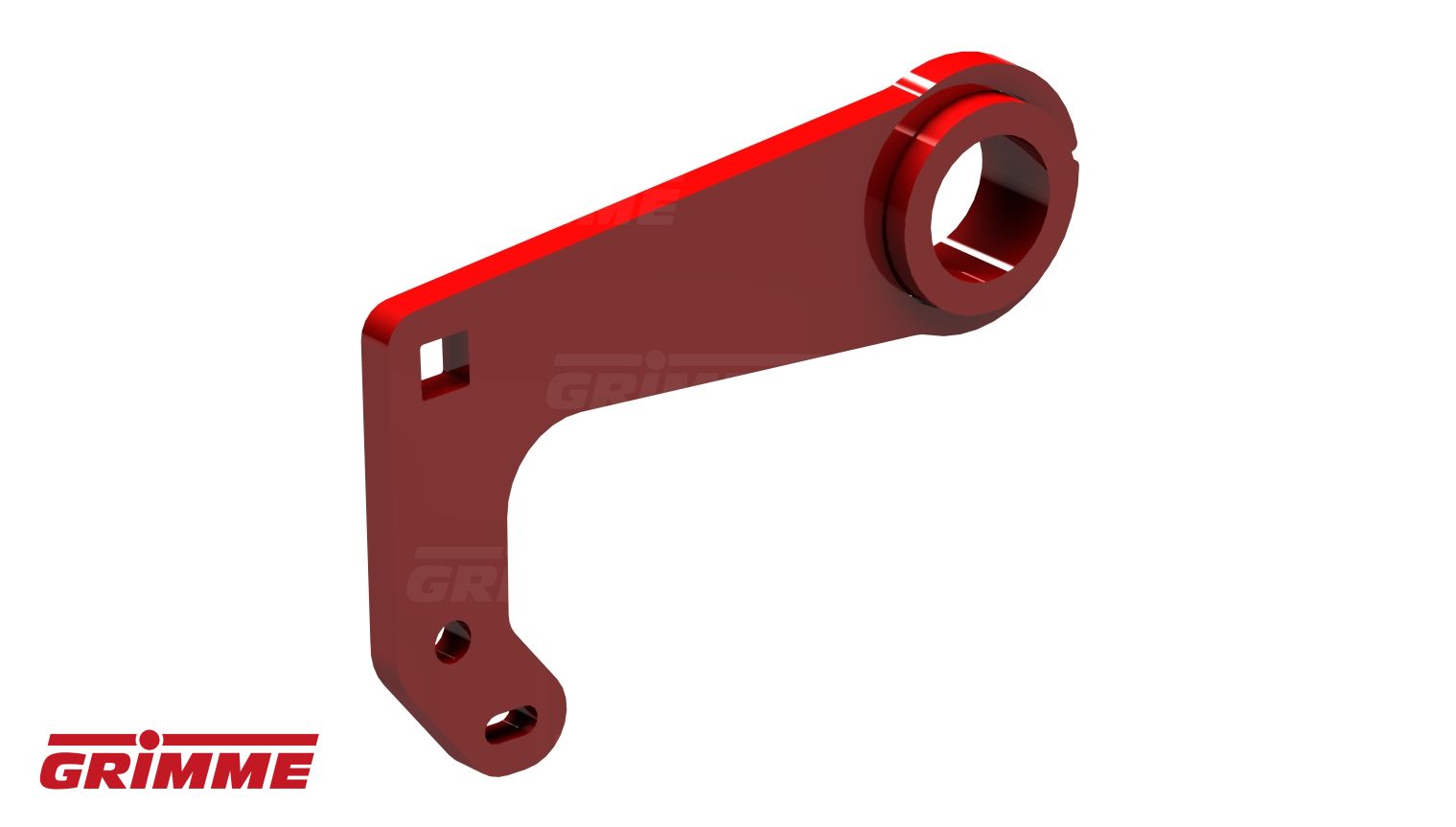

TENSION ARM R/H

Quantity in assembly group: 1 Piece / Pos. 40

TENSION ARM L/H

Quantity in assembly group: 1 Piece / Pos. 50
