Parts by subassemblies

Your machine: CLOD SEPARATOR CS 150 CS 150 modify ▸

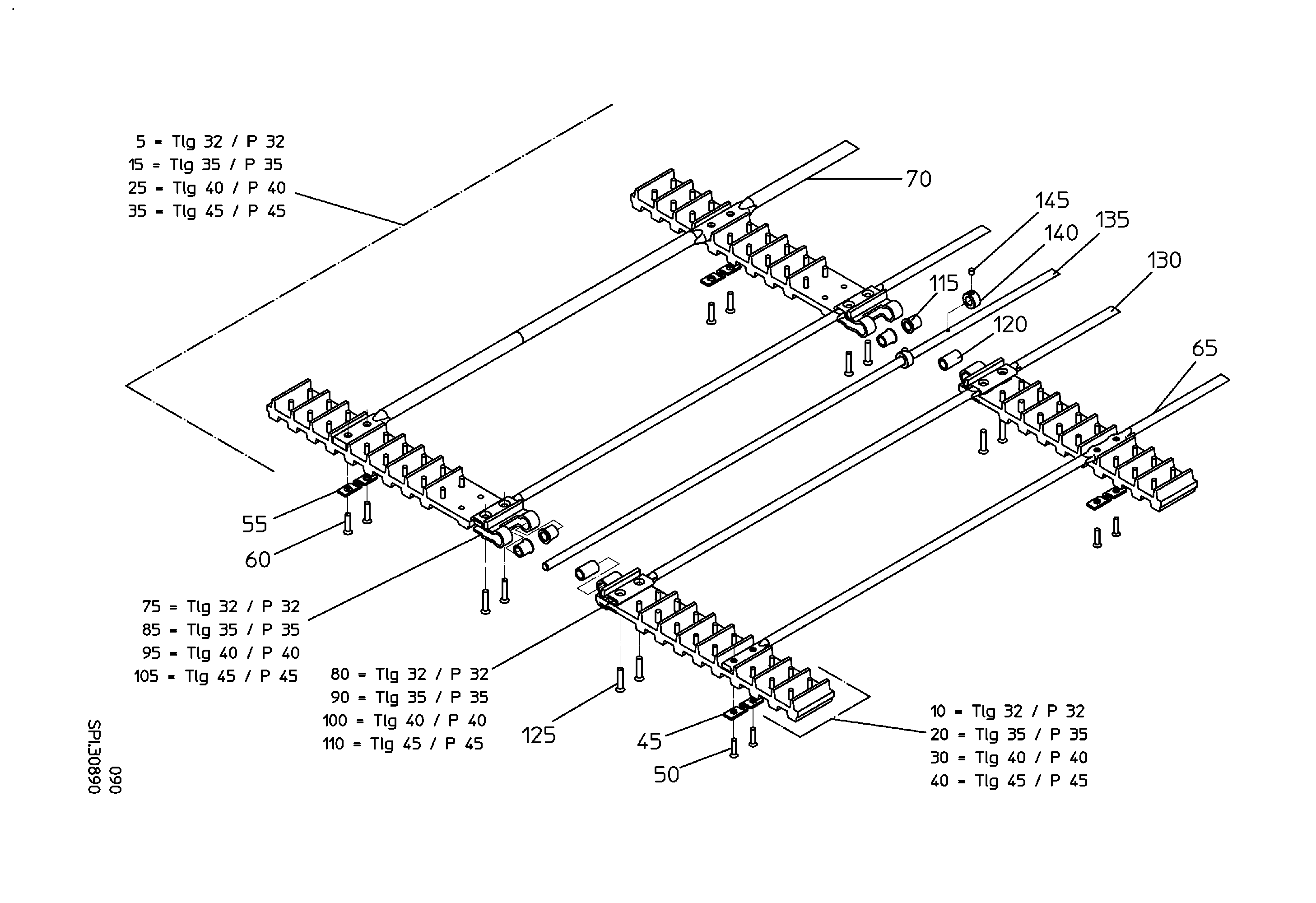

Subassembly drawing

▸ Selected assembly group:

Selected subassembly

▸
1.MAIN WEB P 32/35/40/45 150 (29 Parts)
▸

Subassembly parts

1. MAIN WEB 1463-65-32 CB DP
Quantity in assembly group: 1 Piece / Pos. 5

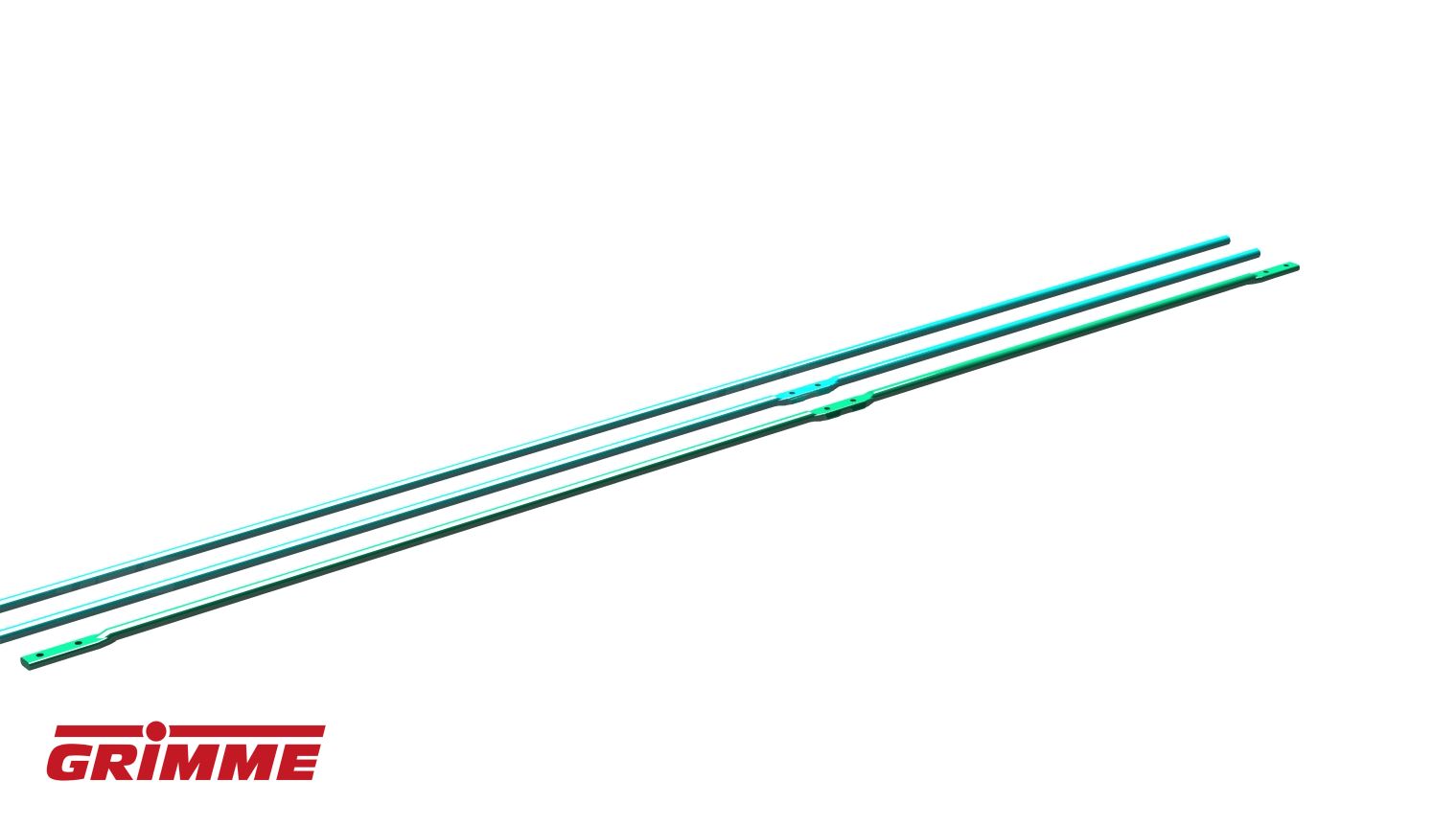

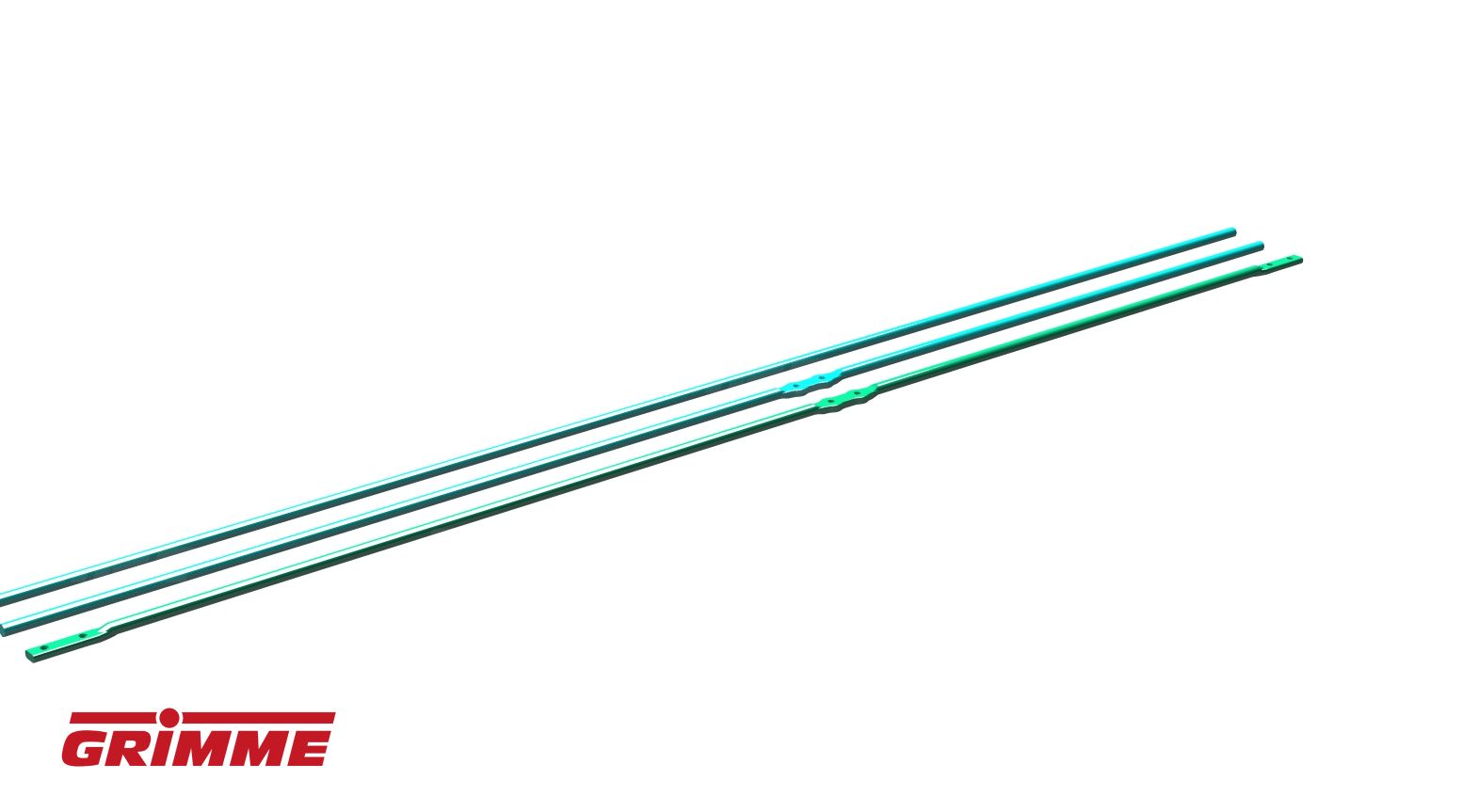

CENTRE BELT 64DCA-HIGH 60/32
Quantity in assembly group: 3 Piece / Pos. 10
MAIN WEB 60/1459/2129
Quantity in assembly group: 1 Piece / Pos. 15
BT DCA-H 60/35X59
Quantity in assembly group: 3 Piece / Pos. 20
MAIN WEB 40/1459/2114
Quantity in assembly group: 1 Piece / Pos. 25
BT DCA-H 60/40X51
Quantity in assembly group: 3 Piece / Pos. 30
1ST MAIN WEB 1463-46-45
Quantity in assembly group: 1 Piece / Pos. 35
OB/CB 45DCA-HIGH 60/45
Quantity in assembly group: 3 Piece / Pos. 40

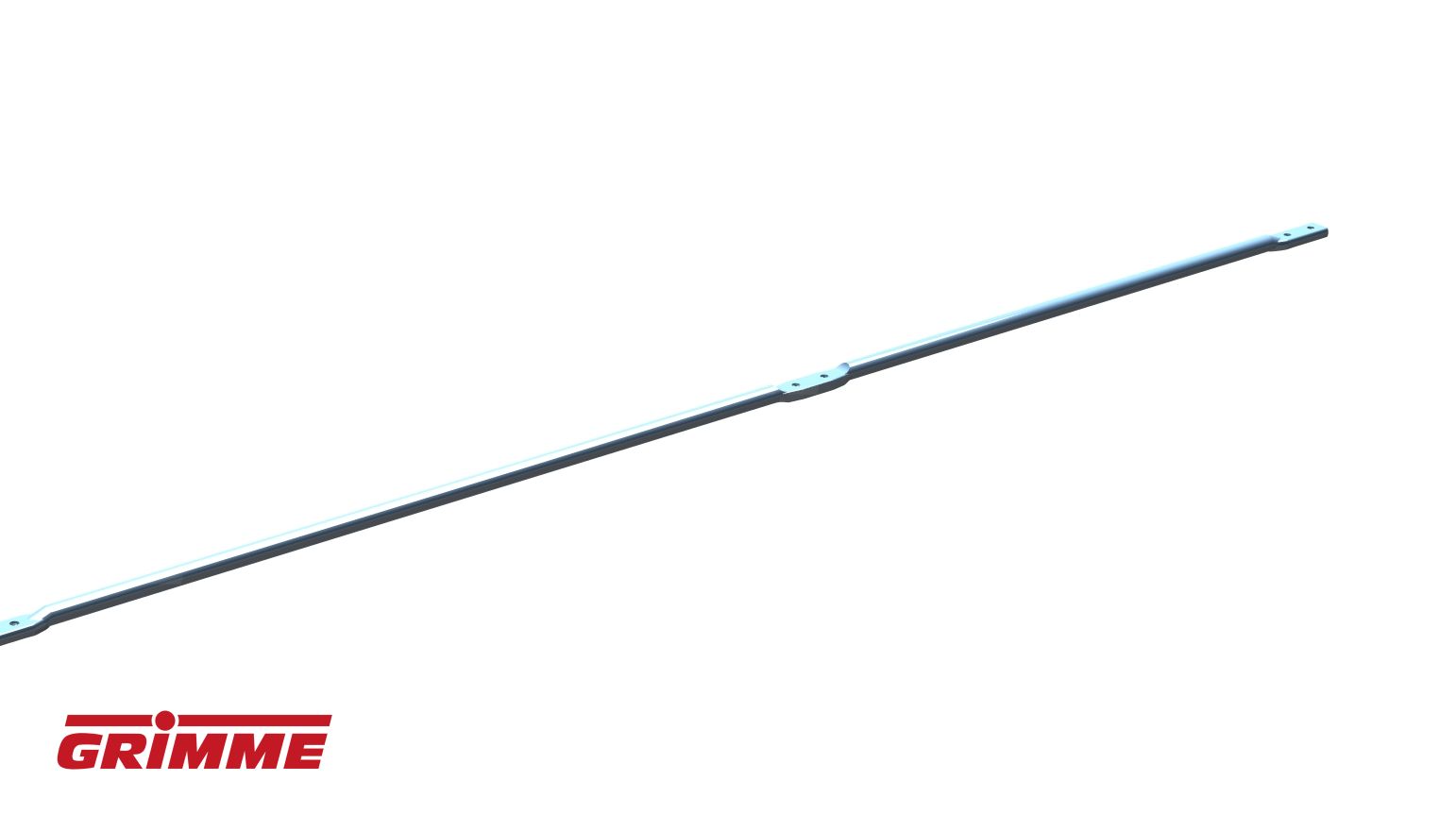

RIVET PLATE 32/5,3
Quantity in assembly group: 1 Piece / Pos. 45
RIVET PLATE 32/6
Quantity in assembly group: 1 Piece / Pos. 50
COUNTER-SUNK RIVET 5,3X23
Quantity in assembly group: 1 Piece / Pos. 55
COUNTER-SUNK RIVET 6X26
Quantity in assembly group: 1 Piece / Pos. 60
BAR 11X1456 CEFL
Quantity in assembly group: 1 Piece / Pos. 65
BAR 16X1456 CEFL
Quantity in assembly group: 1 Piece / Pos. 70

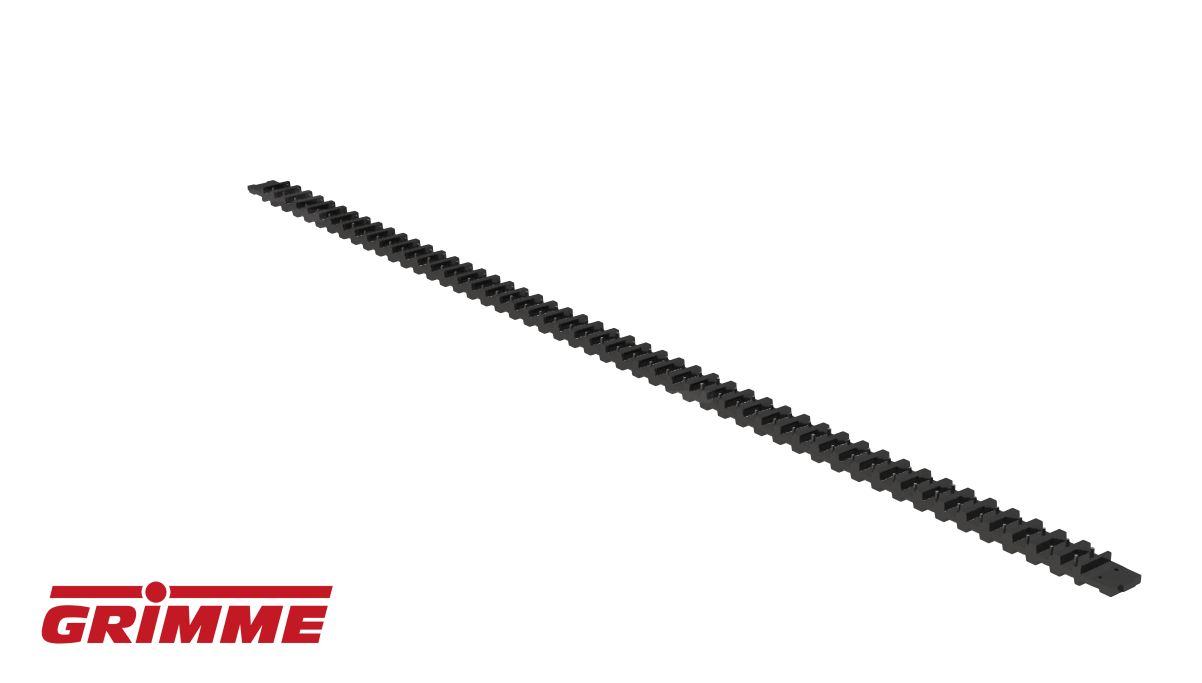

BT-BIN TYPE1 P32 DBH32 OU
Quantity in assembly group: 3 Piece / Pos. 75
BT-BIN TYPE1 P32 DBH32 IN
Quantity in assembly group: 3 Piece / Pos. 80
BT-BIN TYPE1 P36 DBH32 OU
Quantity in assembly group: 3 Piece / Pos. 85
BT-BIN TYPE1 P36 DBH32 IN
Quantity in assembly group: 3 Piece / Pos. 90
BT-BIN TYPE1 P40 DBH32 OU
Quantity in assembly group: 3 Piece / Pos. 95
BT-BIN TYPE1 P40 DBH32 IN
Quantity in assembly group: 3 Piece / Pos. 100
BT-BIN TYPE1 P45 DBH32 OU
Quantity in assembly group: 3 Piece / Pos. 105
BT-BIN TYPE1 P45 DBH32 IN
Quantity in assembly group: 3 Piece / Pos. 110
THREADED BUSH 15X10,2X17
Quantity in assembly group: 6 Piece / Pos. 115
BUSHING 15X10,2X25,5
Quantity in assembly group: 3 Piece / Pos. 120
COUNTER-SUNK RIVET 6X30
Quantity in assembly group: 12 Piece / Pos. 125
BAR 11X1456 CEFL
Quantity in assembly group: 2 Piece / Pos. 130
JOINING BAR 9,9X1460
Quantity in assembly group: 1 Piece / Pos. 135
COLLAR DM10.2
Quantity in assembly group: 2 Piece / Pos. 140
GRUB BOLT M6X8-DIN914 flZn
Quantity in assembly group: 2 Piece / Pos. 145
