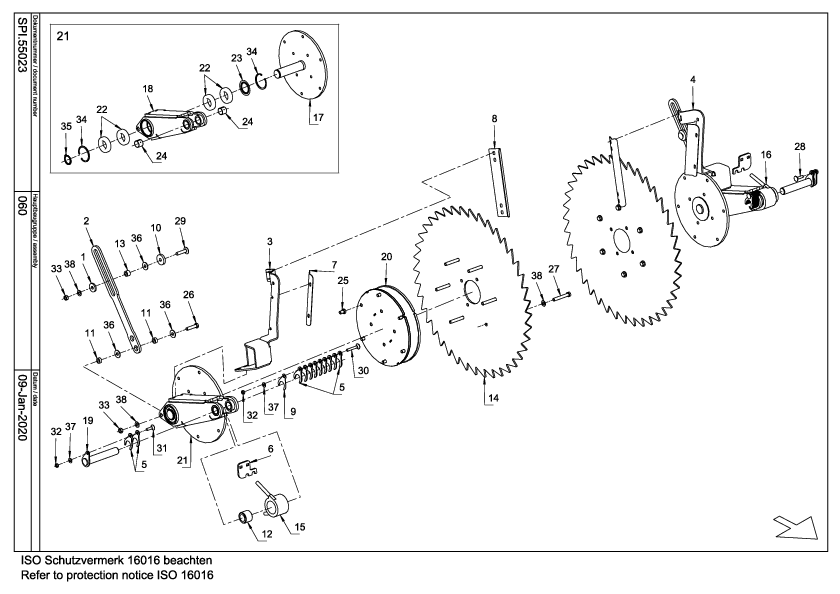

Parts by subassemblies

RETAINING WASHER

Quantity in assembly group: 2 Piece / Pos. 1

GUIDE STRAP

Quantity in assembly group: 2 Piece / Pos. 2

SCRAPER BRACKET R/H 170 6B

Quantity in assembly group: 1 Piece / Pos. 3

SCRAPER BRACKET L/H 170 6B

Quantity in assembly group: 1 Piece / Pos. 4

SPACER PLATE

Quantity in assembly group: 22 Piece / Pos. 5

PANEL

Quantity in assembly group: 2 Piece / Pos. 6

DISC SCRAPER

Quantity in assembly group: 2 Piece / Pos. 7

DISC SCRAPER

Quantity in assembly group: 2 Piece / Pos. 8

SPACER PLATE

Quantity in assembly group: 2 Piece / Pos. 9

ROUND 17X60X12

Quantity in assembly group: 2 Piece / Pos. 10

SPACER

Quantity in assembly group: 4 Piece / Pos. 11

TUBE

Quantity in assembly group: 2 Piece / Pos. 12

SPACER 20MM

Quantity in assembly group: 2 Piece / Pos. 13

DISC COULTER SERRATED 1015

Quantity in assembly group: 2 Piece / Pos. 14

LEG SPRING R/H DM=18

Quantity in assembly group: 1 Piece / Pos. 15

LEG SPRING L/H DM=18

Quantity in assembly group: 1 Piece / Pos. 16

DISC HUB

Quantity in assembly group: 1 Piece / Pos. 17

BRACKET

Quantity in assembly group: 1 Piece / Pos. 18

PIN

Quantity in assembly group: 2 Piece / Pos. 19

DISC COULTER-DISTANCE PLATE

Quantity in assembly group: 2 Piece / Pos. 20

RETAINING DEVICE WITH HUB

Quantity in assembly group: 2 Piece / Pos. 21

BALL BEARING 6211-2RS

Quantity in assembly group: 4 Piece / Pos. 22

NILOSRING 22211 JV

Quantity in assembly group: 1 Piece / Pos. 23

PLAIN BEARING BUSH 404435

Quantity in assembly group: 2 Piece / Pos. 24

SET SCREW M16X25-DIN933-8.8-G

Quantity in assembly group: 12 Piece / Pos. 25

HEX BOLT M16X70-DIN931-8.8-G

Quantity in assembly group: 2 Piece / Pos. 26

HEX BOLT M16X110-DIN931-8.8-G

Quantity in assembly group: 12 Piece / Pos. 27

MH-SCREW M12X50 DIN603-8.8

Quantity in assembly group: 1 Piece / Pos. 28

COACH BOLT/SS M16X70-603-8.8-G

Quantity in assembly group: 2 Piece / Pos. 29

COACH BOLT M12X80-DIN603-8.8-G

Quantity in assembly group: 2 Piece / Pos. 30

MH-SCREW M12X45 DIN603-8.8GAL

Quantity in assembly group: 1 Piece / Pos. 31

HEXAGON NUT M12 934-10.9-flZn

Quantity in assembly group: 4 Piece / Pos. 32

HEXAGON NUT M16 DIN934-8-GAL

Quantity in assembly group: 4 Piece / Pos. 33

RETAINING RING J 100X3 DIN472

Quantity in assembly group: 2 Piece / Pos. 34

SAFETY RING AS 55X3 DIN471

Quantity in assembly group: 1 Piece / Pos. 35

PLAIN WASHER 17X44X3 GAL

Quantity in assembly group: 6 Piece / Pos. 36

CONTACT DISC FORM M 12-GAL

Quantity in assembly group: 4 Piece / Pos. 37

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 16 Piece / Pos. 38
