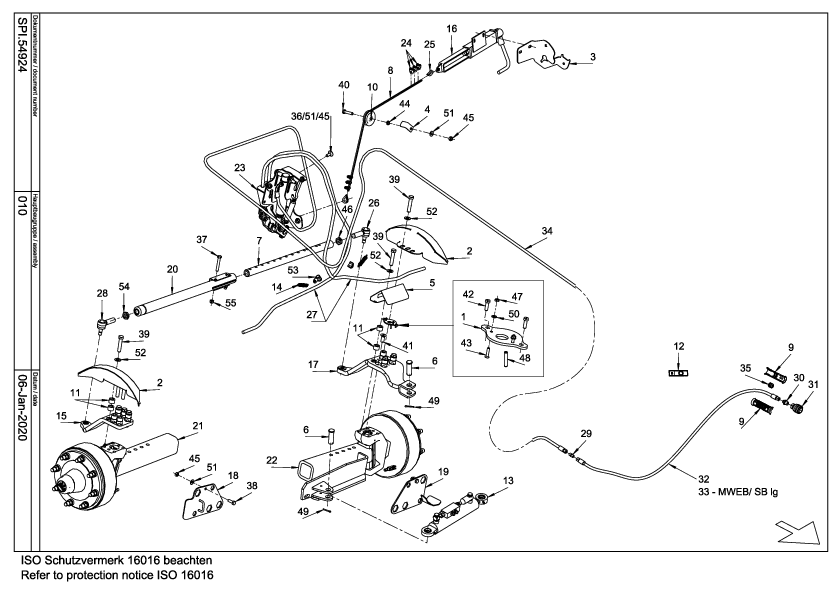

Parts by subassemblies

PLATE

Quantity in assembly group: 1 Piece / Pos. 1

COVER

Quantity in assembly group: 2 Piece / Pos. 2

BRACKET PARKING BRAKE

Quantity in assembly group: 1 Piece / Pos. 3

BRACKET

Quantity in assembly group: 1 Piece / Pos. 4

COVER

Quantity in assembly group: 1 Piece / Pos. 5

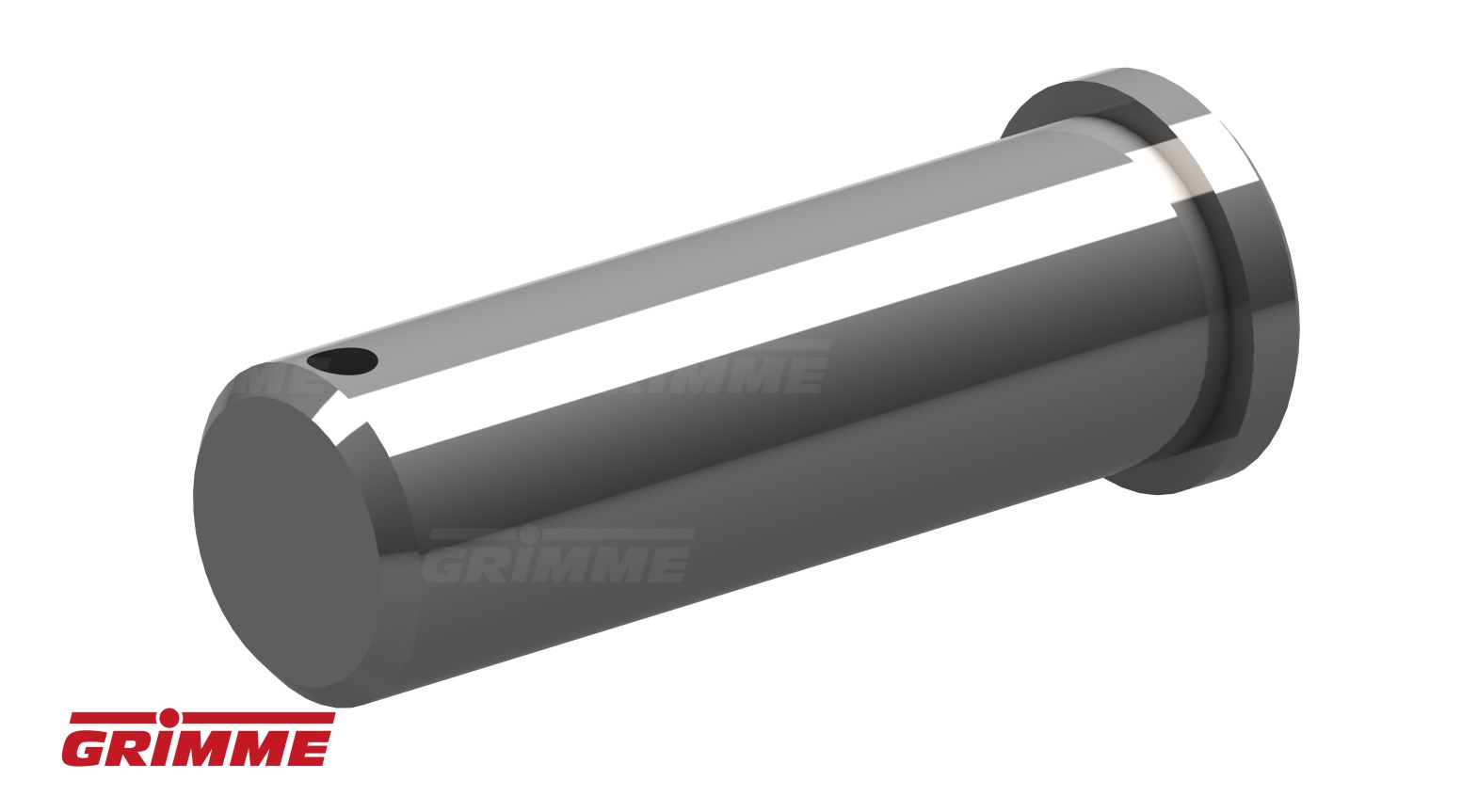

PIN

Quantity in assembly group: 2 Piece / Pos. 6

TRACK ROD

Quantity in assembly group: 1 Piece / Pos. 7

WIRE STRAND 6mm-GAL 1500LG

Quantity in assembly group: 1 Piece / Pos. 8

HANDLI ESCUTCHEON DN10

Quantity in assembly group: 2 Piece / Pos. 9

CABLE ROLLER

Quantity in assembly group: 1 Piece / Pos. 10

SPACER 20MM

Quantity in assembly group: 20 Piece / Pos. 11

B STICKER BRAKE

Quantity in assembly group: 1 Piece / Pos. 12

DOUBLE ACTING HYD RAM w RVB

Quantity in assembly group: 1 Piece / Pos. 13

TENSION SPRING

Quantity in assembly group: 2 Piece / Pos. 14

STEERING ARM R/H

Quantity in assembly group: 1 Piece / Pos. 15

PARKING BRAKE w REVERSING HAND

Quantity in assembly group: 1 Piece / Pos. 16

STEERING ARM L/H

Quantity in assembly group: 1 Piece / Pos. 17

PLATE R/H

Quantity in assembly group: 1 Piece / Pos. 18

PLATE L/H

Quantity in assembly group: 1 Piece / Pos. 19

STEERING ROD LHT

Quantity in assembly group: 1 Piece / Pos. 20

AXLE STUB R/H WITH BRAKE

Quantity in assembly group: 1 Piece / Pos. 21

AXLE STUB L/H WITH BRAKE

Quantity in assembly group: 1 Piece / Pos. 22

MOUNTING PLATE HY-BRAKE

Quantity in assembly group: 1 Piece / Pos. 23

CABLE CLAMP 6mm

Quantity in assembly group: 6 Piece / Pos. 24

THIMBLE B6 DIN6899 BRIGHT GAL

Quantity in assembly group: 2 Piece / Pos. 25

BALL JOINT

Quantity in assembly group: 1 Piece / Pos. 26

BRAKE CABLE 2000LG

Quantity in assembly group: 1 Piece / Pos. 27

UNIVERSAL BALL M24x1.5 L/H

Quantity in assembly group: 1 Piece / Pos. 28

P-GS 8L

Quantity in assembly group: 1 Piece / Pos. 29

GE08LM18X1.5EDOMDCF

Quantity in assembly group: 1 Piece / Pos. 30

COUPLING BOX F HYD BRAKE

Quantity in assembly group: 1 Piece / Pos. 31

HYD HOSE

Quantity in assembly group: 1 Piece / Pos. 32

HYD HOSE-3100-NW6-450BAR

Quantity in assembly group: 1 Piece / Pos. 33

HYD HOSE-8000-NW6-1X90-450BAR

Quantity in assembly group: 1 Piece / Pos. 34

INSERTION 13,5mm DN6

Quantity in assembly group: 1 Piece / Pos. 35

COACH BOLT M12X30-DIN603-8.8-G

Quantity in assembly group: 2 Piece / Pos. 36

HEX BOLT M12X80-931-10.9 flZn

Quantity in assembly group: 2 Piece / Pos. 37

SET SCREW M12X35-DIN933-8.8-G

Quantity in assembly group: 2 Piece / Pos. 38

HHC-SCREW M16X80 931-10.9-flZn

Quantity in assembly group: 10 Piece / Pos. 39

HHC-SCREW M12X55 DIN933-8.8-GA

Quantity in assembly group: 1 Piece / Pos. 40

CS-SCREW M16X40 DIN7991

Quantity in assembly group: 2 Piece / Pos. 41

SHC-SCREW M5X16 DIN84-GAL

Quantity in assembly group: 2 Piece / Pos. 42

CS-SCREW M4X16 DIN963-BS

Quantity in assembly group: 2 Piece / Pos. 43

HALF NUT M12 DIN936-17H-GAL

Quantity in assembly group: 1 Piece / Pos. 44

HEXAGON NUT M12 DIN934-8-GAL

Quantity in assembly group: 5 Piece / Pos. 45

HEXAGON NUT M24X1,5DIN936-17H-

Quantity in assembly group: 1 Piece / Pos. 46

HEX NUT M4 DIN934-8-GAL

Quantity in assembly group: 2 Piece / Pos. 47

ROLL PIN 5X30-DIN1481

Quantity in assembly group: 1 Piece / Pos. 48

COTTER PIN 5X36 DIN94-GAL

Quantity in assembly group: 2 Piece / Pos. 49

WASHER B4,3 DIN125-GAL

Quantity in assembly group: 2 Piece / Pos. 50

CONTACT DISC FORM M 12-GAL

Quantity in assembly group: 5 Piece / Pos. 51

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 10 Piece / Pos. 52

PIPE CLAMP RSGU1100 15/25

Quantity in assembly group: 2 Piece / Pos. 53

HEXAGON NUT M24X1,5 LHT 17-GAL

Quantity in assembly group: 1 Piece / Pos. 54

HEX NUT DIN985 M12 10.9 GAL

Quantity in assembly group: 2 Piece / Pos. 55
